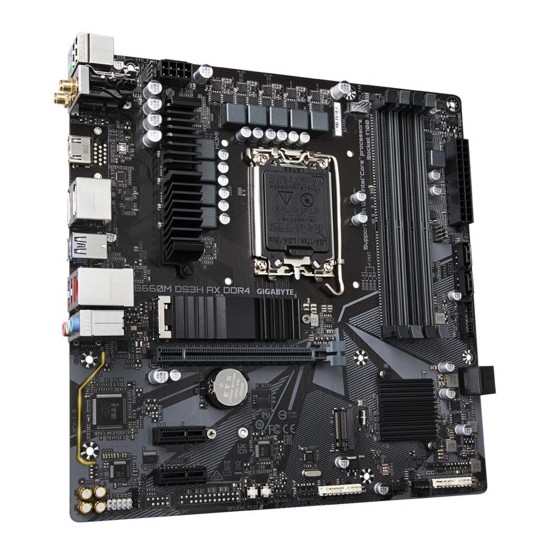

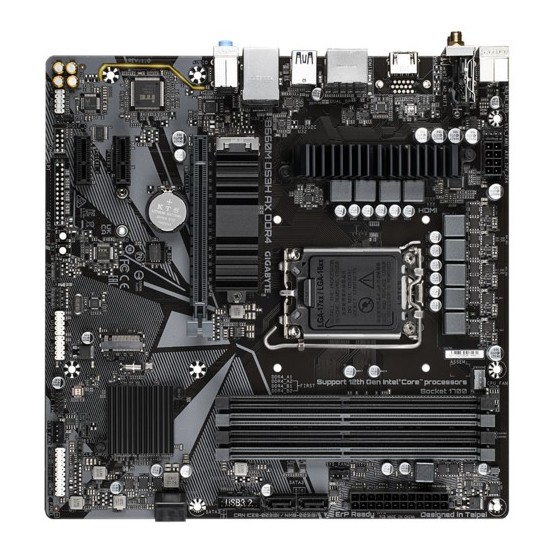

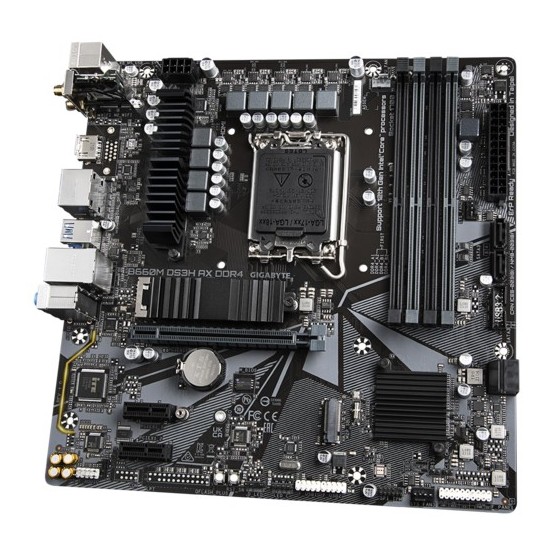

Placa de baza GigaByte B660M DS3H AX DDR4
659.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte B660M DS3H AX DDR4
659.00 leiDescriere
Gigabyte B660M DS3H AX DDR4. Producătorul procesorului: Intel, Priza Processor: LGA 1700, Compatibilitate procesoare: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Tipuri de memorie suportate: DDR4-SDRAM, Maximum de memorie internă: 128 Giga Bites, Tip sloturi de memorie: DIMM. Interfețe drive stocare compatibile: M.2, PCI Express 4.0, SATA III, Tipuri discuri de stocare suportate: HDD & SSD, Niveluri RAID: 0, 1, 5, 10. Tip interfață Ethernet: 2.5 Gigabit Ethernet, Standard Wi-Fi: Wi-Fi 6 (802.11ax), Standarde Wi-Fi: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Componentă pentru: PC-ul, Plăci de bază form factor: micro-ATX, Familie chipuri placă de bază: Intel

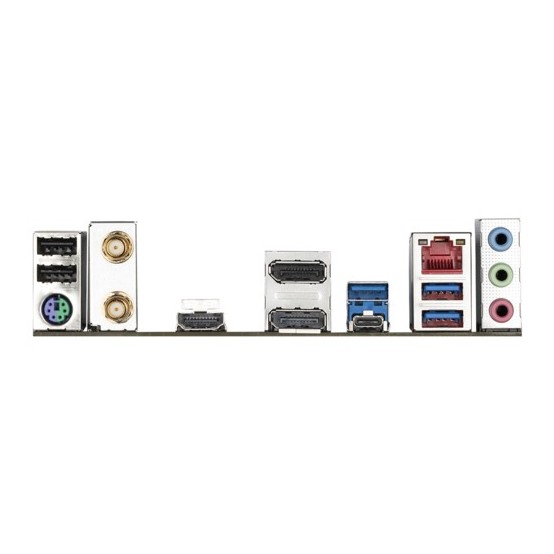

Intel B660M Chipset | Socket LGA1700 | 4 x DDR4 DIMM (up to 128GB) | Audio Realtek | Realtek 2.5GbE LAN chip | 1 x PCI Express x16, 2 x PCI Express x1 | 2 x M.2, 4 x SATA 6Gb/s | 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 2 x DisplayPorts, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x RJ-45 port, 3 x audio jacks| Micro ATX 23cm x 21.5cm
Specificatii
| ID dataSPOT |
164023 |
|---|---|
| Model |
B660M DS3H AX DDR4 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
5 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
2 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel B660
- Numar sloturi DDR4
- 4 x
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 / 2500 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac/ax Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 5 + 1 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 2
- Format
- microATX
- Alte detalii
- Bluetooth 5.2
- ID dataSPOT
- 164023
- Model
- B660M DS3H AX DDR4
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
164023 |
|---|---|
| Model |
B660M DS3H AX DDR4 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
5 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
2 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
