Placa de baza ASRock B660M PHANTOM 4 D4
659.91 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP

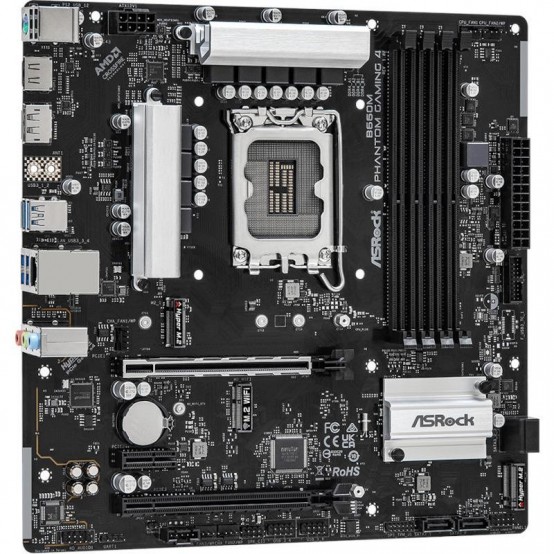

Placa de baza ASRock B660M PHANTOM 4 D4
659.91 leiDescriere
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
mATX
|
| Soclu procesor |
1700
|
| Producator chipset |
Intel
|
| Model chipset |
B660
|
| Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
| Interfata grafica |
PCI Express x16 4.0
|
| Placa audio integrata |
7.1 Audio
|
| Chipset audio |
Realtek ALC897
|
| Placa retea integrata |
10/100/1000 Mbps
|
| Chipset retea |
Intel I219V
|
| Numar SATA-III |
4
|
| M.2 |
2
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
2 (x16)
|
| PCI Express x1 |
1
|

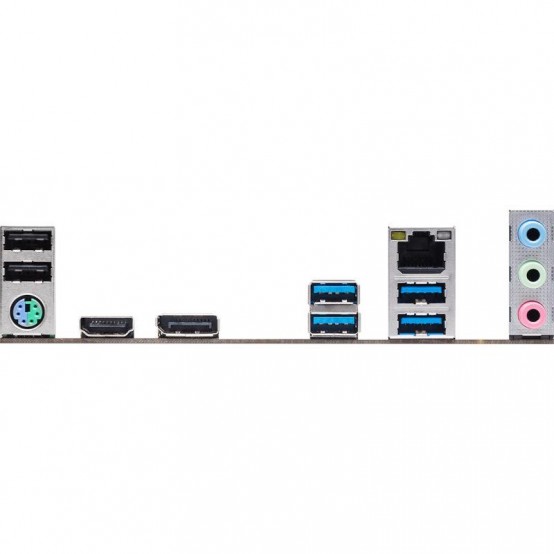

| Conectori Back Panel | |
| PS/2 Mouse-Tastatura |
1
|
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
2
|
| USB 3.2 Gen1 tip A |
4
|
| RJ-45 LAN |
1
|
| Suport audio |
7.1
|
Placa de baza Asrock B660M Phantom Gaming 4 D4 LGA 1700 Supports 12th Gen Intel® Core™ Processors (LGA1700) 9 Phase Dr.MOS Power Design Supports DDR4 4800MHz (OC)* 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 2 Hyper M.2 (PCIe Gen4 x4) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front) Intel® Gigabit LAN https://www.asrock.com/MB/Intel/B660M%20Phantom%20Gaming%204/index.asp
Specificatii
| ID dataSPOT |
163807 |
|---|---|
| Model |
B660M PHANTOM 4 D4 |
| Producator |
ASRock |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
2 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
6 x USB 3.2 |
Grafica
| CrossFire |
AMD CrossFire |
|---|---|
| Video on-board |
Intel Xe Graphics Architecture |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333+(OC) MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core Processors |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core Processors
- North Bridge
- Intel B660
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 5333+(OC) MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 2 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- CrossFire
- AMD CrossFire
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- Intel Xe Graphics Architecture
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 6 x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 163807
- Model
- B660M PHANTOM 4 D4
- Producator
- ASRock
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
163807 |
|---|---|
| Model |
B660M PHANTOM 4 D4 |
| Producator |
ASRock |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
2 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
6 x USB 3.2 |
Grafica
| CrossFire |
AMD CrossFire |
|---|---|
| Video on-board |
Intel Xe Graphics Architecture |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333+(OC) MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core Processors |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
