Placa de baza ASUS TUF GAMING B550M-PLUS 90MB14A0-M0EAY0
849.00 lei
789.00 lei
-60.00 lei
cu TVA
Orderable quantity above the default stock is: 86
Solicita publicarea acestui produs in SICAP

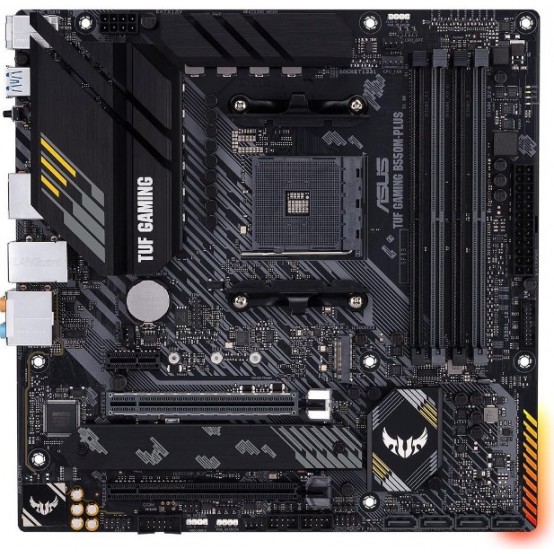

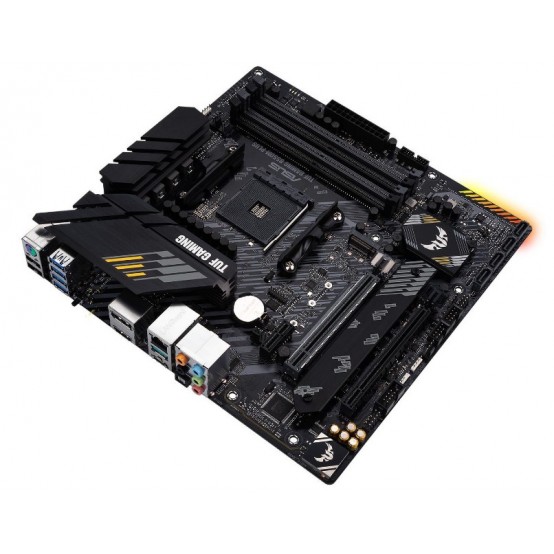

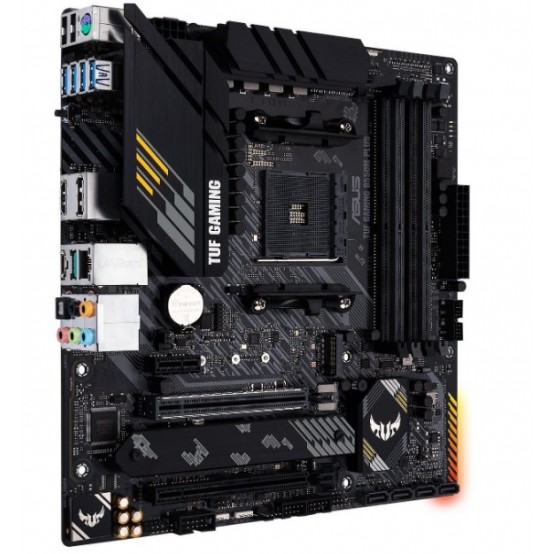

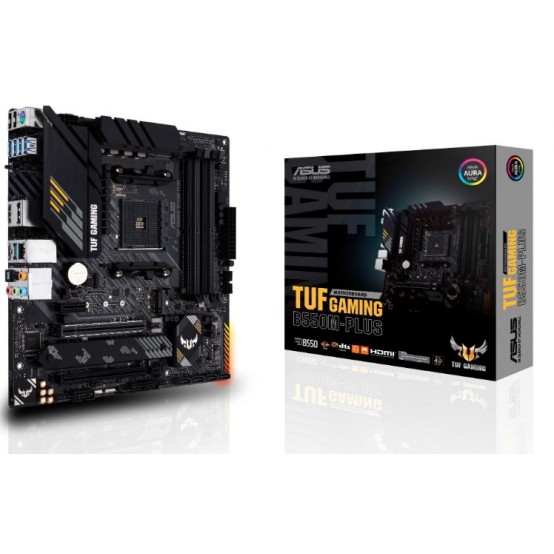

Placa de baza ASUS TUF GAMING B550M-PLUS 90MB14A0-M0EAY0
789.00 leiDescriere
ASUS TUF GAMING B550M PLUS. Producătorul procesorului: AMD, Priza Processor: Mufă AM4, Compatibilitate procesoare: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Tipuri de memorie suportate: DDR4-SDRAM, Maximum de memorie internă: 128 Giga Bites, Tip sloturi de memorie: DIMM. Interfețe drive stocare compatibile: M.2, SATA. Acceptate prelucrare paralela de tehnologie: 2-Way CrossFireX. Componentă pentru: PC-ul, Plăci de bază form factor: micro-ATX, Familie chipuri placă de bază: AMD
Placa de baza Asus AM4 TUF GAMING B550M-PLUS Socket LGA AM4 CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors * * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600 (O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors https://www.asus.com/Motherboards/TUF-GAMING-B550M-PLUS/specifications/
Specificatii
| ID dataSPOT |
149898 |
|---|---|
| Cod |
90MB14A0-M0EAY0 |
| Model |
TUF GAMING B550M-PLUS |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x4 |
1 x PCI Express x4 |
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
| CrossFire |
AMD 2-Way CrossFireX |
|---|---|
| Video on-board |
AMD Radeon Graphics |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen |
| North Bridge |
AMD B550 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- AMD
- Socket
- AM4
- Procesoare compatibile
- 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen
- North Bridge
- AMD B550
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x4
- 1 x PCI Express x4
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- CrossFire
- AMD 2-Way CrossFireX
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- AMD Radeon Graphics
- Audio on-board
- 7.1
- LAN on-board
- 100 / 1000 / 2500 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 7 + 1 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 149898
- Cod
- 90MB14A0-M0EAY0
- Model
- TUF GAMING B550M-PLUS
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
149898 |
|---|---|
| Cod |
90MB14A0-M0EAY0 |
| Model |
TUF GAMING B550M-PLUS |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x4 |
1 x PCI Express x4 |
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
| CrossFire |
AMD 2-Way CrossFireX |
|---|---|
| Video on-board |
AMD Radeon Graphics |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen |
| North Bridge |
AMD B550 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
