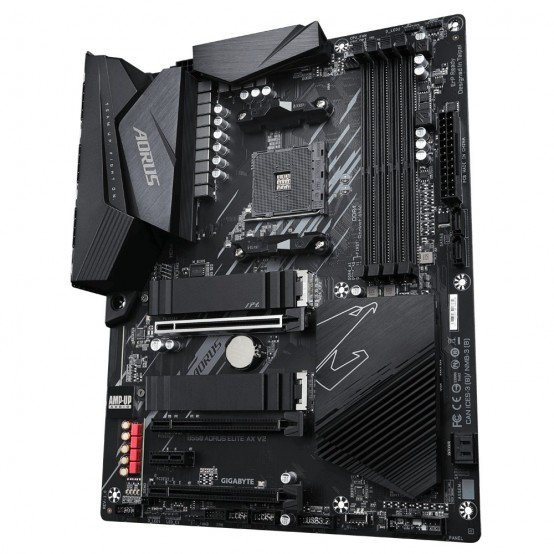

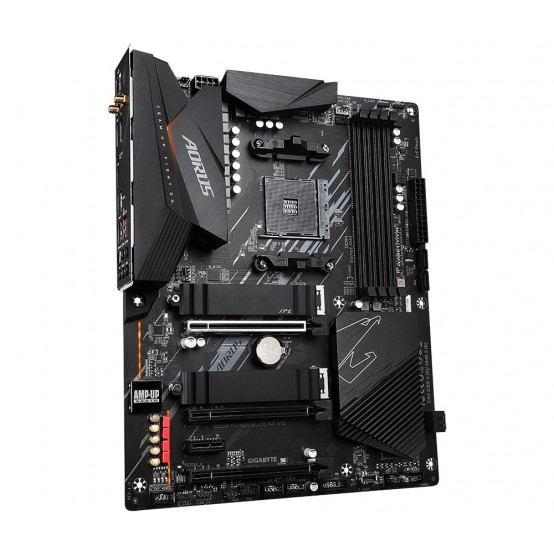

Placa de baza GigaByte B550 AORUS ELITE AX V2
809.00 lei
cu TVA
Orderable quantity above the default stock is: 38
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte B550 AORUS ELITE AX V2
809.00 leiDescriere
Placa de baza Gigabyte B550 AORUS ELITE AX V2 AM4 / B550 AORUS ELITE AX V2 AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Enlarged Surface Heatsinks, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, Front USB Type-C™, RGB FUSION 2.0, Q-Flash Plus Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 12+2 Phases Digital Twin Power Design with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Front USB 3.2 Gen1 Type-C™ and DisplayPort & HDMI for Multiple Display RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-AX-V2-rev-10/sp#sp
Specificatii
| ID dataSPOT |
149927 |
|---|---|
| Model |
B550 AORUS ELITE AX V2 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.0 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
AMD Radeon Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd Gen AMD Ryzen |
| North Bridge |
AMD B550 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- AMD
- Socket
- AM4
- Procesoare compatibile
- 3rd Gen AMD Ryzen
- North Bridge
- AMD B550
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 3 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- AMD Radeon Graphics
- Audio on-board
- 7.1
- LAN on-board
- 100 / 1000 / 2500 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 7 + 1 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- ATX
- Alte detalii
- Bluetooth 5.0
- ID dataSPOT
- 149927
- Model
- B550 AORUS ELITE AX V2
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
149927 |
|---|---|
| Model |
B550 AORUS ELITE AX V2 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.0 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
AMD Radeon Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd Gen AMD Ryzen |
| North Bridge |
AMD B550 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
