UPS APC SRT10KRMXLI
73 599.00 lei
48 199.00 lei
-25 400.00 lei
cu TVA
Orderable quantity above the default stock is: 6
UPS APC SRT10KRMXLI
48 199.00 leiDescriere
APC Smart-UPS SRT 10000VA RM 230V
High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Output power capacity
10.0kWatts / 10.0kVA
Rack Height
6U

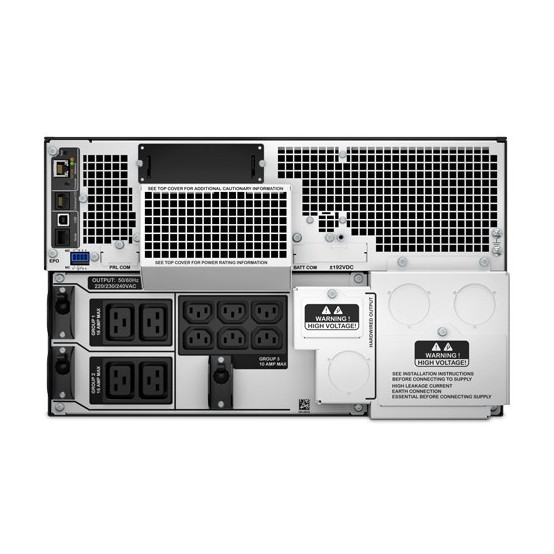

Output Connections
(3) IEC Jumpers (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V, 400V 3PH
Input Connections
Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6 conectori C13 4 conectori C19 extended runtime rackabil 6U,3 ani garantie echipament si 2 ani garantie baterie
Specificatii
| ID dataSPOT |
82377 |
|---|---|
| Model |
SRT10KRMXLI |
| Producator |
APC |
| Garantie comerciala |
3 ani |
Specificatii tehnice
| Tip |
Online (Double-conversion) |
|---|---|
| USB |
1 x USB |
| Smart-Slot |
1 x Smart-Slot |
| RJ45 |
1 x RJ45 |
| Capacitate |
10000 VA |
| Putere |
10000 W |
| IEC 320 C13 (Battery Backup) |
6 |
| IEC Jumpers (Surge Protection) |
3 |
| IEC 320 C19 |
4 |
| Hard Wire 3-wire |
1 |
| Capacitate baterii |
Maintenance-free sealed Lead-Acid battery |

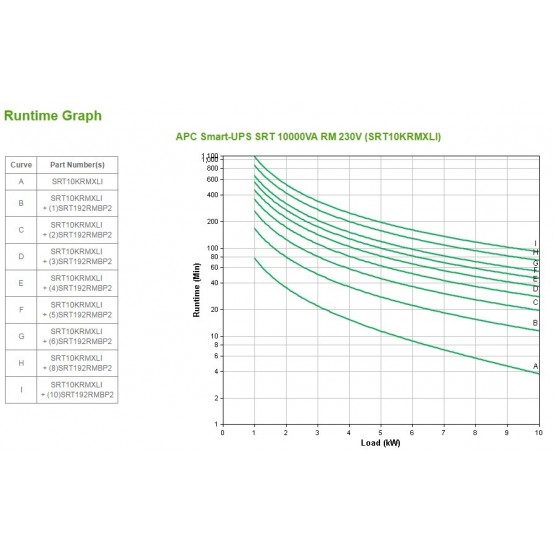

| Timp mediu de functionare |
4 - 400 minute |
| Timp Incarcare |
1.5 ore |
| Rack Mountable |
6U Rack Mount |
| Dimensiuni |
263 x 432 x 715 mm |
| Greutate |
111.8 kg |
| Alte detalii |

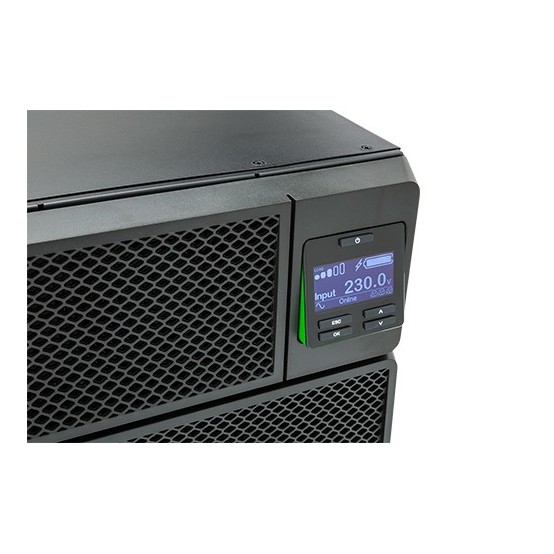

LCD Display |
Specificatii
- Tip
- Online (Double-conversion)
- USB
- 1 x USB
- Smart-Slot
- 1 x Smart-Slot
- RJ45
- 1 x RJ45
- Capacitate
- 10000 VA
- Putere
- 10000 W
- IEC 320 C13 (Battery Backup)
- 6
- IEC Jumpers (Surge Protection)
- 3
- IEC 320 C19
- 4
- Hard Wire 3-wire
- 1
- Capacitate baterii
- Maintenance-free sealed Lead-Acid battery
- Timp mediu de functionare
- 4 - 400 minute
- Timp Incarcare
- 1.5 ore
- Rack Mountable
- 6U Rack Mount
- Dimensiuni
- 263 x 432 x 715 mm
- Greutate
- 111.8 kg
- Alte detalii
- LCD Display
- ID dataSPOT
- 82377
- Model
- SRT10KRMXLI
- Producator
- APC
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
82377 |
|---|---|
| Model |
SRT10KRMXLI |
| Producator |
APC |
| Garantie comerciala |
3 ani |
Specificatii tehnice
| Tip |
Online (Double-conversion) |
|---|---|
| USB |
1 x USB |
| Smart-Slot |
1 x Smart-Slot |
| RJ45 |
1 x RJ45 |
| Capacitate |
10000 VA |
| Putere |
10000 W |
| IEC 320 C13 (Battery Backup) |
6 |
| IEC Jumpers (Surge Protection) |
3 |
| IEC 320 C19 |
4 |
| Hard Wire 3-wire |
1 |
| Capacitate baterii |
Maintenance-free sealed Lead-Acid battery |
| Timp mediu de functionare |
4 - 400 minute |
| Timp Incarcare |
1.5 ore |
| Rack Mountable |
6U Rack Mount |
| Dimensiuni |
263 x 432 x 715 mm |
| Greutate |
111.8 kg |
| Alte detalii |
LCD Display |
