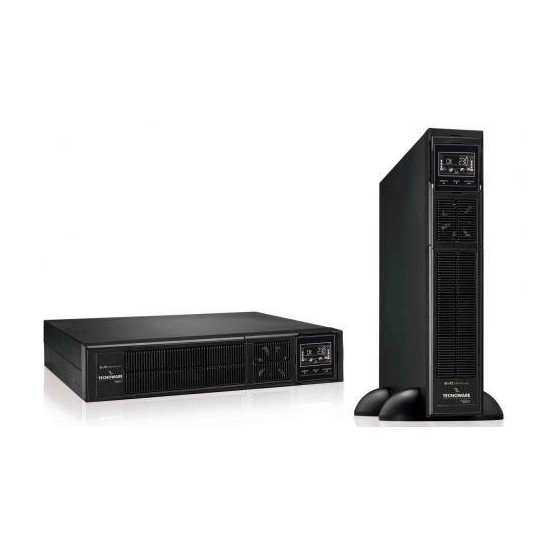

UPS Tecnoware EVO DSP PLUS FGCEDP2402RTIEC
4 749.00 leiDescriere
UPS EVO DSP PLUS 2,400 RACK TOWER - Power 2,400 VA PF 0,9. On Line Technology (VFI) DSP, Efficiency 94%, Input / output 230 / 230Vac 50 / 60Hz, 8 IEC C13 sockets, dimensions 43.8x8.8x41 cm (2U), weight 19 Kg, bacup time 10 min, including 4 batteries of 12Vdc 9Ah. Positioning in 19" rack or tower, multifunction graphic LCD display, static bypass, hot swap battery, EPO connector for USB and RS232 communication ports for UPS control and on / off programming via the free TecnoManager software. SNMP or Dry Contact card (optional).
- Complete protection from blackout, voltage fluctuations (overvoltages and undervoltages), lightning (with upstream arrester), frequency variations, surges, harmonics, voltage distortions
- Recommended for Data Centers, Local Area Network (LAN ), Electro-medical, Industry processes, Virtual servers, Pellet stoves, Thermo-fireplaces, Boilers for home heating
- Convertible format (Rack 19" or Tower) with adjustable display
- Hot Swap batteries
- Intelligent slot for SNMP card o Dry Contact
- On-Line Double Conversion technology transformerless (VFI-SS-111)
- Active PFC circuit (0.99)
- Compatibility with generating set
- Battery charging system managed by microprocessor
- Static bypass
Tecnoware EVO DSP PLUS 2400. UPS topology: Double-conversion (Online), Output power capacity: 2.4 kVA, Output power: 2160 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 30 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Certification: CE
Specificatii
| ID dataSPOT |
162269 |
|---|---|
| Cod |
FGCEDP2402RTIEC |
| Model |
EVO DSP PLUS |
| Producator |
Tecnoware |
| Garantie comerciala |
12 luni |
Specificatii tehnice
| Tip |
Online (Double-conversion) |
|---|---|
| USB |
1 x USB |
| RS - 232 |
1 x RS - 232 |
| Capacitate |
2400 VA |
| Putere |
2160 W |
| IEC 320 C13 (Battery Backup) |
8 |
| Capacitate baterii |
Lead-Acid |
| Timp mediu de functionare |
11 - 20 minute |
| Rack Mountable |
2U Rack Mount |
| Dimensiuni |
438 x 88 x 41 mm |
| Greutate |
19 kg |
| Alte detalii |
fara AVR. display LCD |
Specificatii
- Tip
- Online (Double-conversion)
- USB
- 1 x USB
- RS - 232
- 1 x RS - 232
- Capacitate
- 2400 VA
- Putere
- 2160 W
- IEC 320 C13 (Battery Backup)
- 8
- Capacitate baterii
- Lead-Acid
- Timp mediu de functionare
- 11 - 20 minute
- Rack Mountable
- 2U Rack Mount
- Dimensiuni
- 438 x 88 x 41 mm
- Greutate
- 19 kg
- Alte detalii
- fara AVR. display LCD
- ID dataSPOT
- 162269
- Cod
- FGCEDP2402RTIEC
- Model
- EVO DSP PLUS
- Producator
- Tecnoware
- Garantie comerciala
- 12 luni
