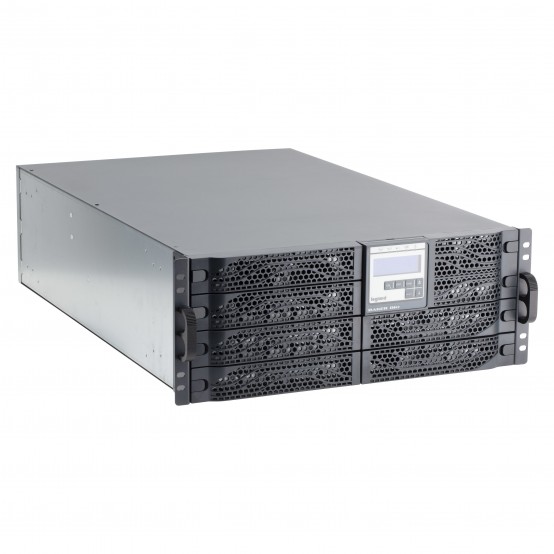

UPS Legrand Daker DK Plus 310174
Solicita publicarea acestui produs in SICAP
|
||||
DAKER DK PLUS SERIES |
||||
On – Line Double Conversion, transformerless |
||||
EN 62040-3 CLASS = VFI |
||||
Recommended for IT application |
||||
Power factor correction PFC (>0,99) |
||||
Convertible tower and 19" rack |
||||
User friendly LCD display |
||||
Wide input voltage range and frequency |
||||
Convertible display helps to use both for tower and rack applications |
||||
Availability to configure as 50/60Hz Frequency Converter from LCD Panel |
||||
Smart communication port and SNMP management capability |
||||
Hot Swappable Battery |
||||
Emergency shutdown control through EPO |
||||
Overload & short circuit protection |
||||
Powerful Built-in Charger |
||||
High efficiency level (92% for 3KVA and 94% for 10KVA) |
||||
Extended back up time with battery cabinet |
||||
Cold start (DC power on) |
||||
Advanced battery management (ABM) |
1kVA up to 10kVA - 1ph/1ph |
|||
RS232, USB and SNMP can be activated simultaneously |
O/P PF 1000/3000 = 0.9 |
|||
Compact size & light weight |
O/P PF 5000/10000 = 1 |
Specificatii
ID dataSPOT |
162169 |
---|---|
Cod |
310174 |
Model |
Daker DK Plus |
Producator |
Legrand |
Garantie comerciala |
2 ani |
Tip |
Double Conversion Online |
---|---|
USB |
1 x USB |
RS - 232 |
1 x RS - 232 |
Capacitate |
6000 VA |
Putere |
6000 W |
Terminal Block |
1 |
IEC 320 C13 (Battery Backup) |
8 |
IEC 320 C19 |
2 |
Numar baterii |
20 x 5 Ah |
Timp mediu de functionare |
4 minute |
Rack Mountable |
2U Rack Mount |
Dimensiuni |
440 x 176 x 680 mm |
Greutate |
60 kg |
