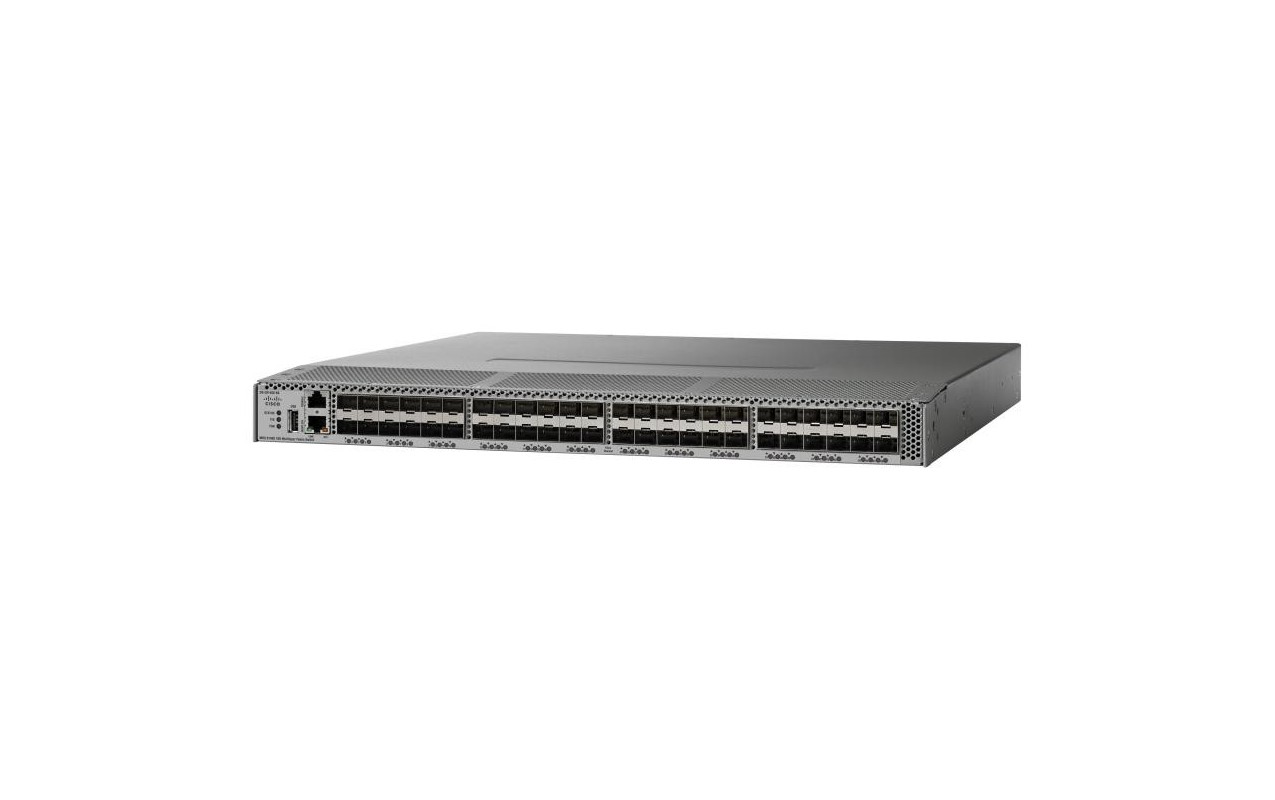

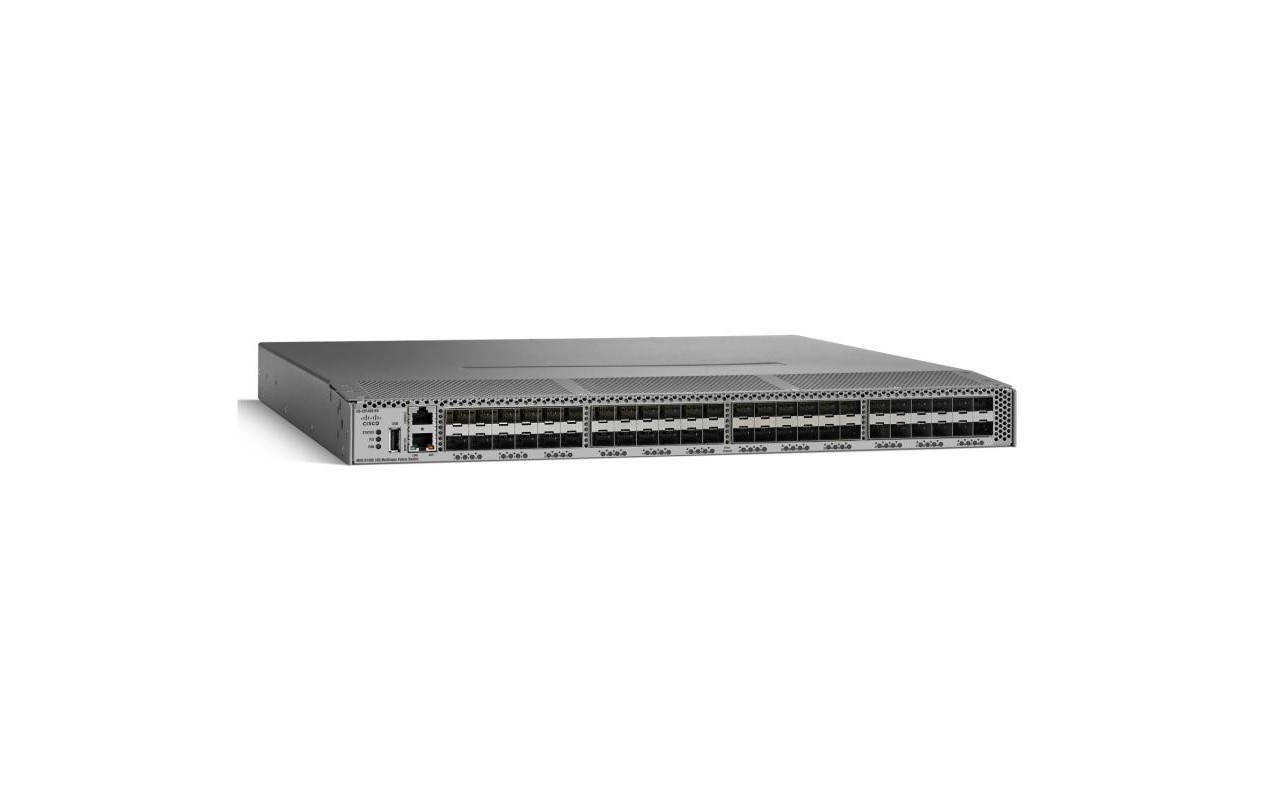

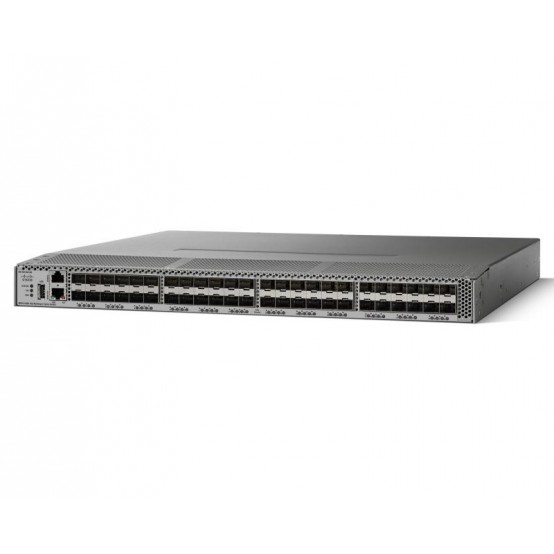

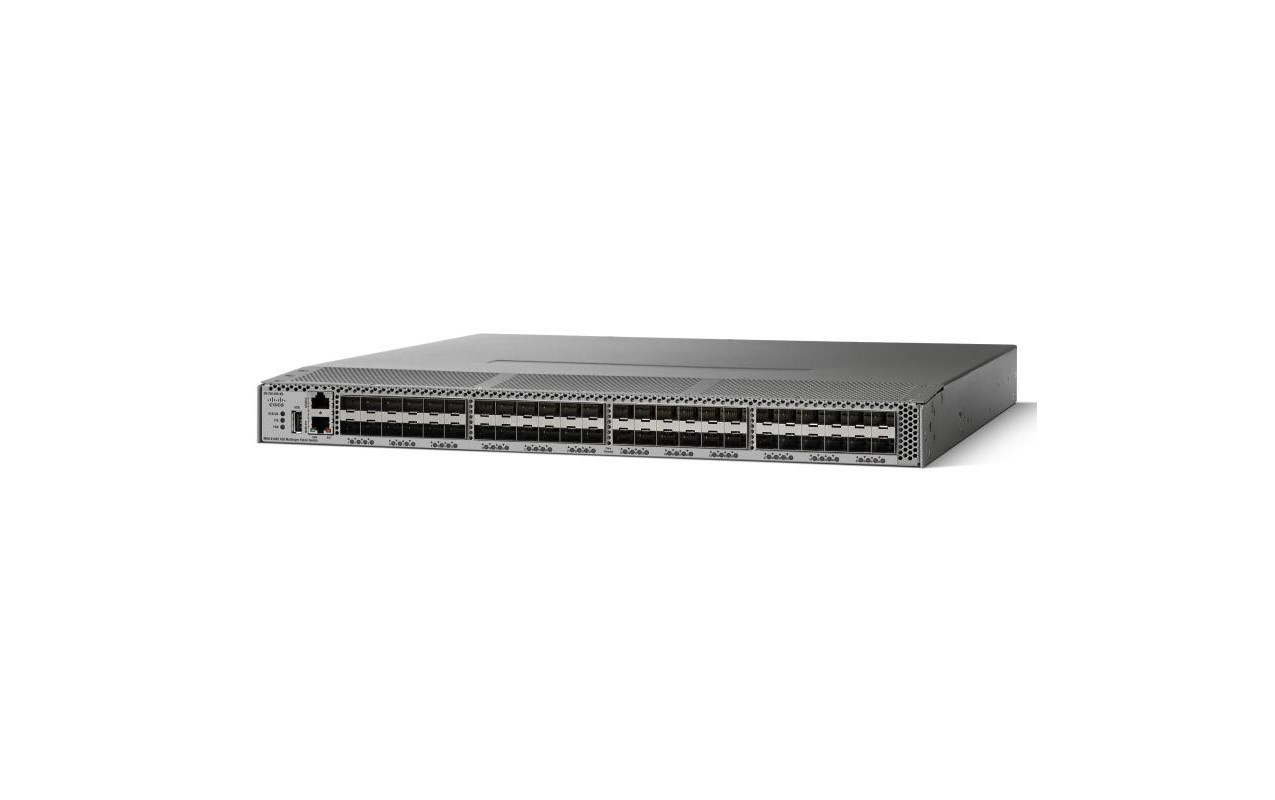

Switch HP K2Q16A

Lifecycle

• Obsolete Date 31-01-2025
• End of support date 30-06-2028

Specifications

• Software (optional) Port upgrade license, Enterprise Package license, Cisco Data Center Network Manager (DCNM) license, Advantage license (1/3/5 years)
• Product dimensions (metric) 4.37 x 43.59 x 41.50 cm
• Form factor 1U
• Product dimensions (imperial) 1.72 x 17.16 x 16.34 in
• Weight 19.84 lb
• Ports 12-port active
• Warranty The Hardware Warranty is 1-year parts, 1-year on-site (standard business hours, next business day response) and 1-year labor. For more information, refer to the HPE website at https://hpe.com/support.
• Encryption capability AES 256-bit
• Media types Supports 16Gb and 8Gb transcievers
• Upgradability Activate additional ports using 12-port upgrade license
• Weight 9 kg
• Availability features Non-disruptive software upgrades, hot-swappable and dual redundant power supplies, hot-swappable fan tray, hot-swappable SFP+ optics, stateful process restart
• Port speed 16Gb
• Aggregate switch bandwidth 768 Gbps, maximum
• Protocol supported Fibre Channel

Quickspecs

• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs

Overview

Are you looking for a high-performance Fibre Channel switch for departments, enterprises, or the edge? The HPE Storage Fibre Channel Switch C-series SN6010C is a high-performance, flexible, and cost-effective platform providing high-density, 16Gbps ports for storage networking deployments in small, medium-sized, and large enterprise environments. This switch offers outstanding value by providing high-availability, security, and ease of use at a cost-effective price in a compact one-rack-unit (1RU) form factor. With the flexibility to expand from 12 to 48 ports in 12-port increments, it offers the densities required to scale from an entry-level departmental switch to top-of-the-rack switch to edge connectivity in enterprise SANs. This switch delivers a non-blocking architecture, with all 48 4/8/16Gbps ports operating at line rate concurrently. With dual redundant hot-swappable power supplies and fan trays, this switch offers high availability scalable to mission-critical deployments.

What s new

• Newly bundled offering with 16 Gb SFPs
• New subscription-based Advantage bundle with Cisco DCNM/NDFC and Enterprise license

Features

Includes VSAN technology that provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.

Simplified Management

Offers flexibility to “pay as you grow” by scaling the HPE Storage Fibre Channel Switch C-series SN6010C from 12port to 48port density, after enabling additional ports, and adding on-demand port activation licenses.

Provides advanced traffic management capabilities integrated into the HPE Storage Fibre Channel Switch C-series SN6010C to simplify deployment and optimization of core-edge fabrics.

Delivers outstanding availability and reliability by providing optional redundancy on all major components, such as power supplies and fans.

HPE Storage Fibre Channel Switch C-series SN6010C supports innovative features such as virtual storage area network (VSANs), port channels, quality of service (QoS), SAN security, SAN management, hardware-enforced zoning, and in-service software upgrade (ISSU) at no additional cost to the user.

Data Center Network Manager software provides a centralized management tool with task-based wizards that simplifies management of a standalone switch or multiple switches and fabrics. Starting NX-OS 9.2(1), Cisco DCNM is renamed as Cisco Nexus Dashboard Fabric Controller (NDFC).

Compatible with HPE Storage SN8000C (MDS 9500 Series) and HPE Storage SN8500C / SN8700C (MDS 9700 Series) multilayer directors and MDS 9100, 9200 and, MDS 9300 series fabric switches with up to 48 autosensing fibre channel ports capable of speeds of 16, 8, 4, and 2Gbps.

HPE Storage Fibre Channel Switch C-series SN6010C includes 16Gbps of dedicated bandwidth for each port and aggregate platform bandwidth of 768Gbps. It is designed to meet the performance and scalability requirements of the most demanding environments.

High Performance for NVMe/All-flash Arrays and Virtualized Workloads Fibre channel Storage Networking Services at a Cost-effective Price

HPE Storage Fibre Channel Switch C-series SN6010C is designed for mission-critical environments in which downtime is unacceptable.

Offers non-disruptive software upgrades, dual hot-swappable power supplies (integrated fans for redundancy), hot-swappable fans, VSANs for fault isolation, port channels for ISL resiliency, and F-port trunking for resiliency on uplinks operating in NPV mode.

HPE Storage Fibre Channel Switch C-series SN6010C supports SAN plug-and-play capability as well as built-in storage network management, with all features available through a command-line interface (CLI) or the Cisco Data Center Network Manager for simplified storage management.

High Availability Platform

Common platform architecture and the use of MDS 9000 NX-OS Software intelligent storage networking services across all MDS 9000 Family switches reduce ongoing operating expenses by providing a consistent set of provisioning, management, and diagnostic capabilities.

N_Port ID Virtualization(NPIV) and N-Port Virtualization (NPV) technology provides independent management for each virtual machine and scaling of SANs without reaching Fibre Channel domain ID limits.
