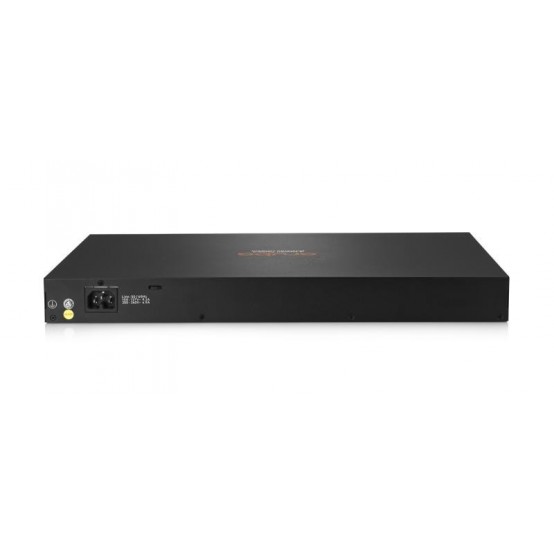

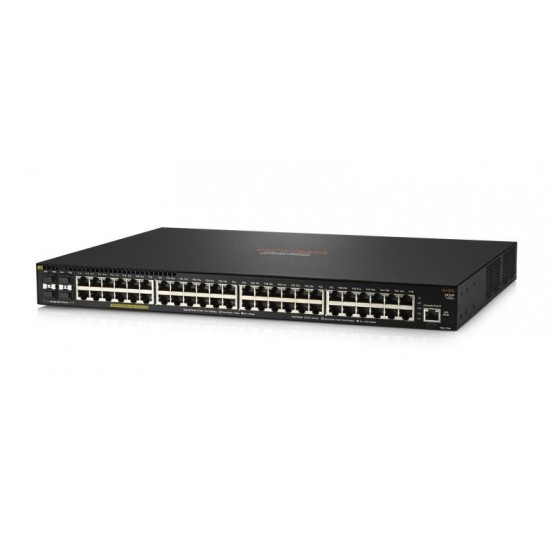

Switch HP JL558A

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Ports (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less
• Warranty Limited lifetime warranty. See the warranty duration.
• Management features HPE Aruba Networking Management Software (AirWave) Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
• PoE capability 740W PoE+
• Input voltage 100–127/200–240 VAC, rated
• Heat dissipation 420.9 BTU/hr (444.1 kJ/hr)
• Latency 1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
• Weight 4.79 kg
• Product dimensions (imperial) 1.73 x 17.42 x 12.77 in
• Product dimensions (metric) 4.39 x 44.25 x 32.42 cm
• Power consumption 980W (maximum)
• Weight 10.56 lb
• Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress 4 GB eMMC
• Switching capacity 176 Gbps
• Throughput Up to 112 Mpps

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

What s new

• The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
• Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
• Scale with 8-member stacking.
• Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.

Features

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

The HPE Aruba Networking 2930F Switch Series supports HPE Aruba Networking ClearPass Policy Manager for unified, consistent policy between wired and wireless users, simplifying implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

HPE Aruba Networking Management Software (AirWave) provides an on-premise network management platform for wired and wireless network devices. Cloud-based management with Zero Touch Provisioning supported by HPE Aruba Networking Central.

High-performance Access Layer Switches

Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.

The HPE Aruba Networking 2930F Switch Series provides performance, security, and ease of use optimized for the digital workplace with unified management tools such as HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (Airwave), and HPE Aruba Networking Central.

Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.

Simplified Management for Your Network

Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

The HPE Aruba Networking 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.

Security and Quality of Service You Can Rely on

Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.

HPE Aruba Networking Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.

Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.

The HPE Aruba Networking 2930F Switch Series is designed with a powerful ProVision ASIC to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.

Performance and Power at the Edge

Up to 8-member stacking with HPE Aruba Networking Virtual Switching Framework (VSF) and convenient built-in 1 GbE or 10 GbE uplinks and PoE+ models deliver right-size network access performance.

Provides optimal configuration automatically when connected to HPE Aruba Networking access points for PoE priority, VLAN configuration, and rogue AP containment.
