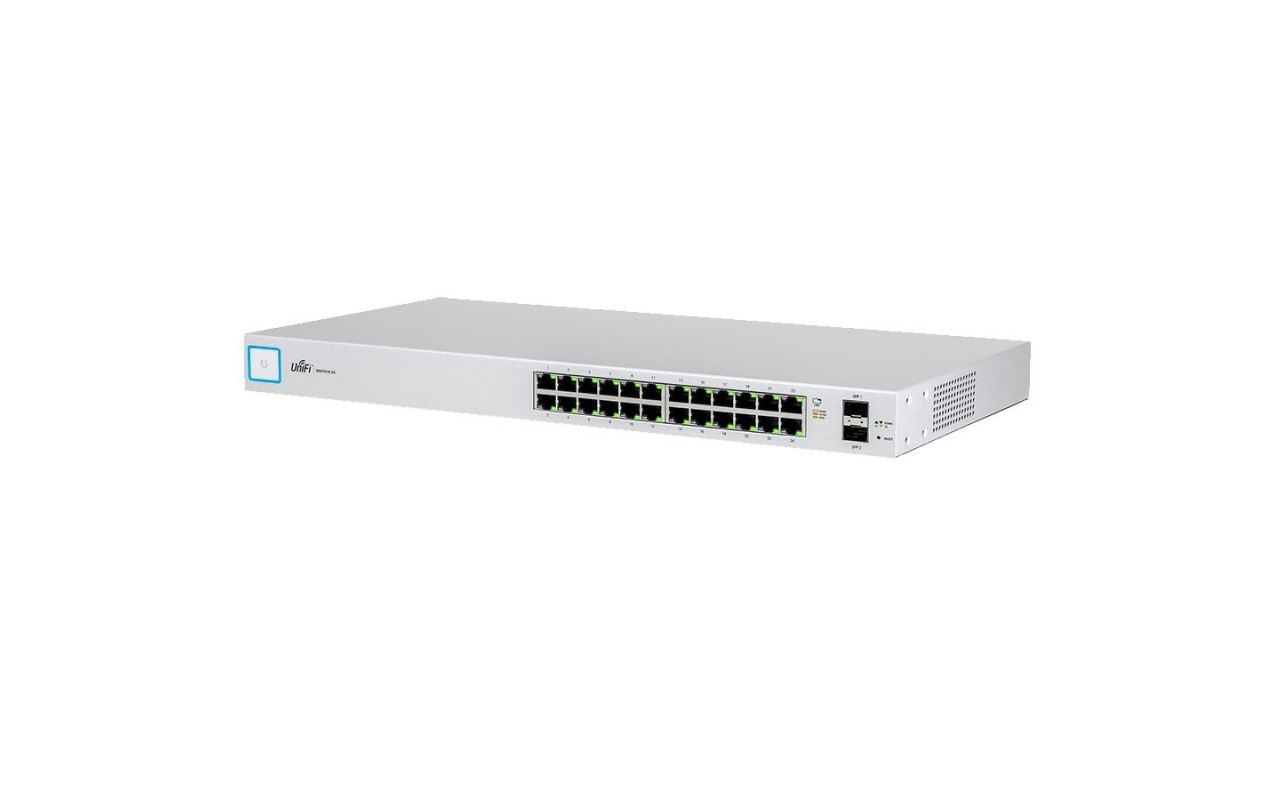

Switch Ubiquiti UniFi Switch 24 US-24-250W

Advanced Port Management

Each switch port offers custom settings: port name, PoE, network/VLAN configuration, and operation mode (switching, mirroring, or aggregate) – as well as 802.1X Authentication and Radius VLAN support.

MULTI-SITE MANAGEMENT

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

OPTICAL FIBRE BACKHAUL

Two SFP ports support uplinks of up to 1 Gbps.

VERSATILE MOUNTING OPTIONS

The UniFi Switch can be placed on a desktop or mounted on a wall or in a rack.

UNIFI CONTROLLER

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1x control and RADIUS VLAN
- Debug terminal option for command-line interface

• (24) Gigabit RJ45 Ethernet Ports
• Auto-Sensing IEEE 802.3af/at PoE+
• Configurable 24V Passive PoE
• (2) 1G SFP Ports
• 250W Power Supply
• Managed by UniFi Controller
• 1U Rack Mount Height
