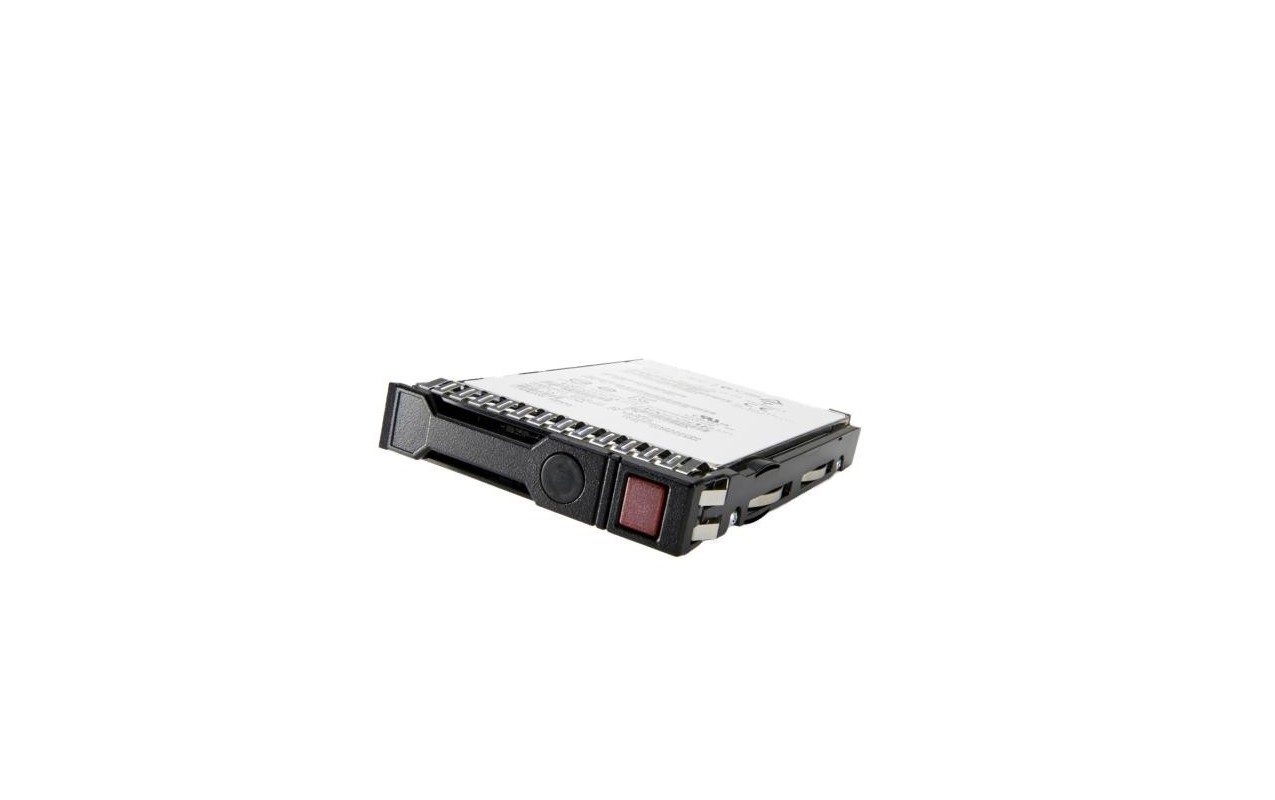

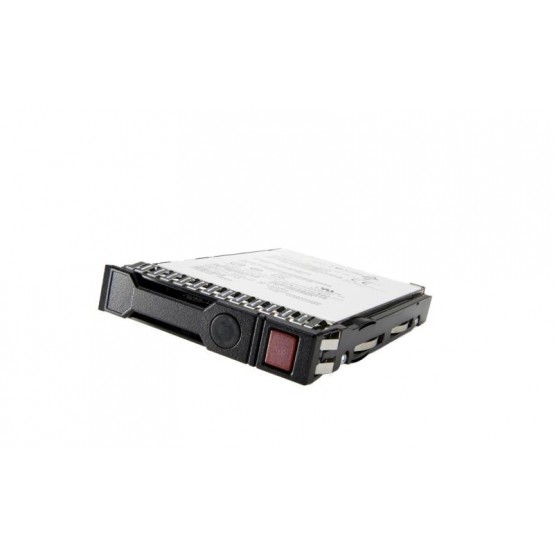

SSD HP P26104-B21

Lifecycle

• Obsolete Date 28-02-2026
• End of support date 30-09-2027

Specifications

• Read IOPS Random Read IOPS (4KiB, Q=16)= 900,000 Max Random Read IOPS (4KiB)=145,000@Q32
• Lifetime writes 13,697
• Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
• Weight 0.5 kg
• Product dimensions (imperial) 8.63 x 9 x 5.75 in
• Product dimensions (metric) 21.92 x 22.86 x 14.61 cm
• Weight 1.1 lb
• Interface NVMe
• Workload Read Intensive
• Drive form factor SFF
• Carrier type Smart Carrier
• Capacity 7.68 TB
• Plug type Hot Pluggable
• Power (Watts) 17.9
• Endurance DWPD (Drive Writes Per Day) 1
• Height 15mm
• Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
• Write IOPS Random Write IOPS (4KiB, Q=16)= 140,000 Max Random Write IOPS (4KiB)=145,000@Q32

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Do you need to accelerate the performance of your read intensive applications? HPE NVMe High Performance Read Intensive (RI) Solid State Drives (SSDs) are best suited for applications requiring a strong blend of high read IOPS, low latency, and high endurance at a strong price point. NVMe SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance RI SSDs provide high-performance data transfers from storage, at rates faster than SAS or SATA SSDs. Designed to utilize the high bandwidth of PCIe Gen4 in select servers for workloads high in reads such as read caching, web servers, and boot/swap.

What s new

• Offering 1.92 TB, 3.84 TB, 7.68 TB, and 15.36 TB NVMe High Performance Read Intensive SFF SSDs.

Features

Achieve higher IOPS and low latency to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

HPE NVMe High Performance Read Intensive (RI) Solid State Drives are ideal for read caching, social media, bulk storage, email, and boot/swap.

HPE NVMe PCIe Gen4 U.3 Dynamic SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on selected HPE ProLiant servers.

HPE NVMe PCIe Gen4 U.3 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

Compatible products

• HPE ProLiant DL385 Gen10 Plus 7702 2.0GHz 64-core 1P 32GB-R 24SFF 800W PS Server
• HPE ProLiant DL385 Gen10 Plus 7402 2.8GHz 24-core 2P 32GB-R 16SFF NVMe 800W PS Server
• HPE ProLiant DL385 Gen10 Plus 7302 3.0GHz 16-core 1P 32GB-R 8SFF 500W PS Server
• HPE ProLiant DL385 Gen10 Plus 7262 3.2GHz 8-core 1P 16GB-R 8SFF 500W PS Server

Documents

• HPE Solid State Disk Drives QuickSpecs
