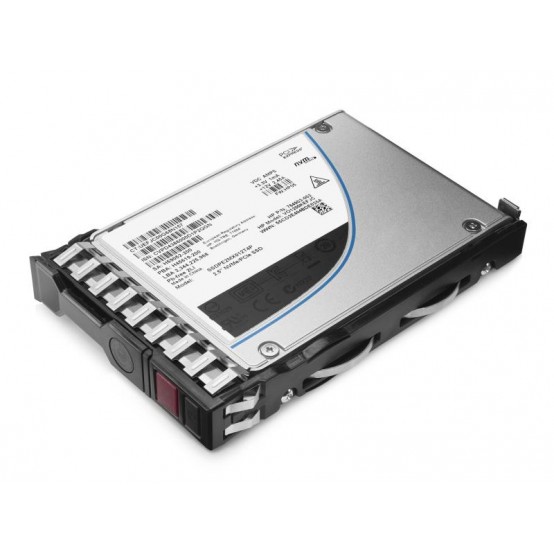

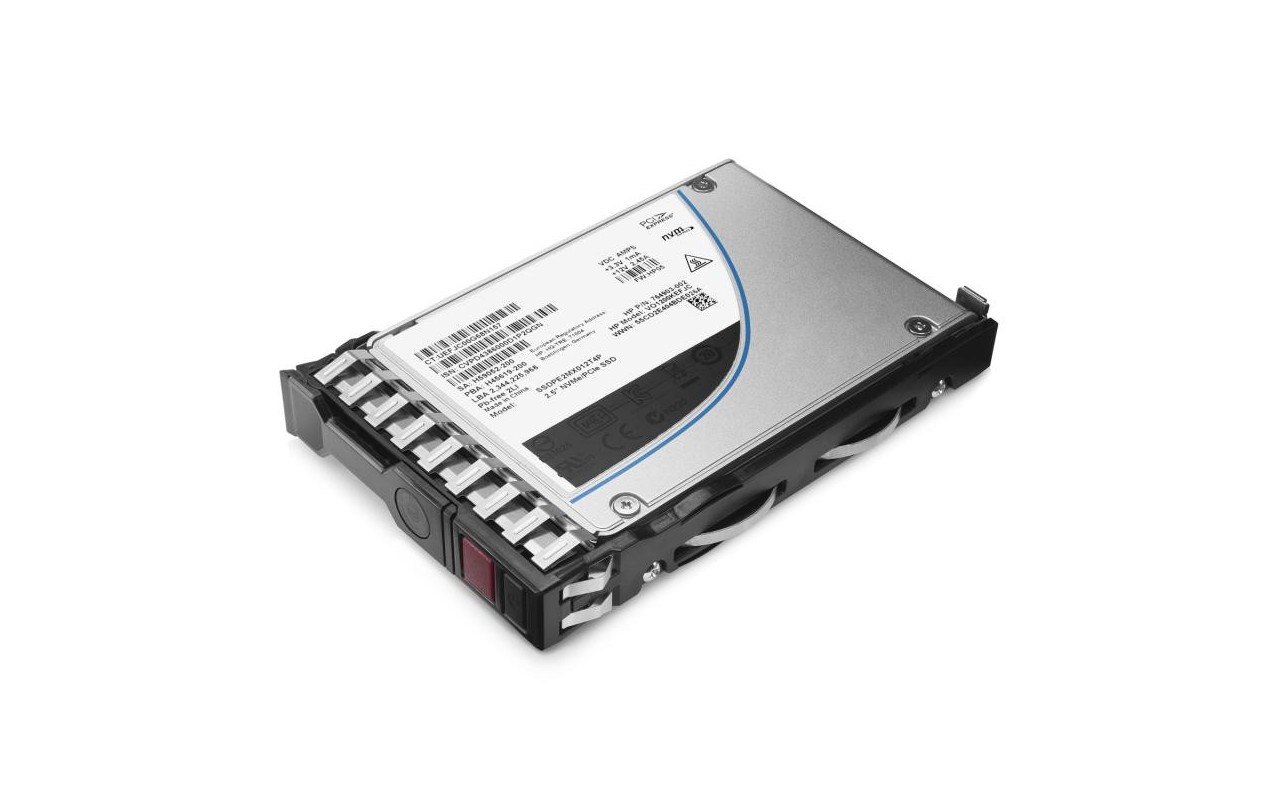

SSD HP P22276-B21

Lifecycle

• Obsolete Date 30-11-2022
• End of support date 30-09-2027

Specifications

• Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
• Product Dimensions (metric) 21.92 x 22.86 x 14.61 cm
• Weight 1.508 lb
• Weight 0.68 kg
• Product Dimensions (imperial) 8.63 x 9 x 5.75 in
• Write IOPS Random Write IOPS (4KiB, Q=16)= 115,000 Max Random Write IOPS (4KiB)=120,000@Q16
• Platform Supported HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Read IOPS Random Read IOPS (4KiB, Q=16)= 195,000 Max Random Read IOPS (4KiB)=900,000@Q256
• Height 15mm
• Lifetime Writes 3,424
• Plug Type Hot Pluggable
• Power (Watts) 15.1
• Endurance DWPD (Drive Writes Per Day) 1

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Do you need to accelerate the performance of your read intensive applications? HPE NVMe High Performance Read Intensive (RI) Solid State Drives (SSDs) are best suited for applications requiring a strong blend of high read IOPS, low latency and high endurance at a strong price point. NVMe SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance RI SSDs provide high-performance data transfers from storage, at rates faster than SAS or SATA SSDs. Designed to utilize the high bandwidth of PCIe Gen3 and PCIe Gen4 in select servers for workloads high in reads such as read caching, web servers and boot/swap. HPE SSDs are backed by up to 3.35 million hours of testing and qualification [1] ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to data by providing the assurance that drive firmware comes from a trusted source.

What s new

• HPE 1.92 TB, 3.84 TB, 7.68 TB NVMe High Performance Read Intensive SFF (2.5-inch), U.2, P5520 SSDs
• HPE 1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB NVMe High Performance Read Intensive SFF (2.5-inch), U.3, PM1733a SSDs

Features

HPE NVMe U.3 Universal Connect PCIe Gen4 NVMe SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on HPE Gen10 servers.

HPE NVMe U.3 Universal Connect PCIe Gen4 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

HPE NVMe High Performance Read Intensive (RI) Solid State Drives are ideal for read caching, social media, bulk storage, email and boot/swap.

Achieve higher IOPS and low latency to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

HPE NVMe High Performance SSDs.

Supports Self-Encrypting TCG Opal FIPS-140-2.

Protect data if the storage device is physically stolen or subject to inappropriate chain of custody, returned for warranty, repair, expired lease, disposal, or repurposed for other storage duties.

Documents

• HPE Solid State Disk Drives
