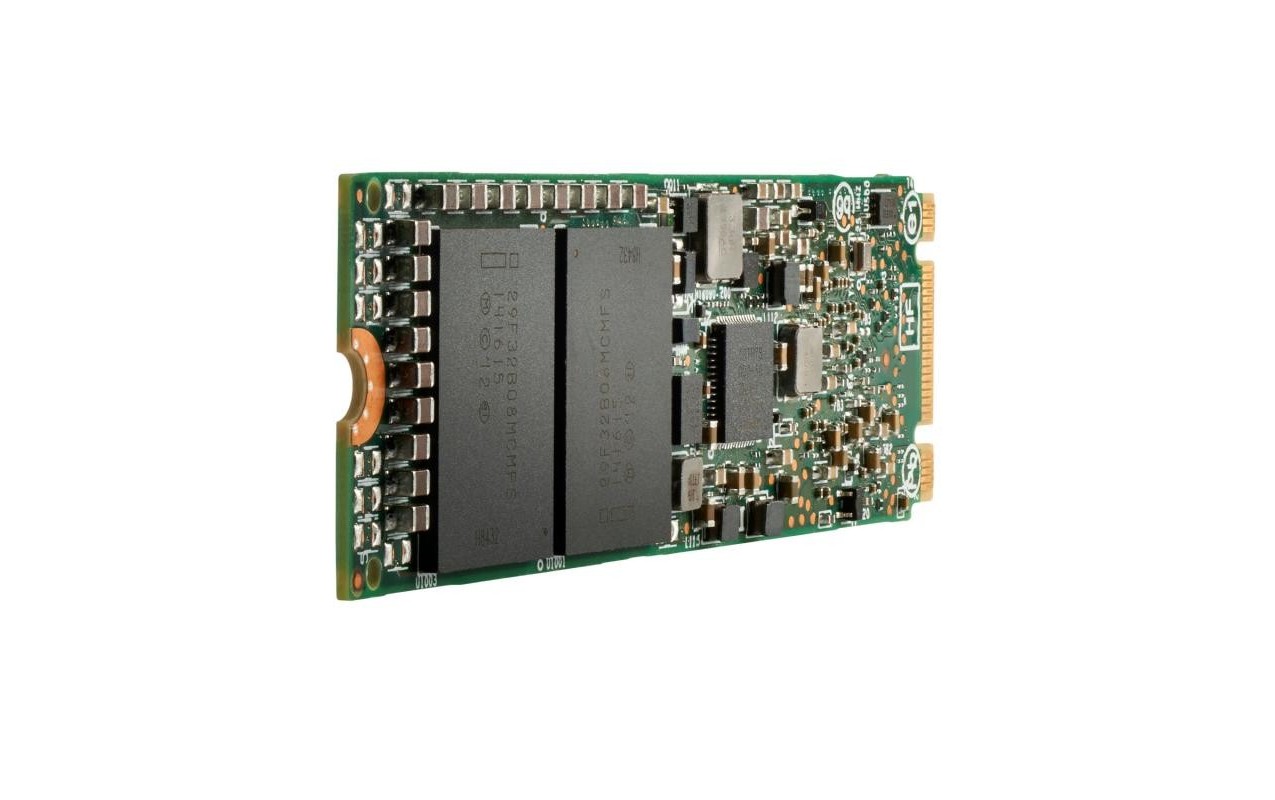

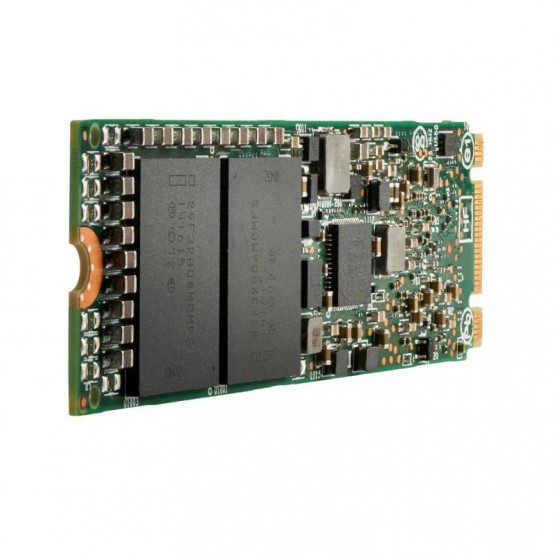

SSD HP P40513-B21
Lifecycle
- Obsolete Date 31-01-2026
- End of support date 30-06-2028
Specifications
- Weight 1.1 lb
- Write IOPS Random Write IOPS (4KiB, Q=16)=26,500 Max Random Write IOPS (4KiB)=26,500@Q128
- Power (Watts) 6.49
- Weight 0.5 kg
- Read IOPS Random Read IOPS (4KiB, Q=16)=135,000 Max Random Read IOPS (4KiB)=250,000@Q256
- Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
- Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
- Height 2mm
- Lifetime writes 482
- Endurance DWPD (Drive Writes Per Day) 0.55
- Product dimensions (metric) 10.8 x 15.88 x 3.76 cm
- Interface NVMe
- Workload Read Intensive
- Drive form factor M.2
- Capacity 480 GB
- Plug type Non-Hot Pluggable
- Product dimensions (imperial) 4.25 x 6.25 x 1.48 in
Quickspecs
Overview
Do you need to accelerate the performance of your read intensive applications? HPE NVMe M.2 Mainstream Intensive Solid State Drives offer enterprise customers high performance with consistently low latency for faster business outcomes. Solid state drives deliver faster load times for todays demanding applications and workloads. Because of the technology used, SSDs are lighter and better able to withstand movement and droppage. In addition, solid state drives use less energy, allowing computers to run cooler. Because SSDs use nonvolatile storage media that stores persistent data on solid-state flash memory, file copy/write speeds are faster as well.
What s new
- Launching HPE 480GB NVMe RI M.2 PM9A3 SSD
Features
The HPE NVMe M.2 Mainstream Performance Read Intensive Solid State Drives features incredible speed of data transfer, diminutive size, and flexibility of the M.2 expansion slot, making it a perfect match for booting the platforms.
HPE Multi Vendor offerings provide shorter lead times to available HPE NVMe M.2 Mainstream Performance Read Intensive Solid State Drives supplies and verifies the M.2 SSD selected delivers the minimum level of performance published, or better.
HPE NVMe M.2 Mainstream Performance Read Intensive Solid State Drives feature Digitally Signed Firmware to prevent data loss and malicious attacks by verifying that drive firmware comes from a trusted source.
HPE Smart SSD Wear Gauge with management tools monitors the lifespan of an SSD and prevents data loss.
Increase Reliability Enhanced Security and Ongoing MonitoringHPE NVMe M.2 Mainstream Performance Read Intensive Solid State Drives prevent unexpected data loss with the HPE Smart Carrier, featuring a “do not remove” button and intuitive icons that report drive activity at-a-glance.
Hewlett Packard Enterprise Solid State Drives are rigorously tested over 3 million hours in various environments to achieve the quality standards you need. [1]
Accelerate PerformanceHPE NVMe M.2 Mainstream Performance Read Intensive Solid State Drives deliver high availability with power loss protection that continues to protect your data even when the data center loses power.
Compatible products
- HPE ProLiant ML30 Gen10 E-2224 1P 8GB-U S100i 4LFF-NHP 350W PS Server
- HPE ProLiant ML30 Gen10 E-2224 1P 16GB-U S100i 4LFF 350W PS Server
- HPE ProLiant ML30 Gen10 E-2234 1P 16GB-U S100i 4LFF 350W PS Server
- HPE ProLiant ML30 Gen10 E-2224 1P 16GB-U S100i 8SFF 1x500W RPS Server
- HPE ProLiant DL20 Gen10 E-2224 1P 16GB-U S100i 2LFF 290W PS Server
- HPE ProLiant DL20 Gen10 E-2224 1P 16GB-U S100i 4SFF 500W RPS Server
- HPE ProLiant DL20 Gen10 E-2236 1P 16GB-U S100i 4SFF 500W RPS Server
- HPE ProLiant DL365 Gen10 Plus 7313 3.0GHz 16-core 1P 32GB-R 8SFF 800W PS Server
- HPE ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS Server
- HPE ProLiant DL20 Gen10 Plus E-2336 2.9GHz 6-core 1P 16GB-U 4SFF 500W RPS Server
- HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 4LFF 350W PS Server
- HPE ProLiant ML30 Gen10 Plus E-2314 2.8GHz 4-core 1P 16GB-U 8SFF 500W RPS Server
- HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
- HPE ProLiant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
- HPE ProLiant DL360 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
- HPE ProLiant DL360 Gen10 Plus 5315Y 3.2GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
- HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server
- HPE DL360 G10+ 4310 MR416I-A NC EU SVR
- HPE ProLiant DL360 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server
- HPE ML110 GEN11 3408U 1P 16G 4LFF SVR
- HPE ML110 GEN11 3408U 1P 32G 8SFF SVR
- HPE ProLiant ML110 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R VROC 8SFF 1000W RPS Server
- HPE ProLiant ML110 Gen11 5416S 2.0GHz 16-core 1P 32GB-R VROC 8SFF 1000W RPS Server
- HPE DL325 G11 9354P MR408I-O 8SFF EU SVR
- HPE DL20 GEN11 E-2434 1P 16G 4SFF SVR
- HPE ProLiant DL20 Gen11 E-2436 2.9GHz 6-core 1P 16GB-U 4SFF 800W PS Server
- HPE DL20 GEN10+ E-2336 1P 16G 4SFF SVR
- HPE DL20 GEN10+ E-2314 1P 16G 4SFF SVR
- HPE ML110 G11 4510 MR408I-O EMEA SVR
- HPE ProLiant DL20 Gen11 E-2436 2.9GHz 6c 1P 32GB-DR 4SFF VROC 2x480GB SATA SSD 800W RPS EU Server
- HPE ProLiant ML110 Gen11 3508U 2.1GHz 8-core 1P 32GB-R VROC 4LFF 2x2TB HDD 2x1000W RPS EU Server
- HPE ProLiant ML110 Gen11 4510 12-core 1P 64GB-R MR408i-o 8SFF 2x480GB SSD 2x1000W RPS EU Server
- HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x480GB SSD 2x800W PS EU Server
- HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x2.4TB HDD 2x800W PS EU Server
- HPE ProLiant ML110 Gen11 4510 2.4GHz 12c 1P 32GB-R 4LFF 2x4TB HDD 2x1000W PS EU Server
- HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8SFF MR416i-p 2x480GB SATA SSD 2x1000W RPS EU Server
- HPE ProLiant DL325 Gen11 9224 2.5GHz 24c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server
- HPE ProLiant DL320 Gen11 4514Y 2.0GHz 16c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W PS EU Server
- HPE ProLiant DL345 Gen11 9124 3.0GHz 16c 64GB-R 8LFF MR416i-p 2x960GB SATA SSD 2x1000W RPS EU Server
- HPE ProLiant DL325 Gen11 9124 3.0GHz 16c 64GB-R 8SFF MR408i-o 2x480GB SATA SSD 2x1000W RPS EU Server
- HPE ProLiant DL20 Gen11 E-2434 3.4GHz 4c 1P 32GB-U 4SFF 2x480GB SATA SSD 800W PS EU Server
- HPE ProLiant DL320 Gen11 6530 2.1GHz 32c 1P 128GB-R 10SFF MR416i-o 3x2.4TB HDD 2x1000W PS EU Server
- HPE ProLiant DL320 Gen11 5416S 2.0GHz 16c 1P 64GB-R 10SFF MR416i-o 3x2.4TB HDD 2x1000W PS EU Server
- HPE ProLiant DL20 Gen11 E-2434 3.4GHz 4c 1P 32GB-U 2LFF 2x2TB HDD 290W PS EU Server
Documents
[1] HPE internal lab testing. 3 million hour test quant is derived from a combination of drive qualification test plans, specifically HDDQ spec-supplier responsibility to perform, HDDQ spec-HPE responsibility to perform, Reliability Demonstration Test (RDT) spec, CSI integration test spec and pilot test requirements.HPE 480GB NVMe x4 Lanes Read Intensive M.2 2280 Multi Vendor 3 Year Warranty Digitally Signed Firmware SSD
