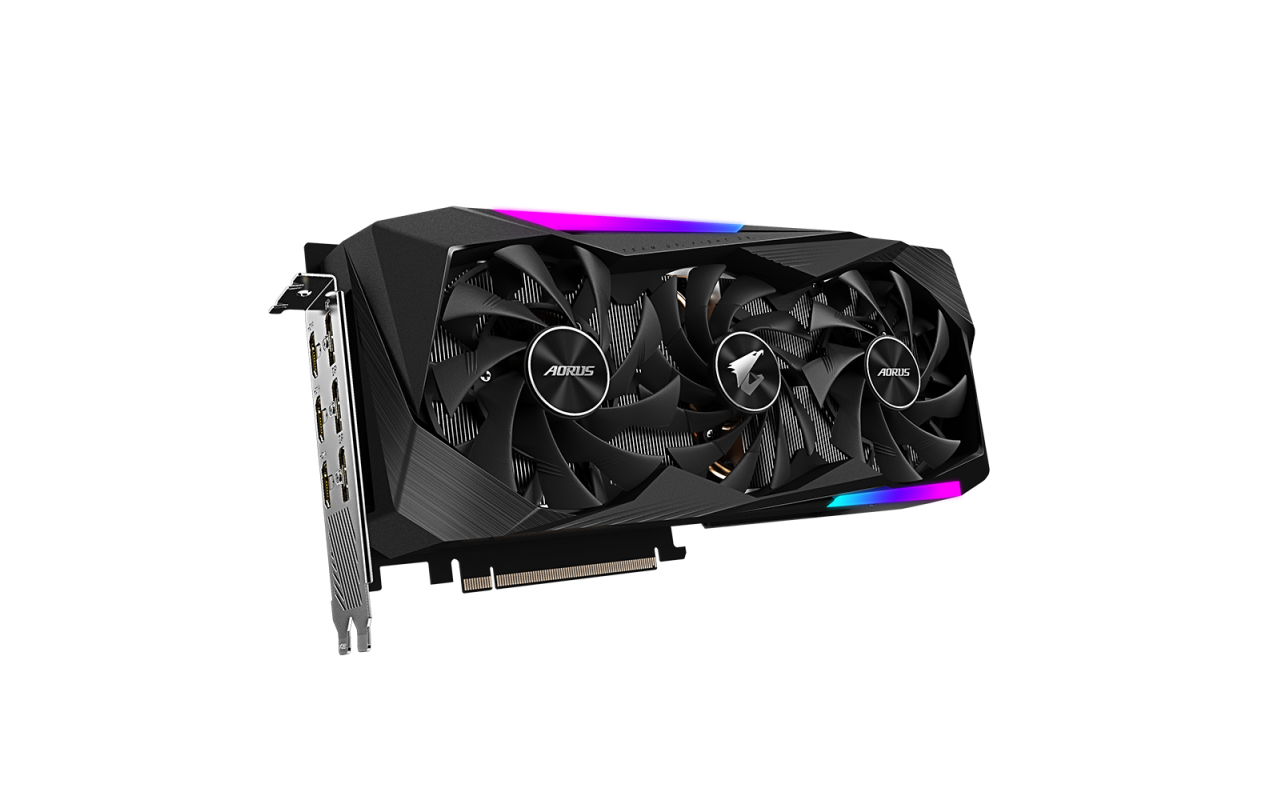

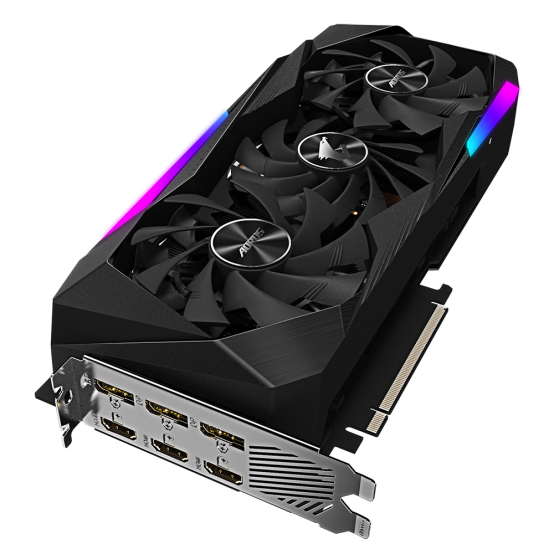

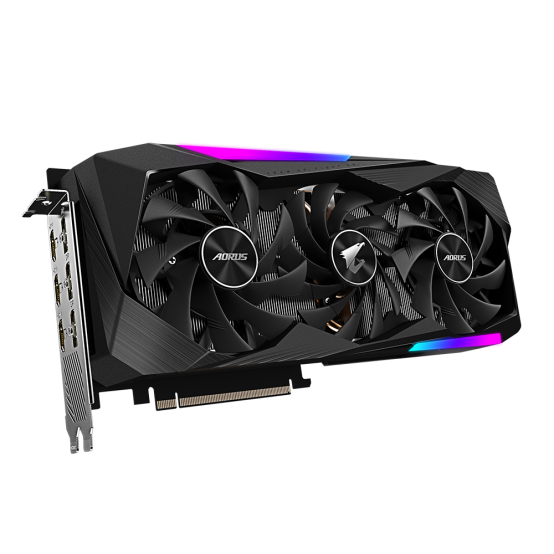

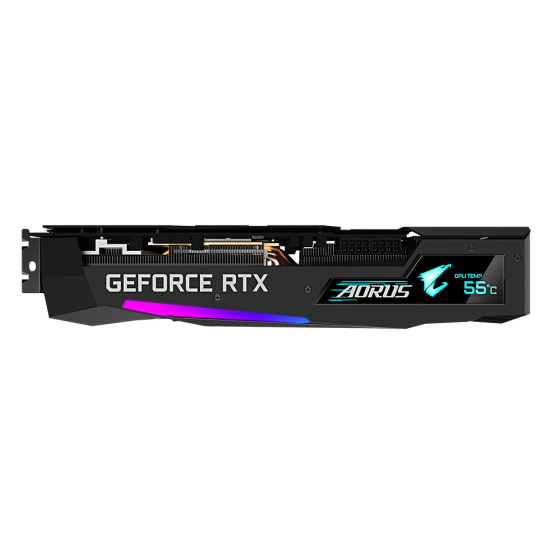

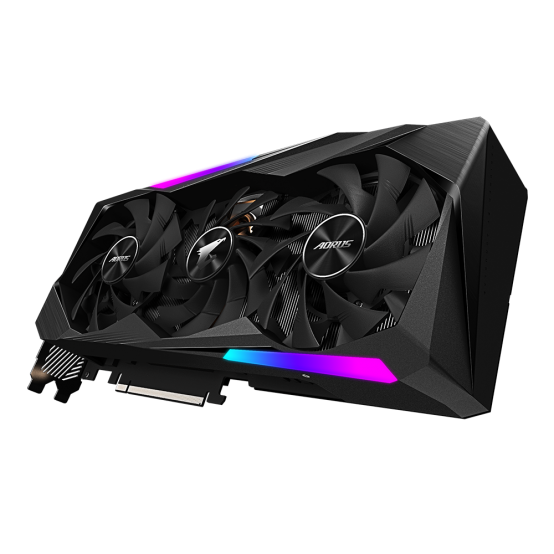

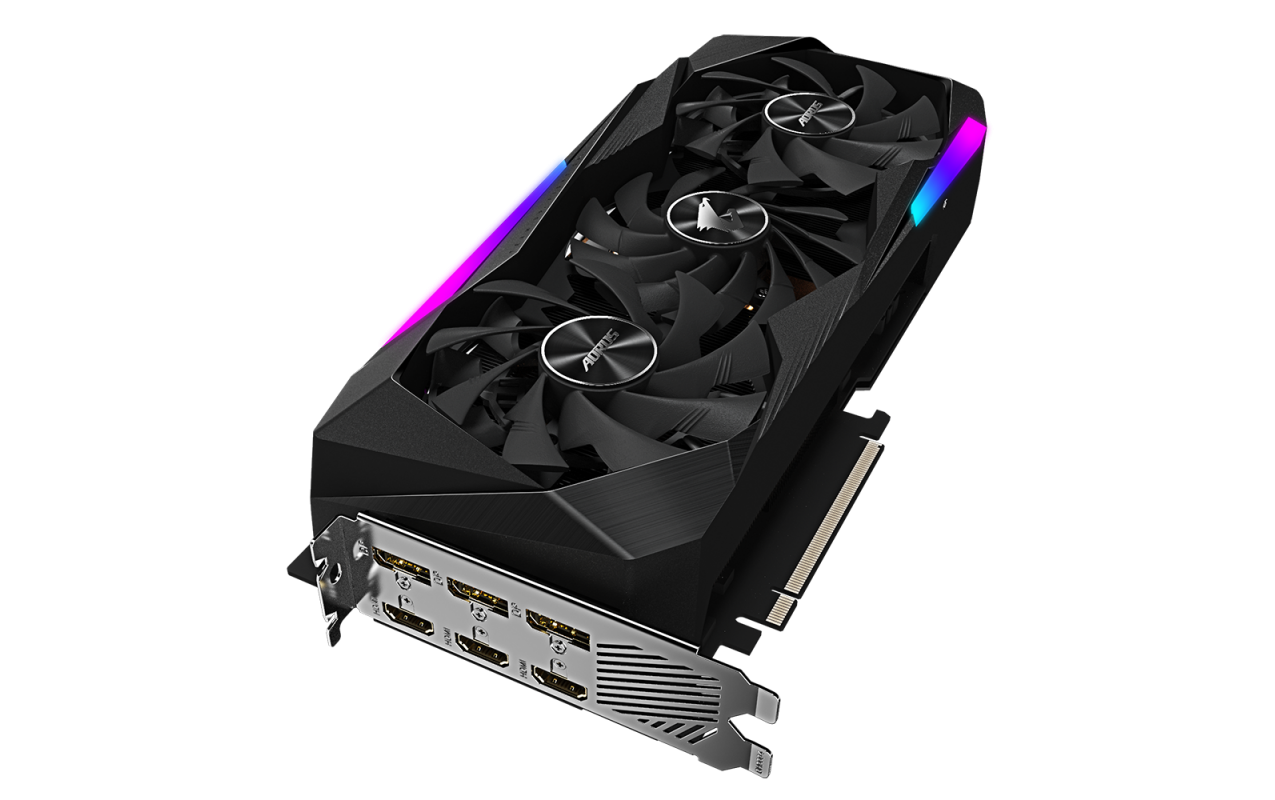

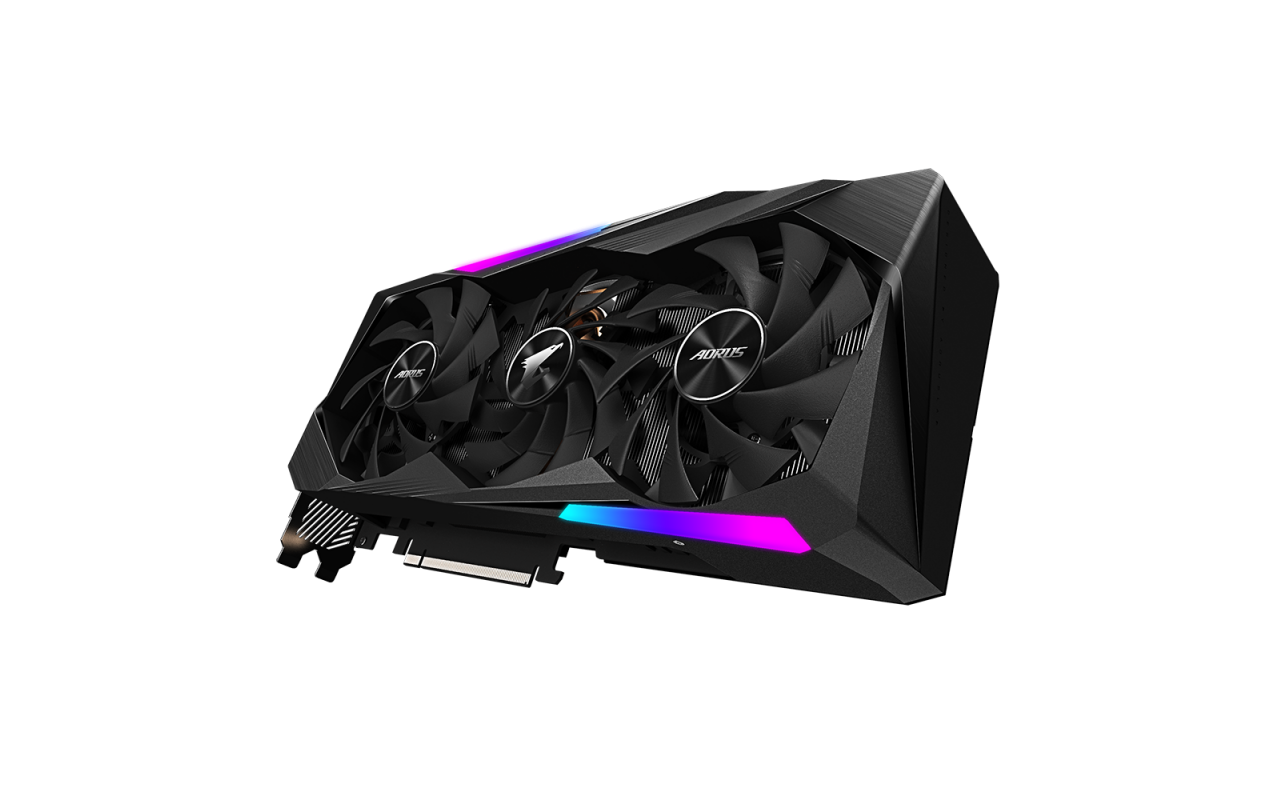

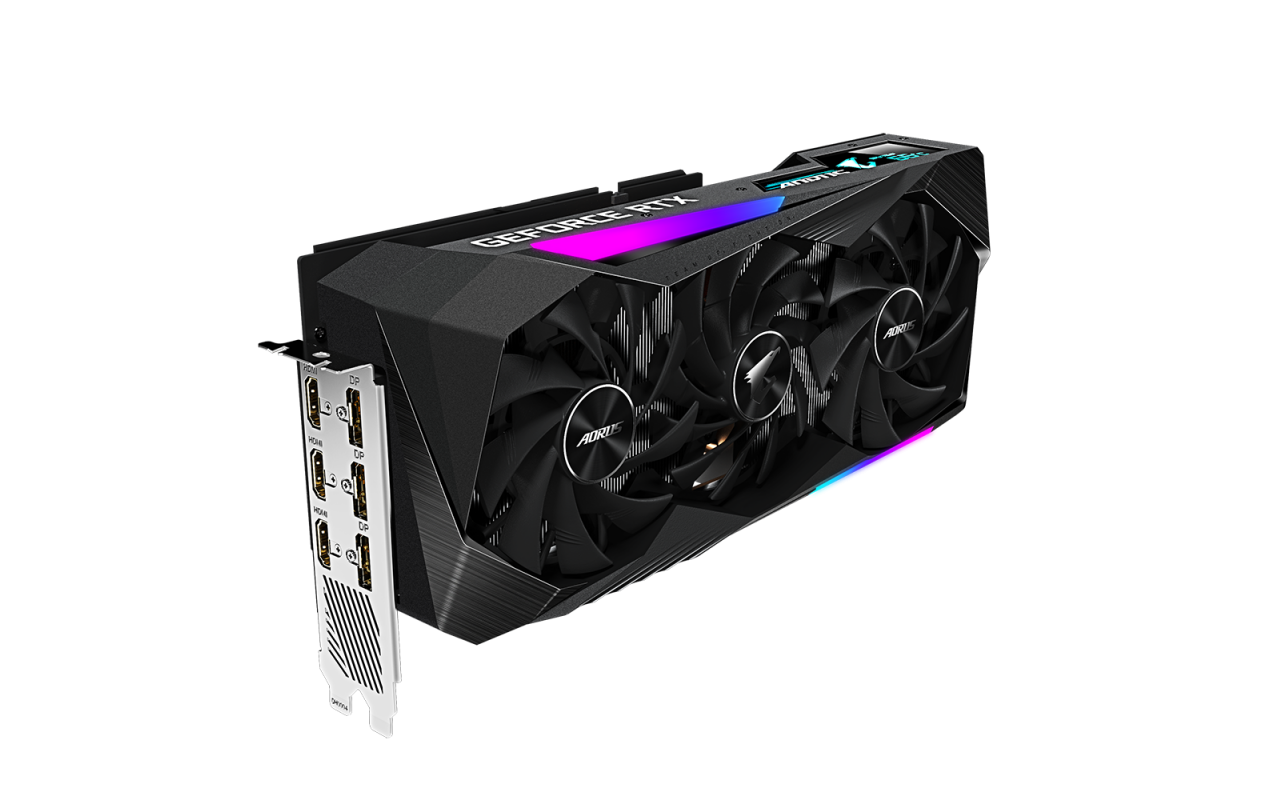

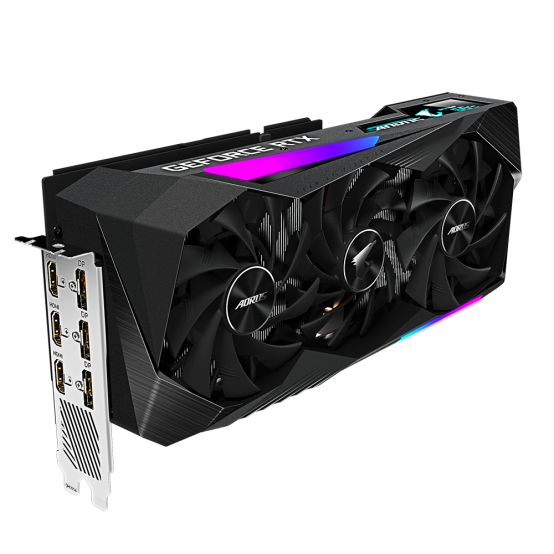

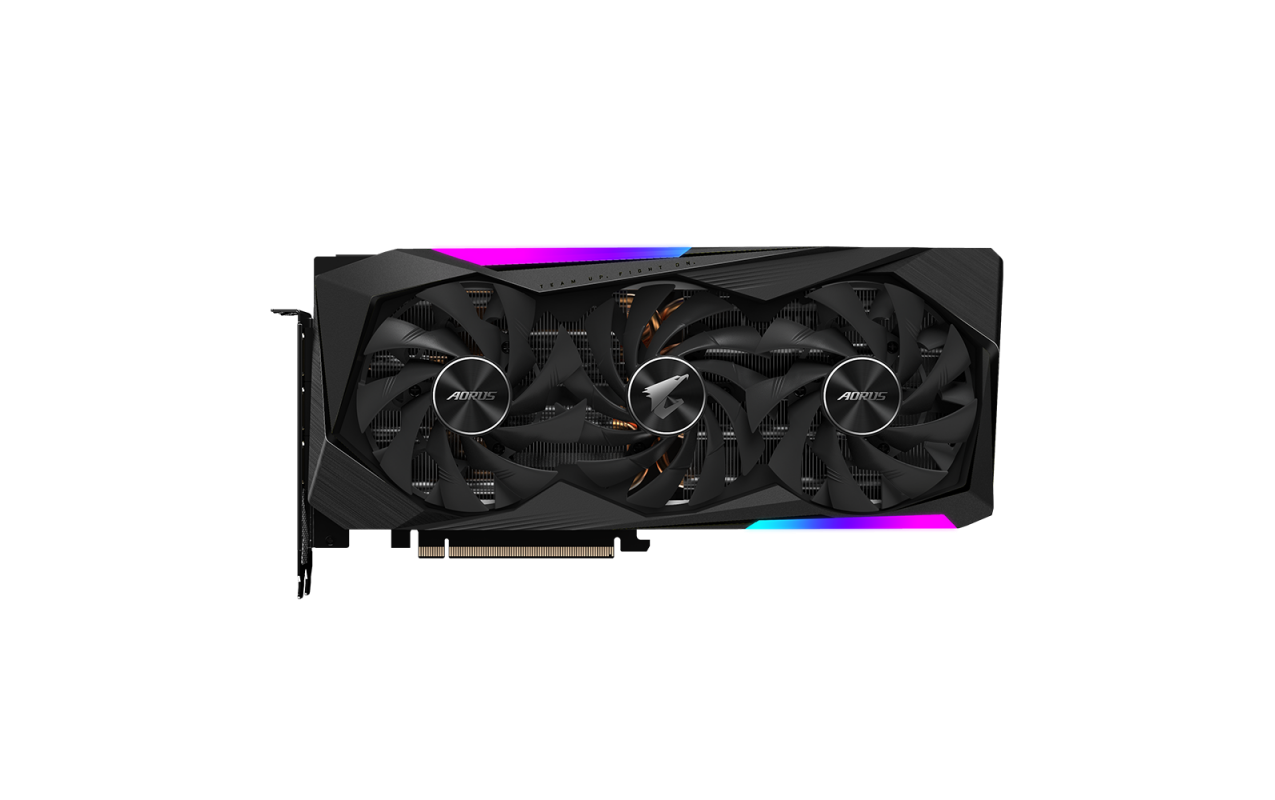

Placa video GigaByte AORUS GeForce RTX 3070 MASTER 8G (rev. 2.0) GV-N3070AORUS M-8GD 2.0
Solicita publicarea acestui produs in SICAP
| Chipset | |
| Producator chipset |
NVIDIA
|
| Seria |
GeForce RTX 3000
|
| Tehnologie de fabricatie |
8 nm
|
| Procesor grafic |
Ampere GA104
|
| GPU Boost clock |
1845 MHz
|
| Data lansarii chipset |
29.10.2020
|
| Shader Model |
6.5
|
| Texture Units |
184
|
| Raster Operators |
96
|
| Numar de tranzistoare |
17400 milioane
|
| CUDA Cores |
5888
|
| Memorie | |
| Tip memorie |
GDDR6
|
| Dimensiune memorie |
8 GB
|
| BUS memorie |
256 bit
|
| Frecventa memorie efectiva |
14000 MHz
|
| 3D API | |
| Suport DirectX |
12 Ultimate
|
| Suport OpenGL |
4.6
|
| Suport OpenCL |
2.0
|
| Suport Vulkan |
Da
|
| Suport G-Sync |
Da
|
| VR Ready |
Da
|
| Porturi | |
| HDMI |
3
|
| Display port |
3
|
| Suport HDTV |
Da
|
| Racire | |
| Sistem racire |
Activ
|
| Dimensiune racire |
Tri slot
|
| Tip racire |
Aer
|
| Altele | |
| HDCP Ready |
Da
|
| Tehnologii |
Microsoft DirectX® 12 Ultimate
NVIDIA DLSS PCI Express Gen 4 NVIDIA® GeForce Experience™ NVIDIA Ansel NVIDIA FreeStyle NVIDIA ShadowPlay NVIDIA Highlights NVIDIA GPU Boost™ HDMI 2.1 DisplayPort 1.4a 2nd Generation RT Cores 3rd Generation Tensor Cores |
| Alimentare separata |
2x 8-pin PCI-E
|
| Dimensiuni |
290 x 131 x 60 mm
|

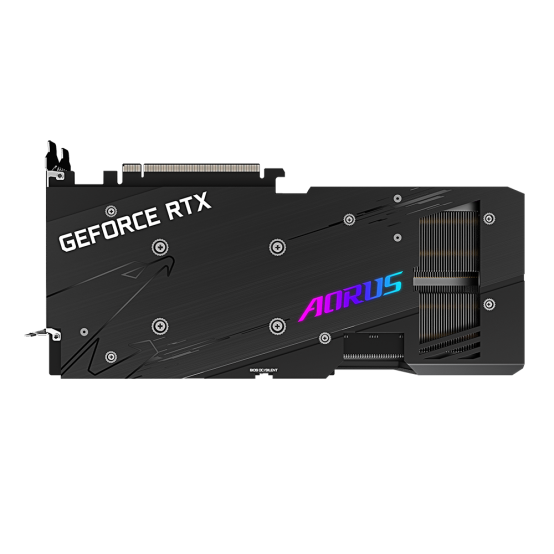

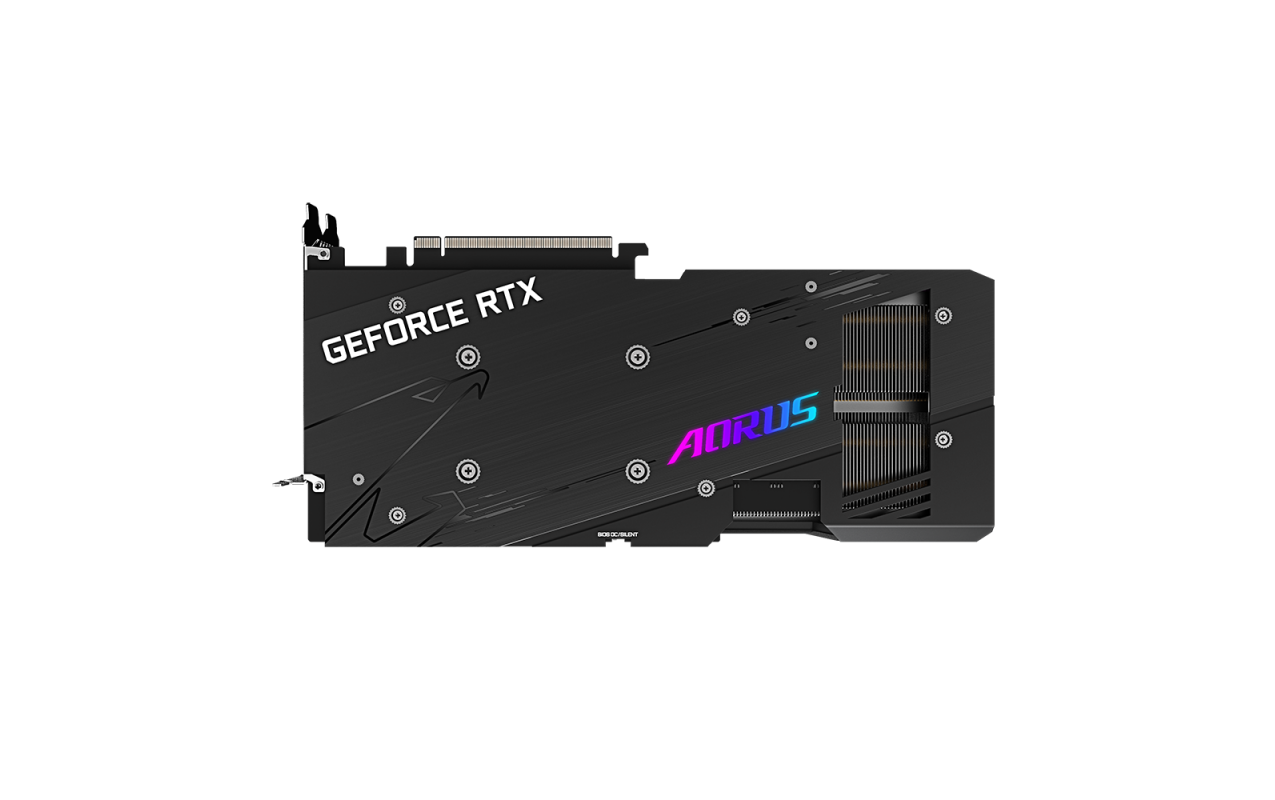

| Backplate |
Da
|

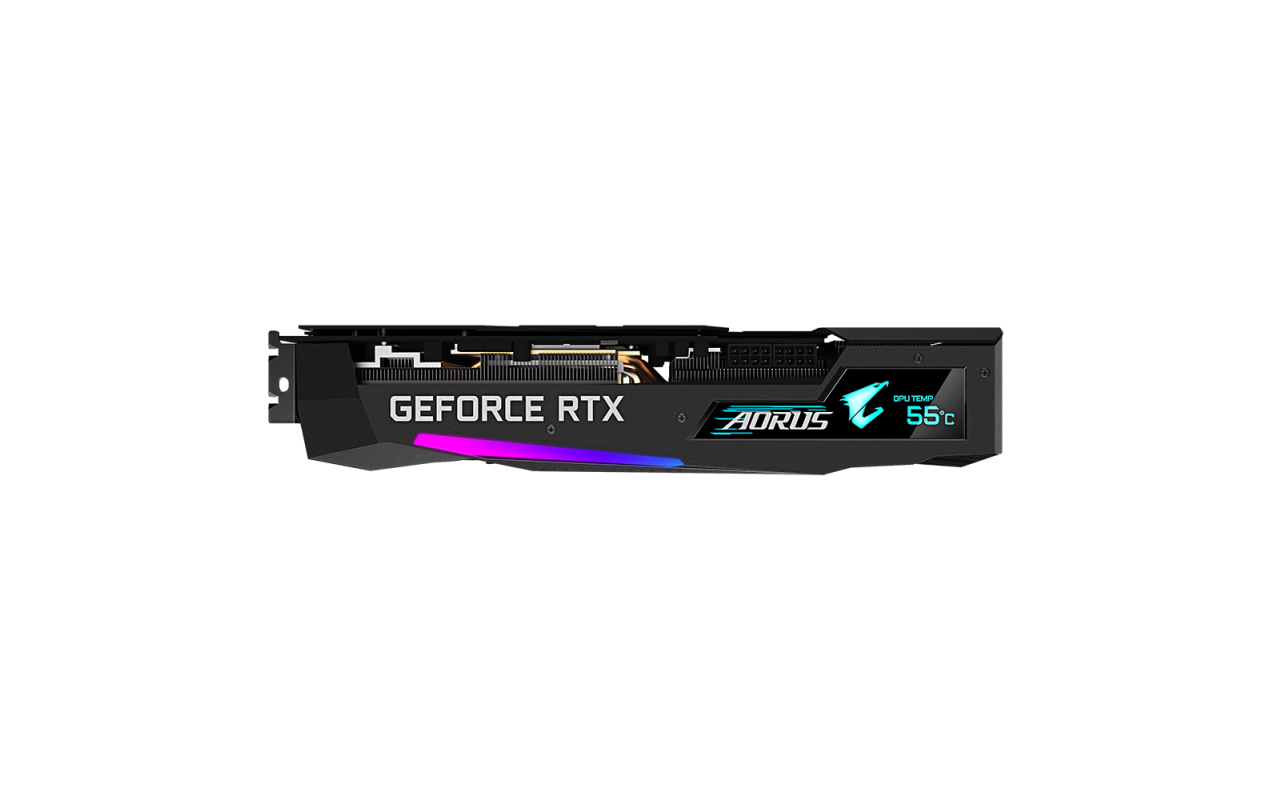

| Iluminare |
Da
|
| Altele |
Limited Hash Rate version
|

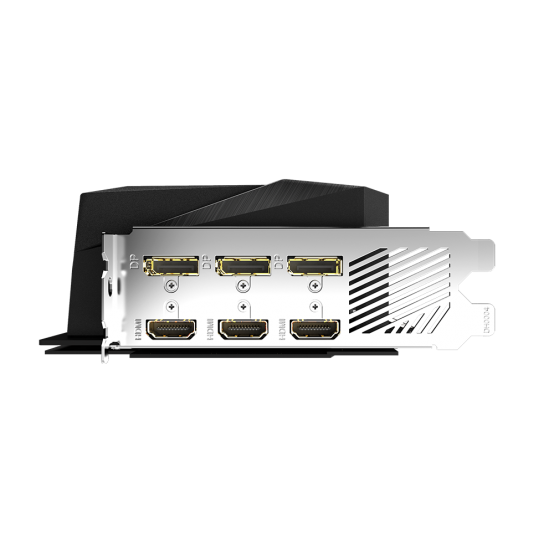

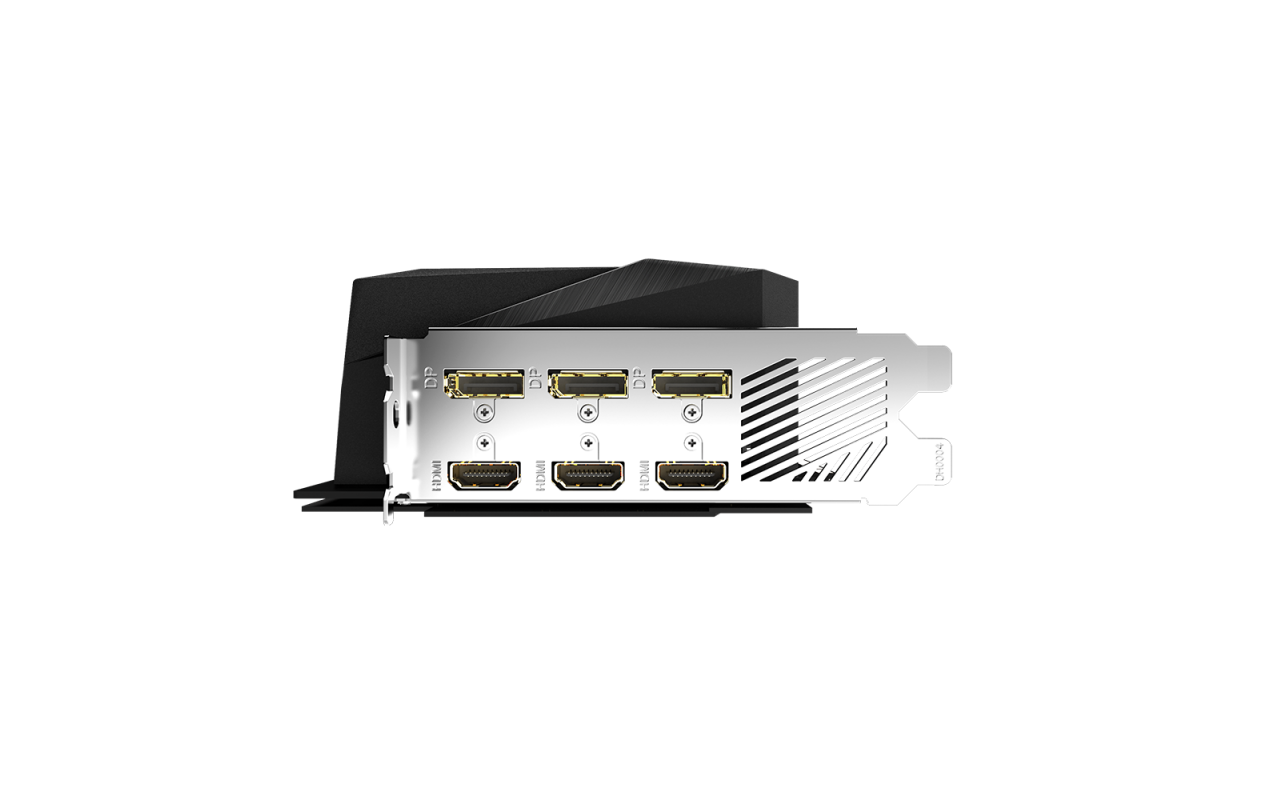

Placa video Gigabyte AORUS GeForce RTX 3070 MASTER 8G (rev. 2.0) LHR Graphics Processing GeForce RTX™ 3070 Core Clock 1845 MHz (Reference Card: 1725 MHz) CUDA® Cores 5888 Memory Clock 14000 MHz Memory Size 8 GB Memory Type GDDR6 Memory Bus 256 bit Memory Bandwidth (GB/sec) 448 GB/s Card Bus PCI-E 4.0 x 16 Digital max resolution 7680x4320 Multi-view 4 Card size L=290 W=131 H=60 mm PCB Form ATX DirectX 12 Ultimate OpenGL 4.6 Recommended PSU 650W Power Connectors 8 pin*2 Output DisplayPort 1.4a *3 HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) SLI Support N/A Accessories 1. Quick guide 2. warranty registration 3. Metal sticker https://www.gigabyte.com/Graphics-Card/GV-N3070AORUS-M-8GD-rev-20/sp#sp
Specificatii
| ID dataSPOT |
158433 |
|---|---|
| Cod |
GV-N3070AORUS M-8GD 2.0 |
| Model |
AORUS GeForce RTX 3070 MASTER 8G (rev. 2.0) |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
| Procesor grafic |
nVidia GeForce RTX 3070 |
|---|---|
| Frecventa procesor |
1845 MHz |
| Memorie |
8 GB |
| Tip Memorie |
GDDR6 |
| Latime banda |
256 bit |
| Frecventa memorie |
14000 MHz |
| Interfata grafica |
PCI Express x16 4.0 |
| Numar sloturi ocupate |
3 |
| Racire |
Active Fan |
| HDMI |
1 |
| DisplayPort |
3 |
| Rezolutie maxima |
7680 x 4320 pixeli |
| Conector alimentare |
8+8 pini |
| Extra |
CUDA Core: 5888 |
- Procesor grafic
- nVidia GeForce RTX 3070
- Frecventa procesor
- 1845 MHz
- Memorie
- 8 GB
- Tip Memorie
- GDDR6
- Latime banda
- 256 bit
- Frecventa memorie
- 14000 MHz
- Interfata grafica
- PCI Express x16 4.0
- Numar sloturi ocupate
- 3
- Racire
- Active Fan
- HDMI
- 1
- DisplayPort
- 3
- Rezolutie maxima
- 7680 x 4320 pixeli
- Conector alimentare
- 8+8 pini
- Extra
- CUDA Core: 5888
- ID dataSPOT
- 158433
- Cod
- GV-N3070AORUS M-8GD 2.0
- Model
- AORUS GeForce RTX 3070 MASTER 8G (rev. 2.0)
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
158433 |
|---|---|
| Cod |
GV-N3070AORUS M-8GD 2.0 |
| Model |
AORUS GeForce RTX 3070 MASTER 8G (rev. 2.0) |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
| Procesor grafic |
nVidia GeForce RTX 3070 |
|---|---|
| Frecventa procesor |
1845 MHz |
| Memorie |
8 GB |
| Tip Memorie |
GDDR6 |
| Latime banda |
256 bit |
| Frecventa memorie |
14000 MHz |
| Interfata grafica |
PCI Express x16 4.0 |
| Numar sloturi ocupate |
3 |
| Racire |
Active Fan |
| HDMI |
1 |
| DisplayPort |
3 |
| Rezolutie maxima |
7680 x 4320 pixeli |
| Conector alimentare |
8+8 pini |
| Extra |
CUDA Core: 5888 |
