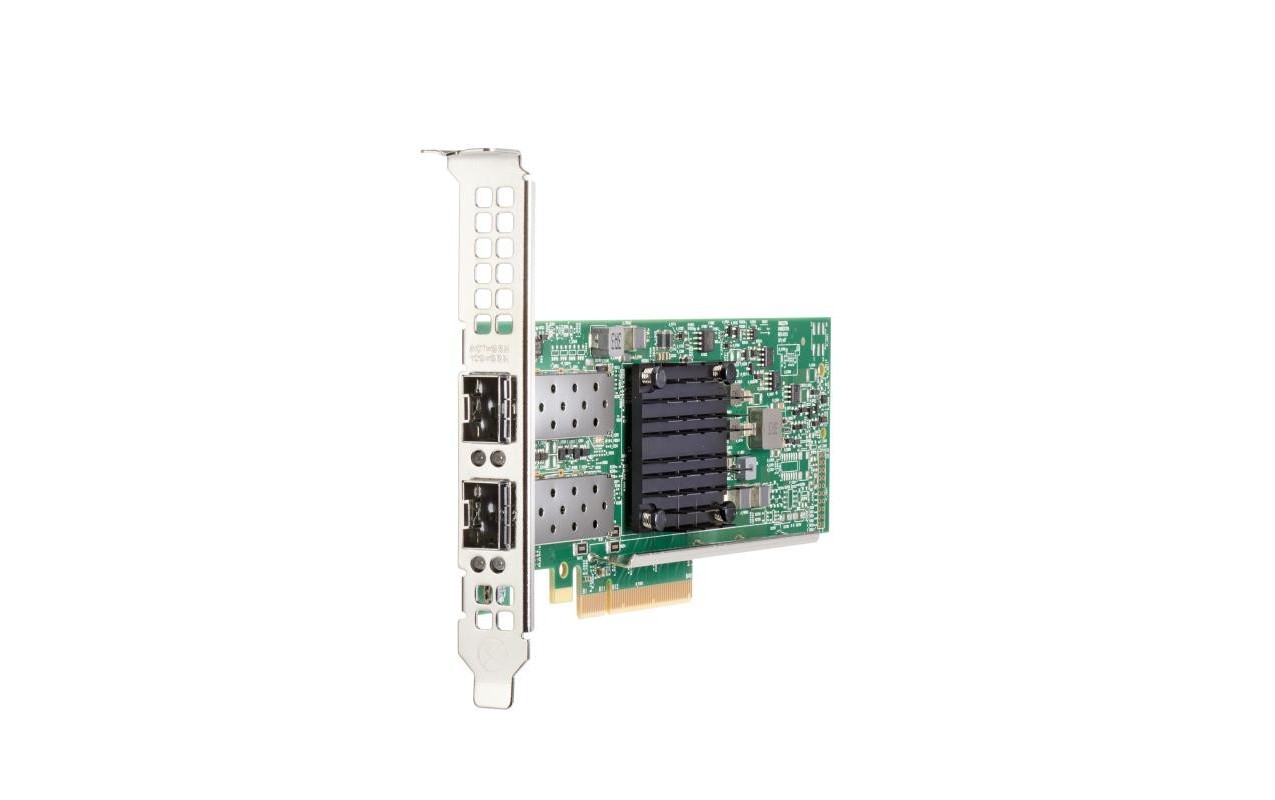

Placa de retea HP P08421-B21

Lifecycle

• Obsolete Date 15-11-2024
• End of support date 31-08-2029

Specifications

• Compatible operating systems Microsoft Windows Server 2012 R2 all editions, Microsoft Server Semi-Annual channel release, Microsoft Windows Server 2016 All editions (LTSC Release), Microsoft Windows Server 2019 (LTSC Release), RHEL (7.6, 7.7, 8.0, 8.1), SLES12 (SP3, SP4, SP5), SLES15 SP1, VMware vSphere 6.5 (U2, U3), VMware vSphere 6.5 (U2, U3), 6.7 (U2, U3) and 7.0
• Bus type PCIe Gen3x8
• Connector type SFP+
• Weight 0.26 kg
• IEEE compliance 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb,802.1Qbg, 802.1ax, 1588
• Product dimensions (imperial) 8.46 x 9.72 x 2.43 in
• Product dimensions (metric) 21.49 x 24.69 x 6.17 cm
• Server type supported Proliant Servers
• Power 9.084 Typical; 14W Maximum
• Weight 0.573 lb
• Number of ports 2
• Network processor Broadcom Whitney+
• Platform supported HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Management features HPE iLO 4 and HPE Advanced Power Manager
• Data rate 10 Gb
• Supported cables 10 Gb - Active Optical Cable (AOC), 10 Gb - Direct Attach Copper (DAC)
• Form factor Standup

Quickspecs

• QuickSpecs
• QuickSpecs

Overview

Do you need an adapter that is big on capability and small on CPU utilization? The HPE Ethernet 10Gb 2-port SFP+ BCM57414 Adapter has been designed to efficiently deliver high performance, low latency and minimal CPU utilization by offloading many I/O processing within the adapter. Low latency dramatically improves application performance and frees up CPU resources in the host allowing it to do more important tasks

Features

The HPE Ethernet 10Gb 2-port SFP+ BCM57414 Adapter delivers single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.

The HPE Ethernet 10Gb 2-port SFP+ BCM57414 Adapter offloads packet processing to reduce CPU utilization with tunnel offloads (VXLAN and NVGRE). Now you can distribute network traffic across CPU cores in your data center.

Speed up packet processing to service more I/O requests by utilizing data plane development kit (DPDK) feature.
