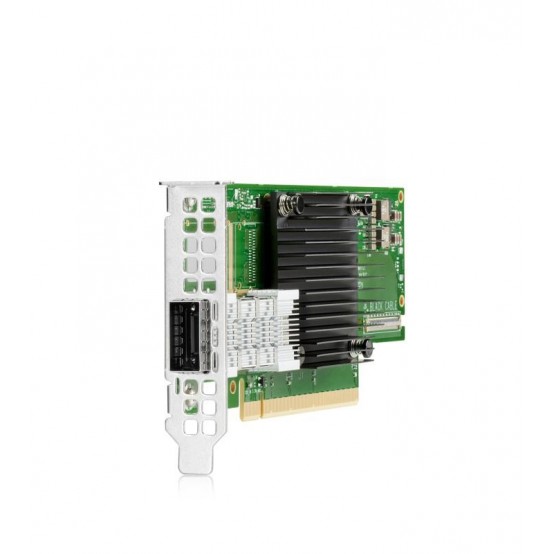

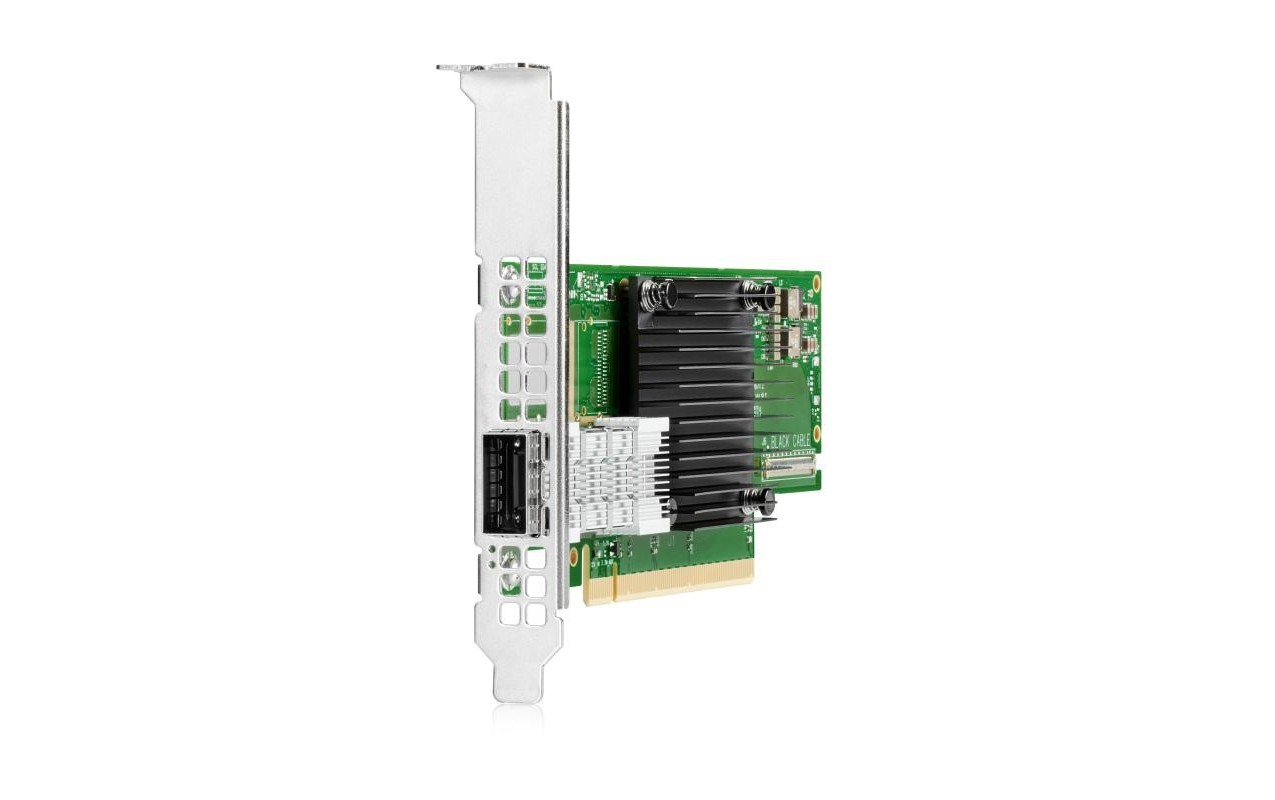

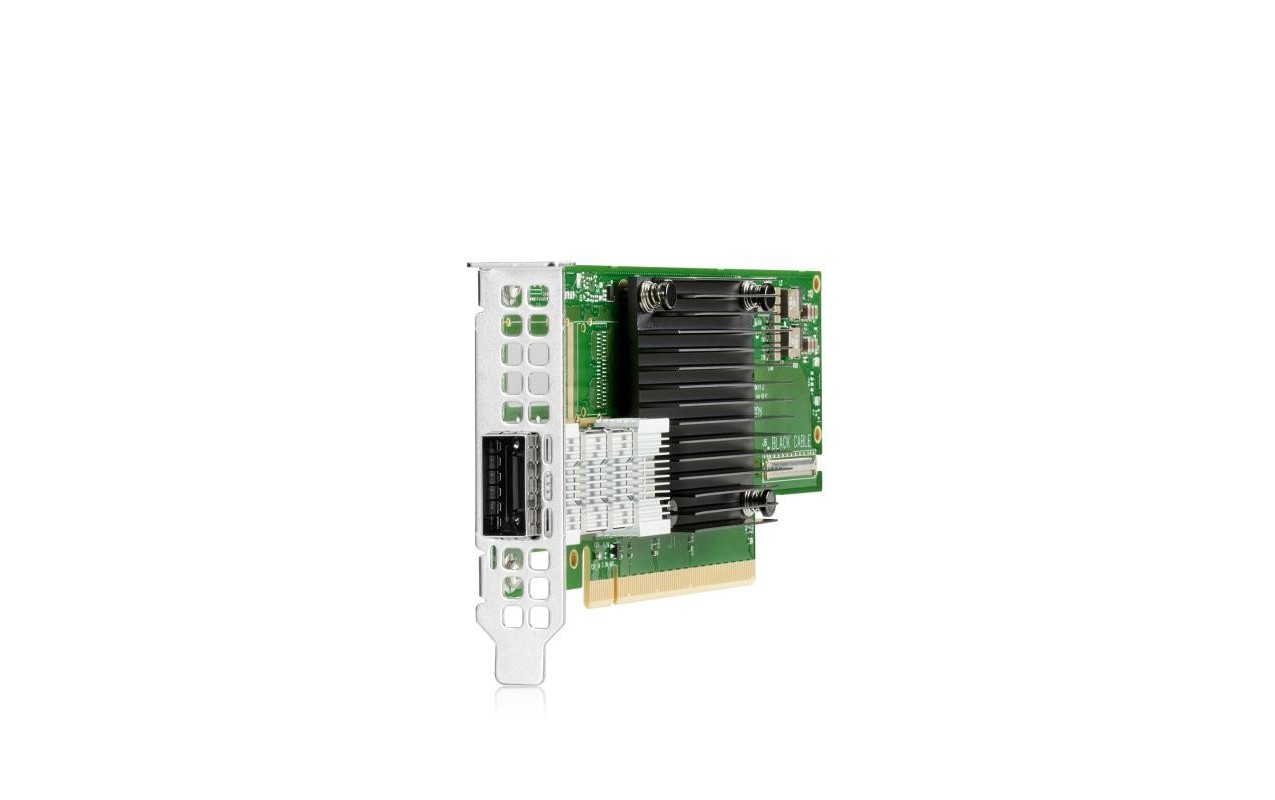

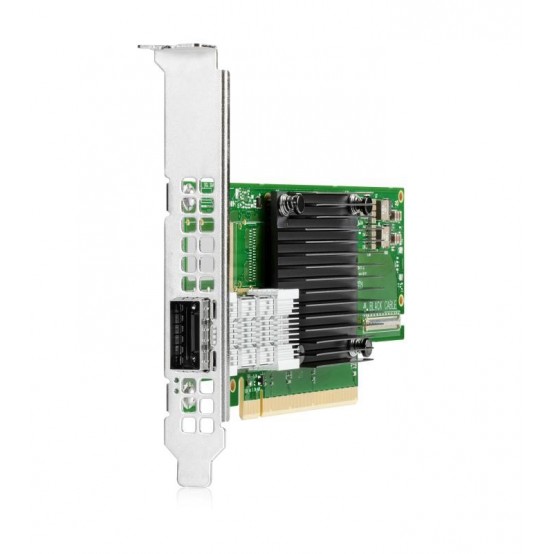

Placa de retea HP P06250-B21

Lifecycle

• Obsolete Date 30-06-2025
• End of support date 31-01-2028

Specifications

• Warranty 3-year warranty, parts exchange
• Server type supported HPE ProLiant DL Rack Mount Gen10 servers
• Weight 0.23 kg
• Product dimensions (imperial) 24 x 14 x 10 in
• Product dimensions (metric) 60.96 x 35.56 x 25.4 cm
• Weight 0.509 lb
• Platform supported HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
• Data rate Up to 100 Gb
• Number of ports 1 port
• Bus type PCIe 3.0 x16
• Supported cables DAC and AOC
• Form factor Standup LP
• Connector type QSFP56

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What s new

• The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
• The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.

Features

The HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, are aimed at simplified infrastructure by reducing the number of required switches for a given 100Gbps InfiniBand fabric.

HPE HDR InfiniBand adapters deliver up to 200Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads.

HPE HDR InfiniBand adapters are supported on the HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

HPE HDR InfiniBand adapters support MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.

HPE HDR InfiniBand adapters include multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput.

Documents

• HPE HDR InfiniBand Adapters QuickSpecs
