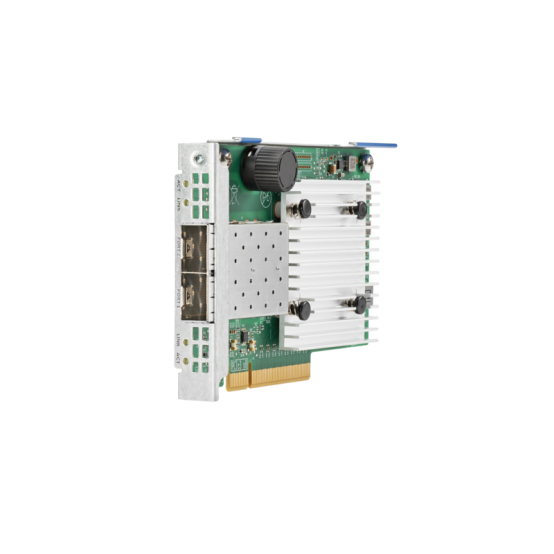

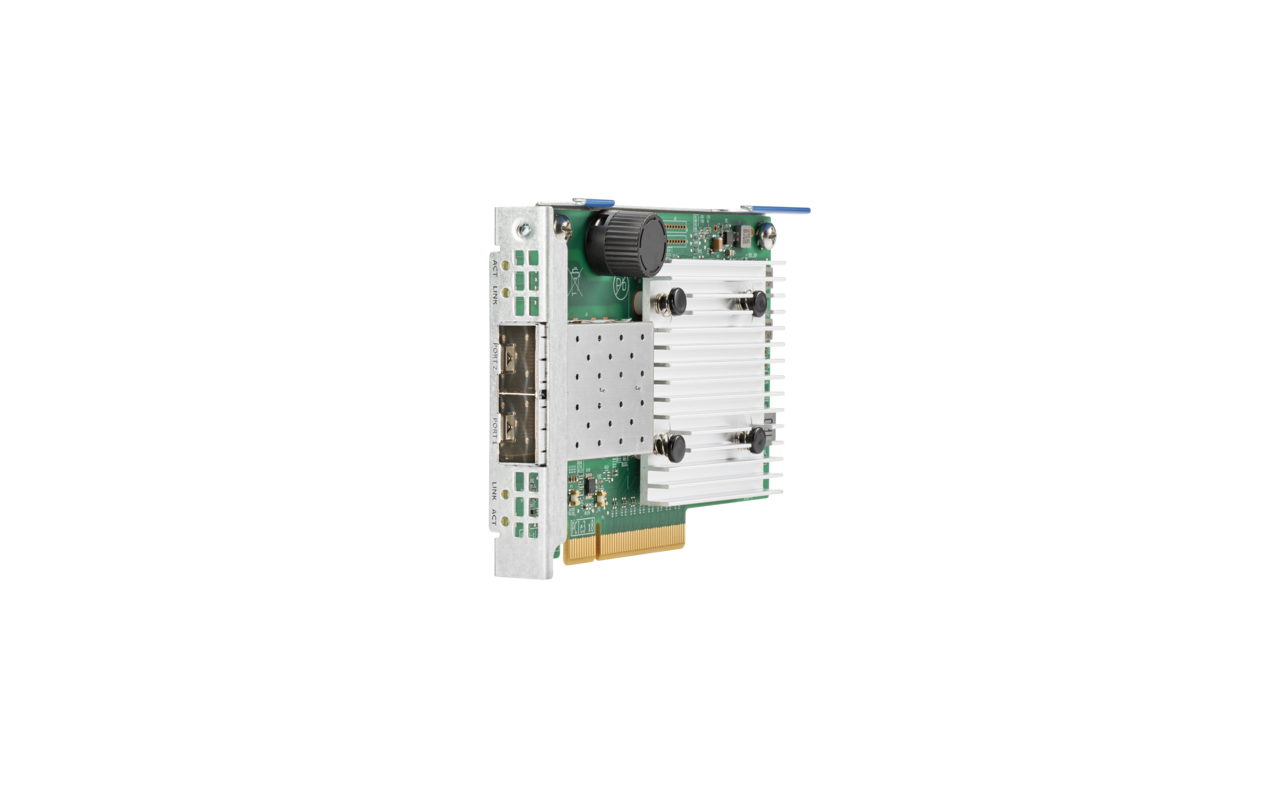

Placa de retea HP 867334-B21

Lifecycle

• Obsolete Date 01-05-2024
• End of support date 28-02-2028

Specifications

• Weight 1 lb
• Weight 0.45 kg
• Product dimensions (imperial) 7.5 in x 2.25 in x 9.5 in
• Product dimensions (metric) 19.05 cm x 5.72 cm x 24.13 cm
• Number of ports 2
• Data rate 10/25Gb
• Form factor FlexibleLOM
• Bus type PCIe 3 x8

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

Do you want to lower latency, increase bandwidth with combined Ethernet and storage capability in your data center? The HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401L-A2G Converged Network Adapter supports 10GbE and 25GbE bandwidth along with the capability to support storage offloads and universal remote direct memory access (RDMA) protocols. This adapter has been designed with features that offload I/O processing to the adapter, reducing CPU overhead and efficiently deliver high performance and low latency network and storage connectivity. Freeing up CPU resources in the host allows for supporting more important tasks.

Features

Supports for DPDK small packet acceleration further increases performance for applications utilizing small packet sizes.

The HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401L-A2G Converged Network Adapter reduces CPU utilization and helps improve host virtual machine (VM) density and server efficiency using RDMA with support for IWARP, RoCE and RoCEv2 protocols. Lower latency speeds application performance.

Ideal for high performance computing (HPC) clusters, computational, financial and other applications that require a combination of low latency and high performance.

Safeguards the NIC and confirms no rogue drivers are being executed on start-up via Secure Boot.

Provides traceability into authenticated firmware updates by capturing changes in standard system logs.

The HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401L-A2G Converged Network Adapter stops unauthorized access to memory or storage with device - level firewall. This verifies that on-device firmware and configuration data can only be accessed by authorized agents.

Supports Ethernet and storage traffic over a single physical connection for better utilization of server resources and simplified management.

The HPE Ethernet 10/25Gb 2-port FLR-SFP28 QL41401L-A2G Converged Network Adapter supports a variety of offloads that reduce CPU utilization to improve scalability. Tunnel offloads (VXLAN, NVGRE, GRE, GENEVE) improve VM and Network scalability by offloading VM network management to the adapter.
