Placa de retea HP 817718-B21

Lifecycle

• Obsolete Date 31-05-2024
• End of support date 31-08-2029

Specifications

• Data rate 10/25Gb
• Form factor Standup&ALOM
• Bus type PCIe Gen3 x8
• Number of ports 2-port

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (HTML)
• QuickSpecs (PDF)

Overview

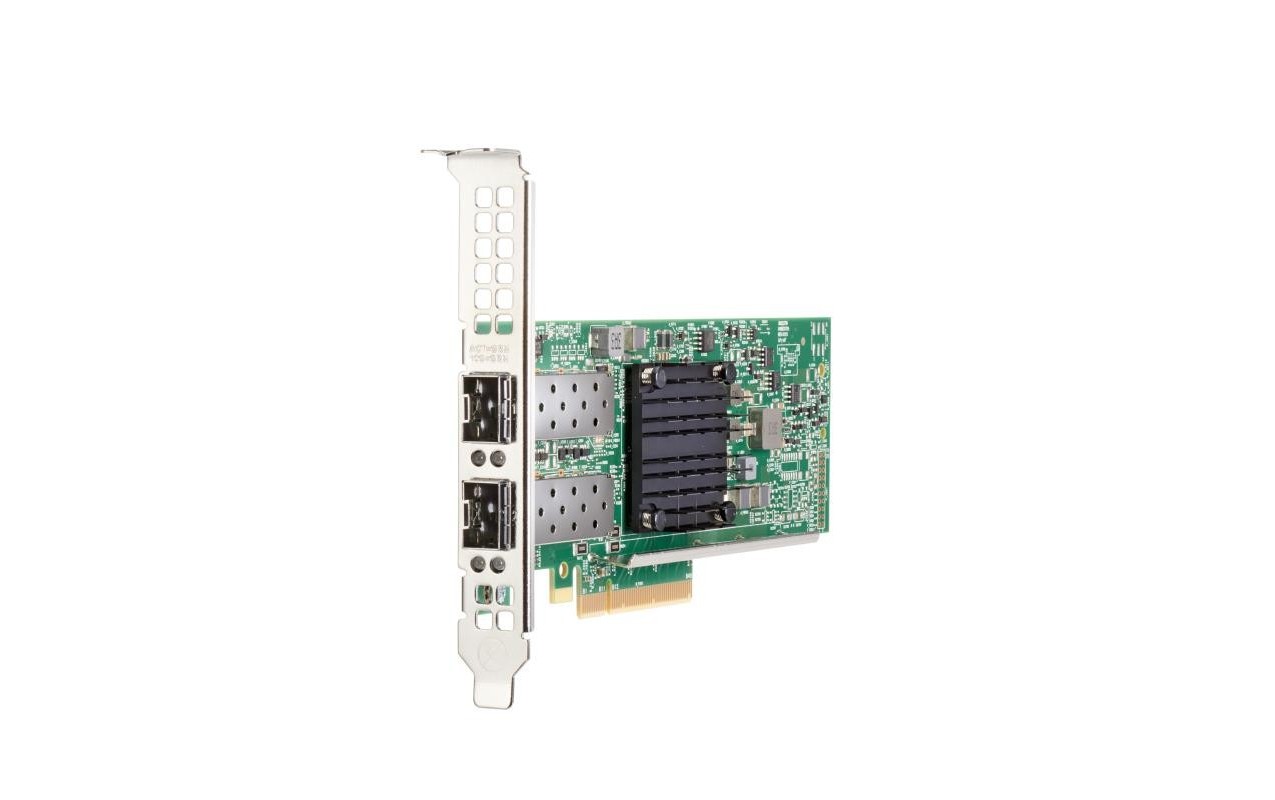

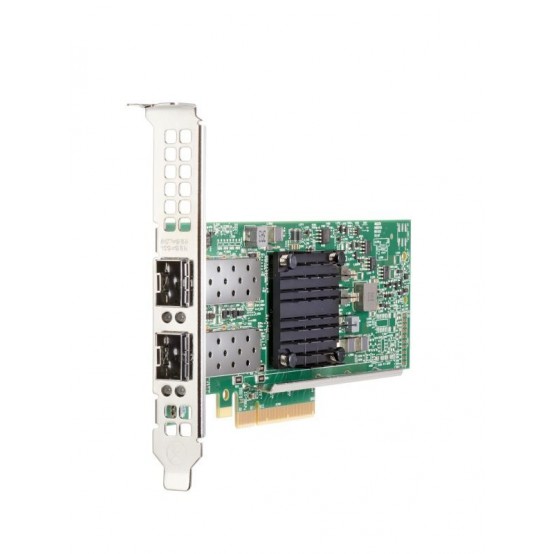

Do you want to increase bandwidth and reduce network vulnerability while reducing costs?The HPE Ethernet 10/25Gb 2-port BCM57414 Adapters deliver the capability to drive either 10G (SFP+) or 25G (SFP28) speeds, providing the option for a large jump in Ethernet performance. Compared to a 10G implementation these adapters offer cost reductions by lowering the number of servers, adapters, cables and switches while accelerating server performance and targeted workloads. These adapters help prevent, detect and recover from cyber attacks by protecting applications, data and server infrastructure by authenticating digitally signed firmware via a Root of Trust architecture. In addition, they offer Secure Boot, Device-level Firewall and other advanced security features.

Features

Speeds packet processing to service more I/O requests utilizing data plane development packet (DPDK).

The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter offloads packet processing to reduce CPU utilization and lower power with Tunnel Offloads (VXLAN and NVGRE).

Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCE v2) for Live Migration, Microsoft SMB Direct environments.

The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter delivers single root I/O virtualization (SR-IOV) with the ability to run a large number of virtual machines (VMs) per server, which reduces the need for hardware and the resultant costs of space and power required by hardware devices.

The HPE Ethernet 10/25Gb 2-port BCM57414 Adapter blocks installation of rogue or corrupted firmware and verifies that the executing firmware is trusted via Hardware Root of Trust and Authentication.

Stops unmanaged access to memory or storage with Device - level Firewall. This validates that on-device firmware and configuration data can only be accessed by authorized agents.

Provides traceability into authenticated firmware updates by capturing changes in standard system logs.
