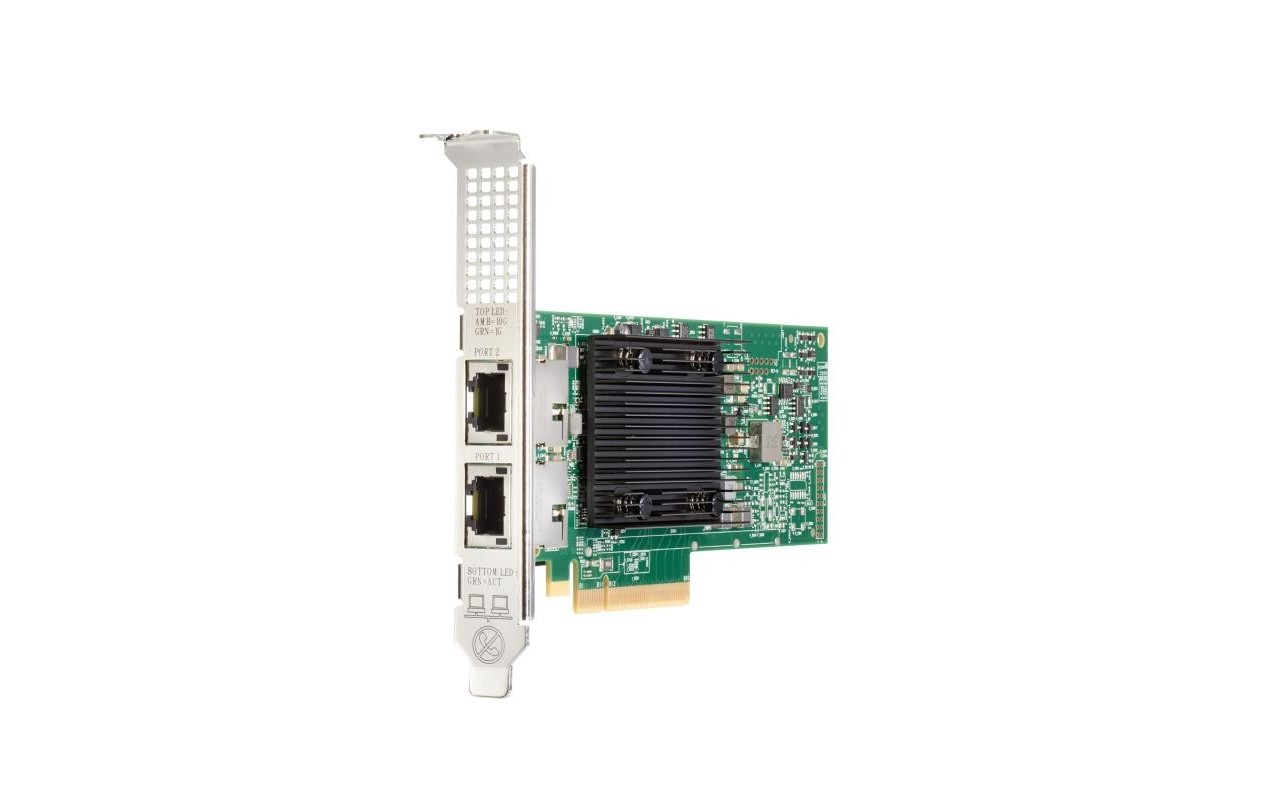

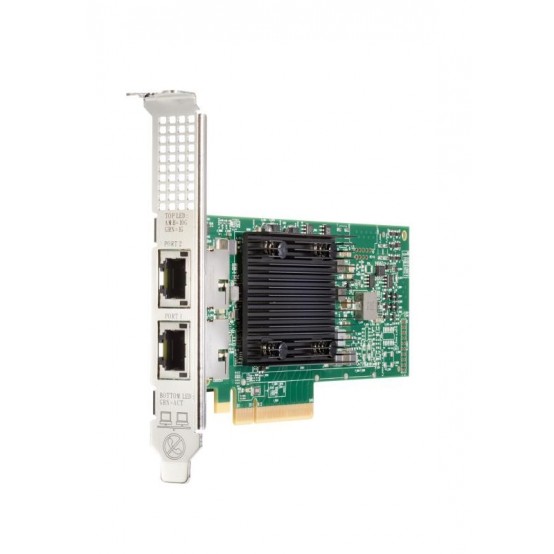

Placa de retea HP 813661-B21

Lifecycle

• Obsolete Date 31-08-2025
• End of support date 31-08-2029

Specifications

• Data rate 10Gb
• Bus type PCIe Gen3 x8
• Number of ports 2-port

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Are you looking for an easy and cost effective transition to 10GBASE-T with enhanced security features? The HPE Ethernet 10Gb 2-port BCM957416 Adapters utilize CAT 6A cabling with distances up to 100 meters and is backward compatible to existing 1GBASE-T infrastructure. This allows quick and easy incremental improvement of network speed without either changing the cables or major upgrade of equipment. These adapters help prevent, detect and recover from cyber attacks by protecting applications, data and server infrastructure by authenticating digitally signed firmware via a Root of Trust architecture. In addition, they offer Secure Boot, Device-level Firewall and other advanced security features.

Features

The HPE Ethernet 10Gb 2-port BCM957416 Adapter provides traceability into authenticated firmware updates by capturing changes in standard system logs via Audit Logs.

Safeguards the NIC and verify no rogue drivers are being executed on start-up with Secure Boot.

Authenticates updates for NICs that signed firmware is correct and trusted to reduce rogue firmware installation.

Speeds packet processing to service more I/O requests utilizing data plane development packet (DPDK).

Offloads packet processing to reduce CPU utilization and lower power with Tunnel Offloads(VXLAN and NVGRE).

The HPE Ethernet 10Gb 2-port BCM57416 Adapter provides a seamless performance upgrade from 1GBASE-T to 10GBASE-T with backward compatibility.

Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCE v2) for Live Migration, Microsoft SMB Direct environments.

The HPE Ethernet 10Gb 2-port BCM57416 Adapter delivers single root I/O virtualization (SR-IOV) which increases virtual network performance while decreasing CPU utilization.
