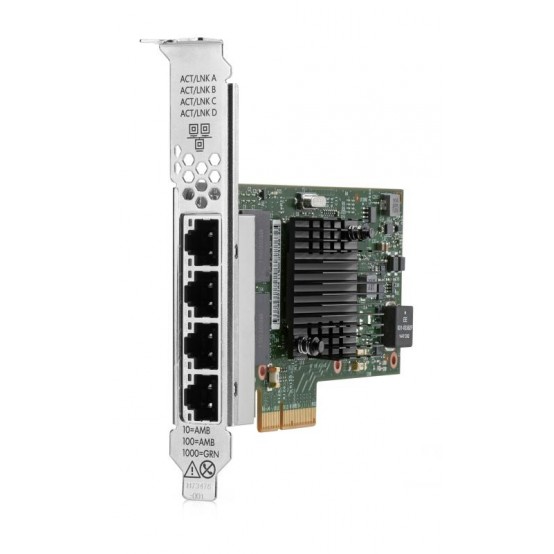

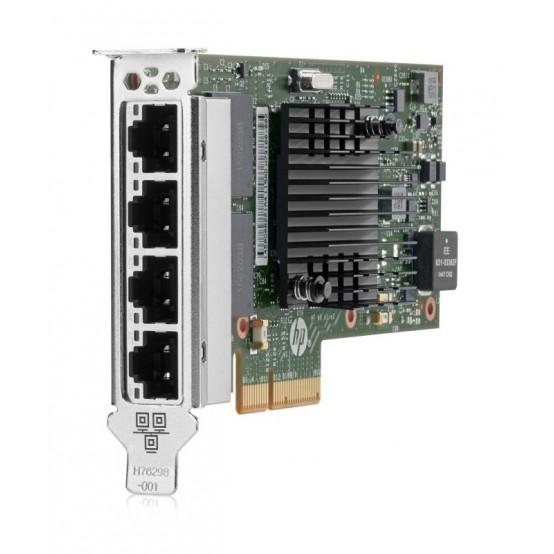

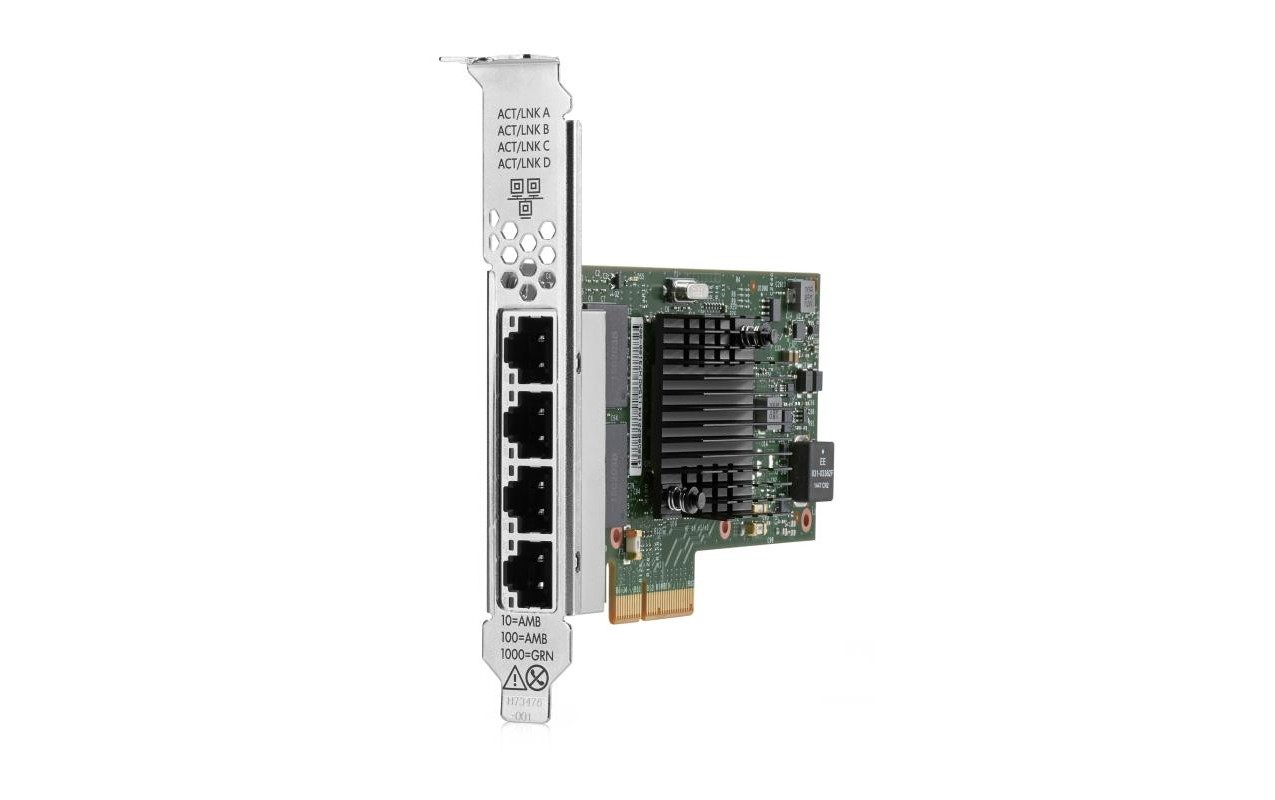

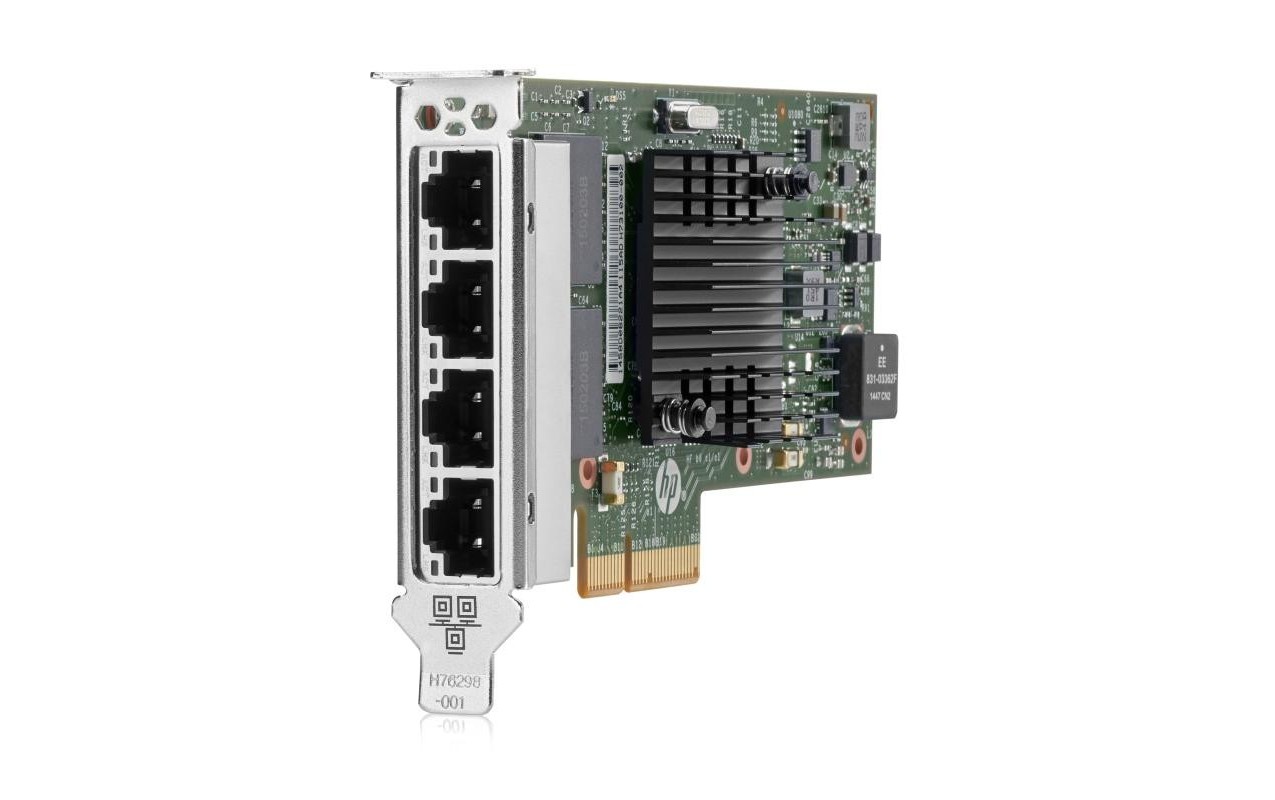

Placa de retea HP 811546-B21

Lifecycle

• Obsolete Date 28-02-2026
• End of support date 31-08-2029

Specifications

• Product dimensions (imperial) 2.5 x 8.25 x 9.78 in
• Product dimensions (metric) 6.35 x 20.96 x 24.84 cm
• Compatible operating systems Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 5.7, 6.1, SUSE Linux Enterprise Server, Solaris 10, VMware ESX/ESXi 4.1u2 and ESXi 5.0u1, Citrix Xenserver 6.0, Microsoft Windows Hyper-V
• Connector type Base-T
• Supported cables Category 6A (Cat6A) (RJ-45)
• Data rate 1Gb
• IEEE compliance 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as
• Server type supported ProLiant servers
• Power Typical - N/A Max - 5.5W
• Network processor Intel® I350 Controller
• Form factor Stand Up
• Bus type PCIe 2.1 x4
• Number of ports 4-port
• Weight 1 lb
• Weight 0.45 kg

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

Need a low cost, low power 1GbE adapter for your HPE ProLiant server? The HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter features a single chip solution, further reducing power requirements for 4 ports of 1 Gb Ethernet. The HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter is PCI Express 2.1 x4 based on the latest Intel Ethernet Controller I350 designed for use with select HPE ProLiant rack, tower and density optimized servers.

Features

Fully integrated (bridgeless) Intel Ethernet I350 Controller, optimized for the new Integrated I/O and Data Direct I/O technologies.

Quad port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile brackets.

New I/O technologies reduce system power, increase I/O performance and reduce I/O latency.
