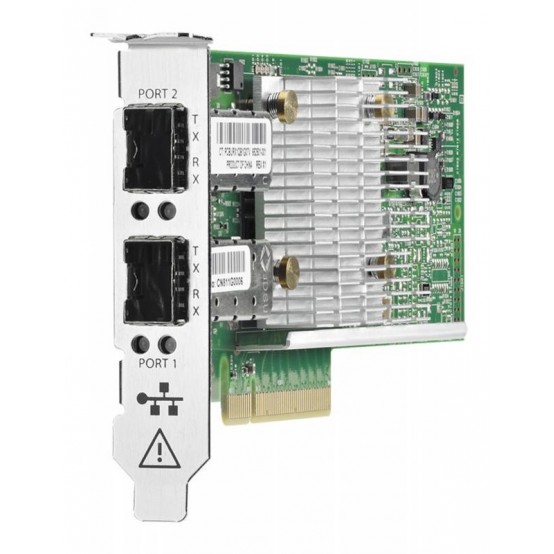

Placa de retea HP 652503-B21

Lifecycle

• Obsolete Date 31-01-2024
• End of support date 30-06-2027

Specifications

• Data rate 10Gb
• Protocol supported Ethernet, 802.3, 802.3xx, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb, 802.1Qbg, 802.1Qbh 802.1ax
• Network controller 10Gb 530SFP+ 2-port
• Number of ports 2
• Bus type PCIe Gen2 x8
• Form factor Standup
• Technology Network processor
• Transfer rate 10 Gb/sec

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Need a 10Gb Ethernet adapter that’s big on performance small on power? The HPE Ethernet 10Gb 2-port SFP+ 57810S Adapter is a dual-port 10 Gb Ethernet adapter in a PCIe 2.0 compliant form factor. Leveraging HPE’s market-proven architecture and software, the HPE 530SFP+ delivers full line-rate performance across all ports with low power consumption. Support for Hewlett Packard Enterprise Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense. TheHPE Ethernet 10Gb 2-port SFP+ 57810S Adapter supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot and virtualization features such as VMware NetQueue and Microsoft VMQ.

Features

Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.

TCP/IP Offload Engine (TOE) frees server CPU for other operations.

Ethernet transfer rate of 20 Gbps full duplex per port (40 Gbps aggregate) improves response times and alleviates bottlenecks in next generation data centers.

Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.

Less than 8 watts total power dissipation.

Up to 40 Gb/s bi-directional near line rate throughput.

Single-chip solution integrating PHY and MAC.

Virtualization support for VMware NetQueue and Microsoft VMQ to meet the performance demands of consolidated virtual workloads. Ready for SR-IOV virtualization.

Documents

• HPE Ethernet 10Gb SFP+ Adapters
