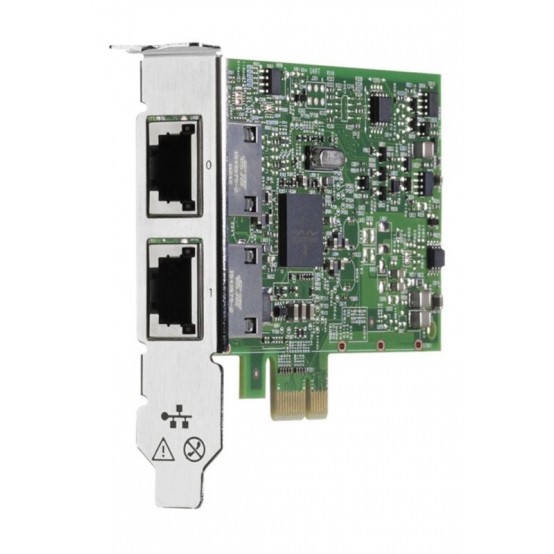

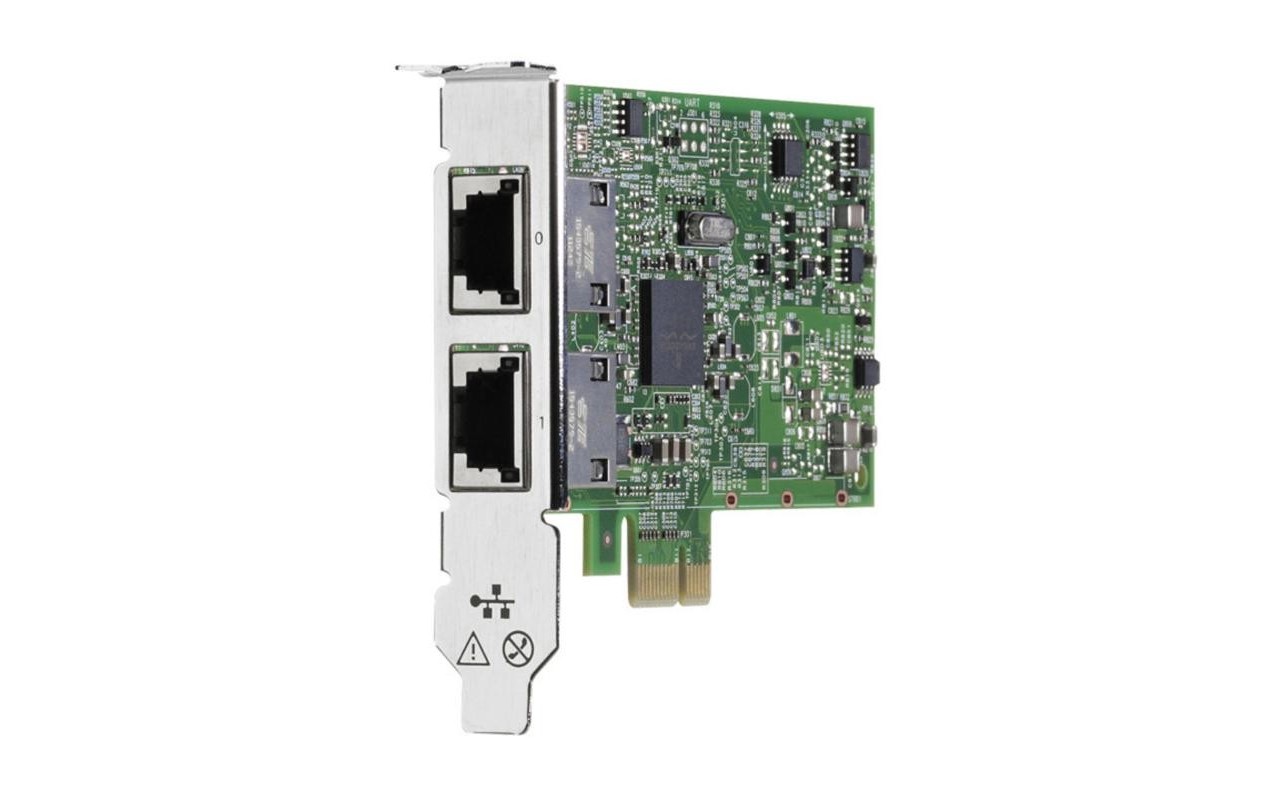

Placa de retea HP 615732-B21

Lifecycle

• Obsolete Date 14-11-2024
• End of support date 31-08-2029

Specifications

• Number of ports 2-port
• Bus type PCIe Gen2 x1
• Data rate 1Gb
• Form factor Standup
• Protocol supported Ethernet, 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
• Network controller 1Gb 332T 2-port
• Port speed 4 Gbps
• Transfer rate 1 Gb/sec
• Technology Network processor
• Power availability 2W (maximum)

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

Need a cost effective 1GbE Solution for your HPE ProLiant server? The HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter is a dual-port, low-cost, low profile 1Gb adapter featuring a PCIe 2.0 compliant form factor designed for select HPE ProLiant ML/DL/SL servers. It delivers full line-rate performance across all ports with low power consumption, providing Ethernet connectivity ideal for virtualization, security, server consolidation, and network segmentation. Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588 (Precision Time Protocol – PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual Machine Queue (VMQ). Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

Features

An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.

Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.

Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.

Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.

Support for Energy Efficient Ethernet (EEE) reduces operating expenses.

Documents

• HPE Ethernet 1Gb 2-port 332T Adapter
• Compute 1Gb Ethernet Adapters for HPE QuickSpecs
