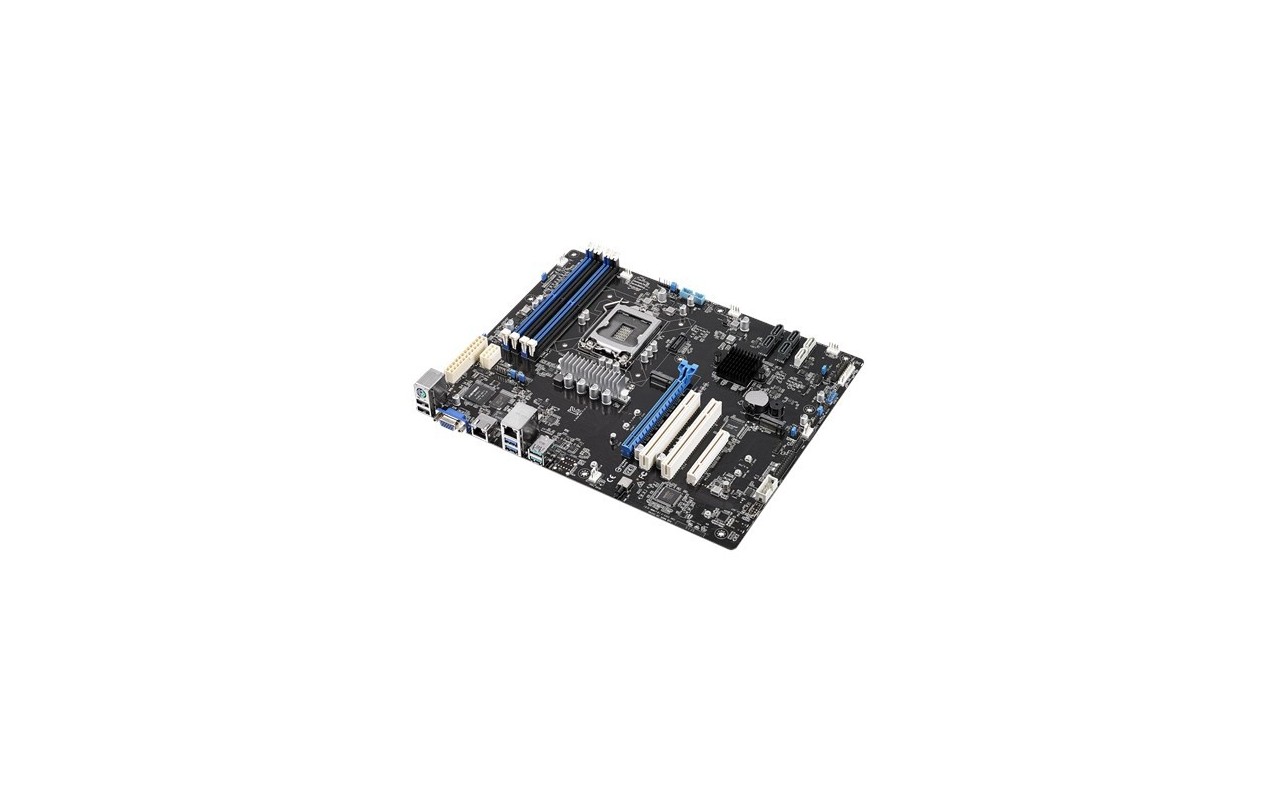

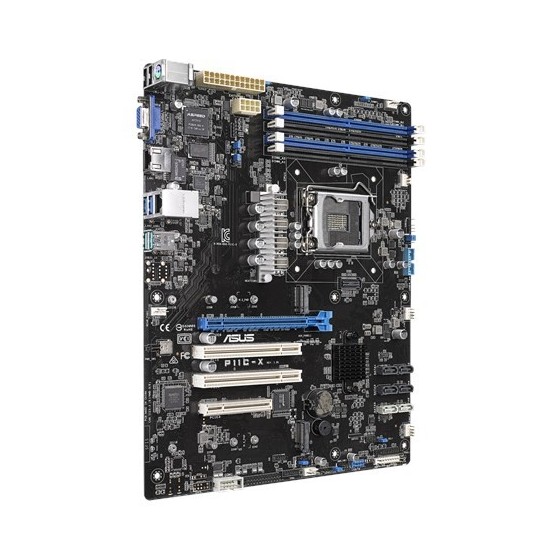

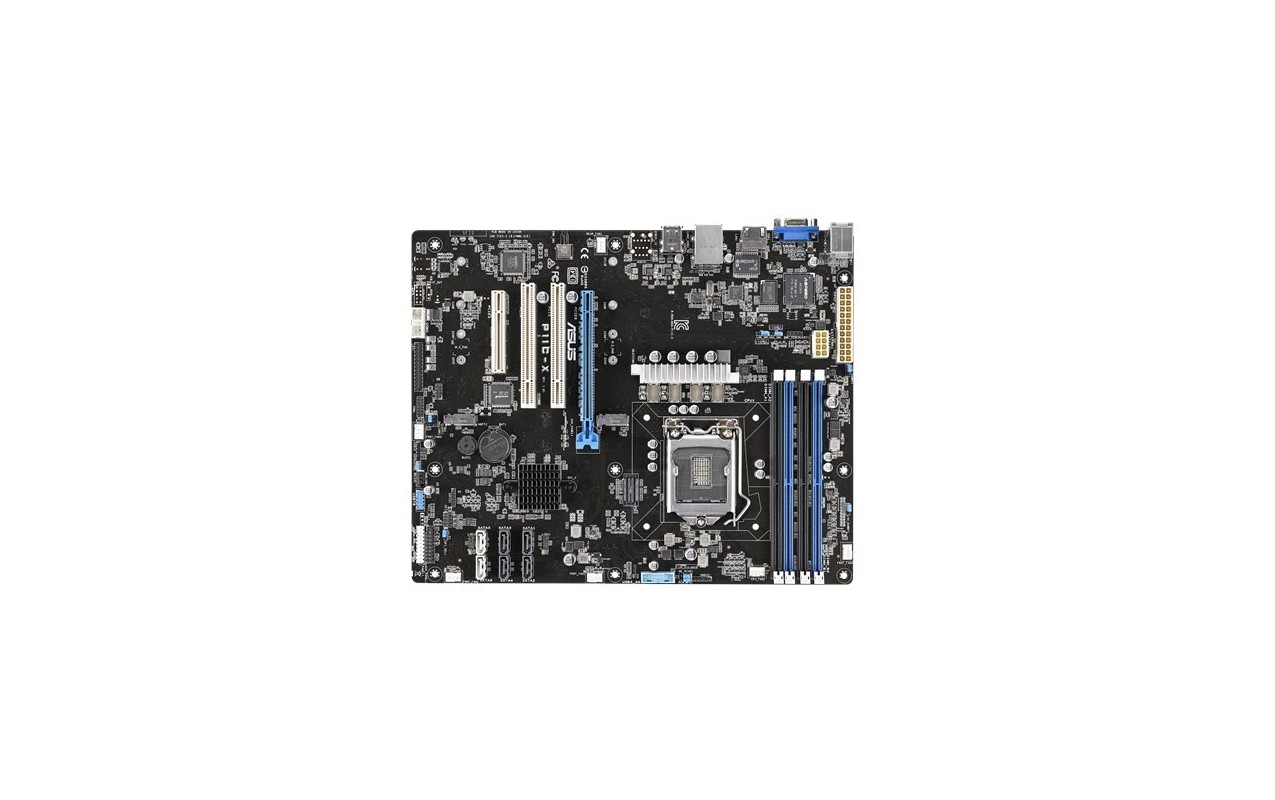

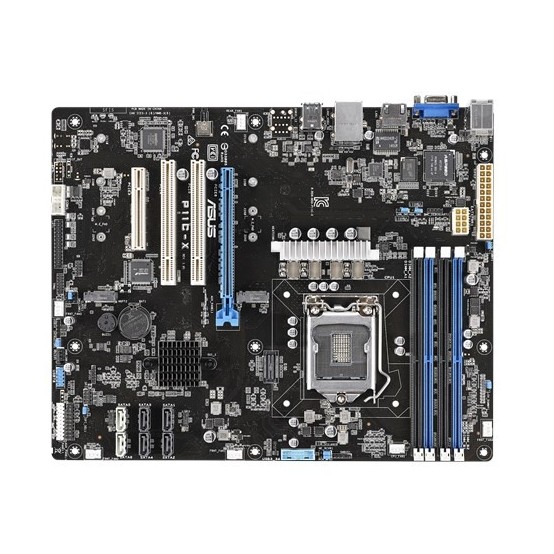

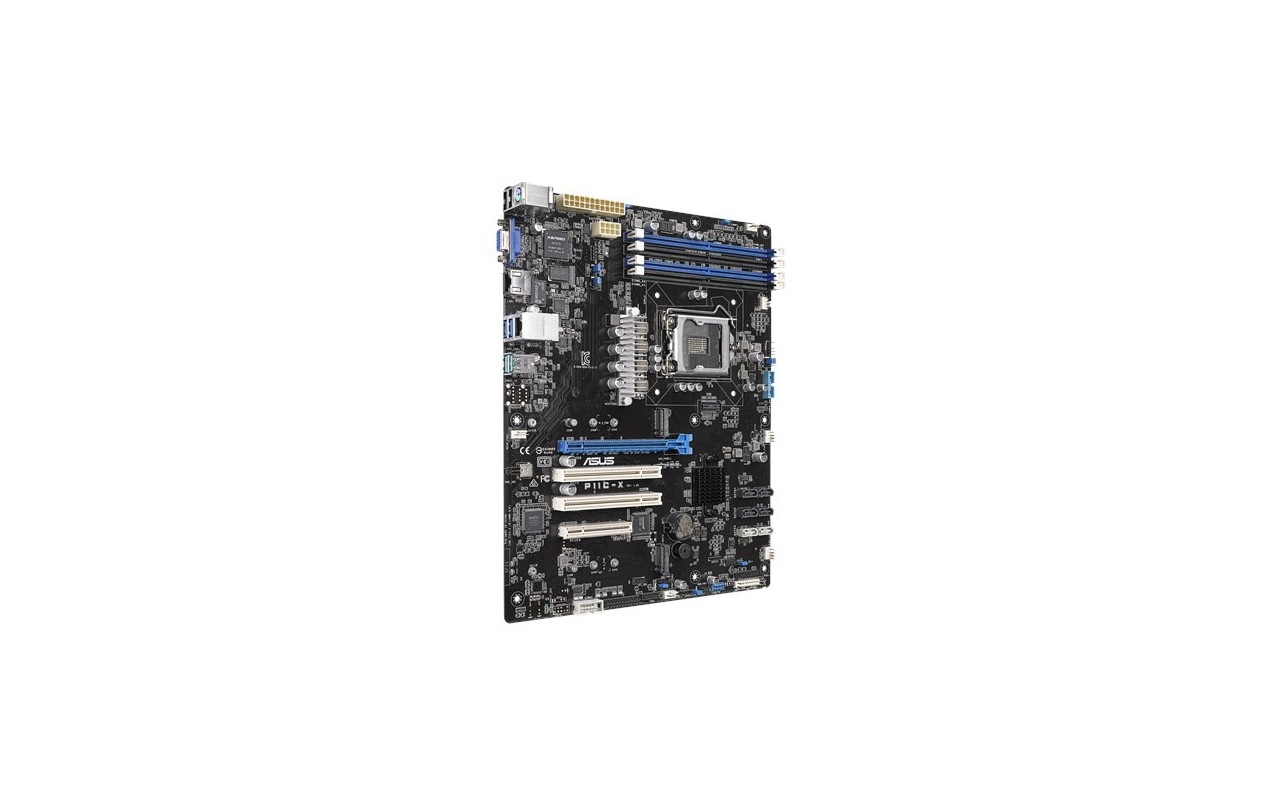

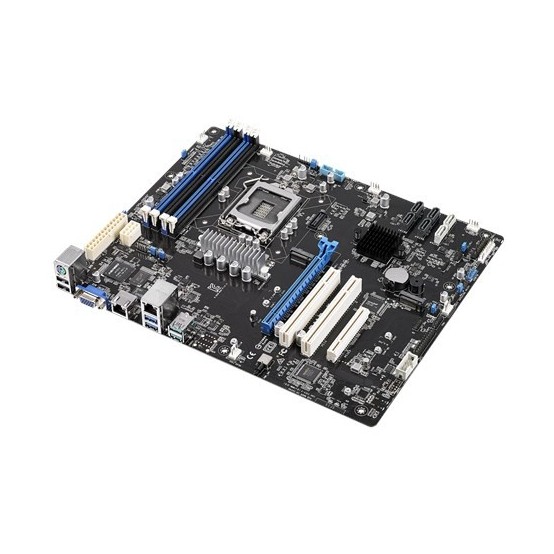

Placa de baza ASUS P11C-X 90SB06Q0-M0UAY0

Industry-standard ATX server board with multiple expandability options

P11C-X is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering dual Intel Ethernet and flexible expandability with dual M.2, six native SATA 6G, two PCIe, and two PCI slot for legacy devices. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Dual M.2 for internal and independent OS drives with RAID 0/1 (by SATA mode)

P11C-X comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA with auto-switch signal function. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

High-speed SAS storage solutions

P11C-X supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-X, making it a great upgrade option.

Dual Intel Gigabit Ethernet

With dual Intel Gigabit Ethernet connectors, P11C-X keeps your data moving swiftly and efficiently. With both LAN ports teamed you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if anything goes wrong — so access to your files is always fast, efficient and uninterrupted.

TPM-M 2.0 ready

P11C-X supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

ASUS Control Center

ASUS Control Center (ACC) is a centralized and integrated IT Management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables Remote BIOS updates, monitoring of multiple Systems via mobile devices, and one-click software updates and dispatching, allowing easier server Management for any IT infrastructure.

Enhanced serviceability

With its power button located on the front I/O panel, P11C-X is designed to provide easier maintenance and deployment for diverse applications.

Quick initialization guidance

P11C-X provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

ASUS ProCool connector

ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.

• Powered by the Intel Xeon E platform
• 95W CPU and up to 64GB memory support (4 DIMMs)
• Rack-optimized design maximizes cooling for excellent thermal efficiency
• Flexible expandability with 6 native SATA 6G ports , two PCIe Gen3 slots and two PCI legacy slots
• Dual Intel Gigabit Ethernet with teaming support
• Dual M.2 for independent OS drives with RAID 0/1
• Supports the latest 10Gb/s USB 3.1 onboard for high transfer speed
• TPM-M 2.0 support for enhanced platform integrity
• Complete server management with ASUS Control Center
