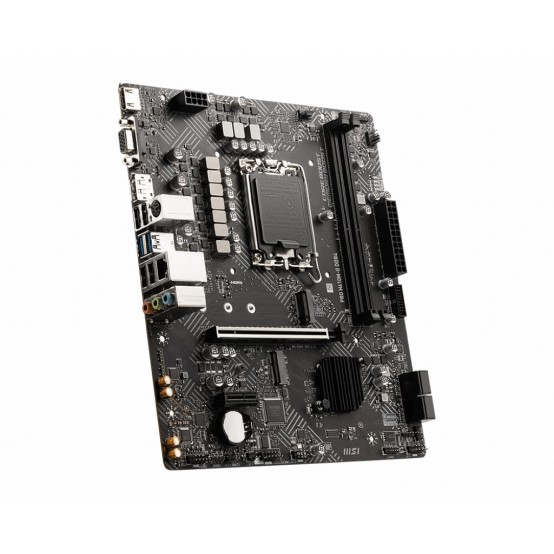

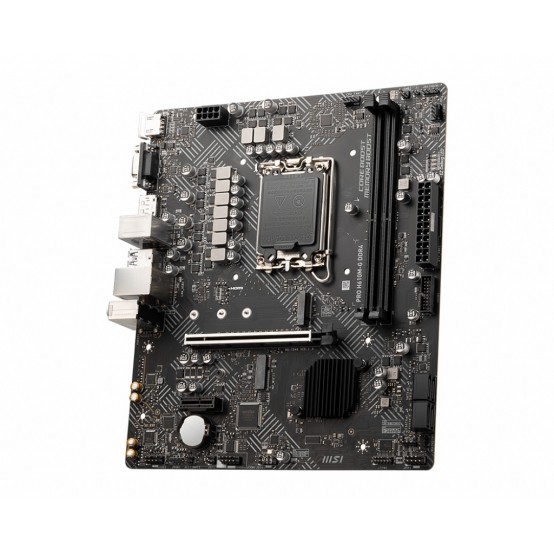

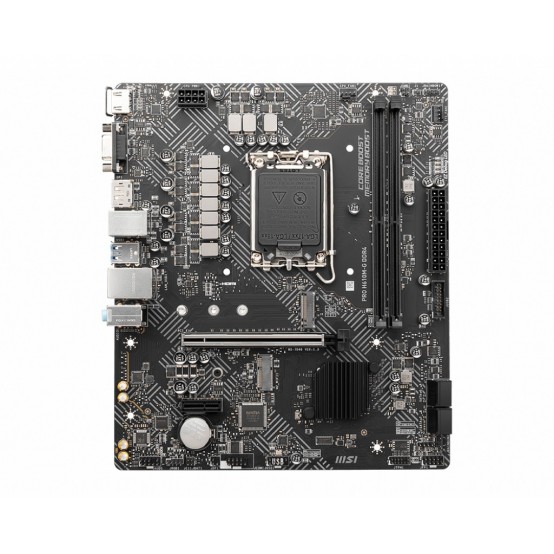

Placa de baza MSI PRO H610M-G DDR4 7D46-009R
434.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza MSI PRO H610M-G DDR4 7D46-009R
434.00 leiDescriere
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
mATX
|
| Soclu procesor |
1700
|
| Model chipset |
H610
|
| Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
| Interfata grafica |
PCI Express x16 4.0
|
| Placa video integrata |
Necesita procesor cu tehnologia Intel HD Graphics
|
| Placa audio integrata |
7.1 Audio
|
| Chipset audio |
Realtek ALC892/897
|
| Placa retea integrata |
10/100/1000 Mbps
|
| Chipset retea |
Intel I219V
|
| Numar SATA-III |
4
|
| M.2 |
1
|
| Drivere | |
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
64 GB
|
| Numar sloturi |
2
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
3200/2933/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
1 (x16)
|
| PCI Express x1 |
1
|

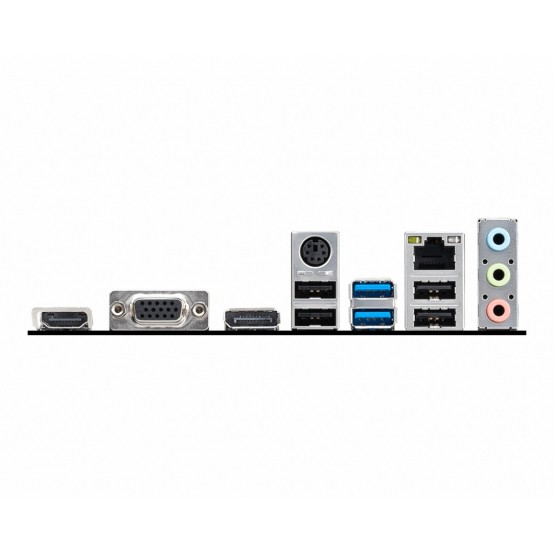

| Conectori Back Panel | |
| PS/2 Mouse |
1
|
| VGA |
1
|
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
4
|
| USB 3.2 Gen1 tip A |
2
|
| RJ-45 LAN |
1
|
| Suport audio |
7.1
|
Placa de baza MSI PRO H610M-G DDR4 LGA 1700 911-7D46-003 / 4719072925024 SPECIFICATIONS Model Name PRO H610M-G DDR4 CPU Support Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 2.1 DisplayPort 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot 1x M.2 slot with E-key for PCIe WiFi module only Storage 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gb/s ports USB ports 4x USB 3.2 Gen 1 5Gbps(4 Type-A) 6x USB 2.0 LAN Intel® I219-V 1G LAN Audio 8-Channel(7.1) HD Audio with Audio Boost https://www.msi.com/Motherboard/PRO-H610M-G- DDR4/Specification
Specificatii
| ID dataSPOT |
164169 |
|---|---|
| Cod |
7D46-009R |
| Model |
PRO H610M-G DDR4 |
| Producator |
MSI |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III |
4 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
4 x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
2 x |
|---|---|
| Frecventa DDR4 |
2133/ 2666/ 2933/ 3200 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel H610 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel H610
- Numar sloturi DDR4
- 2 x
- Frecventa DDR4
- 2133/ 2666/ 2933/ 3200 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 64 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III
- 4 x Serial ATA III
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 4 x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 164169
- Cod
- 7D46-009R
- Model
- PRO H610M-G DDR4
- Producator
- MSI
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
164169 |
|---|---|
| Cod |
7D46-009R |
| Model |
PRO H610M-G DDR4 |
| Producator |
MSI |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III |
4 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
4 x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
2 x |
|---|---|
| Frecventa DDR4 |
2133/ 2666/ 2933/ 3200 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel H610 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Placa de baza MSI PRO H610M-G DDR4 7D46-009R
