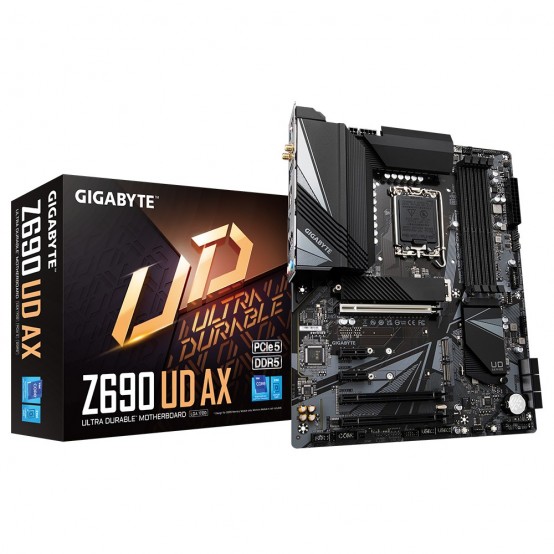

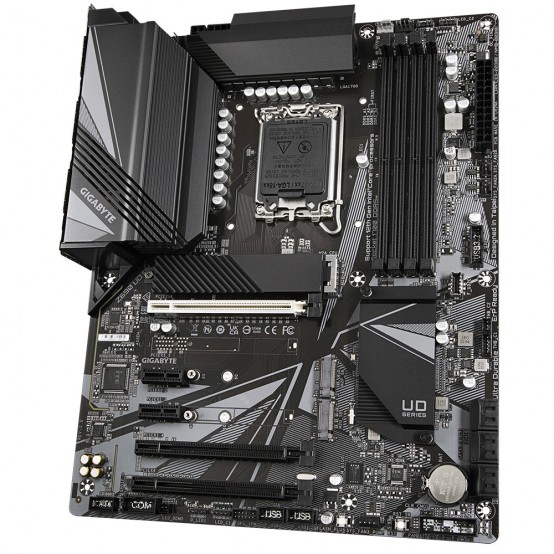

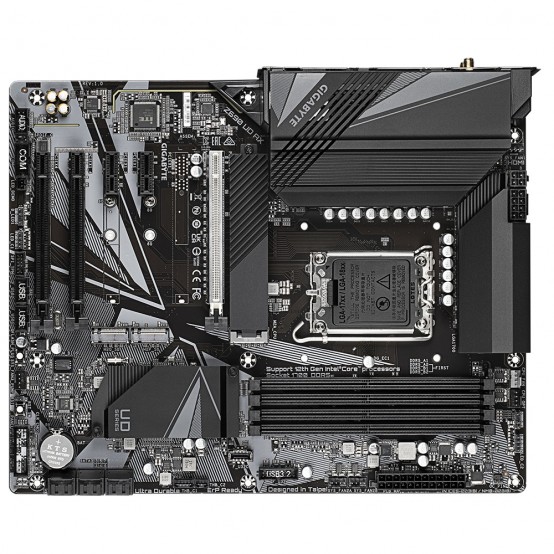

Placa de baza GigaByte Z690 UD AX
1 079.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte Z690 UD AX
1 079.00 leiDescriere
Placa de baza Gigabyte Z690 UD AX LGA 1700 Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, DDR5 XTREME MEMORY, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor Ultra Performance VRM Heatsinks Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna Fast 2.5GbE LAN with Bandwidth Management 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds RGB FUSION 2.0, supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/Z690-UD-AX-rev-10#kf
Specificatii
| Numar sloturi DDR5 |
4 x |
|---|---|
| Frecventa DDR5 |
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz |
| Tehnologie Multi Channel DDR5 |
Dual Channel DDR5 Slots |
| Memorie DDR5 maxima |
128 GB |
| ID dataSPOT |
164080 |
| Model |
Z690 UD AX |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 5.0 |
| Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
8 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
|---|---|
| Video on-board |
Intel HD Graphics |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel Z690 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel Z690
- Numar sloturi DDR5
- 4 x
- Frecventa DDR5
- 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz
- Slot-uri PCI Express x16
- 3 x PCI Express x16
- Tehnologie Multi Channel DDR5
- Dual Channel DDR5 Slots
- Memorie DDR5 maxima
- 128 GB
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 5.0
- CrossFire
- AMD Quad-GPU CrossFire. 2-Way AMD CrossFire
- Serial ATA III with RAID Support
- 6 x Serial ATA III with RAID Support
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 / 2500 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac/ax Mbit/s
- Porturi USB 2.0
- 8 x USB 2.0
- Porturi USB 3.2
- 7 + 2 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- ATX
- Alte detalii
- Bluetooth 5.2
- ID dataSPOT
- 164080
- Model
- Z690 UD AX
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| Numar sloturi DDR5 |
4 x |
|---|---|
| Frecventa DDR5 |
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz |
| Tehnologie Multi Channel DDR5 |
Dual Channel DDR5 Slots |
| Memorie DDR5 maxima |
128 GB |
| ID dataSPOT |
164080 |
| Model |
Z690 UD AX |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 5.0 |
| Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
8 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
|---|---|
| Video on-board |
Intel HD Graphics |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel Z690 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Placa de baza GigaByte Z690 UD AX
