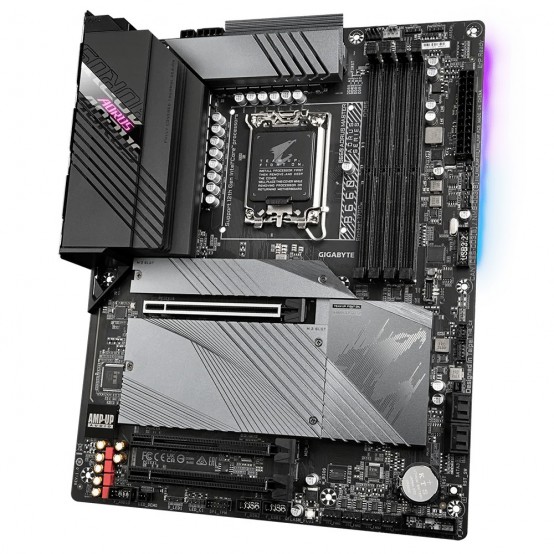

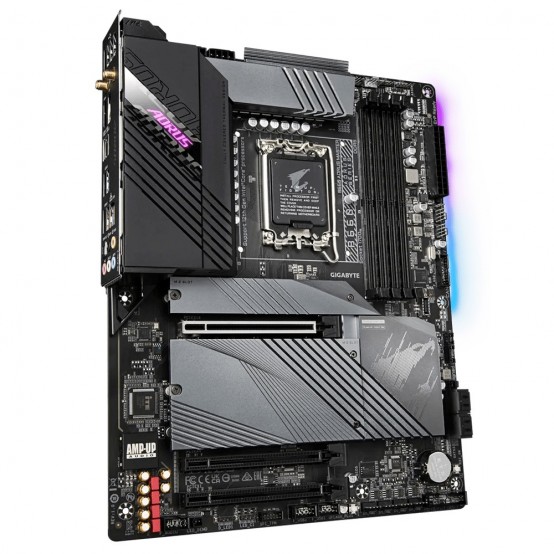

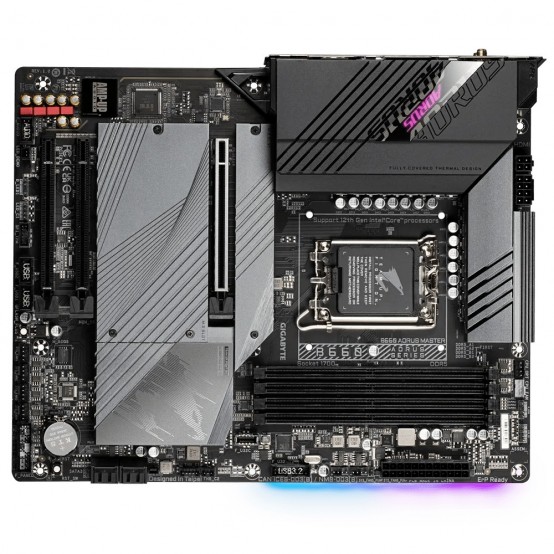

Placa de baza GigaByte B660 AORUS MASTER
1 169.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Descriere
General | |
Recomandat pentru Gaming |
Da
|
Format |
ATX
|
Soclu procesor |
1700
|
Producator chipset |
Intel
|
Model chipset |
B660
|
Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
Interfata grafica |
PCI Express x16 4.0
|
RAID |
0, 1, 5, 10
|
Placa audio integrata |
7.1 Audio
|
Chipset audio |
Realtek ALC1220-VB
|
Placa retea integrata |
10/100/1000/2500 Mbps
|
Numar SATA-III |
4
|
M.2 |
3
|
Memorii Suportate | |
Tip memorie |
DDR5
|
Memorie maxima |
128 GB
|
Numar sloturi |
4
|
Tehnologie |
Dual channel
|
Frecvente suportate |
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz
|
Sloturi | |
PCI Express 4.0 x16 |
1 (x16)
|
PCI Express 3.0 x16 |
1 (x4)
|
PCI Express x1 |
1
|

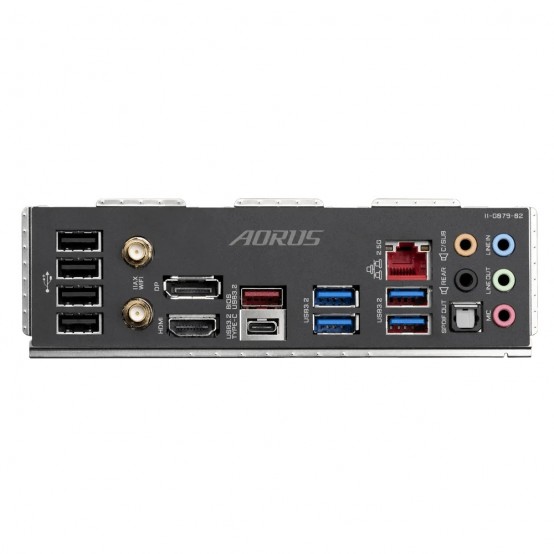

Conectori Back Panel | |
Optical S/PDIF out |
1
|
HDMI |
1
|
Display Port |
1
|
USB 2.0 |
4
|
USB 3.2 Gen2 tip A |
1
|
USB 3.2 Gen2 tip C |
1
|
RJ-45 LAN |
1
|
Suport audio |
7.1
|
Bluetooth |
Bluetooth 5.2
|
Wireless |
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
|
BIOS Flashback |
Da
|
Placa de baza Gigabyte B660 AORUS MASTER DDR5 LGA 1700 CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. Chipset Intel® B660 Express Chipset Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports (Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) https://www.gigabyte.com/Motherboard/B660-AORUS-MASTER-rev-1x/sp#sp
Specificatii
ID dataSPOT |
164015 |
---|---|
Model |
B660 AORUS MASTER |
Producator |
GigaByte |
Garantie comerciala |
3 ani |
Altele
Alte detalii |
Bluetooth 5.2 |
---|
Conectivitate
Slot-uri PCI Express x16 |
3 x PCI Express x16 |
---|---|
PCI Express 2.0 |
PCI Express 4.0 |
Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
Porturi USB 2.0 |
8 x USB 2.0 |
Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
---|---|
Video on-board |
Intel HD Graphics |
HDMI |
1 x HDMI On-Board |
DisplayPort |
1 |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
128 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1700 |
Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
North Bridge |
Intel B660 |
Retea
LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
---|---|
Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel B660
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 3 x PCI Express x16
- PCI Express 2.0
- PCI Express 4.0
- CrossFire
- AMD Quad-GPU CrossFire. 2-Way AMD CrossFire
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 / 2500 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac/ax Mbit/s
- Porturi USB 2.0
- 8 x USB 2.0
- Porturi USB 3.2
- 7 + 2 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- ATX
- Alte detalii
- Bluetooth 5.2
- ID dataSPOT
- 164015
- Model
- B660 AORUS MASTER
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
ID dataSPOT |
164015 |
---|---|
Model |
B660 AORUS MASTER |
Producator |
GigaByte |
Garantie comerciala |
3 ani |
Altele
Alte detalii |
Bluetooth 5.2 |
---|
Conectivitate
Slot-uri PCI Express x16 |
3 x PCI Express x16 |
---|---|
PCI Express 2.0 |
PCI Express 4.0 |
Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
Porturi USB 2.0 |
8 x USB 2.0 |
Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
---|---|
Video on-board |
Intel HD Graphics |
HDMI |
1 x HDMI On-Board |
DisplayPort |
1 |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
128 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1700 |
Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
North Bridge |
Intel B660 |
Retea
LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
---|---|
Wireless |
802.11 a/b/g/n/ac/ax Mbit/s |
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
