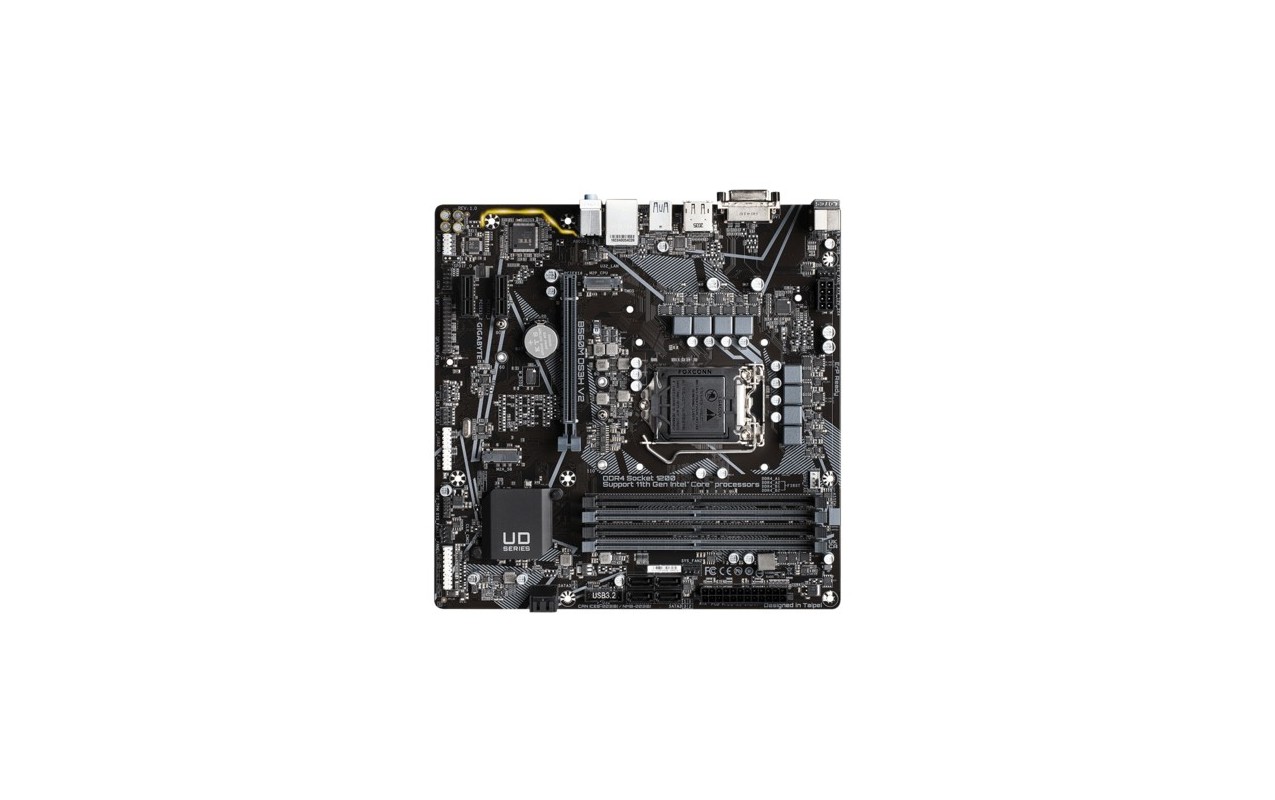

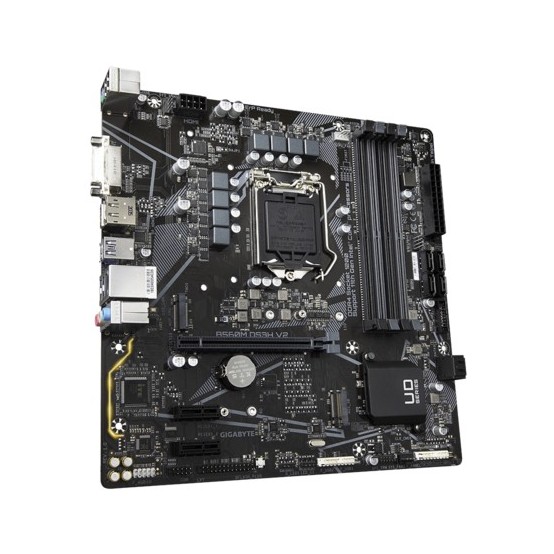

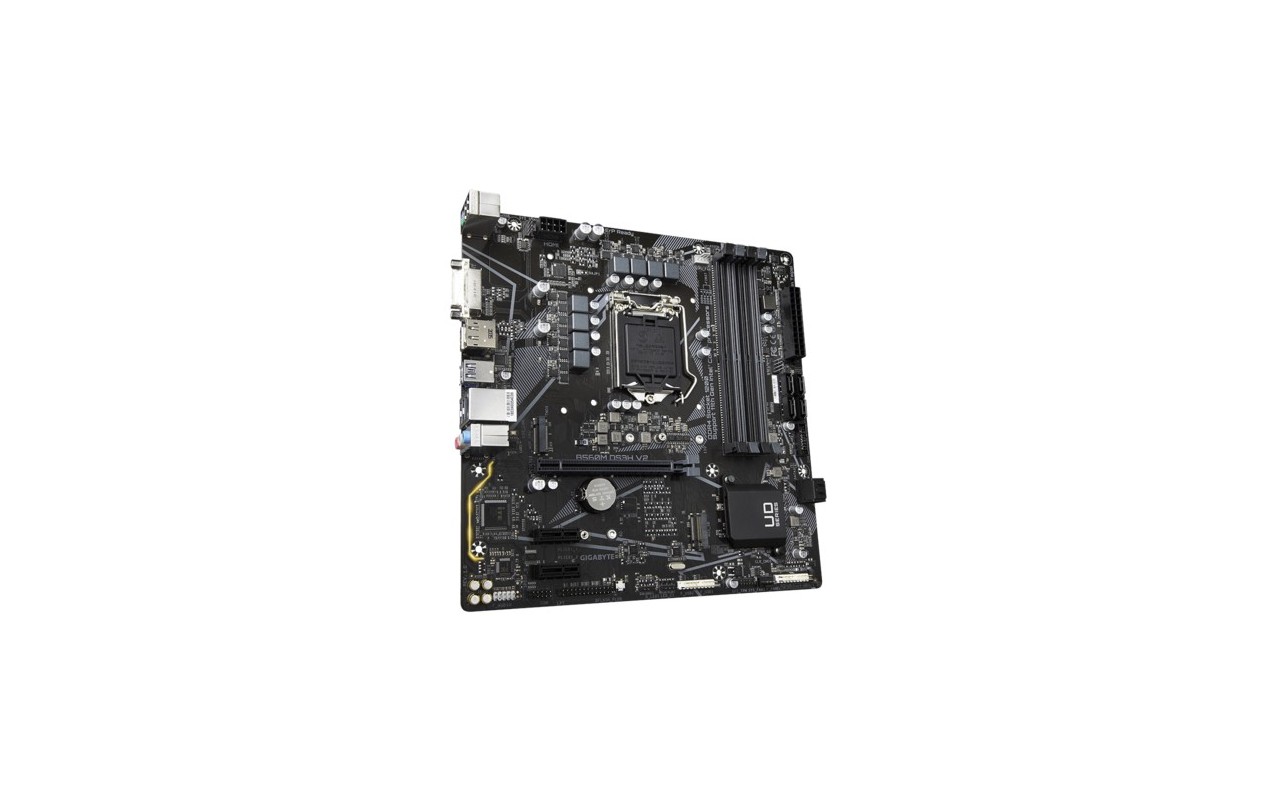

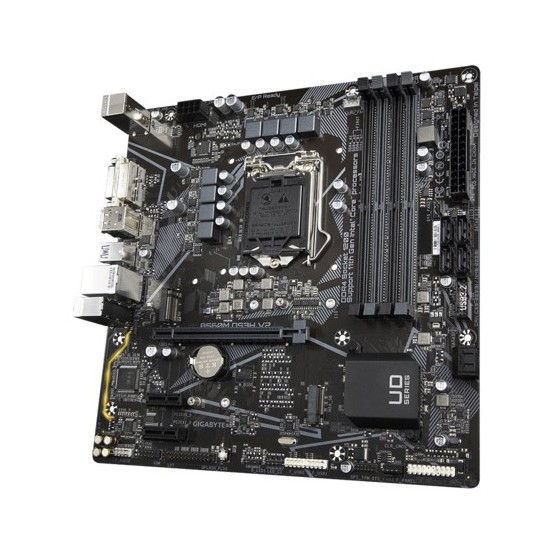

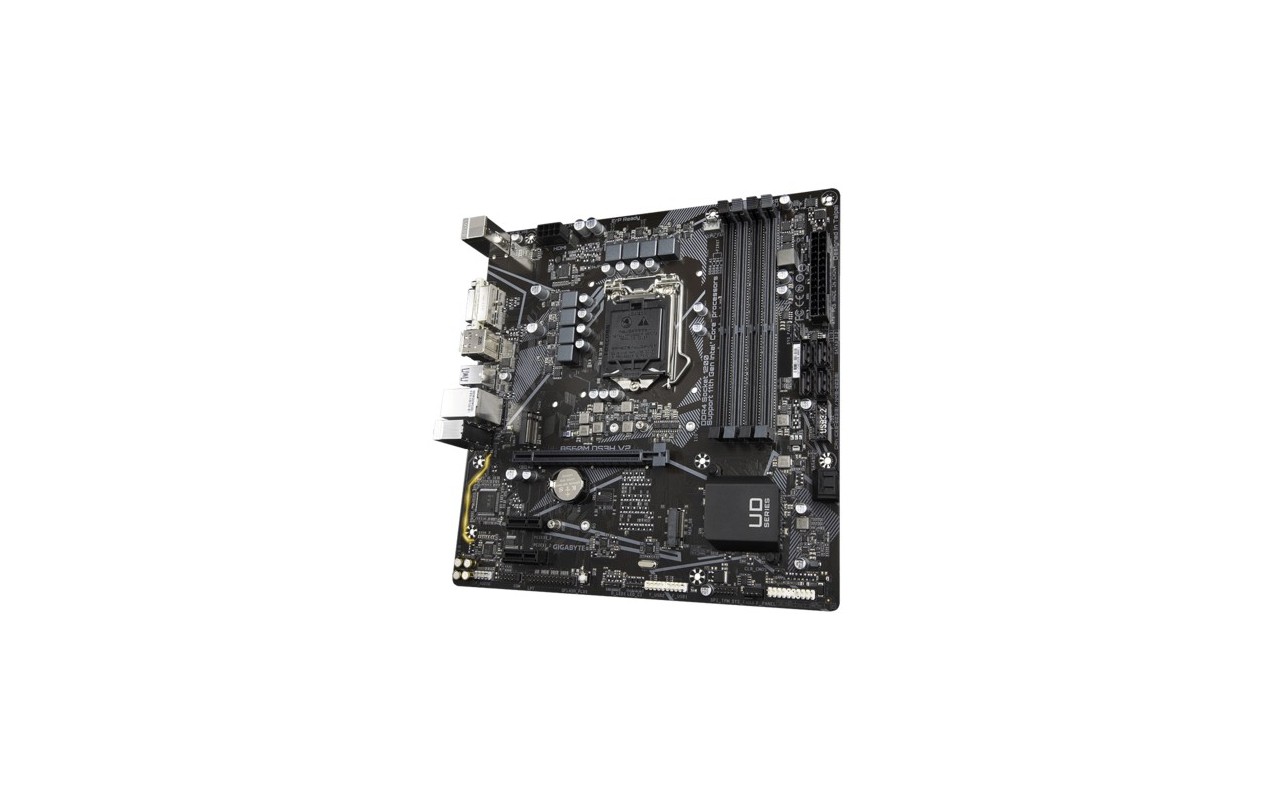

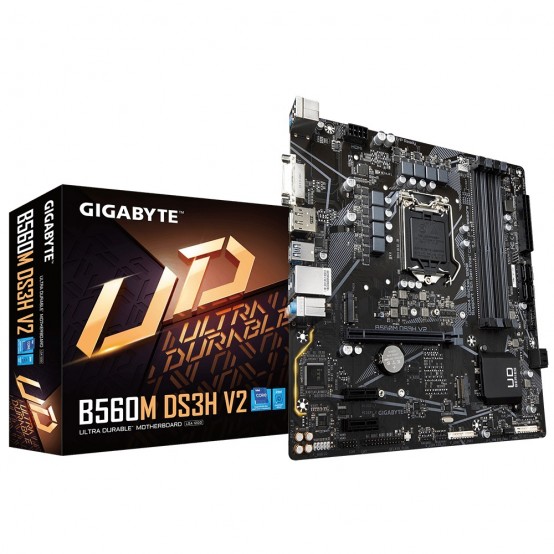

Placa de baza GigaByte B560M DS3H V2
489.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte B560M DS3H V2
489.00 leiDescriere
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
mATX
|
| Soclu procesor |
1200
|
| Producator chipset |
Intel
|
| Model chipset |
B560
|
| Procesoare suportate |
Intel 11th/10th Generation Core/Pentium/Celeron
|
| Interfata grafica |
PCI Express x16 4.0
|
| Placa video integrata |
Necesita procesor cu tehnologia Intel HD Graphics
|
| Placa audio integrata |
7.1 Audio with Realtek
|
| Chipset audio |
Realtek
|
| Placa retea integrata |
10/100/1000 Mbps
|
| Chipset retea |
Realtek GbE
|
| Numar SATA-III |
6
|
| M.2 |
2
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
3200/3000/2933/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
1 (x16)
|
| PCI Express x1 |
2
|

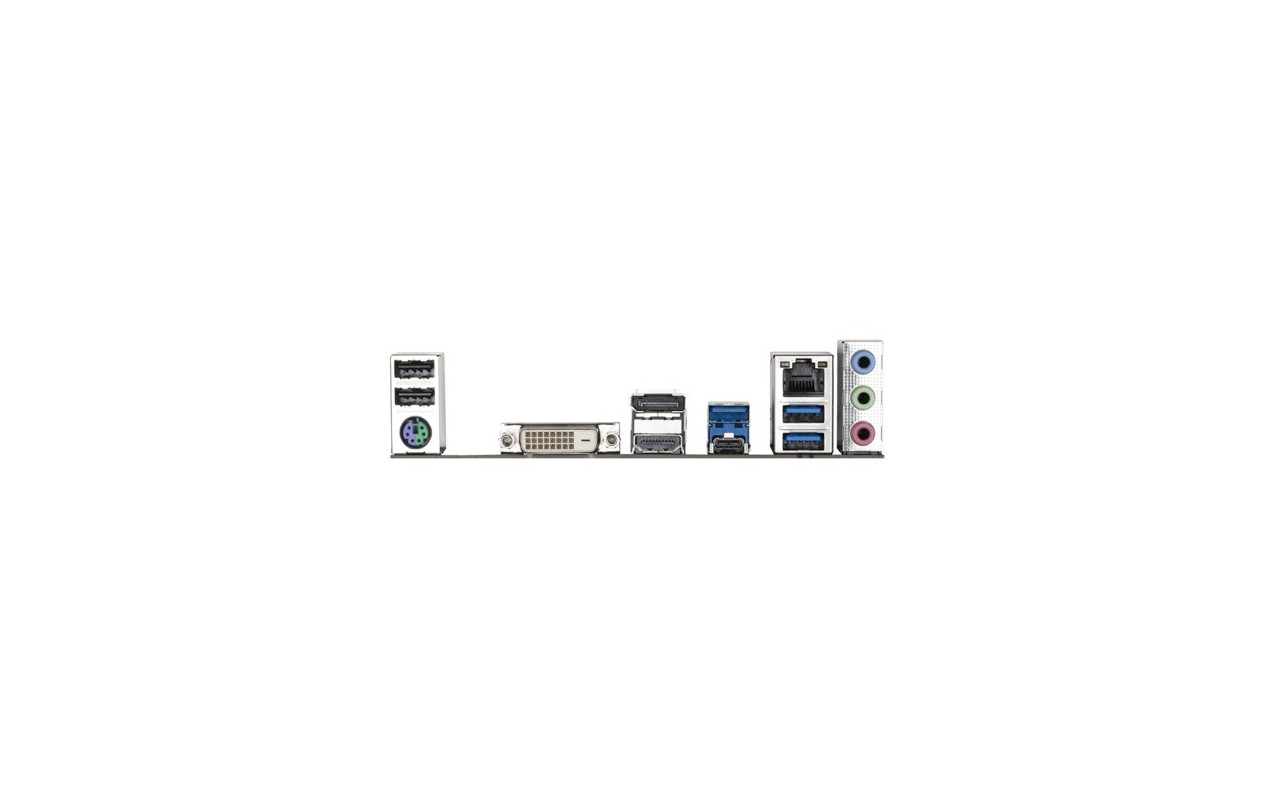

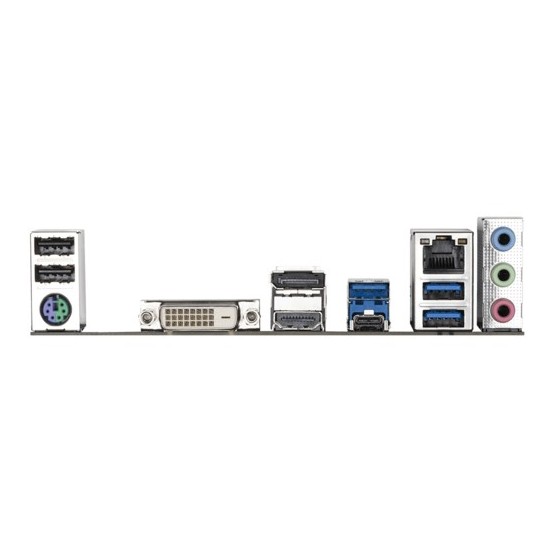

| Conectori Back Panel | |
| PS/2 Mouse-Tastatura |
1
|
| DVI |
1
|
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
2
|
| USB 3.2 Gen1 tip A |
3
|
| USB 3.2 Gen1 tip C |
1
|
| RJ-45 LAN |
1
|
| Suport audio |
5.1
|
Placa de baza Gigabyte B560M DS3H V2 LGA 1200 Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2 GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management USB 3.2 Gen1 Type-C® for Fast and Versatile Connections High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/B560M-DS3H-V2-rev-10#kf
Specificatii
| ID dataSPOT |
164012 |
|---|---|
| Model |
B560M DS3H V2 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III |
6 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
5 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
11th Gen Intel Core & 10th Gen Intel Core. Pentium and Celeron |
| North Bridge |
Intel B560 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 11th Gen Intel Core & 10th Gen Intel Core. Pentium and Celeron
- North Bridge
- Intel B560
- Numar sloturi DDR4
- 4 x
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III
- 6 x Serial ATA III
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 5 + 1 type C x USB 3.2
- DVI
- 1 x DVI On-Board
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 164012
- Model
- B560M DS3H V2
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
164012 |
|---|---|
| Model |
B560M DS3H V2 |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III |
6 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
5 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
11th Gen Intel Core & 10th Gen Intel Core. Pentium and Celeron |
| North Bridge |
Intel B560 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
