Placa de baza ASUS PRIME Z690-P D4-CSM 90MB18P0-M0EAYC
1 249.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza ASUS PRIME Z690-P D4-CSM 90MB18P0-M0EAYC
1 249.00 leiDescriere

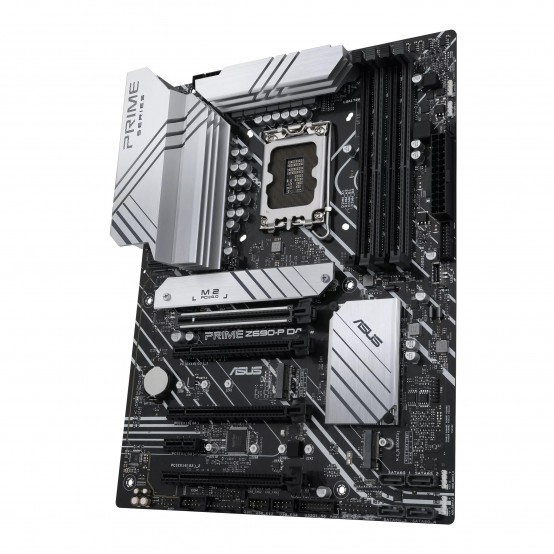

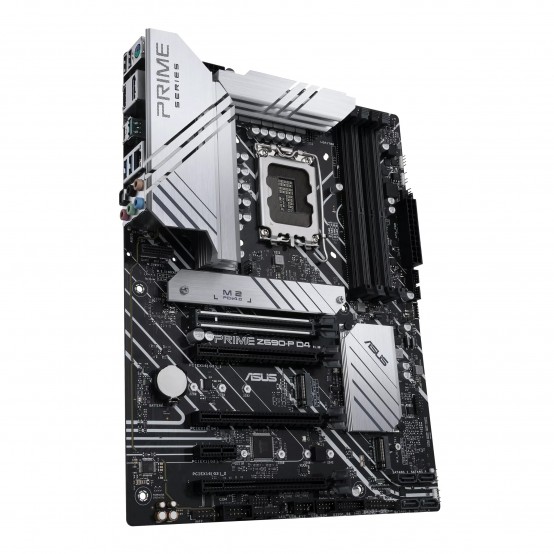

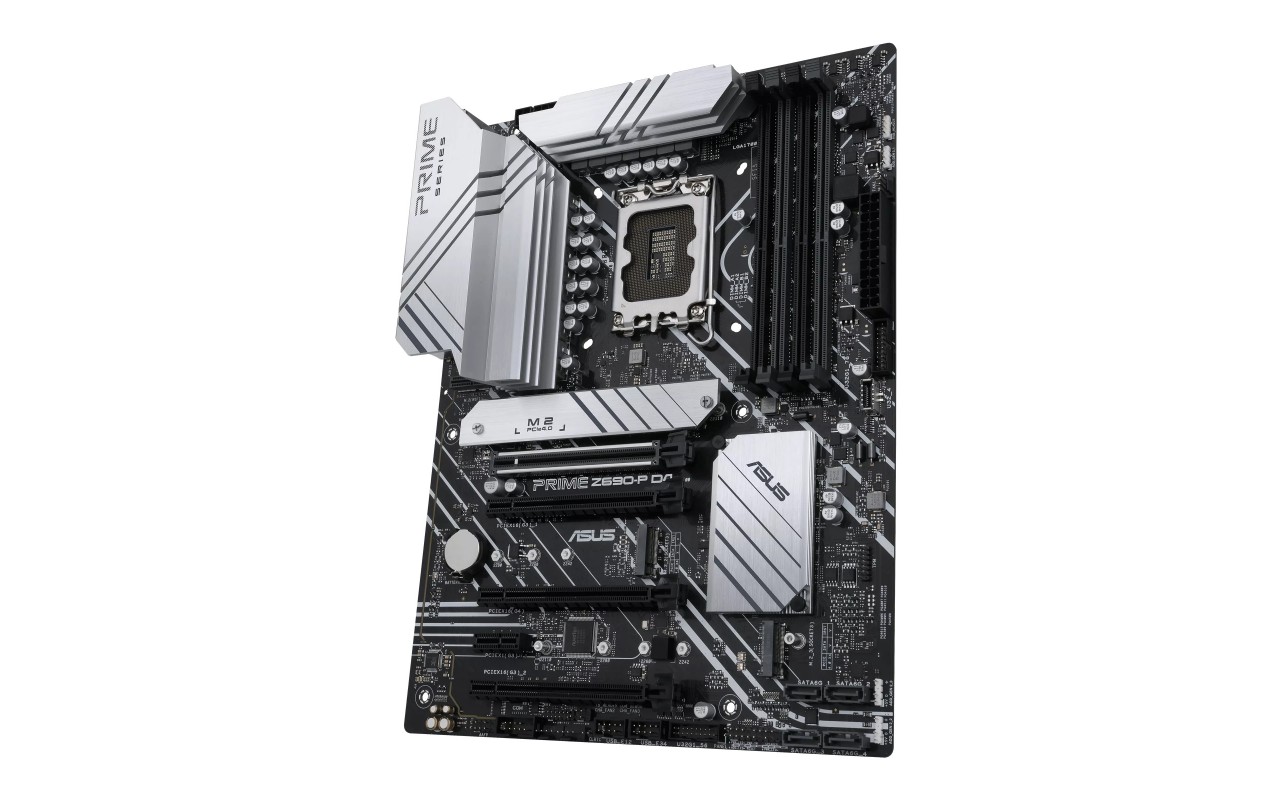

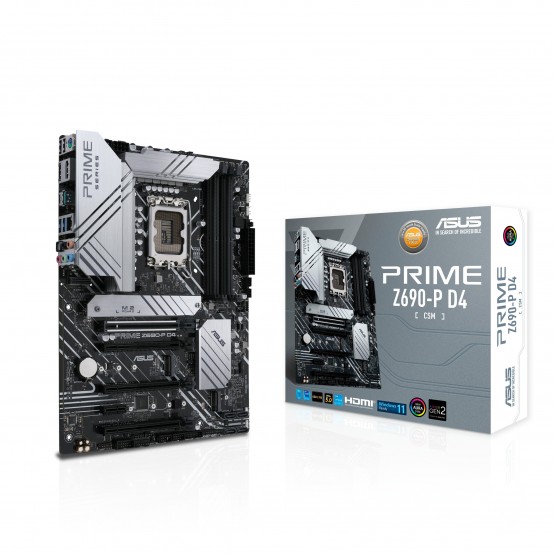

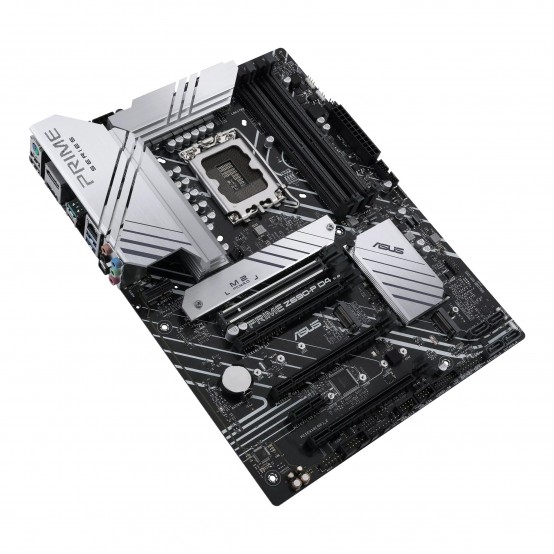

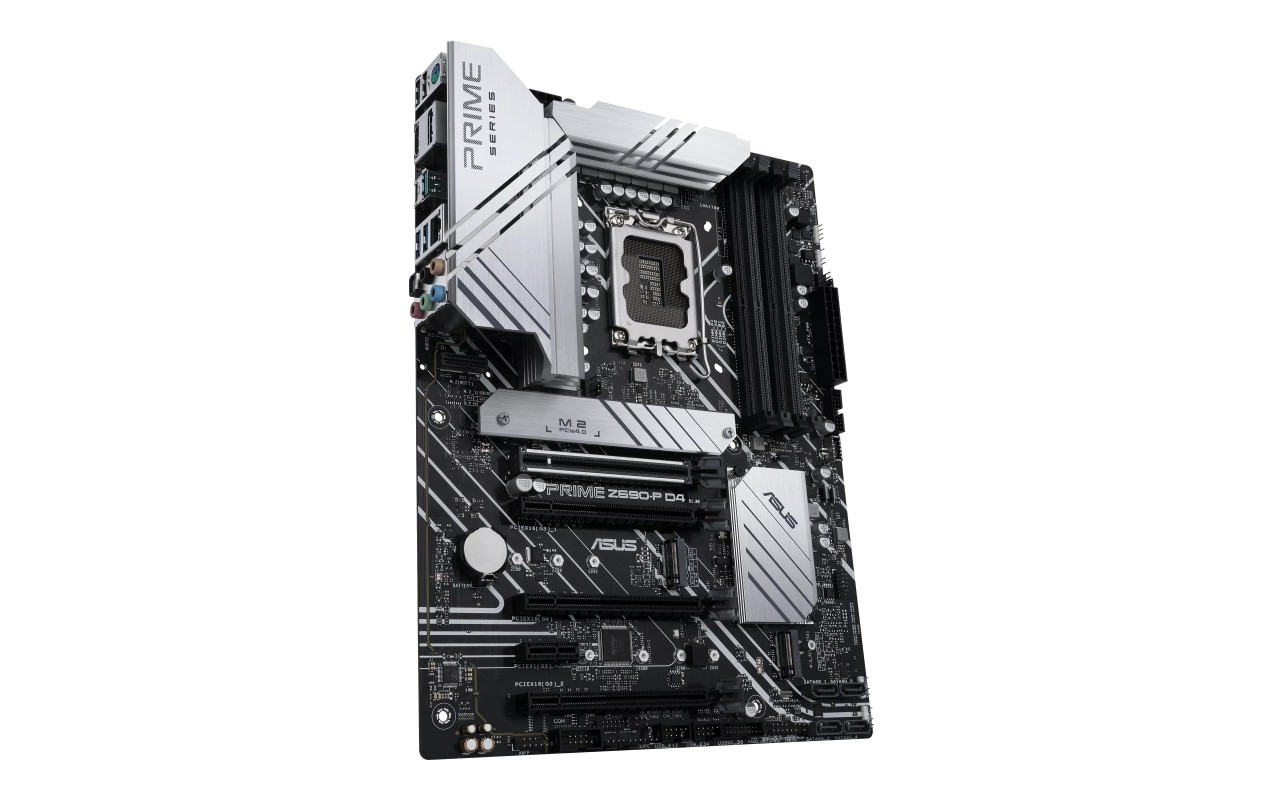

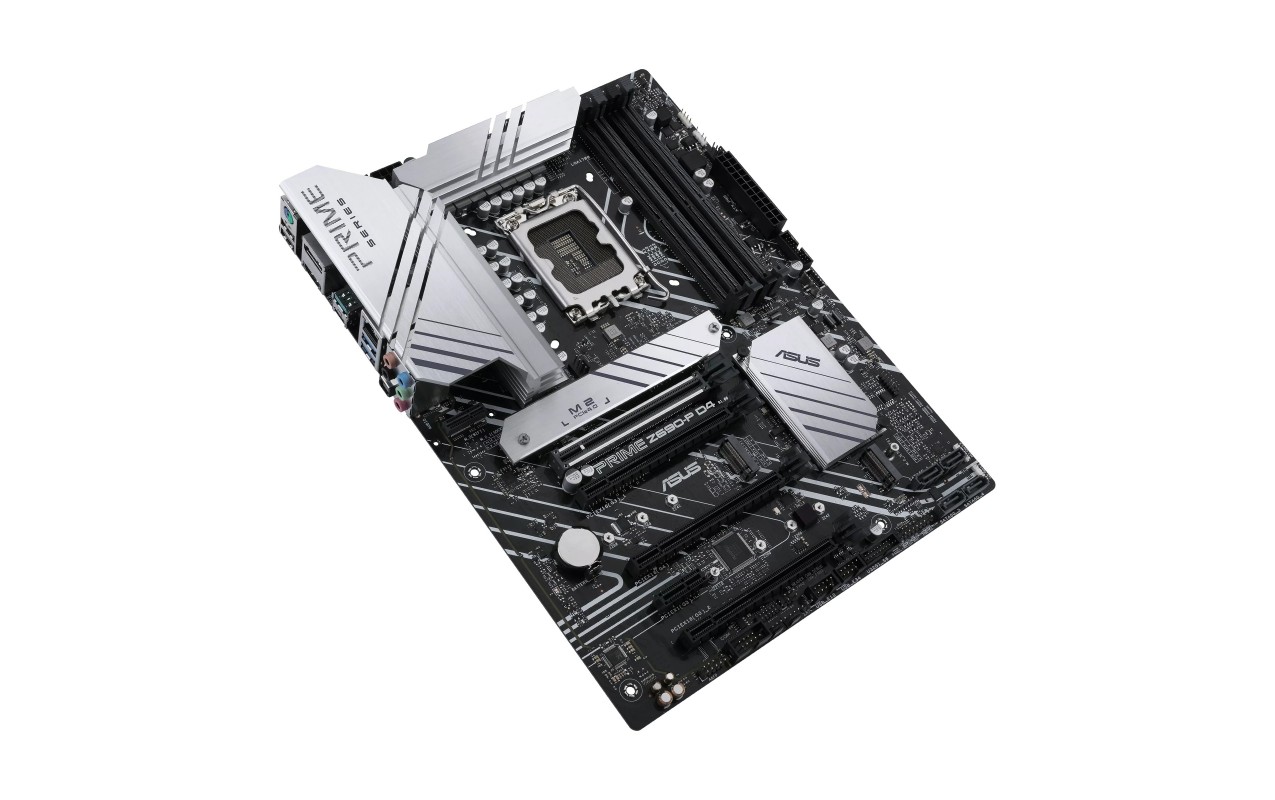

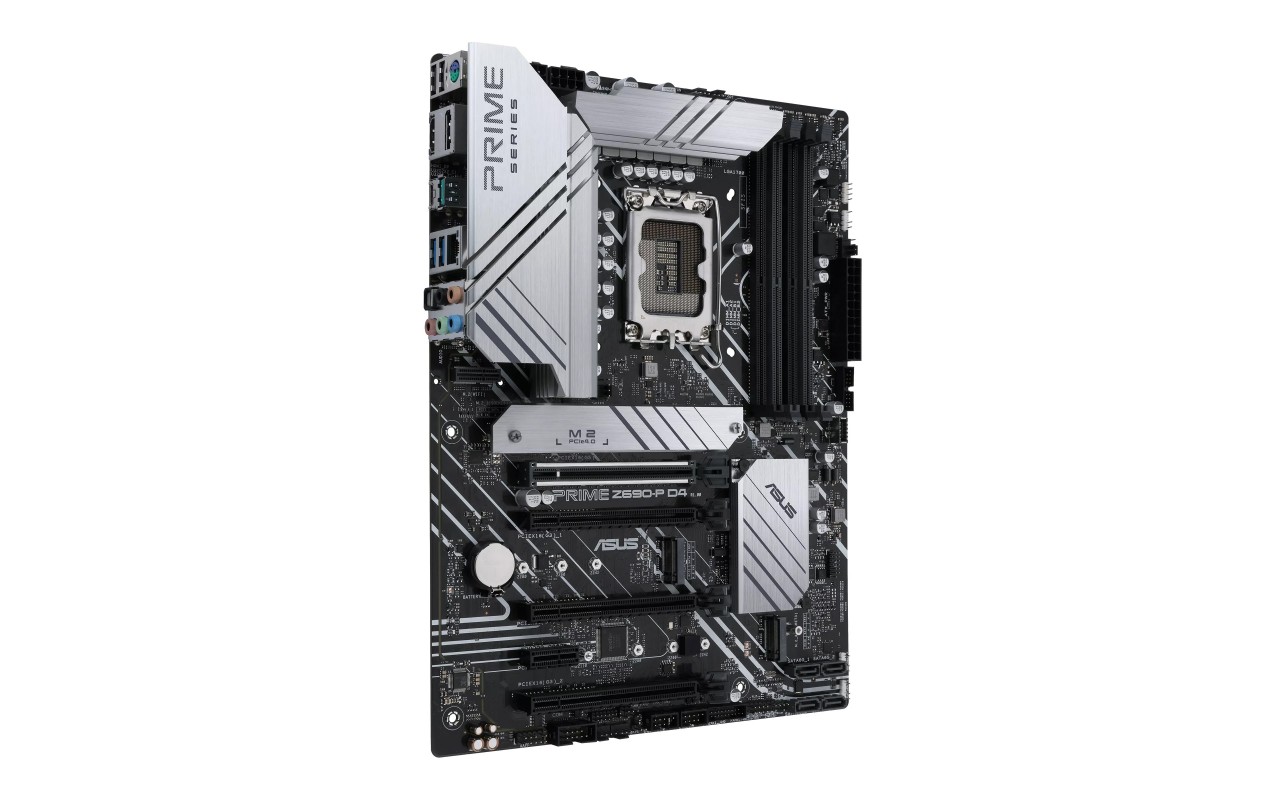

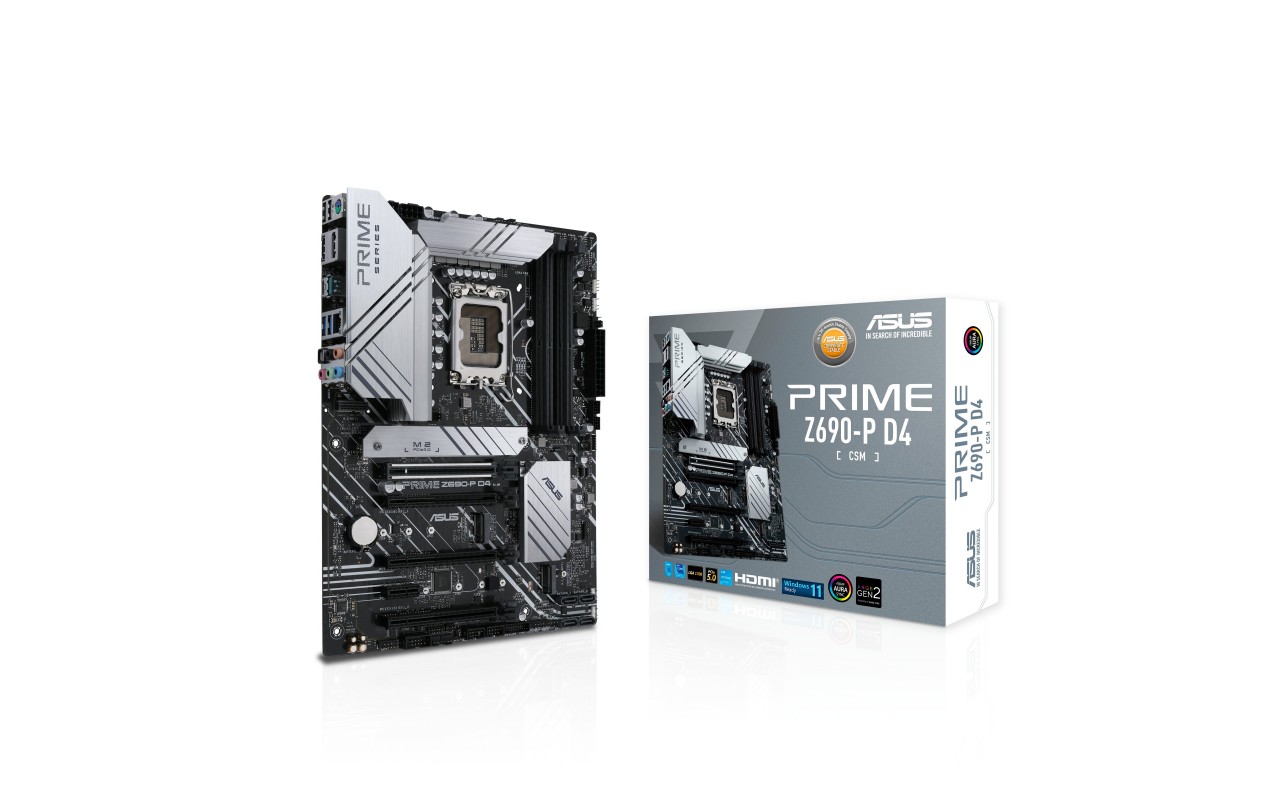

Placa de baza Asus PRIME Z690-P D4-CSM LGA 1700
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
ATX
|
| Soclu procesor |
1700
|
| Producator chipset |
Intel
|
| Model chipset |
Z690
|
| Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
| Interfata grafica |
PCI Express x16 5.0
|
| Placa audio integrata |
5.1 Audio with Realtek
|
| Chipset audio |
Realtek
|
| Placa retea integrata |
10/100/1000/2500 Mbps
|
| Chipset retea |
Realtek 2.5GbE
|
| Numar SATA-III |
4
|
| M.2 |
4
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Sloturi | |
| PCI Express 5.0 x16 |
1
|
| PCI Express 3.0 x16 |
1 (x16)
|
| PCI Express x1 |
1
|

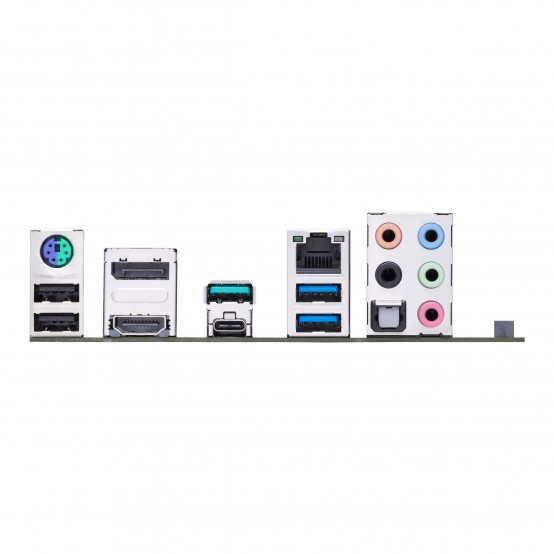

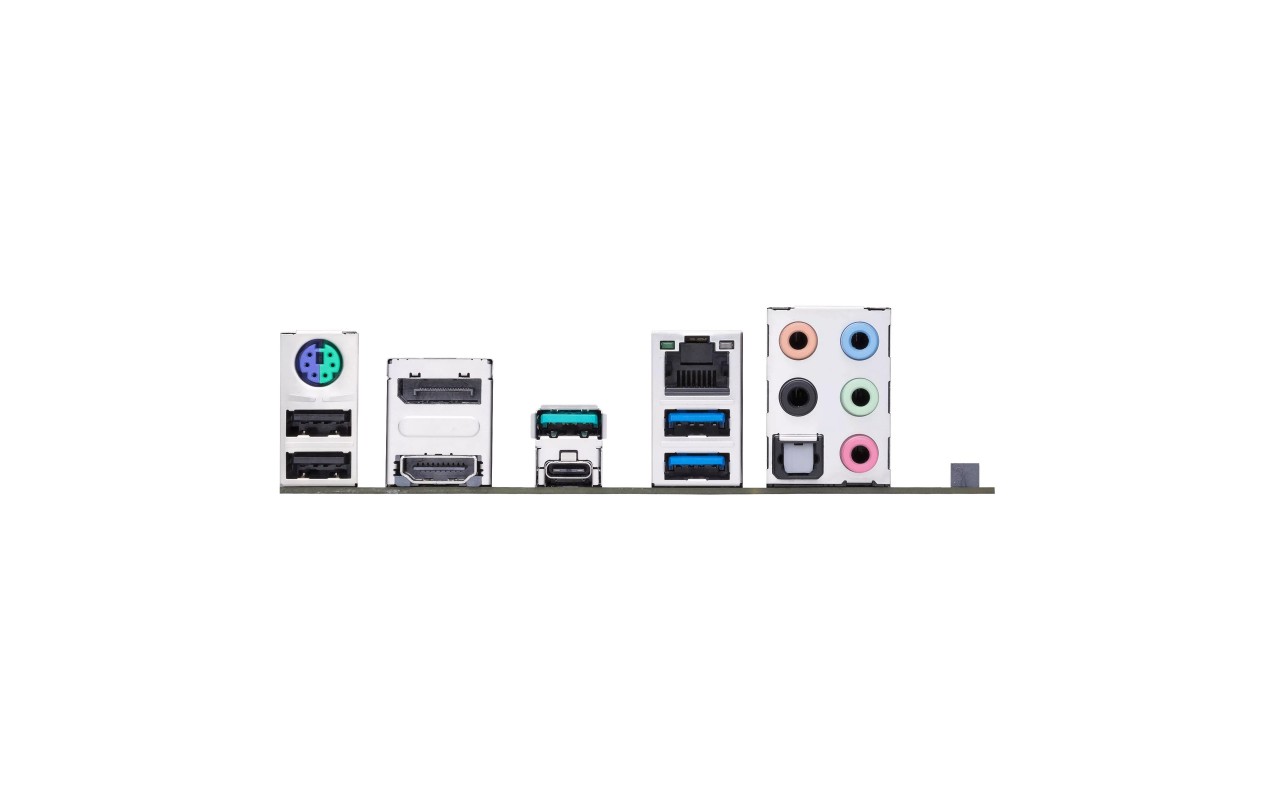

| Conectori Back Panel | |
| PS/2 Mouse-Tastatura |
1
|
| Optical S/PDIF out |
1
|
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
2
|
| USB 3.2 Gen1 tip A |
2
|
| USB 3.2 Gen2 tip A |
1
|
| USB 3.2 Gen2 tip C |
1
|
| RJ-45 LAN |
1
|
| Suport audio |
5.1
|
| BIOS Flashback |
Da
|
Placa de baza Asus PRIME Z690-P D4-CSM LGA 1700 Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS power stages, DDR4, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support and Aura Sync RGB lighting Intel® LGA 1700 socket: Ready for 12th gen Intel® processors Enhanced power solution: 14+1 DrMOS power stages, 8+4 pin ProCool connectors, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: DDR4, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- Z690-P-D4-CSM/
Specificatii
| ID dataSPOT |
163902 |
|---|---|
| Cod |
90MB18P0-M0EAYC |
| Model |
PRIME Z690-P D4-CSM |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
4 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 5.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel Z690 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel Z690
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 4 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- PCI Express 2.0
- PCI Express 5.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 / 2500 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 7 + 2 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- ATX
- ID dataSPOT
- 163902
- Cod
- 90MB18P0-M0EAYC
- Model
- PRIME Z690-P D4-CSM
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
163902 |
|---|---|
| Cod |
90MB18P0-M0EAYC |
| Model |
PRIME Z690-P D4-CSM |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
4 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 5.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel Z690 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
