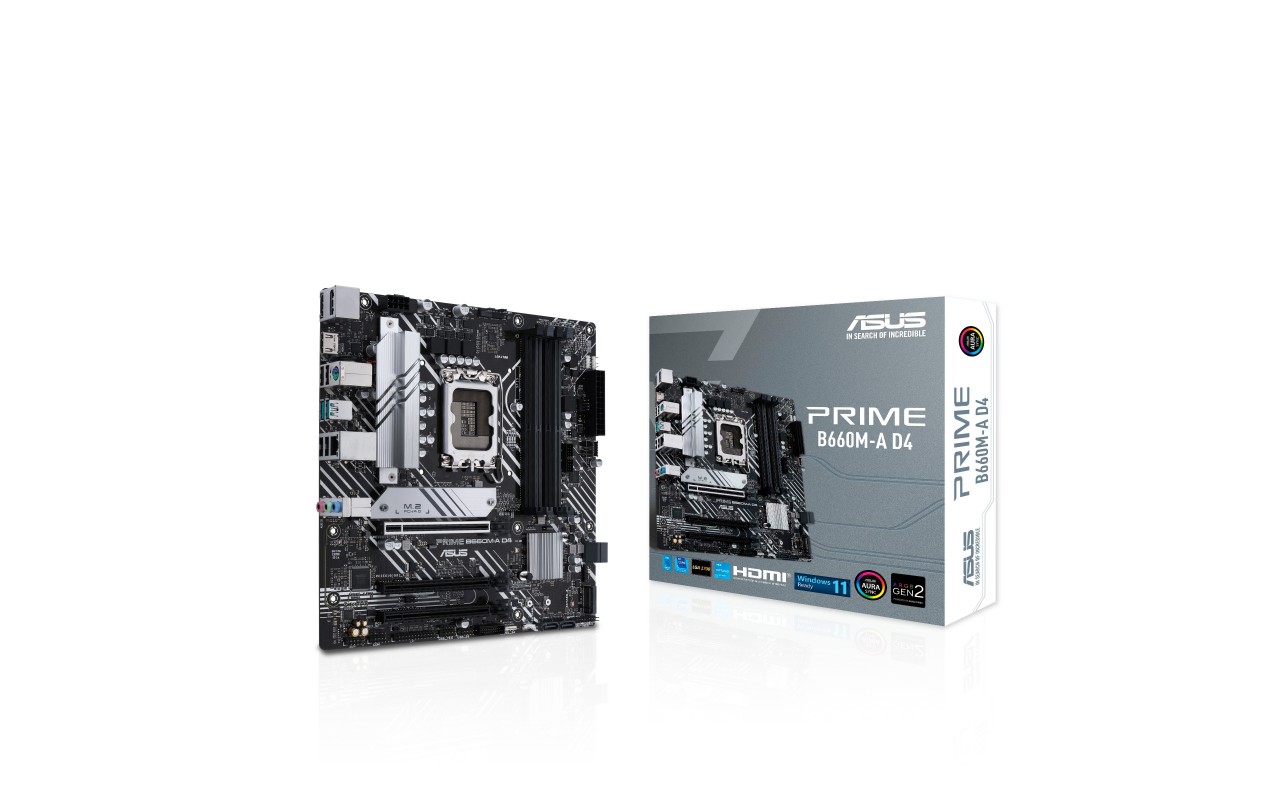

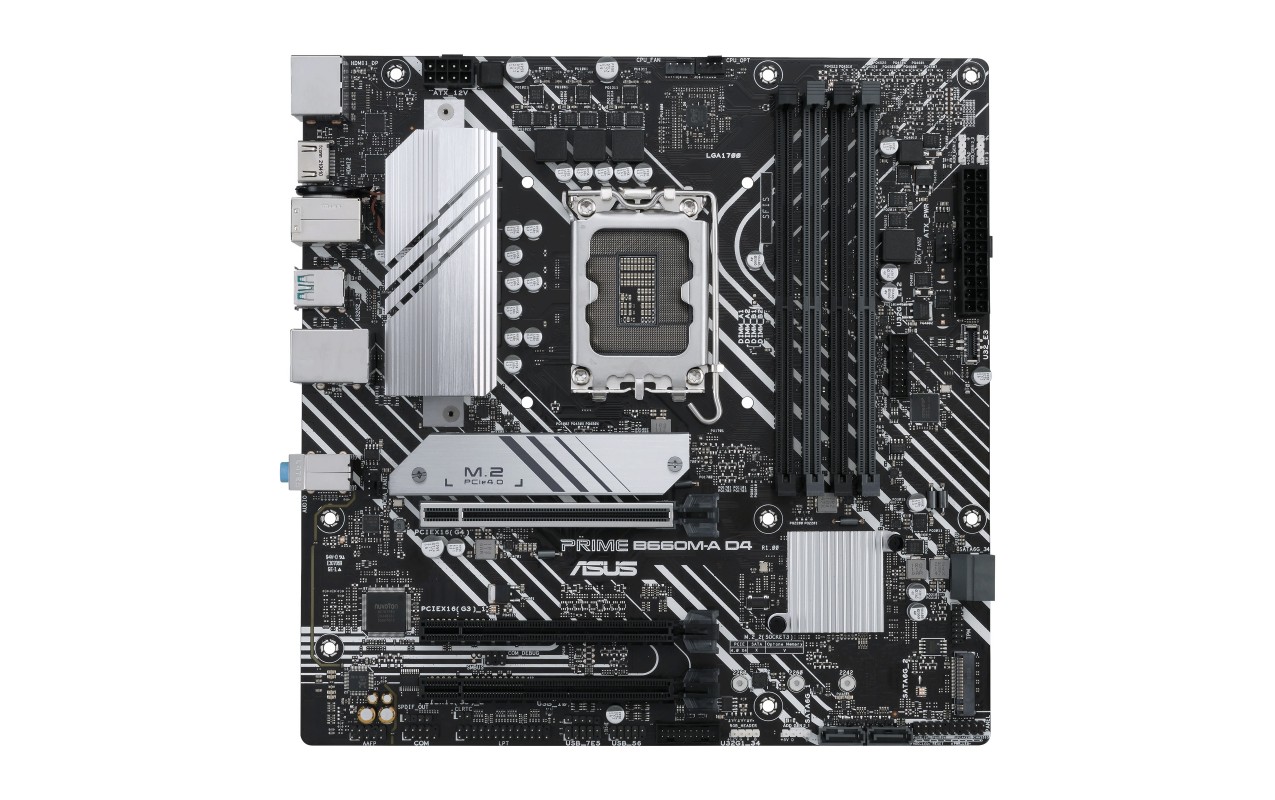

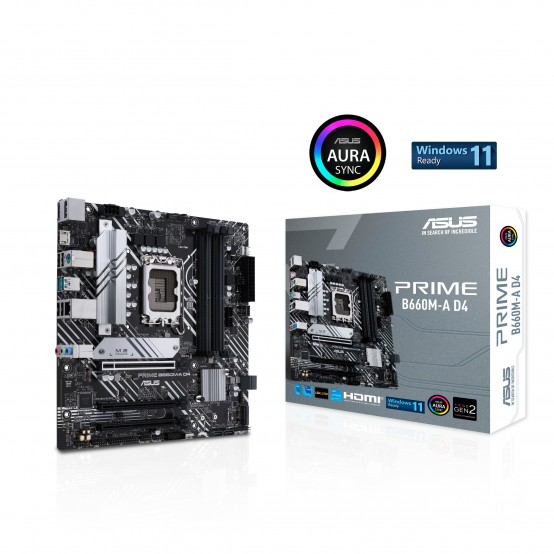

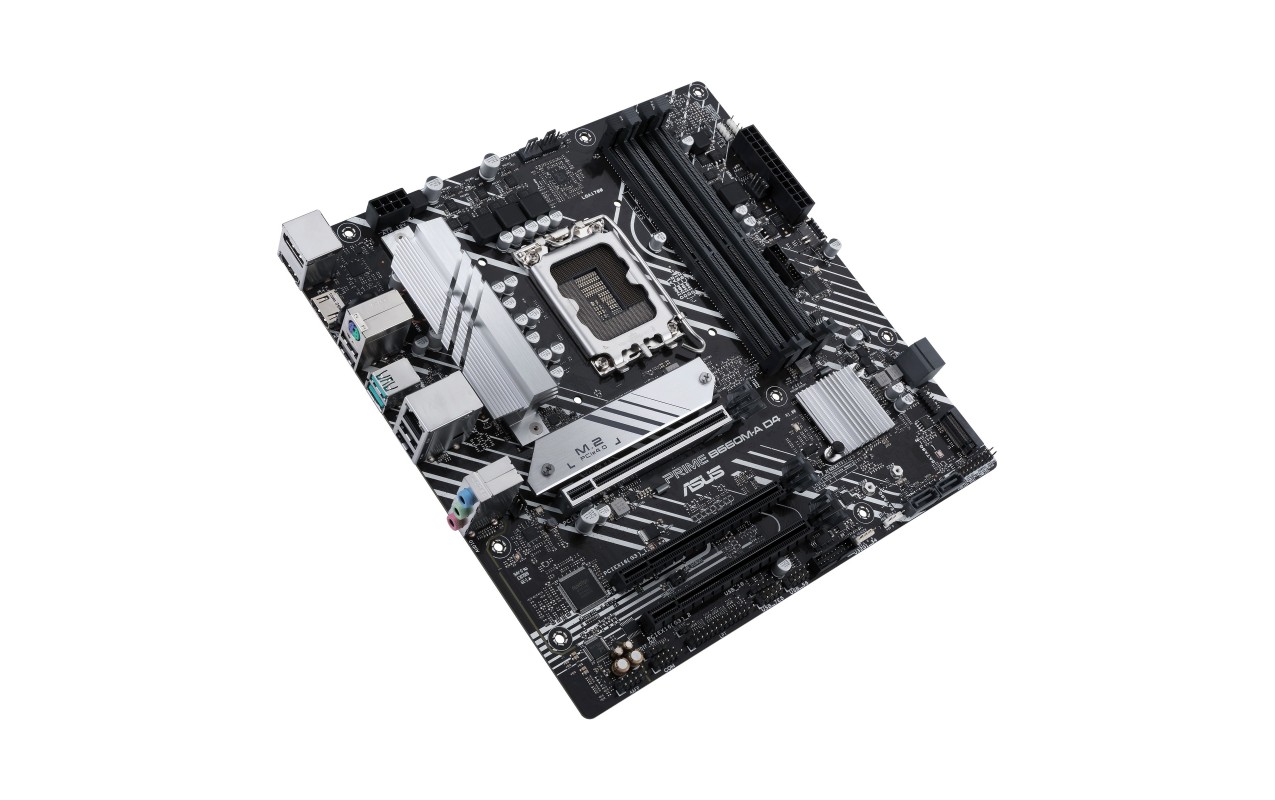

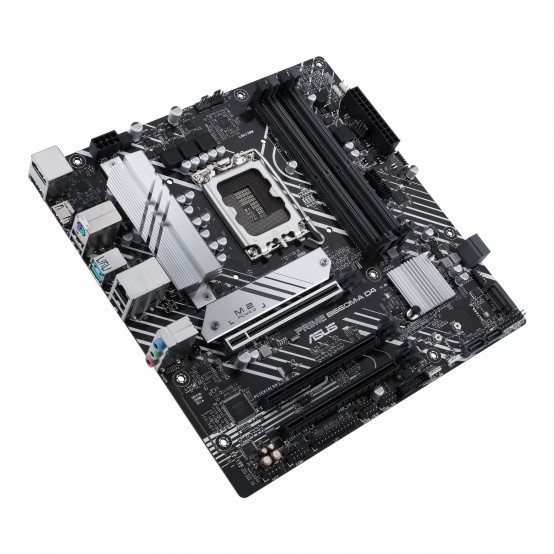

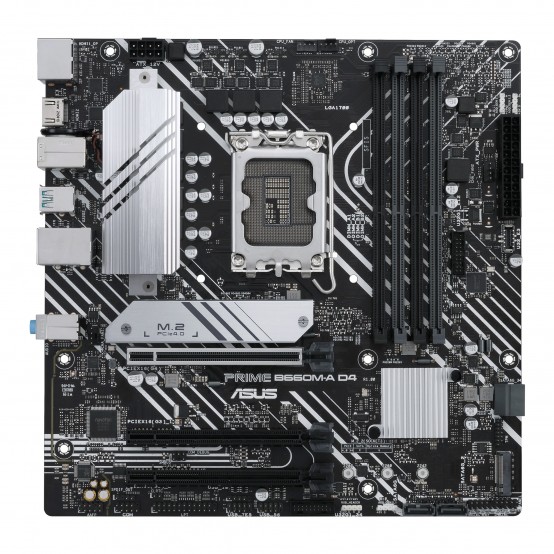

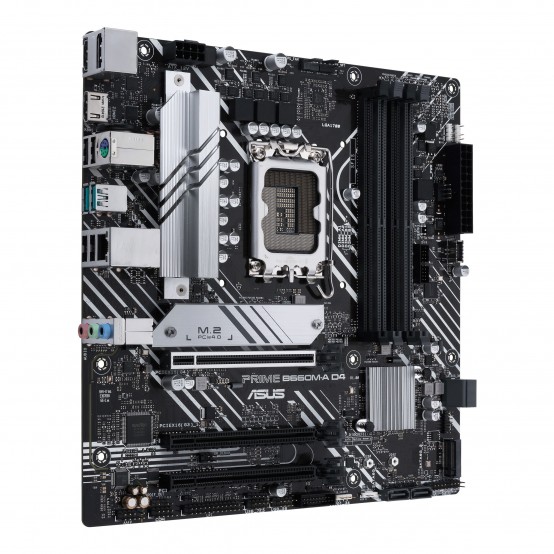

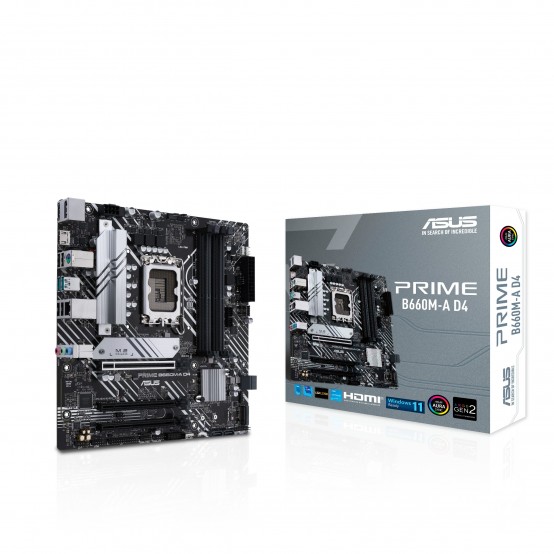

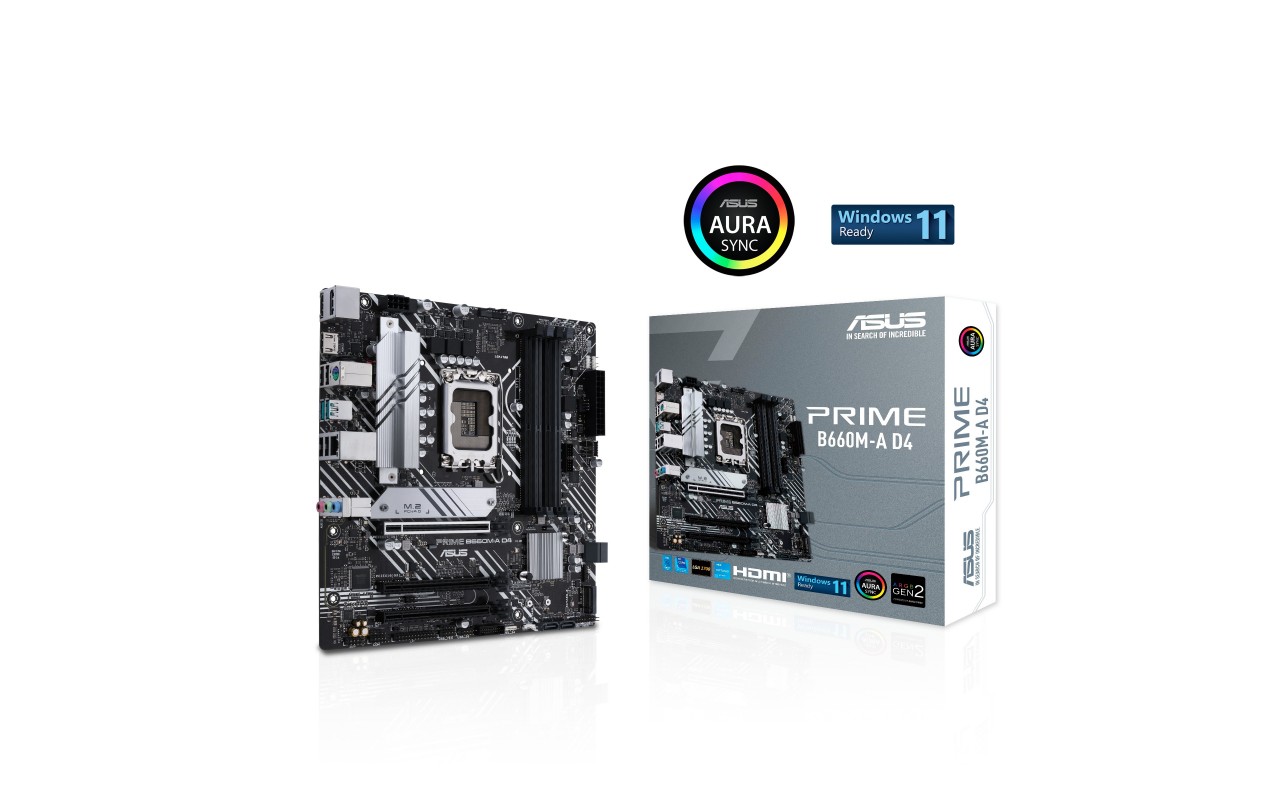

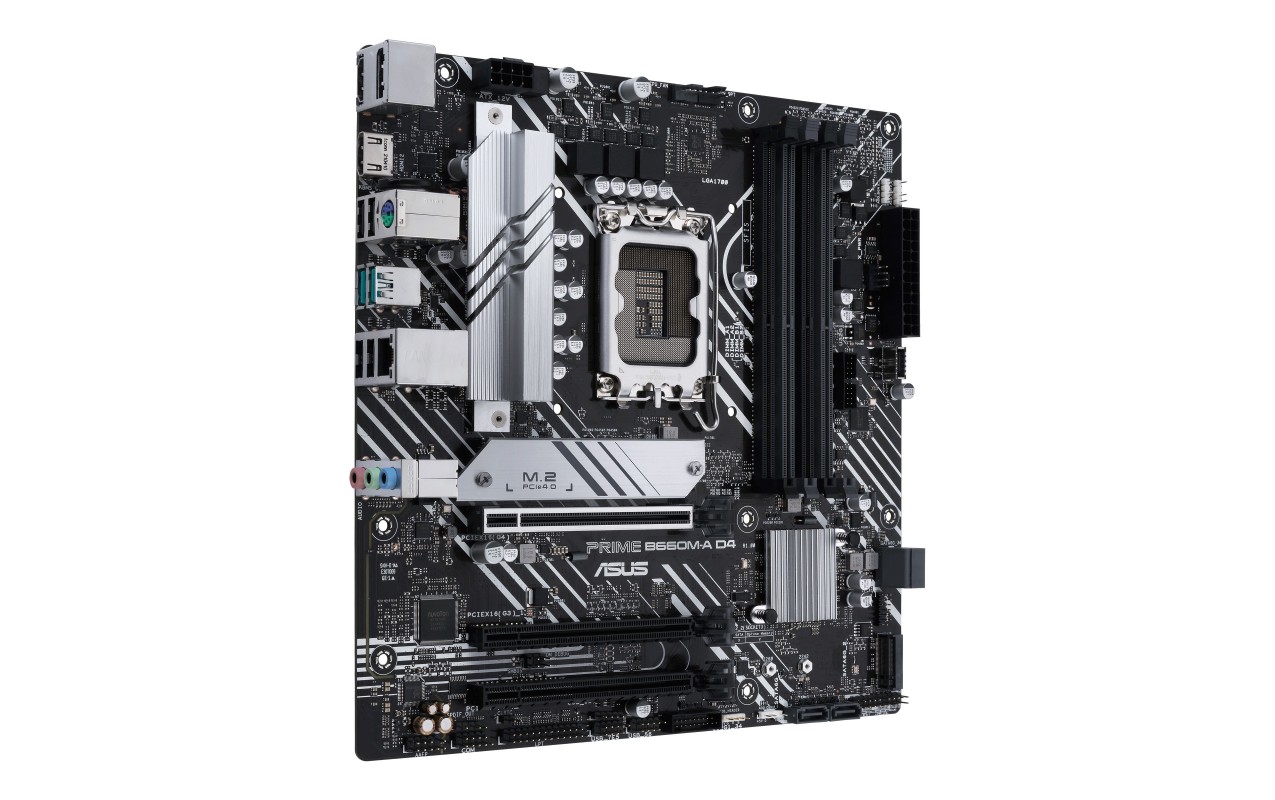

Placa de baza ASUS PRIME B660M-A D4 90MB19K0-M0EAY0
869.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza ASUS PRIME B660M-A D4 90MB19K0-M0EAY0
869.00 leiDescriere
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
mATX
|
| Soclu procesor |
1700
|
| Producator chipset |
Intel
|
| Model chipset |
B660
|
| Procesoare suportate |
Intel 12th Generation Core/Pentium Gold/Celeron
|
| Interfata grafica |
PCI Express x16 5.0
|
| Placa audio integrata |
7.1 Audio
|
| Chipset audio |
Realtek
|
| Placa retea integrata |
10/100/1000 Mbps
|
| Chipset retea |
Intel
|
| Numar SATA-III |
4
|
| M.2 |
2
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
2 (x16)
|

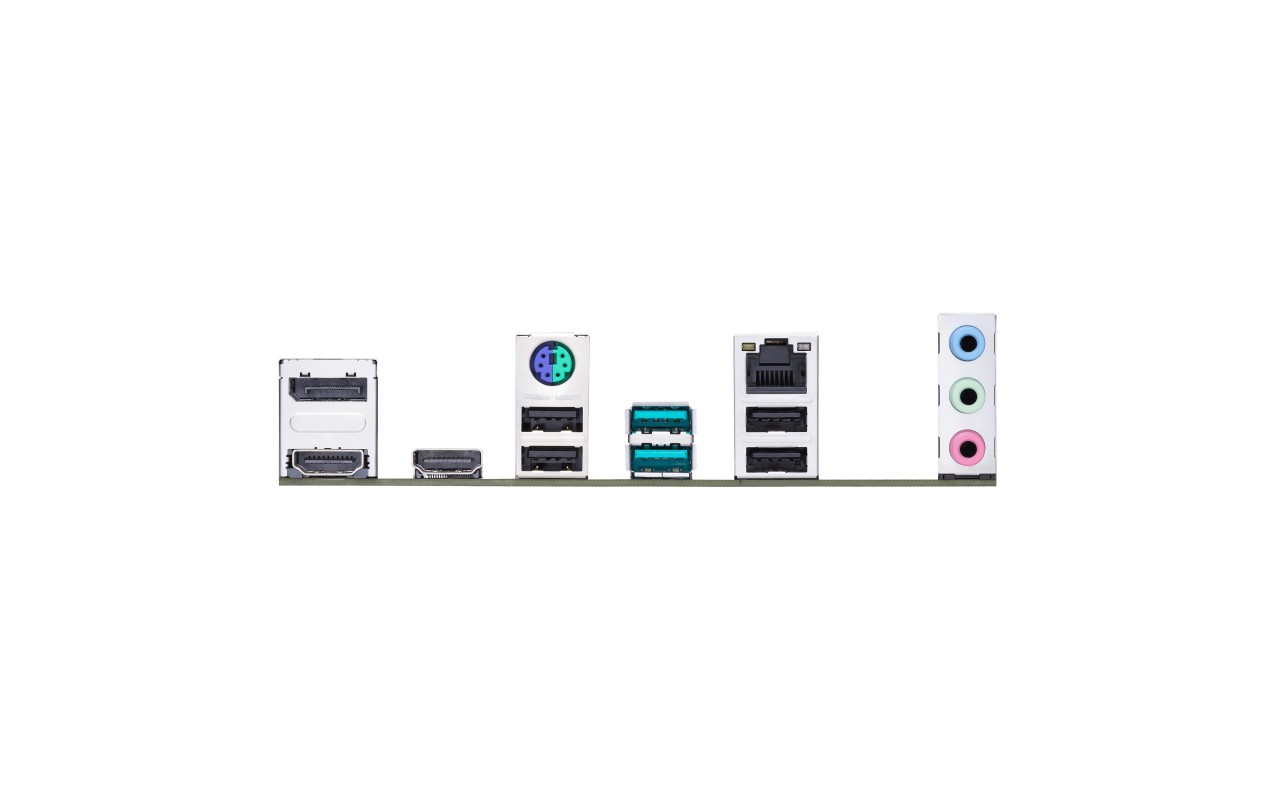

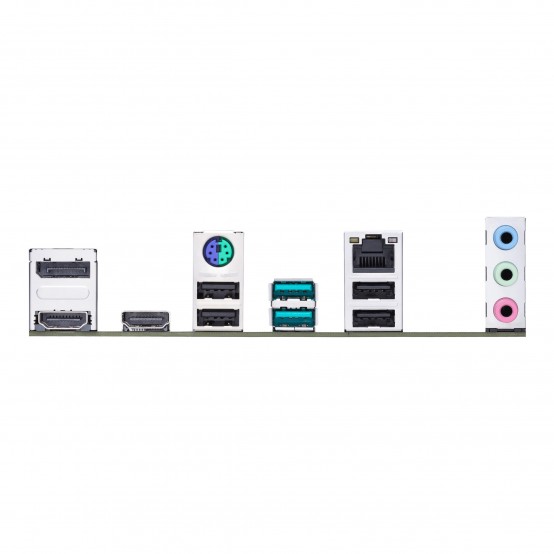

| Conectori Back Panel | |
| HDMI |
1
|
| Display Port |
1
|
| USB 2.0 |
4
|
| USB 3.2 Gen2 tip A |
2
|
| RJ-45 LAN |
1
|
| Suport audio |
7.1
|
| BIOS Flashback |
Da
|
Placa de baza Asus PRIME B660M-A D4 Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Ultrafast connectivity : PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME- B660M-A-D4/
Specificatii
| ID dataSPOT |
163878 |
|---|---|
| Cod |
90MB19K0-M0EAY0 |
| Model |
PRIME B660M-A D4 |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
9 x USB 2.0 |
| Porturi USB 3.2 |
6 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Integrated Graphics Processor |
|---|---|
| HDMI |
2 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1700
- Procesoare compatibile
- 12th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel B660
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 3 x PCI Express x16
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- Integrated Graphics Processor
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 9 x USB 2.0
- Porturi USB 3.2
- 6 + 1 type C x USB 3.2
- HDMI
- 2 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 163878
- Cod
- 90MB19K0-M0EAY0
- Model
- PRIME B660M-A D4
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
163878 |
|---|---|
| Cod |
90MB19K0-M0EAY0 |
| Model |
PRIME B660M-A D4 |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
3 x PCI Express x16 |
|---|---|
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
9 x USB 2.0 |
| Porturi USB 3.2 |
6 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Integrated Graphics Processor |
|---|---|
| HDMI |
2 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Procesoare compatibile |
12th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel B660 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
