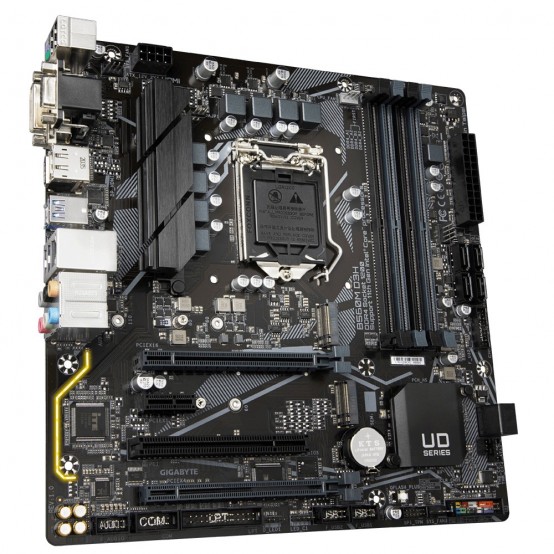

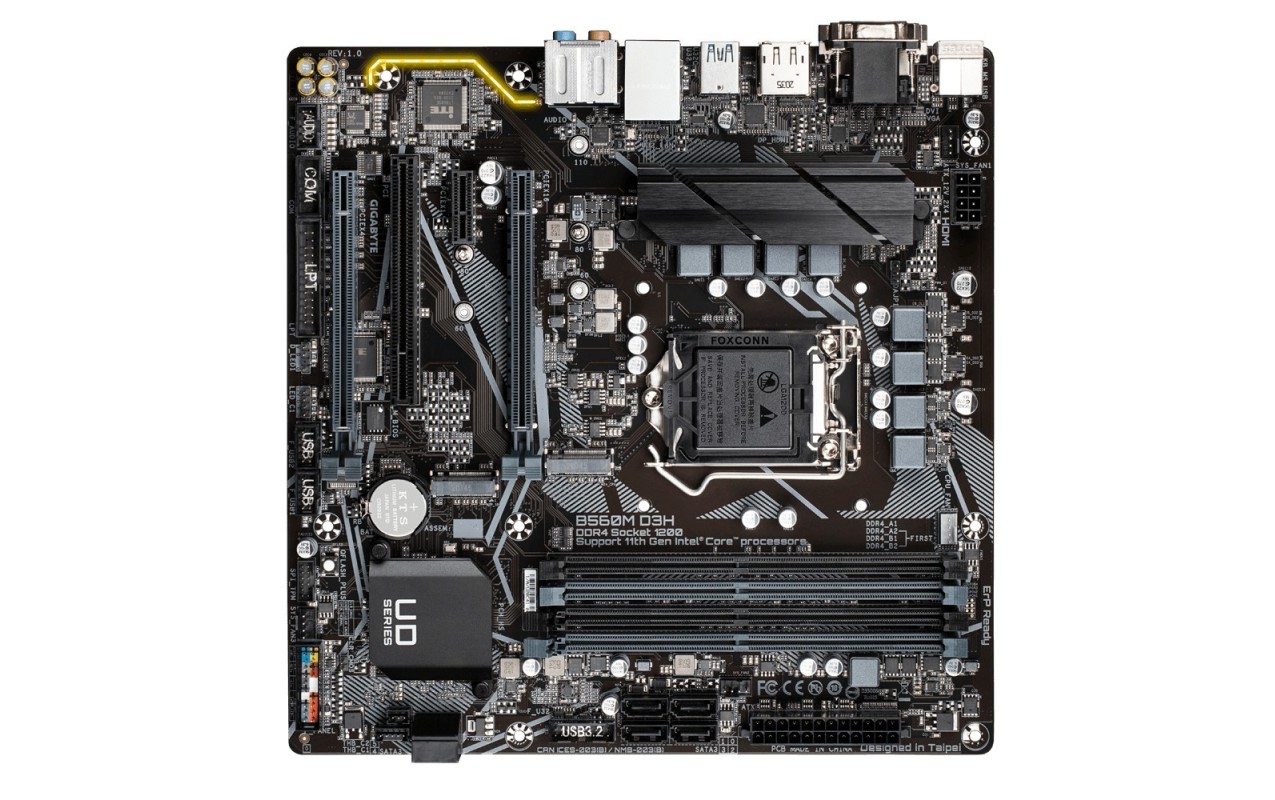

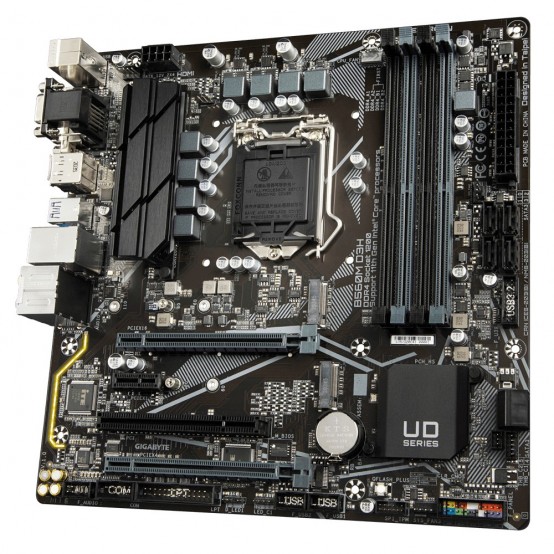

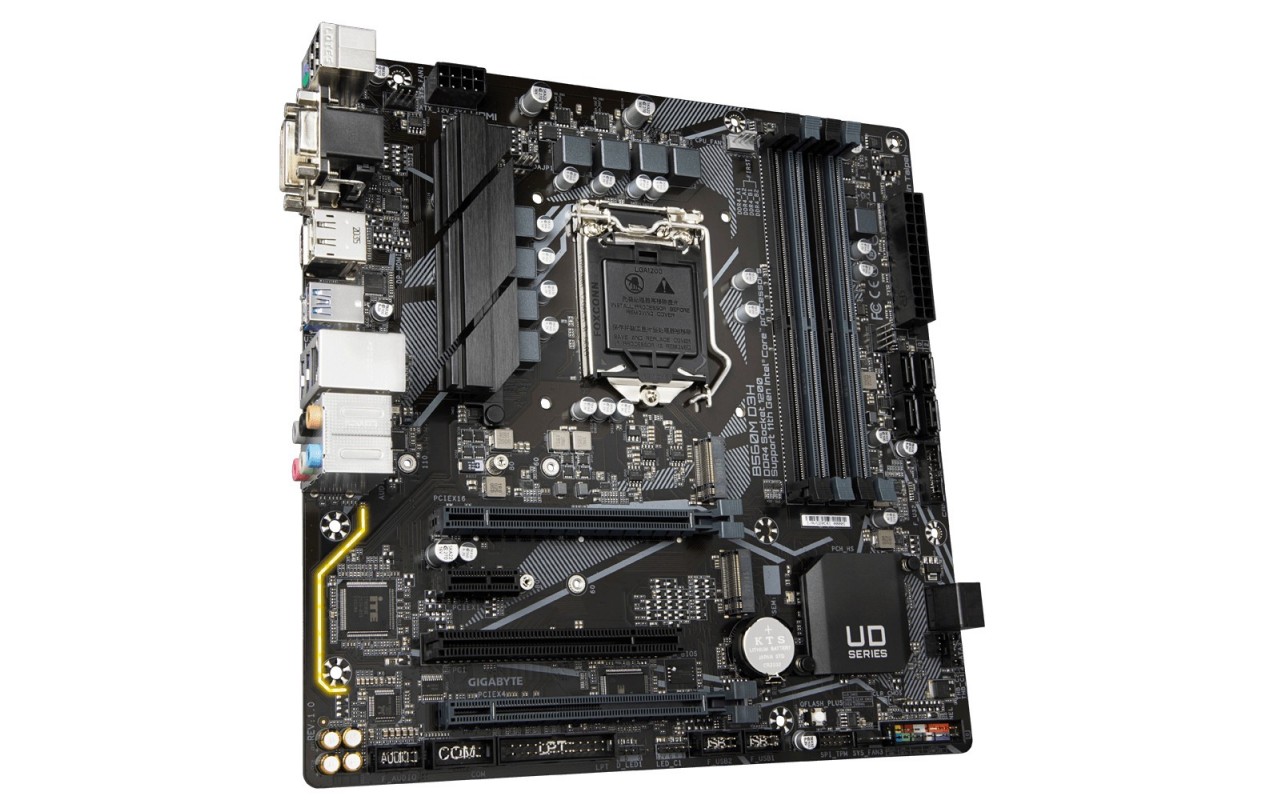

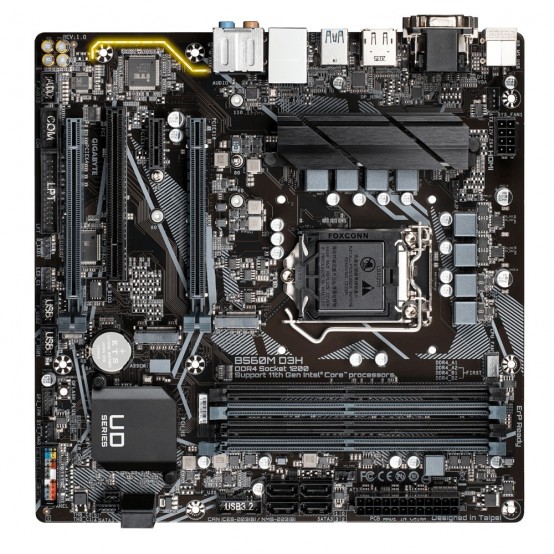

Placa de baza GigaByte GA-B560M D3H
589.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Descriere
GIGABYTE ofera o platforma testata si dovedita, care asigura compatibilitatea corespunzatoare cu profiluri de pana la 4600MHz si chiar mai mult. Tot ce trebuie sa faca utilizatorii pentru a obtine acest spor de performanta este sa se asigure ca modulul de memorie este compatibil cu XMP si ca functia XMP este activata si activata pe placa de baza GIGABYTE.
Furnizarea mai curata si mai eficienta a energiei catre procesor, impreuna cu o performanta termica mai buna, asigura stabilitatea la frecvente ridicate ale procesorului si la sarcini mari.
Furnizarea mai curata si mai eficienta a energiei catre procesor, impreuna cu o performanta termica mai buna, asigura stabilitatea la frecvente ridicate ale procesorului si la sarcini mari.
- Controler PWM digital pentru a furniza tensiunea corespunzatoare catre CPU.
- MOSFET-uri directe cu 6+2 faze RDS(on) scazut fara dubluri PWM, fiecare faza de alimentare se conecteaza direct la CPU.
- Condensatoare complet solide pentru a imbunatati raspunsul tranzitoriu si a minimiza oscilatiile.
- Conector de alimentare a procesorului cu 8 pini cu pin solid.
Placa de baza Gigabyte B560M D3H LGA 1200 Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, Intel® GbE with cFosSpeed, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2 Intel® GbE LAN with cFosSpeed Internet Accelerator Software USB 3.2 Gen1 Type-C® for Fast and Versatile Connection High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card https://www.gigabyte.com/Motherboard/B560M-D3H-rev-10/sp#sp
Specificatii
ID dataSPOT |
155785 |
---|---|
Model |
GA-B560M D3H |
Producator |
GigaByte |
Garantie comerciala |
3 ani |
Conectivitate
Slot-uri PCI Express x16 |
2 x PCI Express x16 |
---|---|
Slot-uri PCI Express x1 |
1 x PCI Express x1 |
Slot-uri PCI |
1 x PCI Slot |
PCI Express 2.0 |
PCI Express 4.0 |
Serial ATA III |
6 x Serial ATA III |
Porturi USB 2.0 |
6 x USB 2.0 |
Porturi USB 3.2 |
5 + 1 type C x USB 3.2 |
Grafica
CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
---|---|
Video on-board |
Intel HD Graphics |
DVI |
1 x DVI On-Board |
HDMI |
1 x HDMI On-Board |
DisplayPort |
1 |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
128 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1200 |
Procesoare compatibile |
11th Gen Intel Core i9 / i7 / i5 / 10th Gen Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron |
North Bridge |
Intel B560 |
Retea
LAN on-board |
10 / 100 / 1000 Mbit/s |
---|
Specificatii fizice
Format |
microATX |
---|
Sunet
Audio on-board |
7.1 |
---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 11th Gen Intel Core i9 / i7 / i5 / 10th Gen Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron
- North Bridge
- Intel B560
- Numar sloturi DDR4
- 4 x
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 2 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- Slot-uri PCI
- 1 x PCI Slot
- PCI Express 2.0
- PCI Express 4.0
- CrossFire
- AMD Quad-GPU CrossFire. 2-Way AMD CrossFire
- Serial ATA III
- 6 x Serial ATA III
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 5 + 1 type C x USB 3.2
- DVI
- 1 x DVI On-Board
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 155785
- Model
- GA-B560M D3H
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
