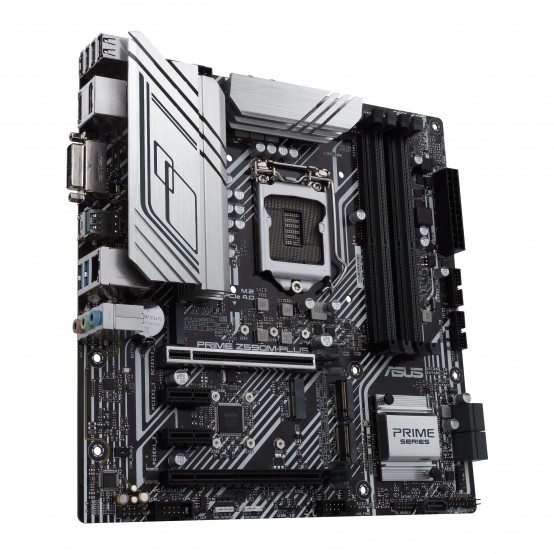

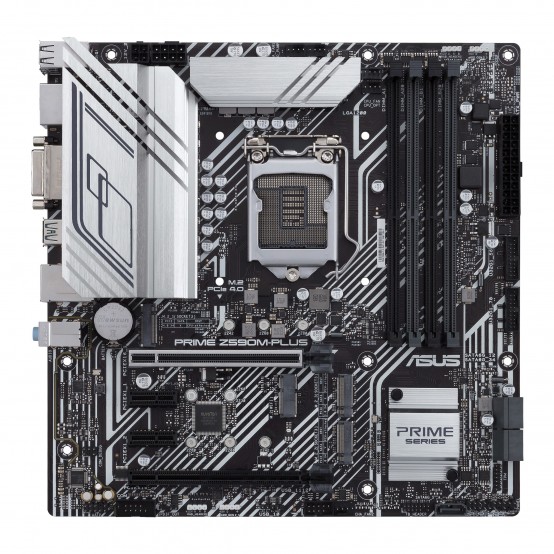

Placa de baza ASUS PRIME Z590M-PLUS 90MB1690-M0EAY0
919.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP

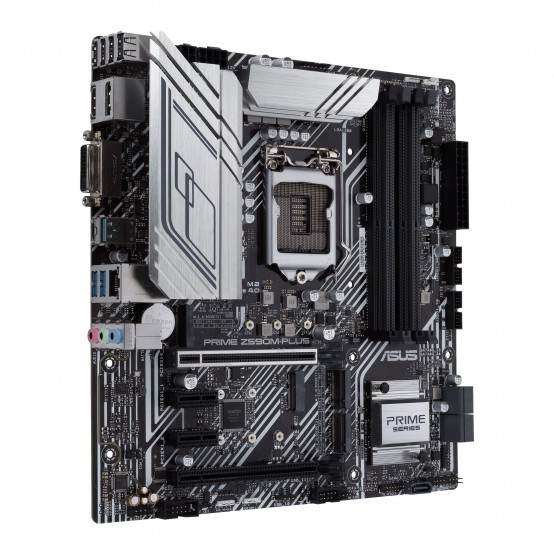

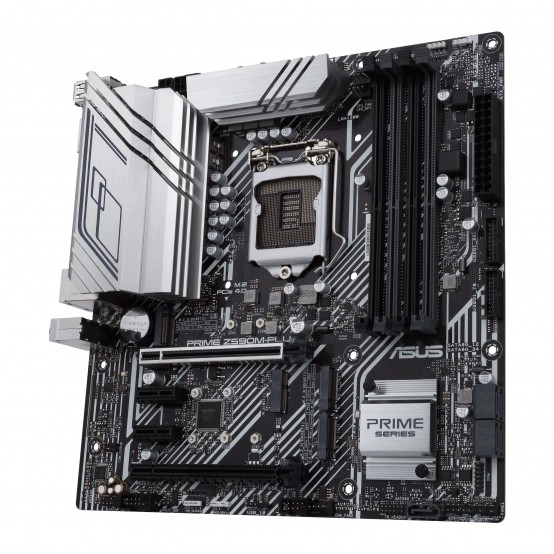

Placa de baza ASUS PRIME Z590M-PLUS 90MB1690-M0EAY0
919.00 leiDescriere
Placa de baza Asus PRIME Z590M-PLUS LGA 1200 Intel® Z590 (LGA 1200) micro ATX motherboard with PCIe® 4.0, 9 DrMOS power stages, DisplayPort™, HDMI®, DVI, SATA 6 Gbps, Intel® 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Next-gen connectivity: PCIe® 4.0, Intel® 1 Gb Ethernet , USB 3.2 Gen 2x2 Type-C®, Thunderbolt™ 4 header support https://www.asus.com/Motherboards-Components/Motherboards/All- series/PRIME-Z590M-PLUS/
Specificatii
| ID dataSPOT |
155752 |
|---|---|
| Cod |
90MB1690-M0EAY0 |
| Model |
PRIME Z590M-PLUS |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
5 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
7 x USB 2.0 |
| Porturi USB 3.2 |
8 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Integrated Graphics Processor |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
11th Gen Intel Core / 10th Gen Intel Core. Pentium Gold. Celeron Processors |
| North Bridge |
Intel Z590 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 11th Gen Intel Core / 10th Gen Intel Core. Pentium Gold. Celeron Processors
- North Bridge
- Intel Z590
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III with RAID Support
- 5 x Serial ATA III with RAID Support
- Video on-board
- Integrated Graphics Processor
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 7 x USB 2.0
- Porturi USB 3.2
- 8 + 1 type C x USB 3.2
- DVI
- 1 x DVI On-Board
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- microATX
- ID dataSPOT
- 155752
- Cod
- 90MB1690-M0EAY0
- Model
- PRIME Z590M-PLUS
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
155752 |
|---|---|
| Cod |
90MB1690-M0EAY0 |
| Model |
PRIME Z590M-PLUS |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
5 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
7 x USB 2.0 |
| Porturi USB 3.2 |
8 + 1 type C x USB 3.2 |
Grafica
| Video on-board |
Integrated Graphics Processor |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
11th Gen Intel Core / 10th Gen Intel Core. Pentium Gold. Celeron Processors |
| North Bridge |
Intel Z590 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Placa de baza ASUS PRIME Z590M-PLUS 90MB1690-M0EAY0
