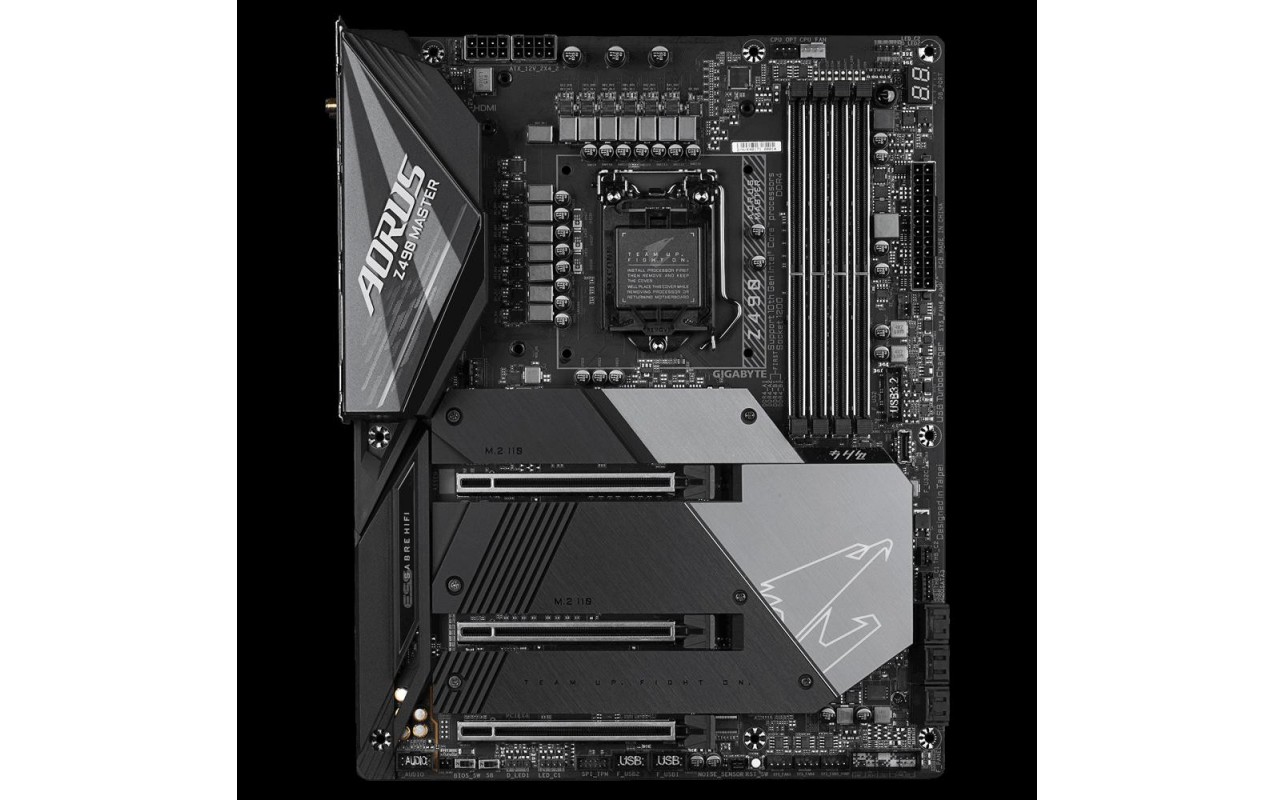

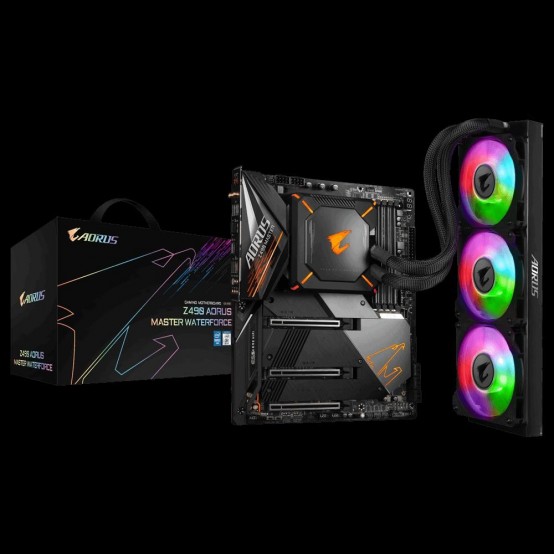

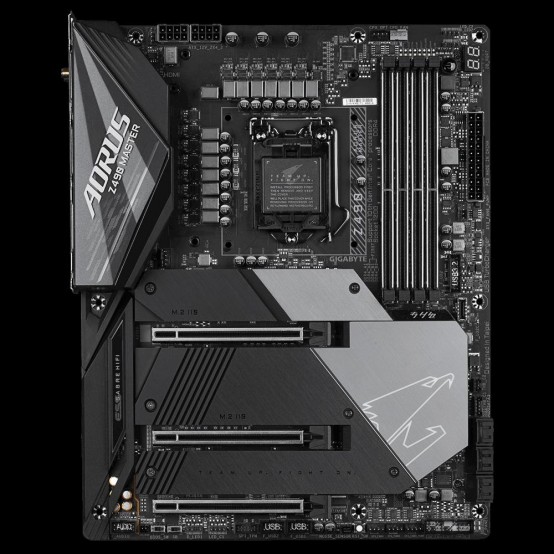

Placa de baza GigaByte Z490 AORUS MASTER WF
4 117.05 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte Z490 AORUS MASTER WF
4 117.05 leiDescriere
Placa de baza Gigabyte Z490 AORUS MASTER WATERFORCE Socket LGA 1200 CPU Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) Chipset Intel® Z490 Express Chipset Memory Intel® Core™ i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600 (O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600 (O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB Audio Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS ES9118EQ DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out https://www.gigabyte.com/Motherboard/Z490-AORUS-MASTER-WATERFORCE-rev- 10/sp#sp
Specificatii
| ID dataSPOT |
149943 |
|---|---|
| Model |
Z490 AORUS MASTER WF |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.1 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x8 |
1 x PCI Express x8 |
| Slot-uri PCI Express x4 |
1 x PCI Express x4 |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
8 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| SLI |
nVidia Quad-GPU SLI. 2-Way nVidia SLI |
|---|---|
| CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
| Video on-board |
Intel UHD Graphics |
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron |
| North Bridge |
Intel Z490 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron
- North Bridge
- Intel Z490
- Numar sloturi DDR4
- 4 x
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x8
- 1 x PCI Express x8
- Slot-uri PCI Express x4
- 1 x PCI Express x4
- PCI Express 2.0
- PCI Express 3.0
- SLI
- nVidia Quad-GPU SLI. 2-Way nVidia SLI
- CrossFire
- AMD Quad-GPU CrossFire. 2-Way AMD CrossFire
- Serial ATA III with RAID Support
- 6 x Serial ATA III with RAID Support
- Video on-board
- Intel UHD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 100 / 1000 / 2500 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac Mbit/s
- Porturi USB 2.0
- 8 x USB 2.0
- Porturi USB 3.2
- 7 + 2 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- Format
- ATX
- Alte detalii
- Bluetooth 5.1
- ID dataSPOT
- 149943
- Model
- Z490 AORUS MASTER WF
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
149943 |
|---|---|
| Model |
Z490 AORUS MASTER WF |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 5.1 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x8 |
1 x PCI Express x8 |
| Slot-uri PCI Express x4 |
1 x PCI Express x4 |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
8 x USB 2.0 |
| Porturi USB 3.2 |
7 + 2 type C x USB 3.2 |
Grafica
| SLI |
nVidia Quad-GPU SLI. 2-Way nVidia SLI |
|---|---|
| CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
| Video on-board |
Intel UHD Graphics |
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron |
| North Bridge |
Intel Z490 |
Retea
| LAN on-board |
100 / 1000 / 2500 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
