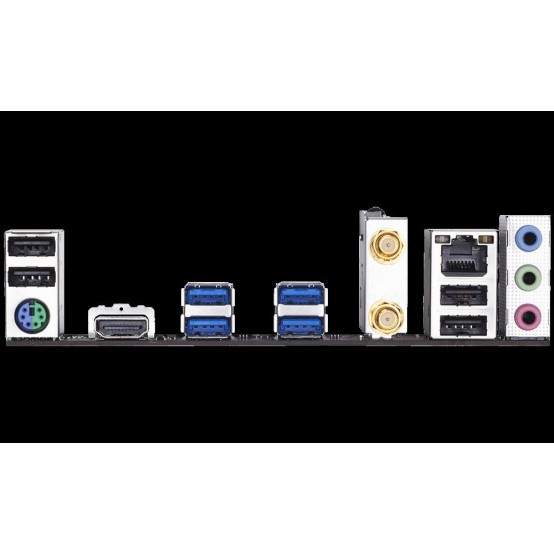

Placa de baza GigaByte B450M DS3H WIFI
444.00 lei
cu TVA
Orderable quantity above the default stock is: 76
Solicita publicarea acestui produs in SICAP
Placa de baza GigaByte B450M DS3H WIFI
444.00 leiDescriere
Placa de baza Gigabyte B450M DS3H WIFI CPU AM4 Socket Chipset AMD B450 Memory 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory Dual channel memory architecture Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Onboard Graphics - Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Wireless Communication module Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 1 x PCI Express x16 slot 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) USB 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks I/O Controller Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
Specificatii
| ID dataSPOT |
149923 |
|---|---|
| Model |
B450M DS3H WIFI |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 4.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.1 |
6 x USB 3.1 |
Grafica
| Video on-board |
AMD Radeon Vega Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd / 2nd / 1st Gen Ryzen / Athlon |
| North Bridge |
AMD B450 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- AMD
- Socket
- AM4
- Procesoare compatibile
- 3rd / 2nd / 1st Gen Ryzen / Athlon
- North Bridge
- AMD B450
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 64 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 3.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- AMD Radeon Vega Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.1
- 6 x USB 3.1
- HDMI
- 1 x HDMI On-Board
- Format
- microATX
- Alte detalii
- Bluetooth 4.2
- ID dataSPOT
- 149923
- Model
- B450M DS3H WIFI
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
149923 |
|---|---|
| Model |
B450M DS3H WIFI |
| Producator |
GigaByte |
| Garantie comerciala |
3 ani |
Altele
| Alte detalii |
Bluetooth 4.2 |
|---|
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.1 |
6 x USB 3.1 |
Grafica
| Video on-board |
AMD Radeon Vega Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd / 2nd / 1st Gen Ryzen / Athlon |
| North Bridge |
AMD B450 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|---|
| Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
