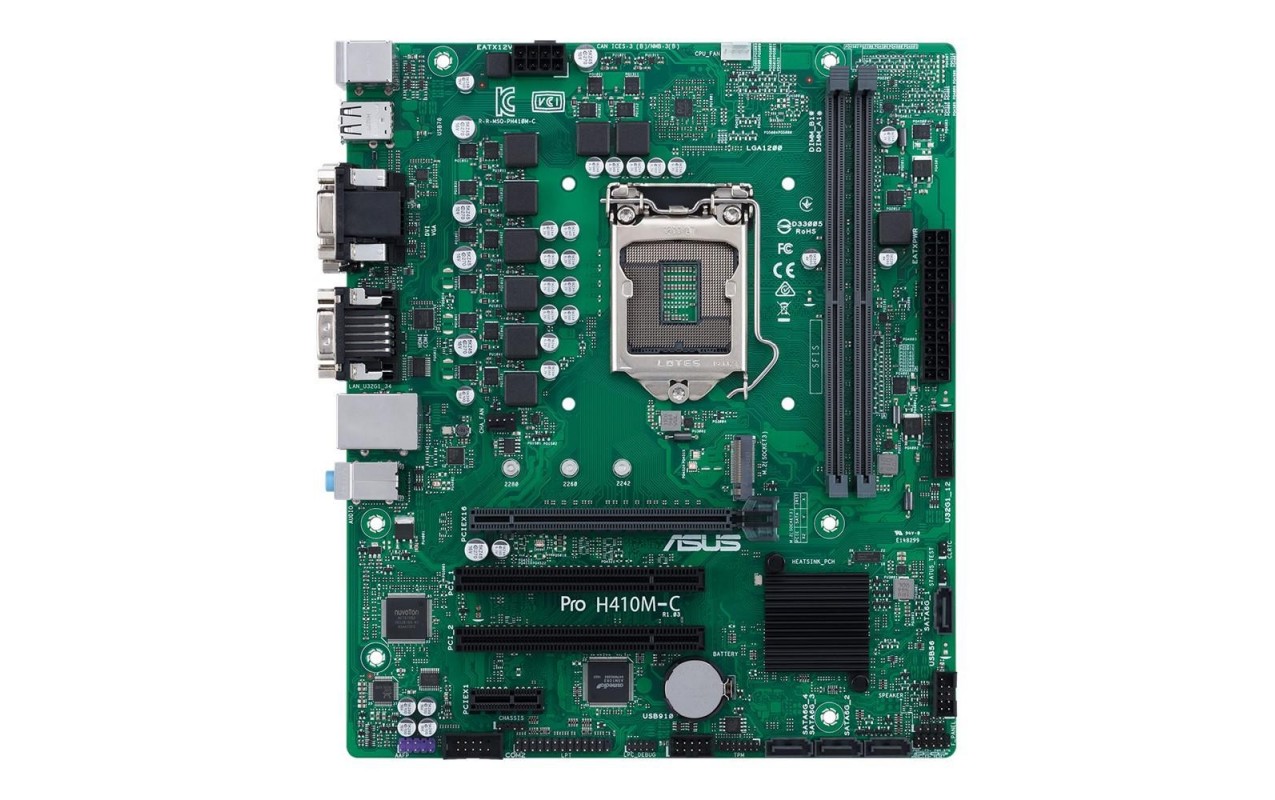

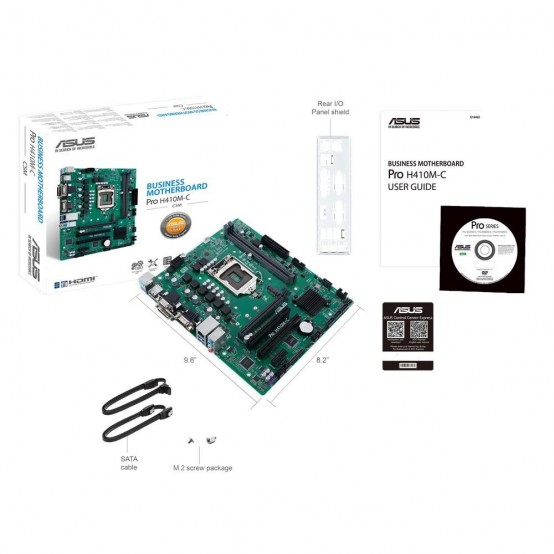

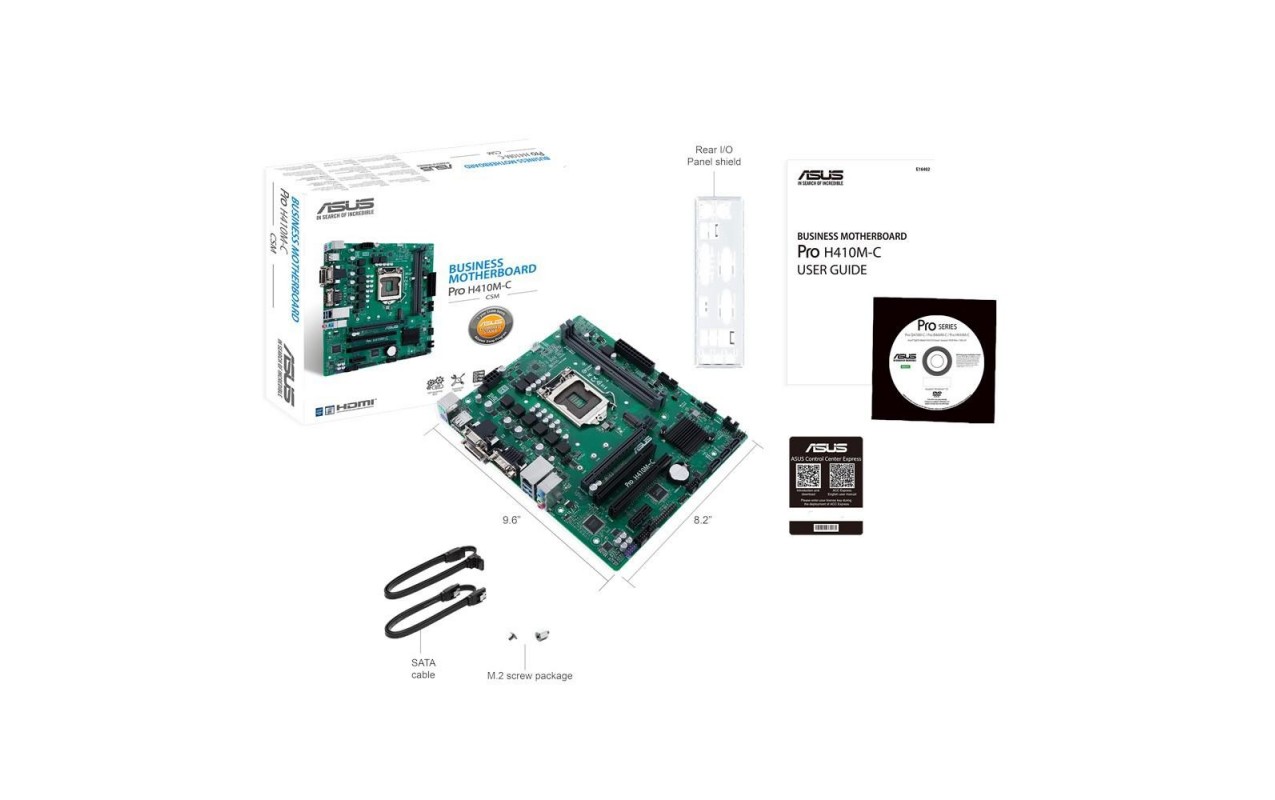

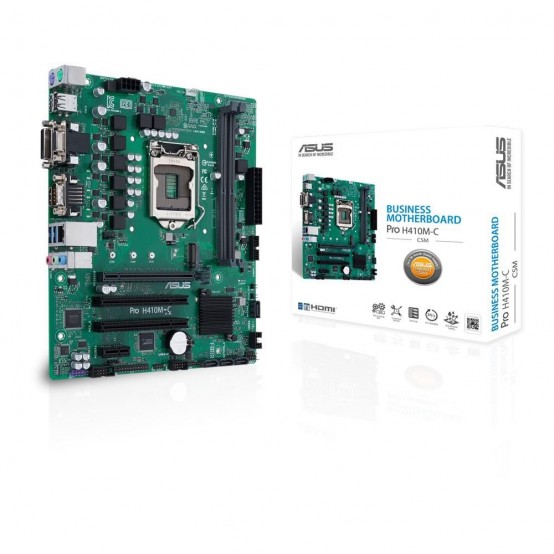

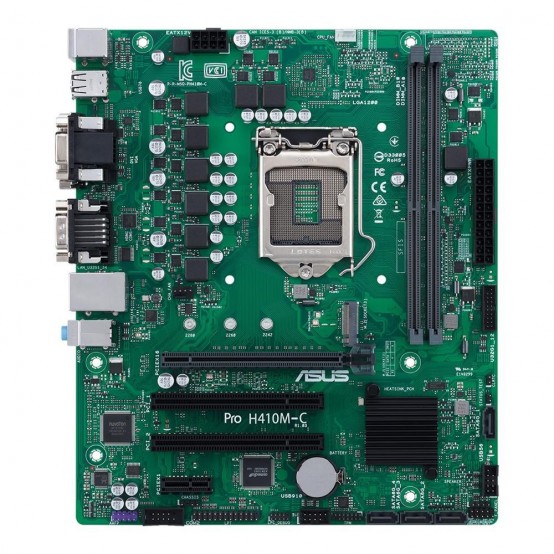

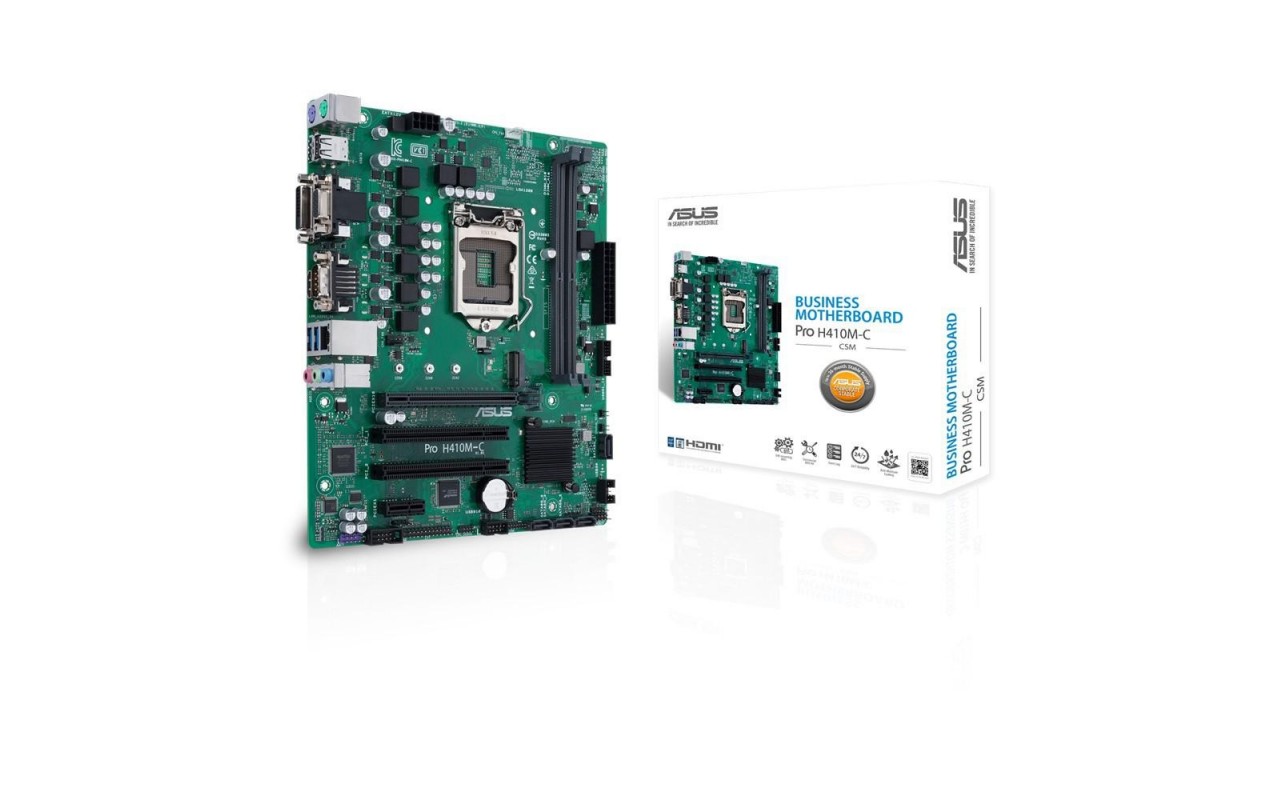

Placa de baza ASUS PRO H410M-C/CSM-SI
479.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Placa de baza ASUS PRO H410M-C/CSM-SI
479.00 leiDescriere
Placa de baza Asus PRO H410M-C/CSM-SI Socket LGA 1200
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H410
Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

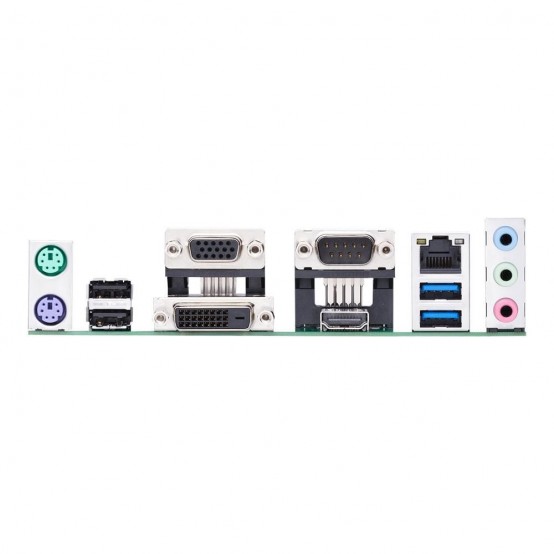

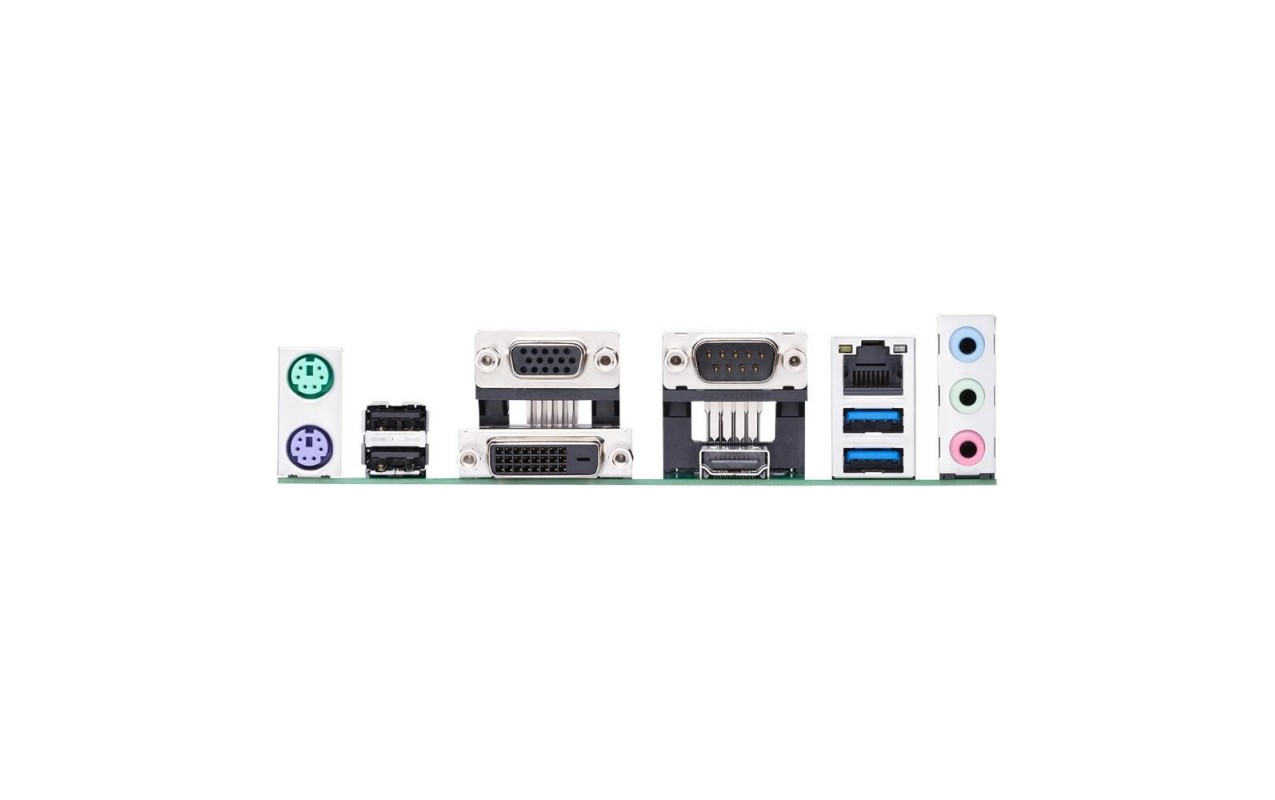

Graphic
Integrated Graphics Processor *1
1 x D-Sub
1 x DVI-D
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Expansion Slots
16-Lane CPU-
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® H410 Chipset
1 x PCIe 3.0/2.0 x1
2 x PCI
Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
4 x SATA 6Gb/s port(s)
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LANGuard
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC *3
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
https://www.asus.com/Motherboards/Pro-H410M-C-CSM/specifications/
CPU
Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H410
Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor *1
1 x D-Sub
1 x DVI-D
1 x HDMI 1.4b
*Graphics specifications may vary between CPU types.
Expansion Slots
16-Lane CPU-
1 x PCIe 3.0/2.0 x16 (x16 mode)
Intel® H410 Chipset
1 x PCIe 3.0/2.0 x1
2 x PCI
Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
4 x SATA 6Gb/s port(s)
LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LANGuard
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC *3
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
https://www.asus.com/Motherboards/Pro-H410M-C-CSM/specifications/
Specificatii
| ID dataSPOT |
149890 |
|---|---|
| Model |
PRO H410M-C/CSM-SI |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| Slot-uri PCI |
2 x PCI Slot |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III |
4 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
4 x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
2 x |
|---|---|
| Frecventa DDR4 |
2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
10th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel H410 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 10th Gen Intel Core. Pentium Gold and Celeron
- North Bridge
- Intel H410
- Numar sloturi DDR4
- 2 x
- Frecventa DDR4
- 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 64 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- Slot-uri PCI
- 2 x PCI Slot
- PCI Express 2.0
- PCI Express 3.0
- Serial ATA III
- 4 x Serial ATA III
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 4 x USB 3.2
- DVI
- 1 x DVI On-Board
- HDMI
- 1 x HDMI On-Board
- Format
- microATX
- ID dataSPOT
- 149890
- Model
- PRO H410M-C/CSM-SI
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
149890 |
|---|---|
| Model |
PRO H410M-C/CSM-SI |
| Producator |
ASUS |
| Garantie comerciala |
3 ani |
Conectivitate
| Slot-uri PCI Express x16 |
1 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
1 x PCI Express x1 |
| Slot-uri PCI |
2 x PCI Slot |
| PCI Express 2.0 |
PCI Express 3.0 |
| Serial ATA III |
4 x Serial ATA III |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
4 x USB 3.2 |
Grafica
| Video on-board |
Intel HD Graphics |
|---|---|
| DVI |
1 x DVI On-Board |
| HDMI |
1 x HDMI On-Board |
Memorie
| Numar sloturi DDR4 |
2 x |
|---|---|
| Frecventa DDR4 |
2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
64 GB |
Procesor
| Platforma |
Intel |
|---|---|
| Socket |
LGA 1200 |
| Procesoare compatibile |
10th Gen Intel Core. Pentium Gold and Celeron |
| North Bridge |
Intel H410 |
Retea
| LAN on-board |
10 / 100 / 1000 Mbit/s |
|---|
Specificatii fizice
| Format |
microATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
