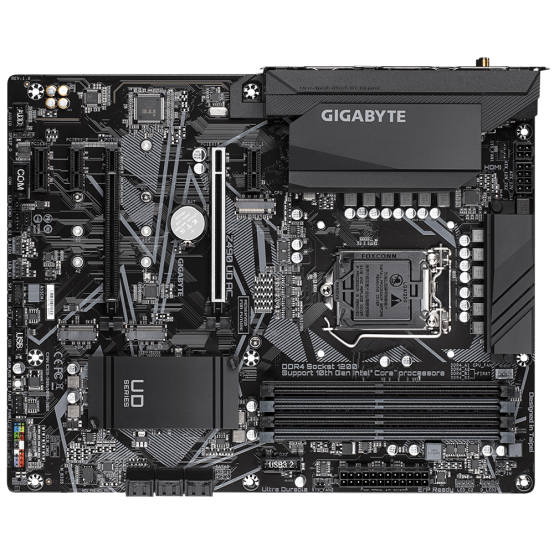

Placa de baza GigaByte Z490 UD AC
979.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Descriere
Placa de baza Gigabyte Z490 UD AC Intel® Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0 U Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® Z490 Express Chipset Memory Intel® Core™ i9/i7 processors: Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133 (O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 (O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Maximum shared memory of 512 MB Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE s website for details on configuring the audio software. Support for S/PDIF Out LAN Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Wireless Communication module Intel® Wi-Fi AC 9462: Intel® CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 1x1 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. https://www.gigabyte.com/Motherboard/Z490-UD-AC-rev-10/sp#sp
Specificatii
ID dataSPOT |
147036 |
---|---|
Model |
Z490 UD AC |
Producator |
GigaByte |
Garantie comerciala |
3 ani |
Altele
Alte detalii |
Bluetooth 5.0 |
---|
Conectivitate
Slot-uri PCI Express x16 |
1 x PCI Express x16 |
---|---|
Slot-uri PCI Express x4 |
1 x PCI Express x4 |
Slot-uri PCI Express x1 |
3 x PCI Express x1 |
PCI Express 2.0 |
PCI Express 3.0 |
Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
Porturi USB 2.0 |
4 x USB 2.0 |
Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
---|---|
Video on-board |
Intel HD Graphics |
HDMI |
1 x HDMI On-Board |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
128 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1200 |
Procesoare compatibile |
10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron |
North Bridge |
Intel Z490 |
Retea
LAN on-board |
10 / 100 / 1000 Mbit/s |
---|---|
Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1200
- Procesoare compatibile
- 10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron
- North Bridge
- Intel Z490
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x4
- 1 x PCI Express x4
- Slot-uri PCI Express x1
- 3 x PCI Express x1
- PCI Express 2.0
- PCI Express 3.0
- CrossFire
- AMD Quad-GPU CrossFire. 2-Way AMD CrossFire
- Serial ATA III with RAID Support
- 6 x Serial ATA III with RAID Support
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Wireless
- 802.11 a/b/g/n/ac Mbit/s
- Porturi USB 2.0
- 4 x USB 2.0
- Porturi USB 3.2
- 7 + 1 type C x USB 3.2
- HDMI
- 1 x HDMI On-Board
- Format
- ATX
- Alte detalii
- Bluetooth 5.0
- ID dataSPOT
- 147036
- Model
- Z490 UD AC
- Producator
- GigaByte
- Garantie comerciala
- 3 ani
Specificatii
ID dataSPOT |
147036 |
---|---|
Model |
Z490 UD AC |
Producator |
GigaByte |
Garantie comerciala |
3 ani |
Altele
Alte detalii |
Bluetooth 5.0 |
---|
Conectivitate
Slot-uri PCI Express x16 |
1 x PCI Express x16 |
---|---|
Slot-uri PCI Express x4 |
1 x PCI Express x4 |
Slot-uri PCI Express x1 |
3 x PCI Express x1 |
PCI Express 2.0 |
PCI Express 3.0 |
Serial ATA III with RAID Support |
6 x Serial ATA III with RAID Support |
Porturi USB 2.0 |
4 x USB 2.0 |
Porturi USB 3.2 |
7 + 1 type C x USB 3.2 |
Grafica
CrossFire |
AMD Quad-GPU CrossFire. 2-Way AMD CrossFire |
---|---|
Video on-board |
Intel HD Graphics |
HDMI |
1 x HDMI On-Board |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
128 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1200 |
Procesoare compatibile |
10th Gen Intel Core i9 / i7 / i5/ i3 / Pentium / Celeron |
North Bridge |
Intel Z490 |
Retea
LAN on-board |
10 / 100 / 1000 Mbit/s |
---|---|
Wireless |
802.11 a/b/g/n/ac Mbit/s |
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
