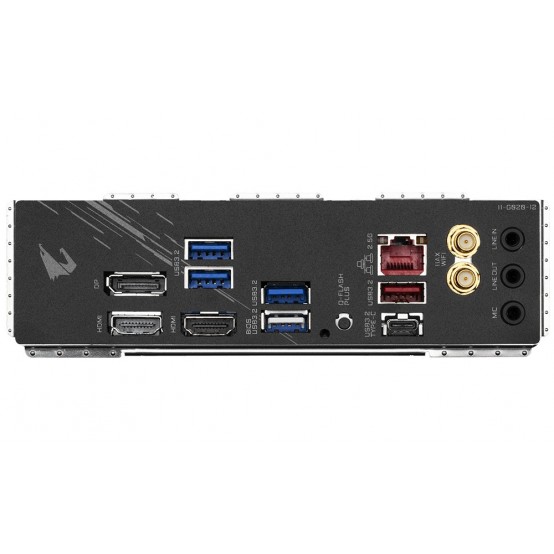

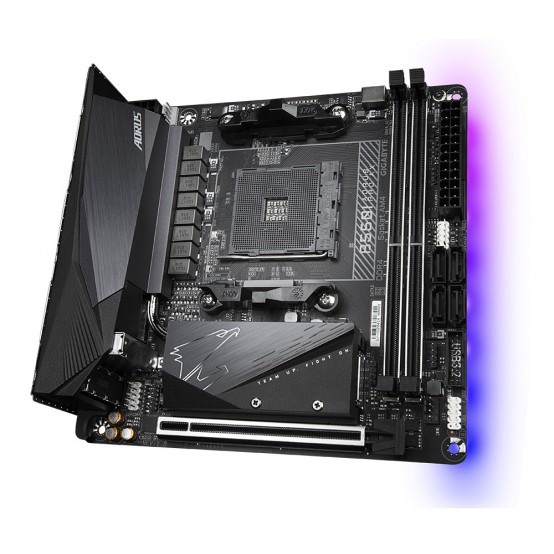

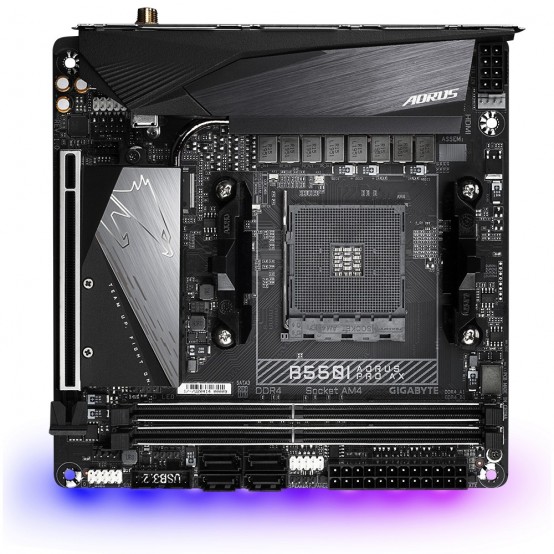

Placa de baza GigaByte B550 I AORUS PRO AX

Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
Placa de baza GigaByte B550 I AORUS PRO AX
909.00 lei
cu TVA

Orderable quantity above the default stock is: 6
909.00 lei buc, Total: lei
Ai nevoie de ajutor? 0357.442.442 helpdesk@dataspot.ro
Placa de baza GigaByte B550 I AORUS PRO AX

Placa de baza GigaByte B550 I AORUS PRO AX

909.00 lei


Descriere
Placa de baza Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory AMD Ryzen™ 5000 series Processors/ 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400 (O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600 (O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333 (O.C.)/3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual- Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp

Specificatii

ID dataSPOT 147000
Model B550 I AORUS PRO AX
Producator GigaByte
Garantie comerciala 3 ani
Altele
Alte detalii Bluetooth 5.0
Conectivitate
Slot-uri PCI Express x16 1 x PCI Express x16
PCI Express 2.0 PCI Express 4.0
Serial ATA III with RAID Support 4 x Serial ATA III with RAID Support
Porturi USB 2.0 2 x USB 2.0
Porturi USB 3.2 7 + 1 type C x USB 3.2
Grafica
Video on-board New Generation AMD Ryzen with Radeon Graphics
HDMI 1 x HDMI On-Board
DisplayPort 1
Memorie
Numar sloturi DDR4 2 x
Frecventa DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz
Tehnologie Multi Channel DDR4 Dual Channel DDR4 Slots
Memorie DDR4 maxima 64 GB
Procesor
Platforma AMD
Socket AM4
Procesoare compatibile 3rd Gen AMD Ryzen / New Gen AMD Ryzen with Radeon Graphics
North Bridge AMD B550
Retea
LAN on-board 10 / 100 / 1000 / 2500 Mbit/s
Wireless 802.11 a/b/g/n/ac Mbit/s
Specificatii fizice
Format mini-ITX
Sunet
Audio on-board 7.1
Specificatii
Platforma
AMD
Socket
AM4
Procesoare compatibile
3rd Gen AMD Ryzen / New Gen AMD Ryzen with Radeon Graphics
North Bridge
AMD B550
Numar sloturi DDR4
2 x
Frecventa DDR4
4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz
Tehnologie Multi Channel DDR4
Dual Channel DDR4 Slots
Memorie DDR4 maxima
64 GB
Slot-uri PCI Express x16
1 x PCI Express x16
PCI Express 2.0
PCI Express 4.0
Serial ATA III with RAID Support
4 x Serial ATA III with RAID Support
Video on-board
New Generation AMD Ryzen with Radeon Graphics
Audio on-board
7.1
LAN on-board
10 / 100 / 1000 / 2500 Mbit/s
Wireless
802.11 a/b/g/n/ac Mbit/s
Porturi USB 2.0
2 x USB 2.0
Porturi USB 3.2
7 + 1 type C x USB 3.2
HDMI
1 x HDMI On-Board
DisplayPort
1
Format
mini-ITX
Alte detalii
Bluetooth 5.0
ID dataSPOT
147000
Model
B550 I AORUS PRO AX
Producator
GigaByte
Garantie comerciala
3 ani

Detii sau ai utilizat produsul?

Spune-ti parerea acordand o nota produsului.

Specificatii

ID dataSPOT 147000
Model B550 I AORUS PRO AX
Producator GigaByte
Garantie comerciala 3 ani
Altele
Alte detalii Bluetooth 5.0
Conectivitate
Slot-uri PCI Express x16 1 x PCI Express x16
PCI Express 2.0 PCI Express 4.0
Serial ATA III with RAID Support 4 x Serial ATA III with RAID Support
Porturi USB 2.0 2 x USB 2.0
Porturi USB 3.2 7 + 1 type C x USB 3.2
Grafica
Video on-board New Generation AMD Ryzen with Radeon Graphics
HDMI 1 x HDMI On-Board
DisplayPort 1
Memorie
Numar sloturi DDR4 2 x
Frecventa DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz
Tehnologie Multi Channel DDR4 Dual Channel DDR4 Slots
Memorie DDR4 maxima 64 GB
Procesor
Platforma AMD
Socket AM4
Procesoare compatibile 3rd Gen AMD Ryzen / New Gen AMD Ryzen with Radeon Graphics
North Bridge AMD B550
Retea
LAN on-board 10 / 100 / 1000 / 2500 Mbit/s
Wireless 802.11 a/b/g/n/ac Mbit/s
Specificatii fizice
Format mini-ITX
Sunet
Audio on-board 7.1
