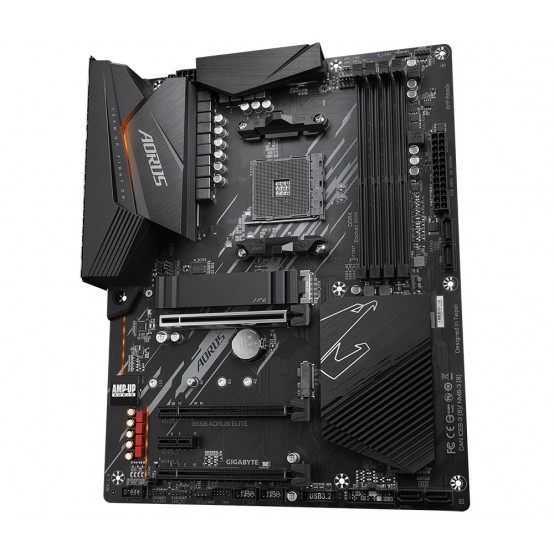

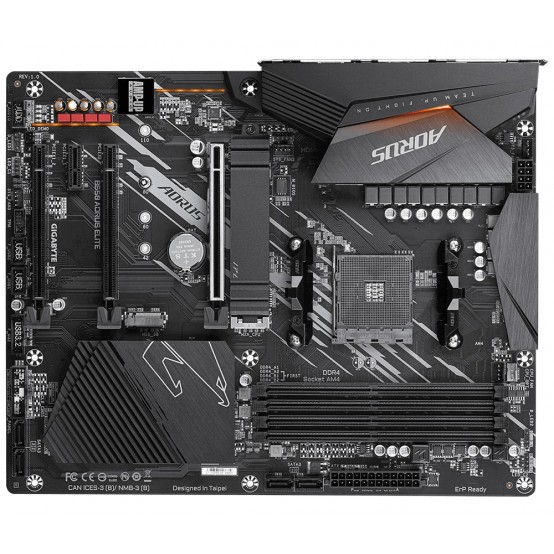

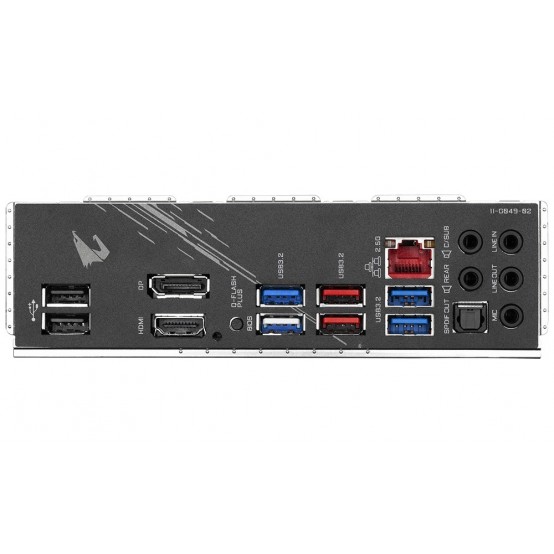

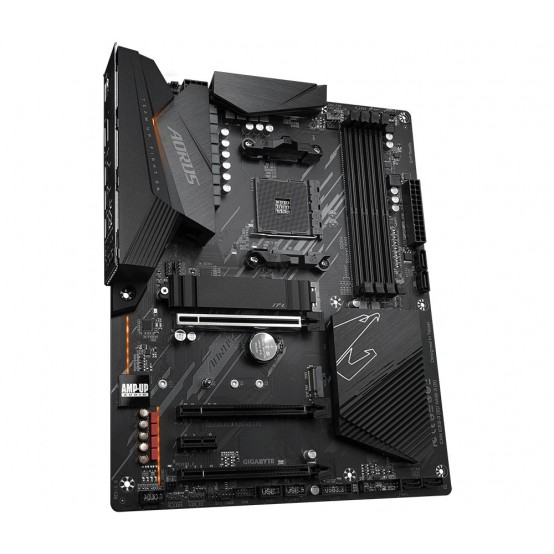

Placa de baza GigaByte B550 AORUS ELITE
Placa de baza GigaByte B550 AORUS ELITE
699.00 leiDescriere
Placa de baza Gigabyte B550 AORUS ELITE Socket AM4 AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus Supports 3rd Gen AMD Ryzen™ Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs True 12+2 Phases Digital VRM Solution with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Rear DisplayPort & HDMI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-rev-10#kf
Placa de baza Gigabyte B550 AORUS ELITE Socket AM4 AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Thermal Guard, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus Supports 3rd Gen AMD Ryzen™ Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs True 12+2 Phases Digital VRM Solution with 50A DrMOS Advanced Thermal Design with Enlarged Surface Heatsinks Ultra Durable™ PCIe 4.0 x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard AMP-UP Audio with ALC1200 and WIMA Capacitors Blazing Fast 2.5GbE LAN with Bandwidth Management Rear DisplayPort & HDMI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Pre-installed IO Shield for Easy and Quick Installation https://www.gigabyte.com/Motherboard/B550-AORUS-ELITE-rev-10#kf
Specificatii
| ID dataSPOT |
146995 |
|---|---|
| Model |
B550 AORUS ELITE |
| Producator |
GigaByte |
| Garantie comerciala |
2 ani |
Conectivitate
| Slot-uri PCI Express x16 |
2 x PCI Express x16 |
|---|---|
| Slot-uri PCI Express x1 |
2 x PCI Express x1 |
| PCI Express 2.0 |
PCI Express 4.0 |
| Serial ATA III with RAID Support |
4 x Serial ATA III with RAID Support |
| Porturi USB 2.0 |
6 x USB 2.0 |
| Porturi USB 3.2 |
8 x USB 3.2 |
Grafica
| Video on-board |
New Generation AMD Ryzen with Radeon Graphics |
|---|---|
| HDMI |
1 x HDMI On-Board |
| DisplayPort |
1 |
Memorie
| Numar sloturi DDR4 |
4 x |
|---|---|
| Frecventa DDR4 |
4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 / 2933 / 2667 / 2400 / 2133 MHz |
| Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
| Memorie DDR4 maxima |
128 GB |
Procesor
| Platforma |
AMD |
|---|---|
| Socket |
AM4 |
| Procesoare compatibile |
3rd Gen AMD Ryzen / New Gen AMD Ryzen with Radeon Graphics |
| North Bridge |
AMD B550 |
Retea
| LAN on-board |
10 / 100 / 1000 / 2500 Mbit/s |
|---|
Specificatii fizice
| Format |
ATX |
|---|
Sunet
| Audio on-board |
7.1 |
|---|
Specificatii
- Platforma
- AMD
- Socket
- AM4
- Procesoare compatibile
- 3rd Gen AMD Ryzen / New Gen AMD Ryzen with Radeon Graphics
- North Bridge
- AMD B550
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 / 2933 / 2667 / 2400 / 2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 128 GB
- Slot-uri PCI Express x16
- 2 x PCI Express x16
- Slot-uri PCI Express x1
- 2 x PCI Express x1
- PCI Express 2.0
- PCI Express 4.0
- Serial ATA III with RAID Support
- 4 x Serial ATA III with RAID Support
- Video on-board
- New Generation AMD Ryzen with Radeon Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 / 2500 Mbit/s
- Porturi USB 2.0
- 6 x USB 2.0
- Porturi USB 3.2
- 8 x USB 3.2
- HDMI
- 1 x HDMI On-Board
- DisplayPort
- 1
- Format
- ATX
- ID dataSPOT
- 146995
- Model
- B550 AORUS ELITE
- Producator
- GigaByte
- Garantie comerciala
- 2 ani
-
