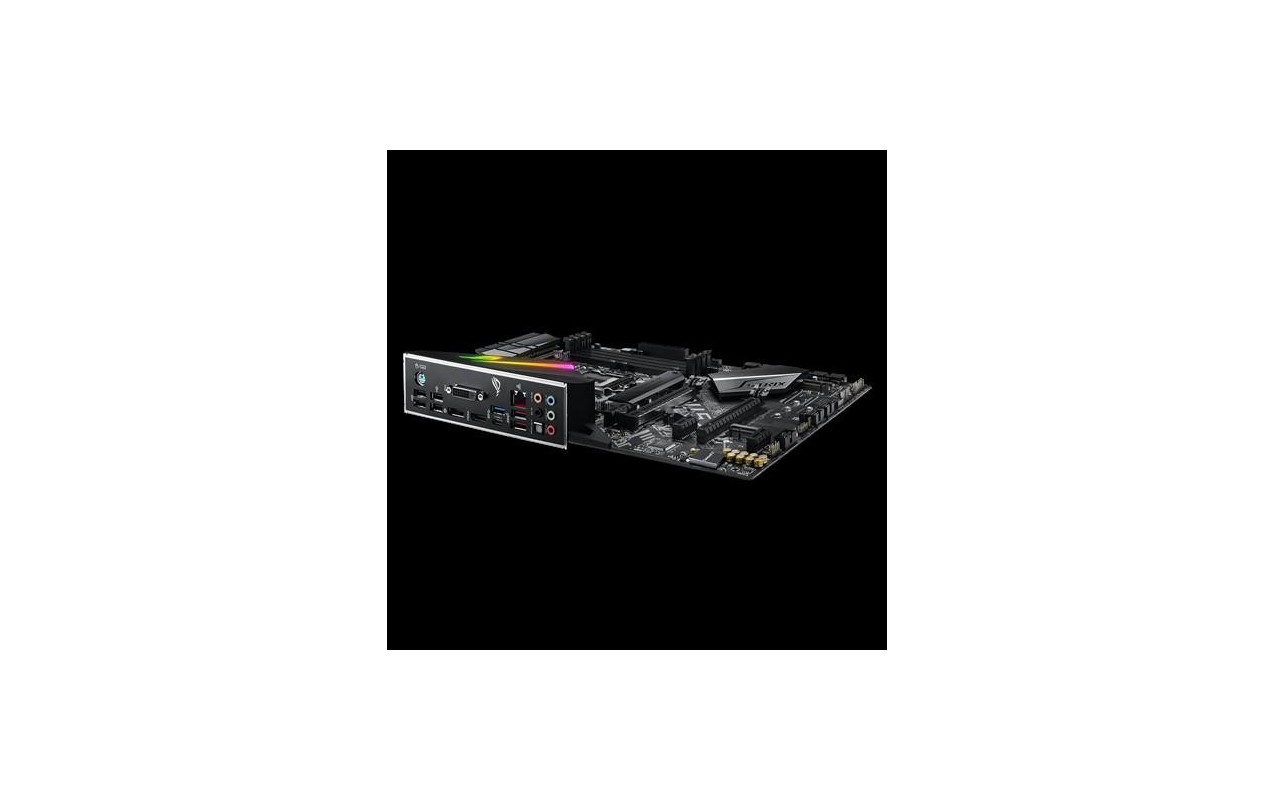

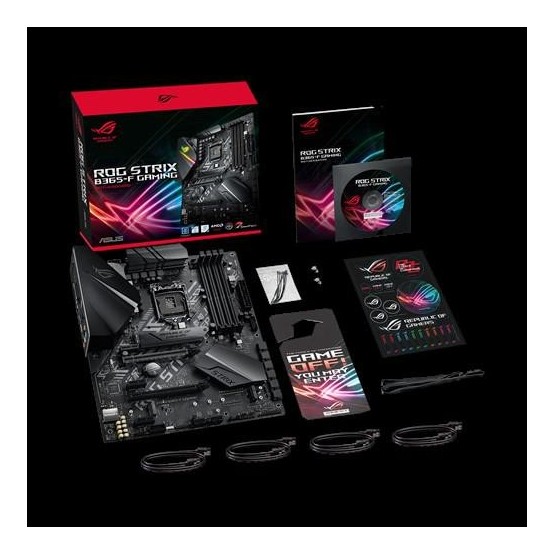

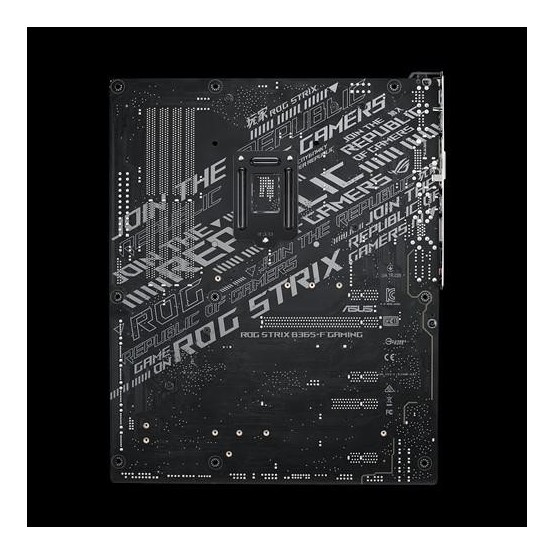

Placa de baza ASUS ROG STRIX B365-F GAMING
839.00 lei
cu TVA
Orderable quantity above the default stock is: 0
Solicita publicarea acestui produs in SICAP
Descriere
Placa de baza Asus Socket LGA1151 v2 ROG STRIX B365-F GAMING Aura Sync RGB CPU Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 * Refer to www.asus.com for CPU support list Chipset Build in Intel® B365 Memory Intel® B365 Chipset 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe 3.0 x16 (max at x4 mode) *1 1 x PCIe 3.0 x1 Storage Intel® B365 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready * LAN Intel® I219V Anti-surge LANGuard ROG GameFirst Technology Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB (Line-out at rear) 113 dB SNR recording input Audio Feature : - SupremeFX Shielding™ Technology - Optical S/PDIF out port(s) at back panel - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Sonic Radar III - Sonic Studio III + Sonic Studio Link USB Ports Intel® B365 Chipset : 2 x USB 3.1 Gen 2 port(s) Intel® B365 Chipset : 6 x USB 3.1 Gen 1 port(s) Intel® B365 Chipset : 6 x USB 2.0 port(s) ROG Exclusive Features Pre-mounted I/O Shield ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf Special Features Gamer s Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports - DRAM Overcurrent Protection - 10K Black Metallic Capacitors - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - GPU Boost - AI Suite 3 - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS MyLogo ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Armoury Crate Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI 1 x HDMI 2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x AAFP connector 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 2 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel connector(s) 1 x Clear CMOS jumper(s) Accessories User s manual 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x CABLE TIE BLACK 1 x ROG Strix stickers BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI6.1 Manageability WOL, PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note *1 When the M.2 Socket with E key is occupied, PCIe x16_2 will run at x2 mode. *2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.
Specificatii
ID dataSPOT |
140893 |
---|---|
Model |
ROG STRIX B365-F GAMING |
Producator |
ASUS |
Garantie comerciala |
3 ani |
Conectivitate
Slot-uri PCI Express x16 |
1 x PCI Express x16 |
---|---|
Slot-uri PCI Express x1 |
1 x PCI Express x1 |
Slot-uri PCI |
3 x PCI Slot |
PCI Express 2.0 |
PCI Express 3.0 |
Serial ATA III |
6 x Serial ATA III |
Porturi USB 2.0 |
8 x USB 2.0 |
Porturi USB 3.1 |
6 x USB 3.1 |
Grafica
CrossFire |
AMD 2-Way CrossFireX |
---|---|
Video on-board |
Intel HD Graphics |
DVI |
1 x DVI On-Board |
HDMI |
1 x HDMI On-Board |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
2666 / 2400 / 2133 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
64 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1151 v2 |
Procesoare compatibile |
Intel 9th. 8th Gen. Core. Pentium Gold. Celeron Processors |
North Bridge |
Intel B365 |
Retea
LAN on-board |
10 / 100 / 1000 Mbit/s |
---|
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
Specificatii
- Platforma
- Intel
- Socket
- LGA 1151 v2
- Procesoare compatibile
- Intel 9th. 8th Gen. Core. Pentium Gold. Celeron Processors
- North Bridge
- Intel B365
- Numar sloturi DDR4
- 4 x
- Frecventa DDR4
- 2666 / 2400 / 2133 MHz
- Tehnologie Multi Channel DDR4
- Dual Channel DDR4 Slots
- Memorie DDR4 maxima
- 64 GB
- Slot-uri PCI Express x16
- 1 x PCI Express x16
- Slot-uri PCI Express x1
- 1 x PCI Express x1
- Slot-uri PCI
- 3 x PCI Slot
- PCI Express 2.0
- PCI Express 3.0
- CrossFire
- AMD 2-Way CrossFireX
- Serial ATA III
- 6 x Serial ATA III
- Video on-board
- Intel HD Graphics
- Audio on-board
- 7.1
- LAN on-board
- 10 / 100 / 1000 Mbit/s
- Porturi USB 2.0
- 8 x USB 2.0
- Porturi USB 3.1
- 6 x USB 3.1
- DVI
- 1 x DVI On-Board
- HDMI
- 1 x HDMI On-Board
- Format
- ATX
- ID dataSPOT
- 140893
- Model
- ROG STRIX B365-F GAMING
- Producator
- ASUS
- Garantie comerciala
- 3 ani
Specificatii
ID dataSPOT |
140893 |
---|---|
Model |
ROG STRIX B365-F GAMING |
Producator |
ASUS |
Garantie comerciala |
3 ani |
Conectivitate
Slot-uri PCI Express x16 |
1 x PCI Express x16 |
---|---|
Slot-uri PCI Express x1 |
1 x PCI Express x1 |
Slot-uri PCI |
3 x PCI Slot |
PCI Express 2.0 |
PCI Express 3.0 |
Serial ATA III |
6 x Serial ATA III |
Porturi USB 2.0 |
8 x USB 2.0 |
Porturi USB 3.1 |
6 x USB 3.1 |
Grafica
CrossFire |
AMD 2-Way CrossFireX |
---|---|
Video on-board |
Intel HD Graphics |
DVI |
1 x DVI On-Board |
HDMI |
1 x HDMI On-Board |
Memorie
Numar sloturi DDR4 |
4 x |
---|---|
Frecventa DDR4 |
2666 / 2400 / 2133 MHz |
Tehnologie Multi Channel DDR4 |
Dual Channel DDR4 Slots |
Memorie DDR4 maxima |
64 GB |
Procesor
Platforma |
Intel |
---|---|
Socket |
LGA 1151 v2 |
Procesoare compatibile |
Intel 9th. 8th Gen. Core. Pentium Gold. Celeron Processors |
North Bridge |
Intel B365 |
Retea
LAN on-board |
10 / 100 / 1000 Mbit/s |
---|
Specificatii fizice
Format |
ATX |
---|
Sunet
Audio on-board |
7.1 |
---|
