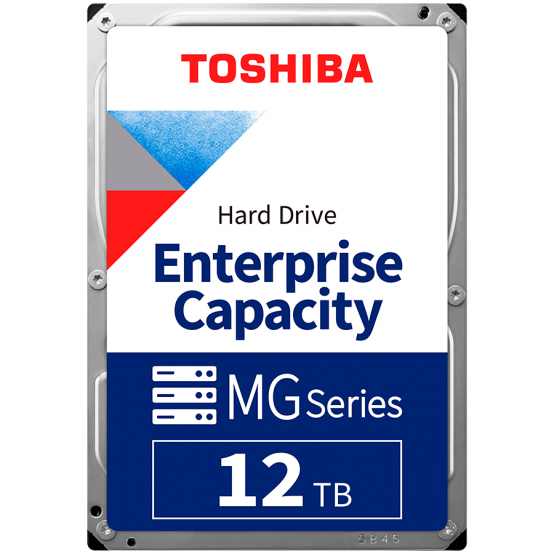

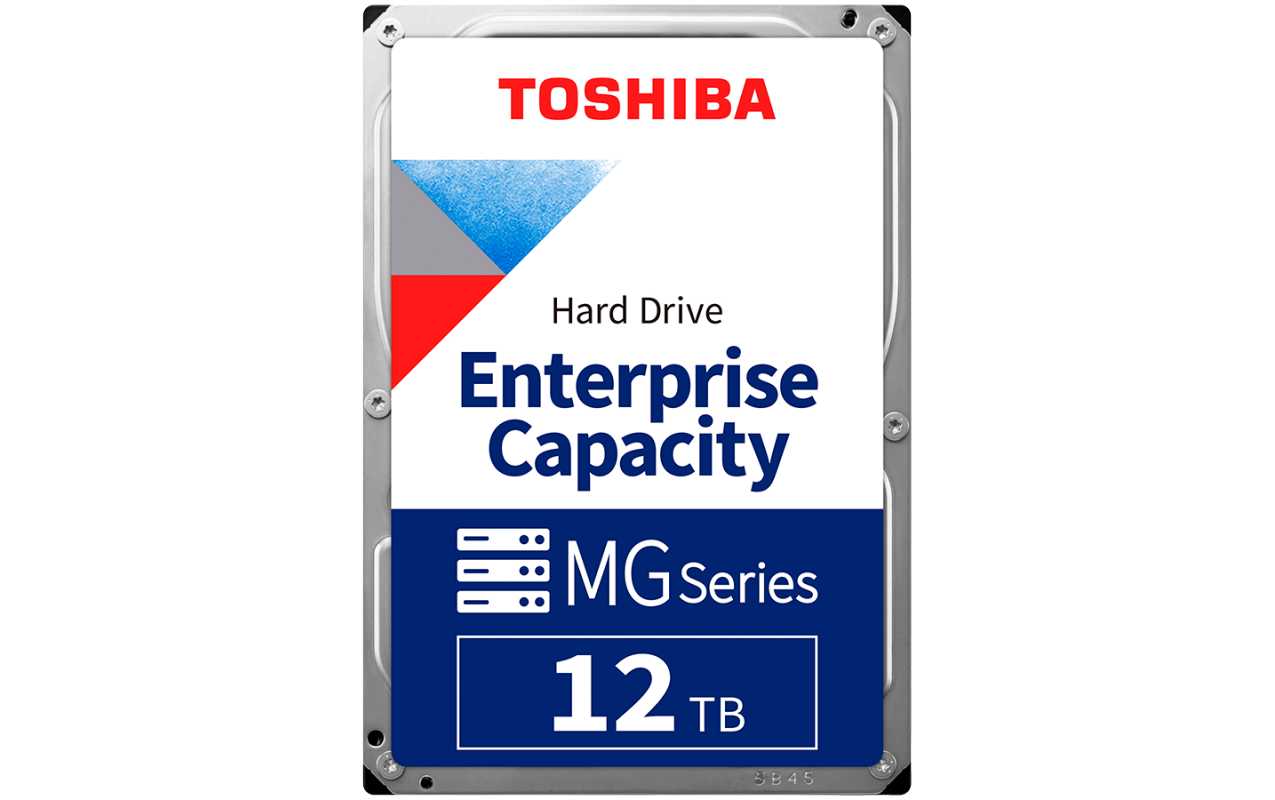

Hard disk Toshiba MG09 MG09ACA12TE

Rethink Your Data Storage Toshiba Enterprise HDDs

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 18TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.

The massive 18 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

• Up to 18TB capacity
• Conventional Magnetic Recording (CMR) for broad compatibility
• Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
• Industry-leading 9-disk helium-sealed design for superior storage density
• Industry Standard 3.5-inch 26.1mm height Form Factor
• 7200rpm Performance
• Choice of SATA 6.0 Gbit/s and 12.0 Gbit/s SAS Interfaces
• Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
• 550 Total TB Transferred per Year Workload Rating
• 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
• Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
• Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model
• Cloud-scale Sever and Storage Infrastructure
• Software-defined data center infrastructure
• File- and Object-based storage infrastructure
• Tiered Storage Infrastructure Solutions
• Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives
• Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
• Compliance Data Archives and Data Life-Cycle Management Storage Systems
• Data Center Data-Protection and Data Back-up Infrastructure
