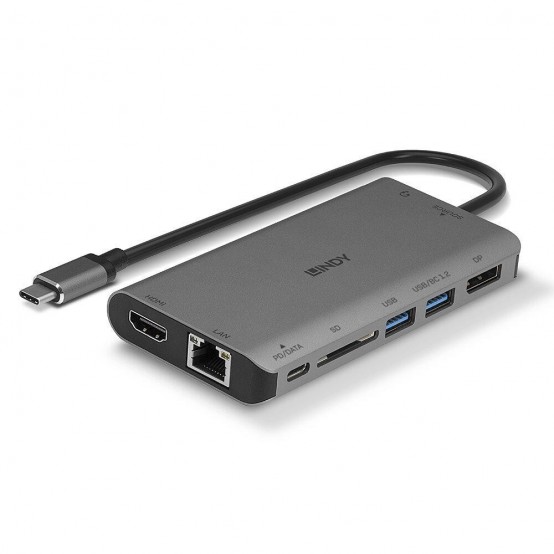

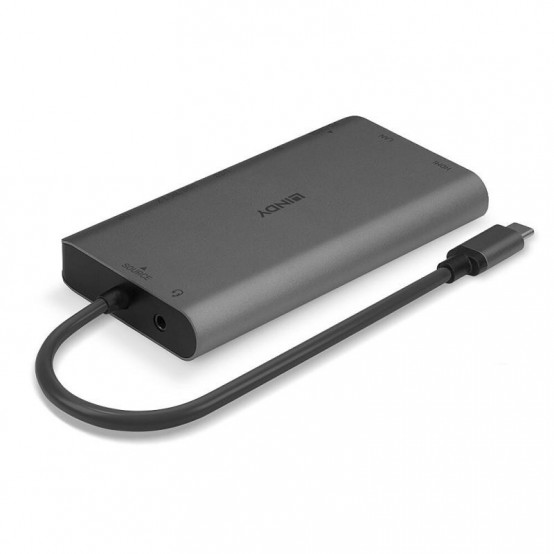

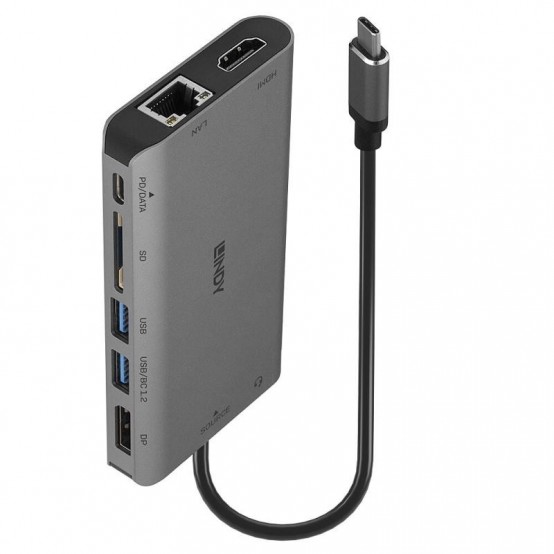

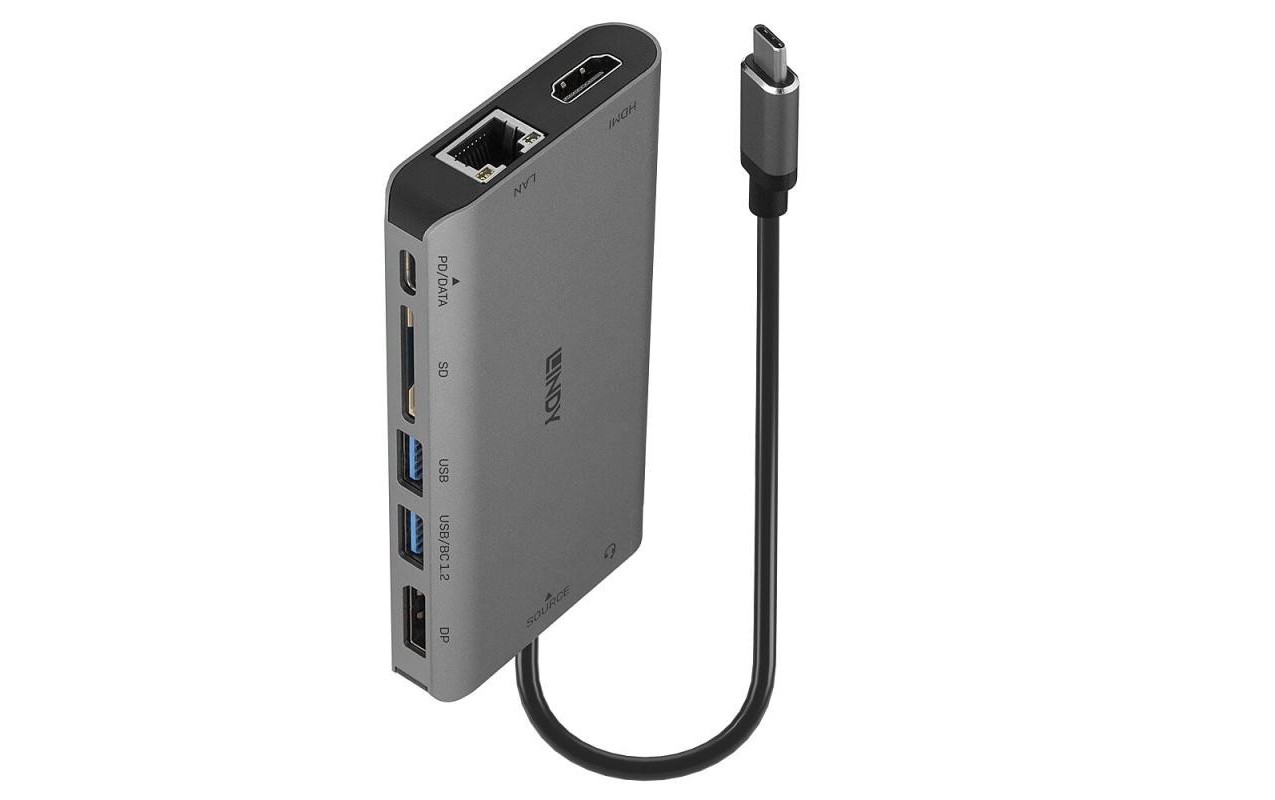

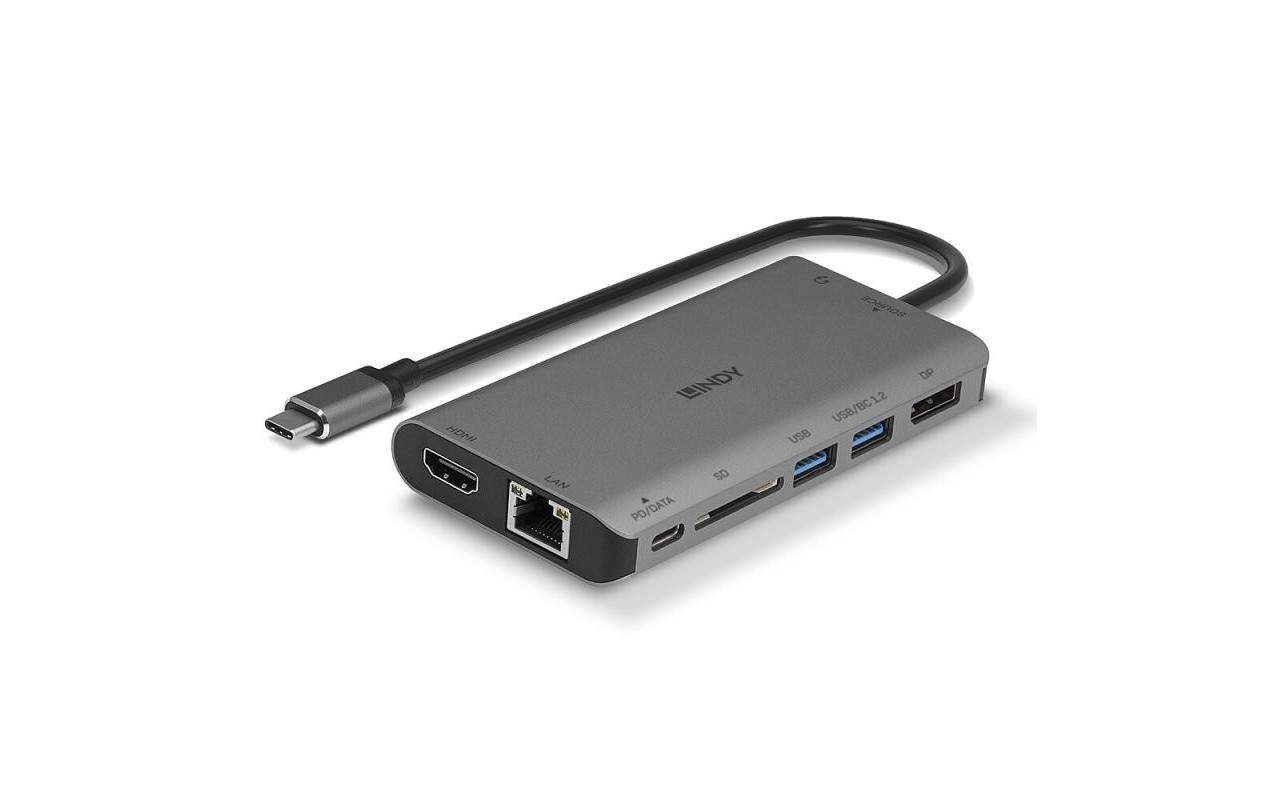

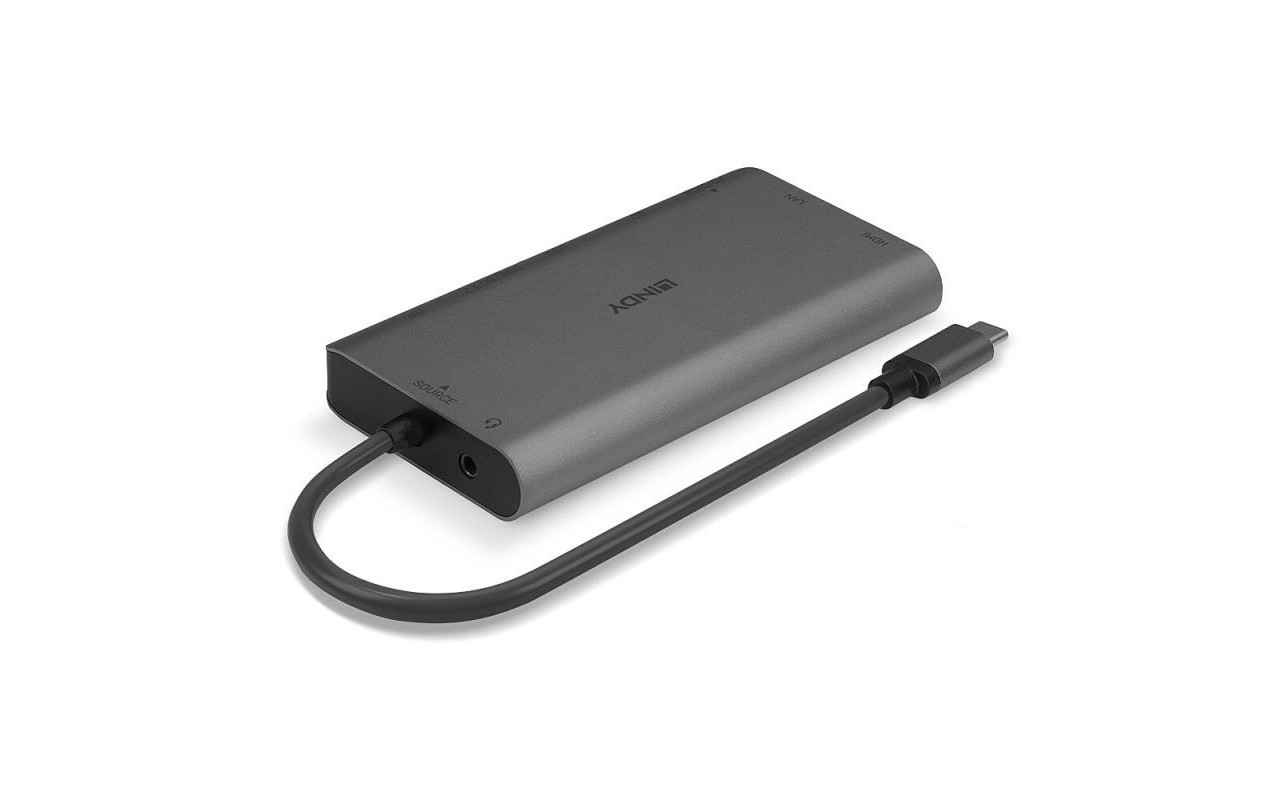

Docking Station Lindy USB 3.2 Type C Laptop Mini Dock LY-43323

Description

• Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
• Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays
• Features DisplayPort Alternate Mode
• USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock

echnical details

Specifications

• Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
• Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN,  Audio (combo)
• Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
• Maximum Input Resolution: 3840x2160@30Hz
• Maximum Output Resolution: 3840x2160@30Hz (HDMI), 3840x2160@30Hz (DP), simultaneous connection: 1920x1080
• Chipset: VM3332, VL817, VL102, AU6438, RTL8153B, HS-100B
• Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
• Power Delivery: PD 3.0 up to 100W (20V 5A)
• HDCP Support: HDCP 1.4
• Supported Audio: Supports 48/44.1kHz audio sampling rate
• Separate Audio Ports: 1x Audio combo port 3.5mm
• Special Features: DisplayPort Alternate Mode, MST Extended display support, USB Type C Female port supports power and data, 1x  Battery Charging 1.2 port

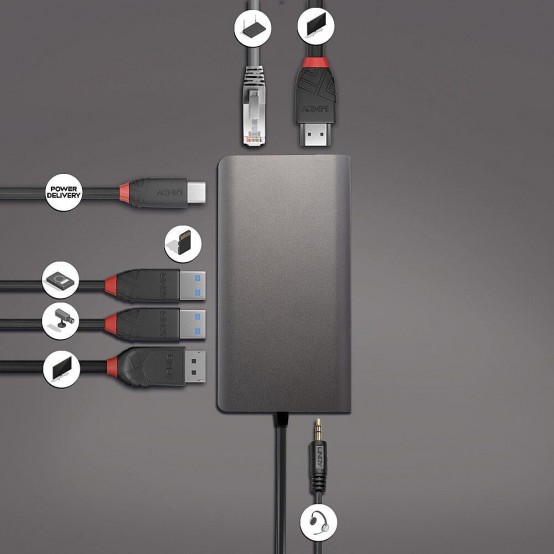

Connectors

• Inputs: 1 x USB Type C (Male)

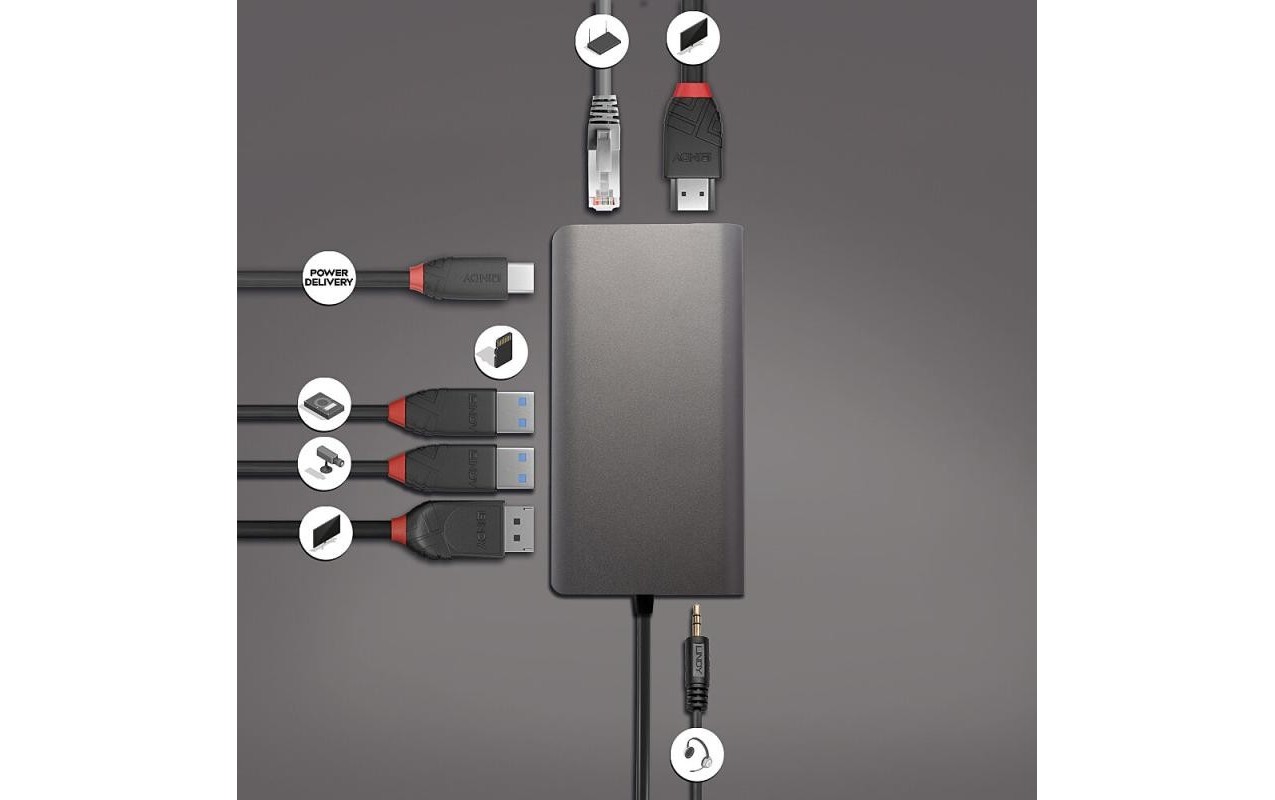

• Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
• Power: 1 x USB Type C (Female) PD port

Physical Properties

• Dimensions WxDxH: 116.5x61x16mm (4.59x2.4x0.63in)
• Housing Material: Aluminium
• Net Weight: 0.115kg (0.25lb)
• Operating Temperature: 0° - 55°C (32°F - 131°F)
• Storage Temperature: -10°C - 70°C (-14°F - 158°F)
• Humidity: 0 - 85% RH (non-condensing)
• Power Requirements: Bus-powered
• Colour: Grey

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 150x137x120mm (5.91x5.39x0.79in)
• Gross Weight: 0.15kg (0.33lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65

Package Contents

• USB 3.2 Type C Laptop Mini Dock
• Lindy Manual
