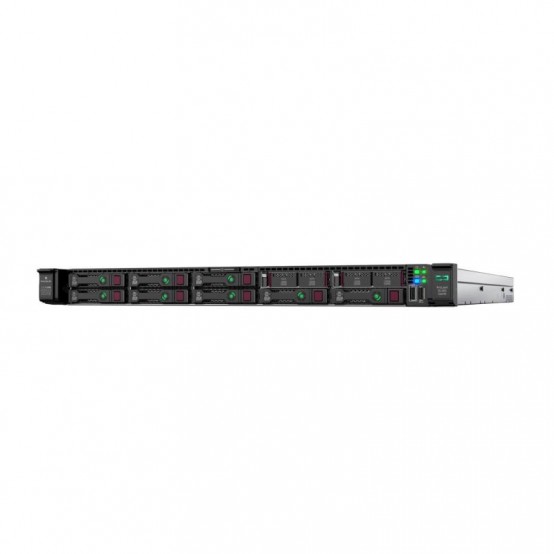

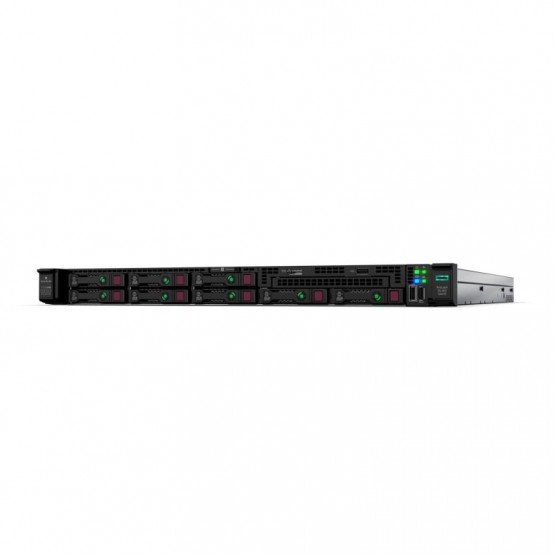

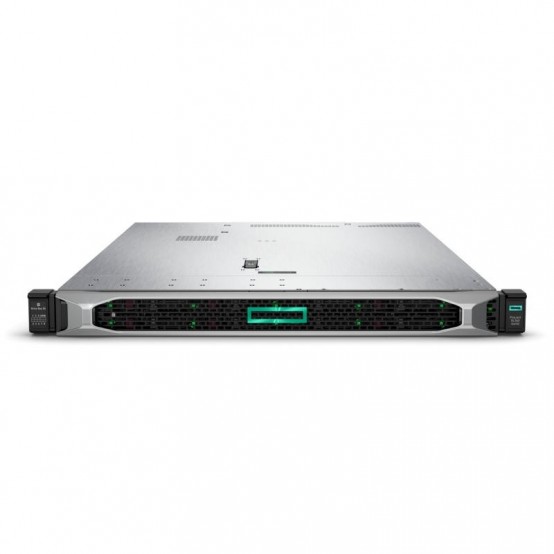

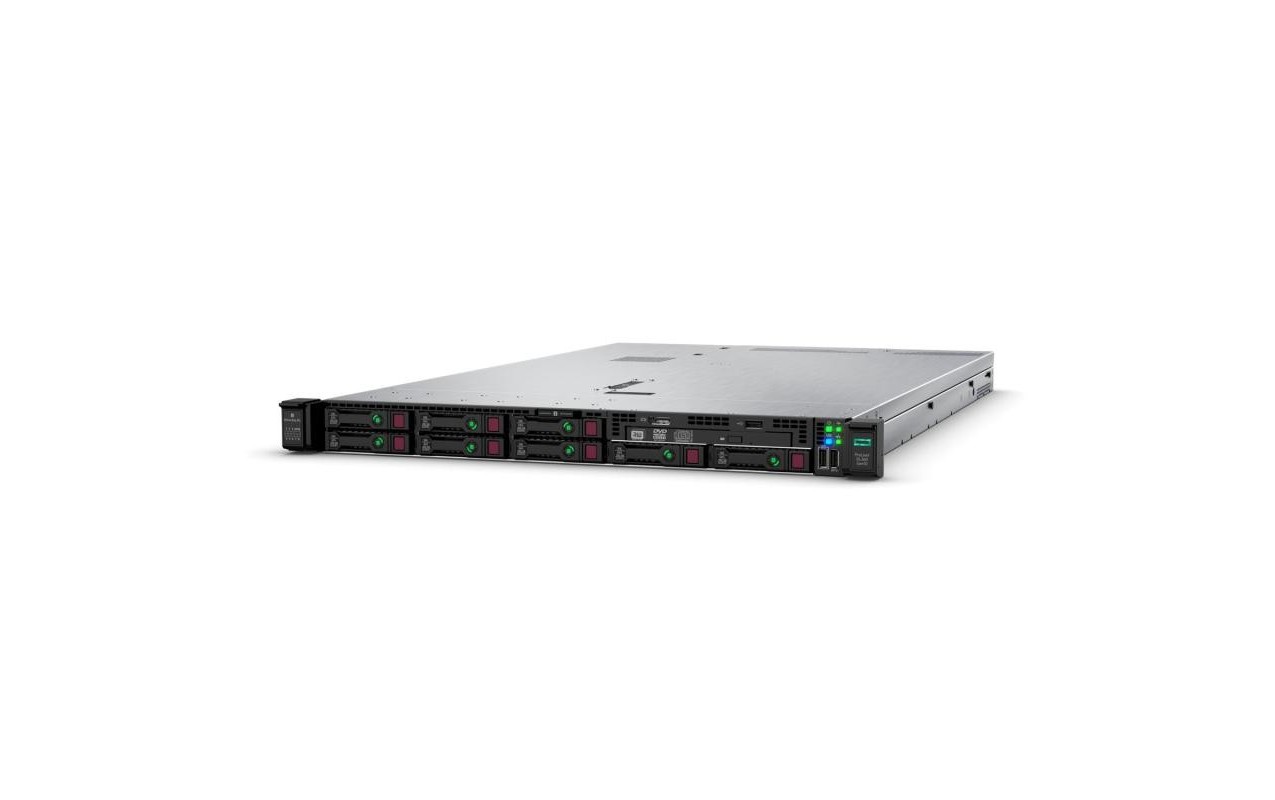

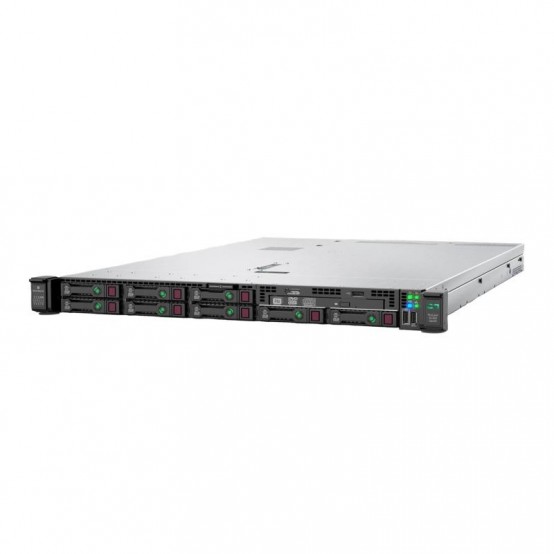

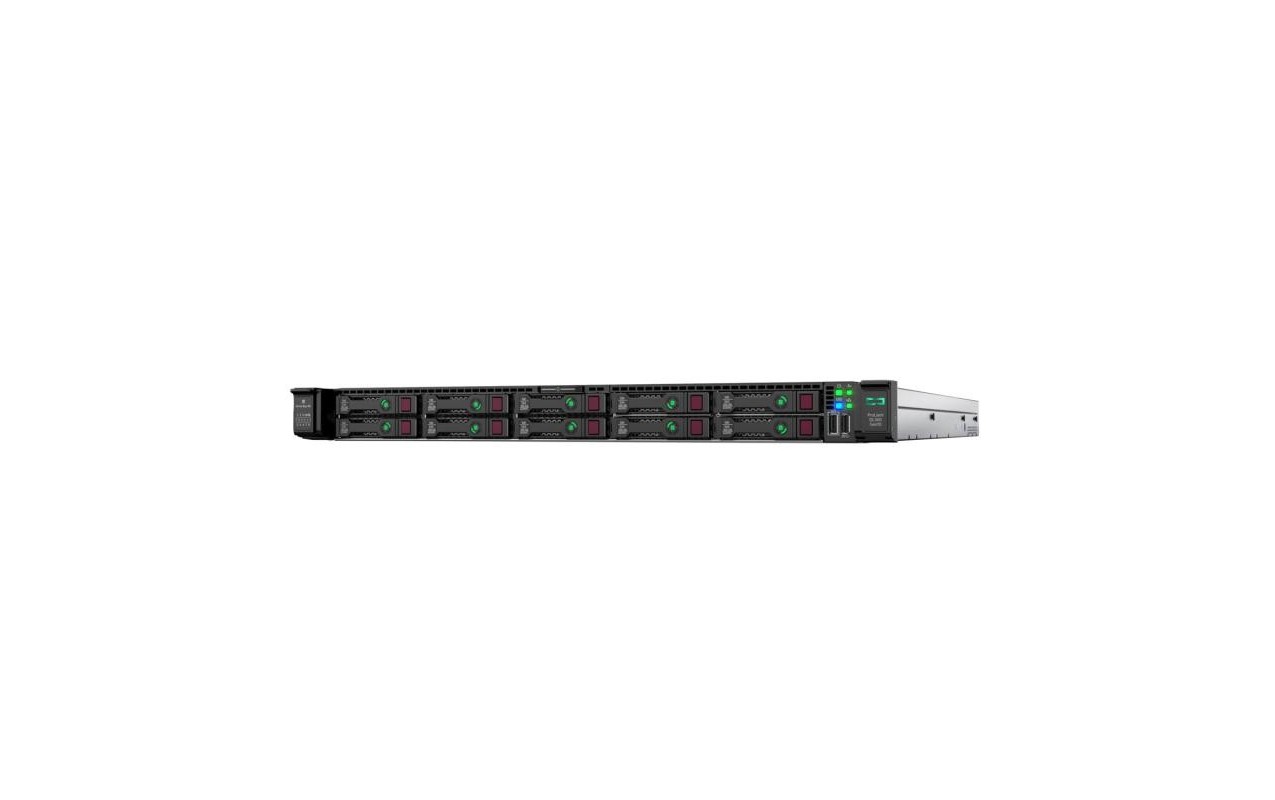

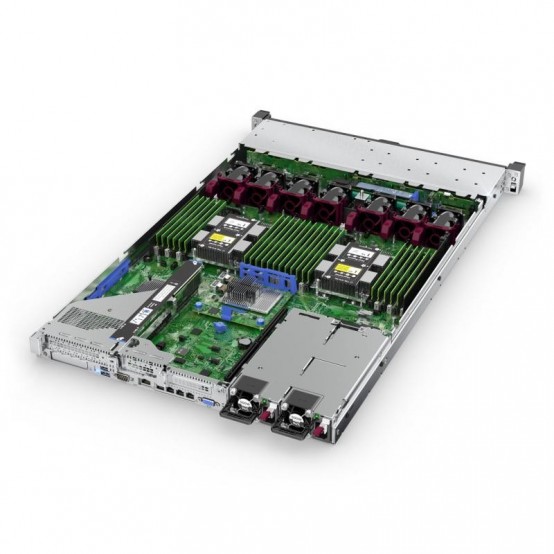

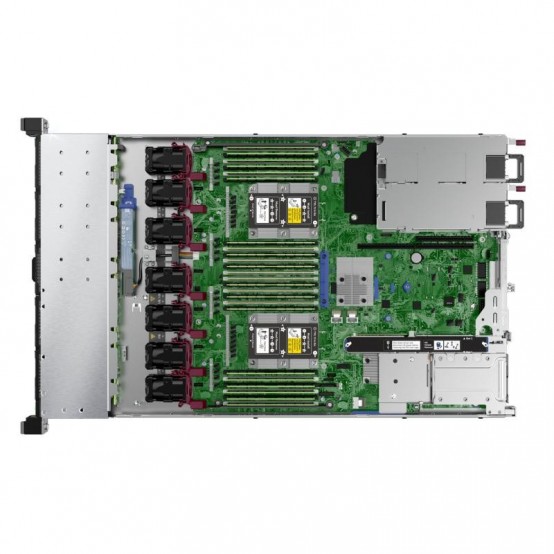

Calculator brand HP ProLiant DL360 Gen10 Rack Server P23579-B21

Lifecycle

• Obsolete Date 30-04-2025
• End of support date 31-10-2028

Specifications

• Weight 13.04 kg minimum, 16.27 kg maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Product dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 16.5 MB L3
• Form factor 1U Rack
• Included drives None ship standard, 8 SFF supported
• Optical drive type None included
• Power supply type 1x HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• System fan features 5 standard hot plug fans
• Processor number 1 processor included
• Weight 28.74 lb minimum, 35.86 lb maximum
• Storage controller HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller
• Processor speed 2.40 GHz
• NVDIMM rank N/A
• NVDIMM type N/A
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Memory type HPE DDR4 SmartMemory
• NVDIMM capacity N/A
• Processor core available 12 core
• Included memory 32 GB (1 X 32 GB) RDIMM
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Network controller HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter
• Warranty 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs

Overview

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel® Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.

What s new

• Support for additional second generation Intel® Xeon® Scalable processors with improved price/performance.
• Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
• Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
• HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
• Intel® Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage  and enables per-socket memory capacity of up to 3.0 TB. [5]
• HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA

Features

With support for up to 12 NVDIMMs per chassis and 2X capacity of first-generation HPE NVDIMMs, HPE ProLiant DL360 Gen10 server delivers up to 192 GB per system. [7]

Services provided under Operational Services include - HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

HPE ProLiant DL360 Gen10 server comes with a complete set of services offered by HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

Services from HPE Services simplifies the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to server and securely stores artifacts used to authenticate the server platforms while the Intrusion Detection Kit logs and alerts when the server hood is removed.

With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.

New features include Server Configuration Lock that ensures secure transit and locks server hardware configuration, iLO Security Dashboard helps detect and address possible security vulnerabilities and Workload Performance Advisor provides server tuning recommendations for better server performance.

HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.

Unmatched expandability is packed in a dense 1U rack design with up to three PCIe 3.0 slots.

Embedded 4 x 1GbE (select models) or HPE FlexibleLOM and PCIe standup 1GbE, 10GbE, 25GbE, or 100GbE adapters provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

The premium 10 SFF NVMe chassis backplane provides the ability to mix and match SAS/SATA and NVMe within the same chassis along with 8 + 2 SFF and 4 LFF chassis that supports new uFF and M.2 storage options.

HPE ProLiant DL360 Gen10 server supports industry-standard technology leveraging the Intel Xeon Scalable processor with up to 28 cores, 12G SAS and 3.0 TB of 2933 MT/s HPE DDR4 SmartMemory.

Supporting the second generation Intel® Xeon® Scalable processor family with up to a 11% per-core performance gain [4] over first generation and with memory speeds up to 2933 MT/s.

Intel® Optane™ persistent memory 100 series for HPE works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly. [6]

Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

Media

The way we work is changing. But even as offices reorganize and information workers sign in from home, many jobs require workers to be physically present. As Action Lift Inc. grew, so did their needs. Learn more.

This new generation of HPE ProLiant DL360 Gen10 Server has been enhanced with so many new features that it has the compute power to meet power hungry businesses requiring a dense server.

ProLiand DL360 Gen 10 Exploded View.

With Hewlett Packard Enterprise''s ready-to-ship solutions, you don''t have to worry about productivity challenges in this new normal of widespread remote work. Find out more at hpe.com/us/en/solutions/business-continuity.html

HPE ProLiant DL360 Gen10 - Hardware Tour
