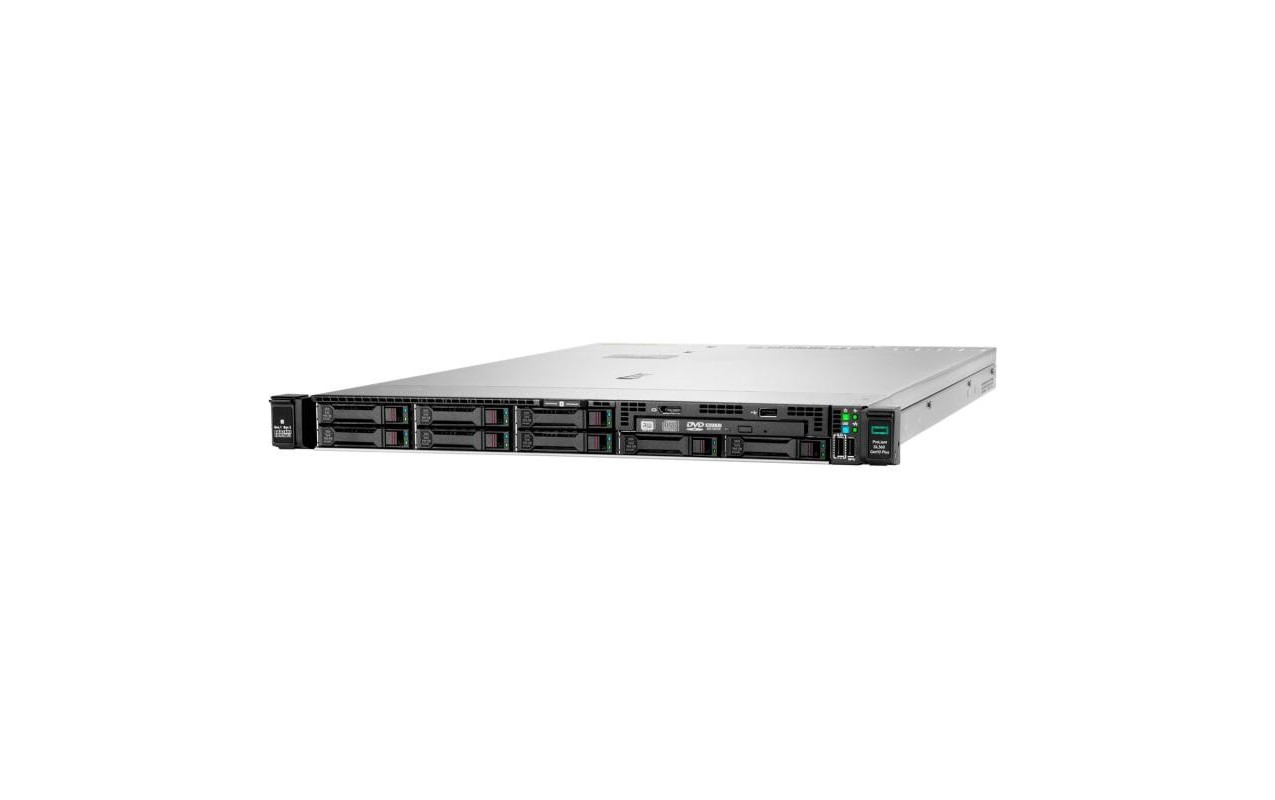

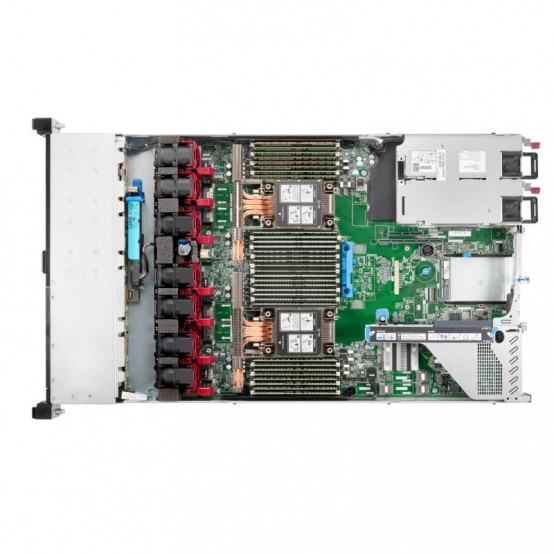

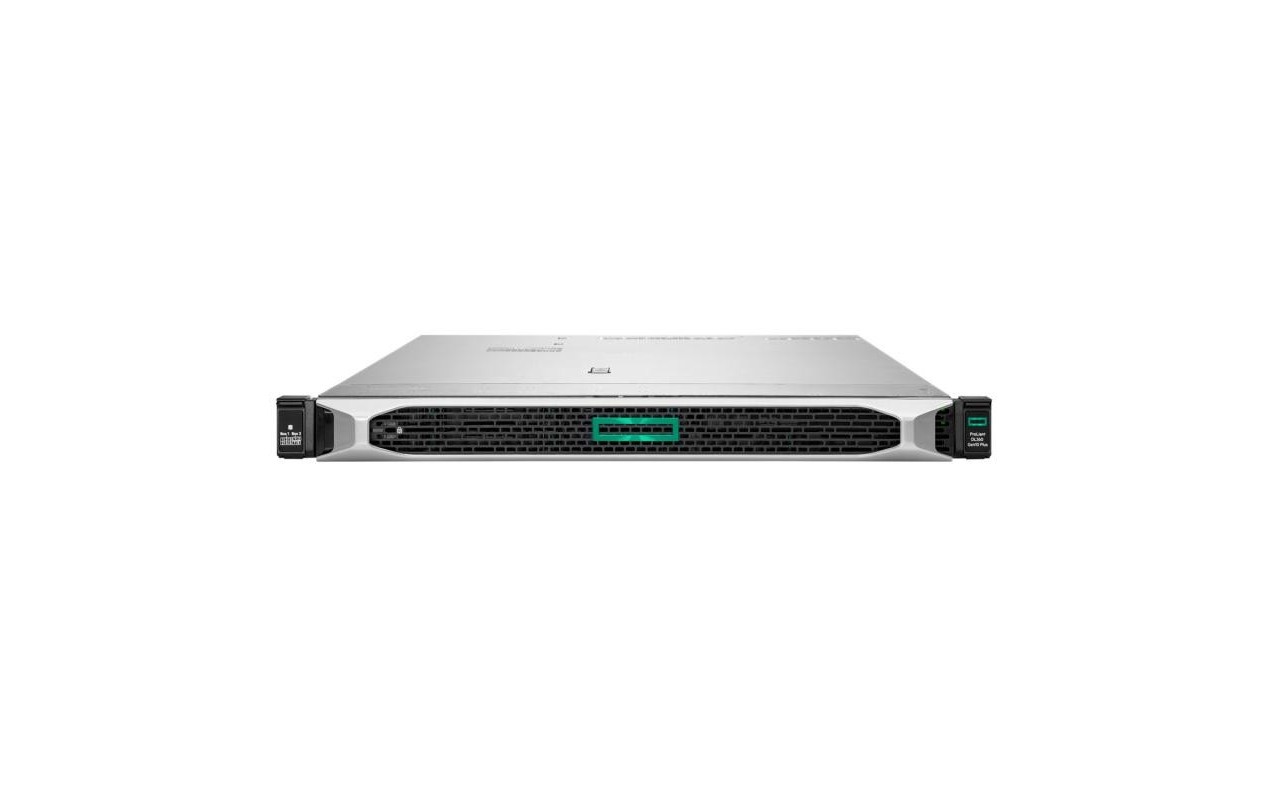

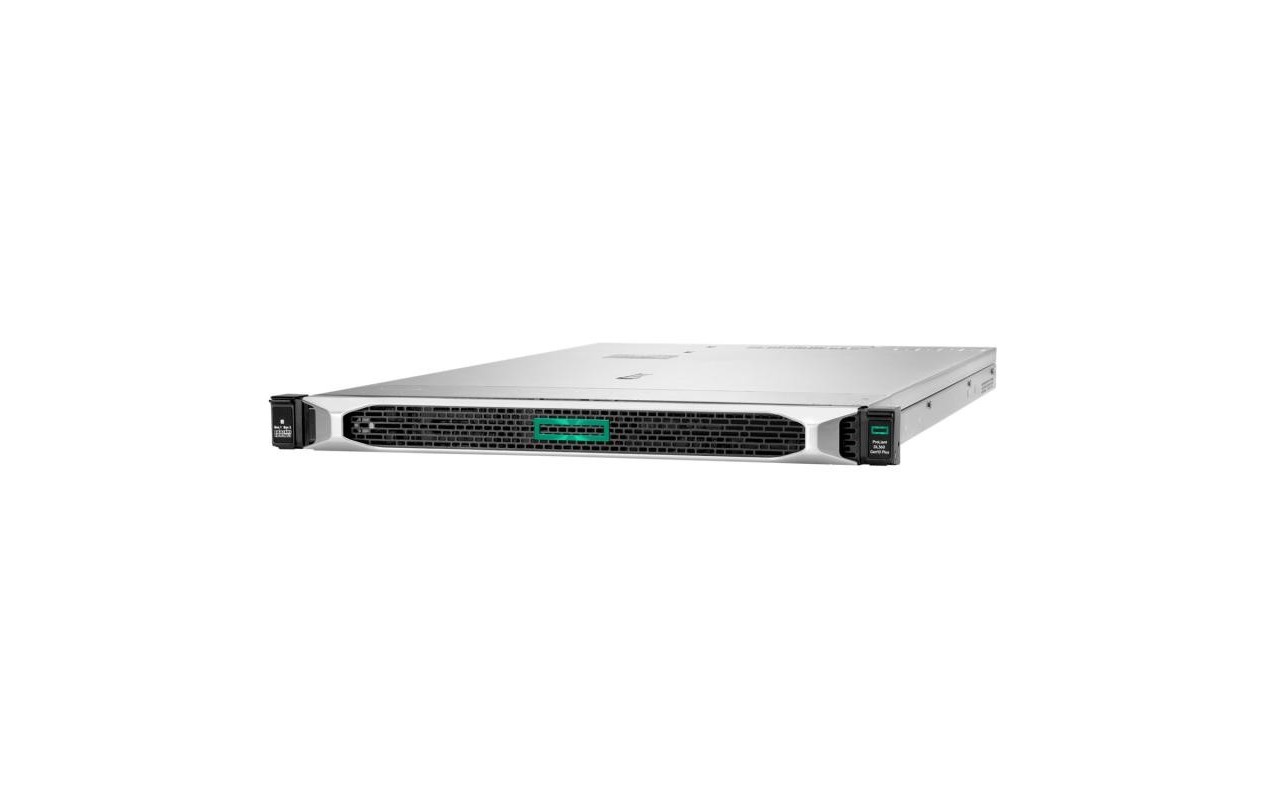

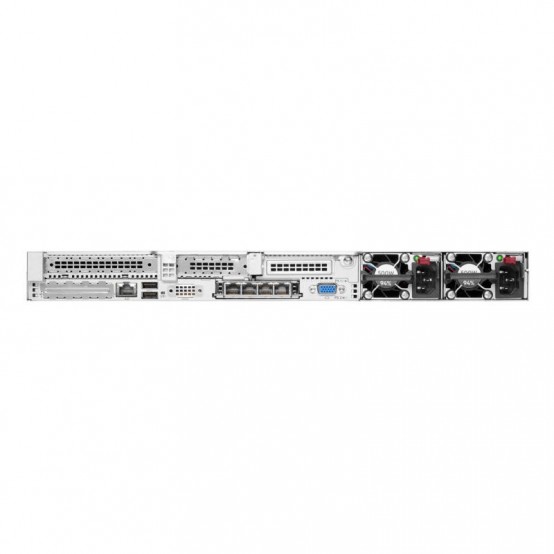

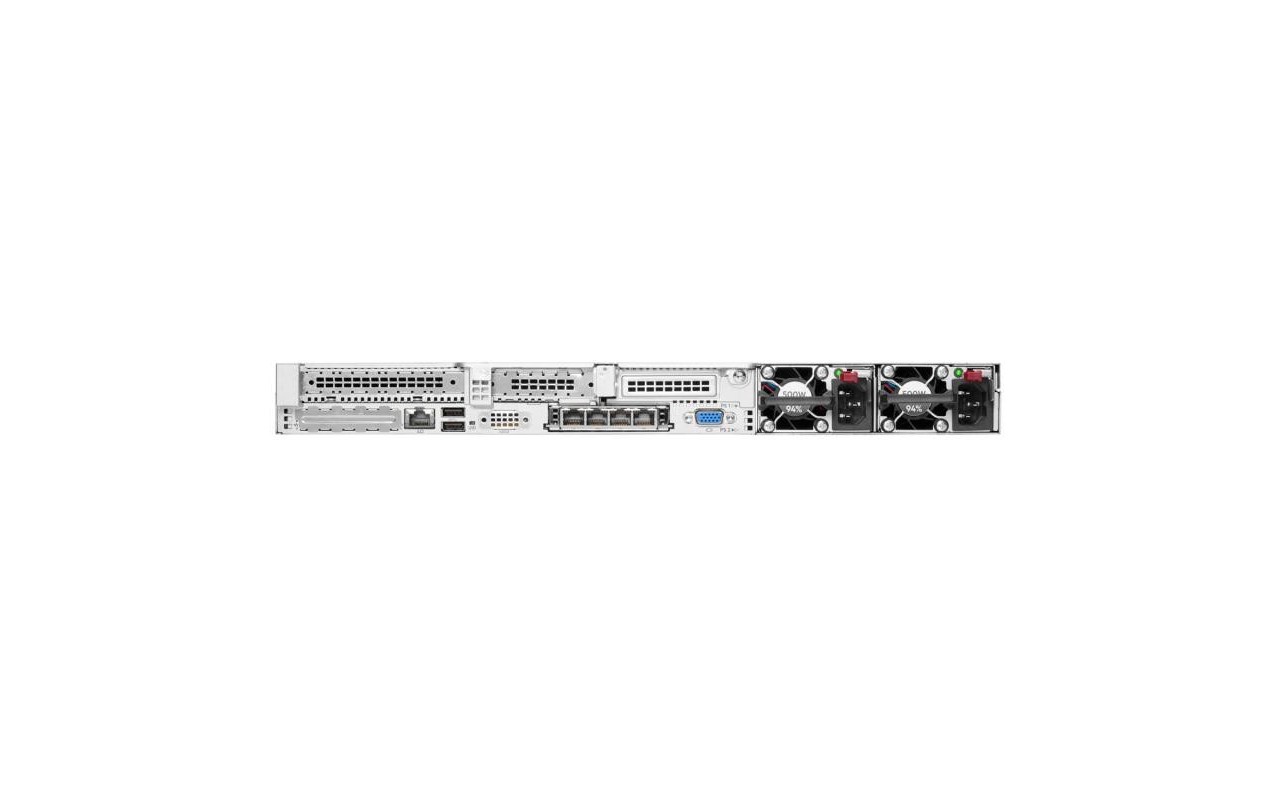

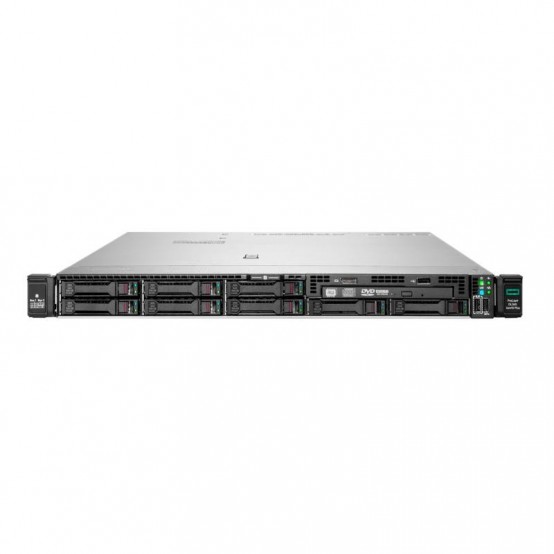

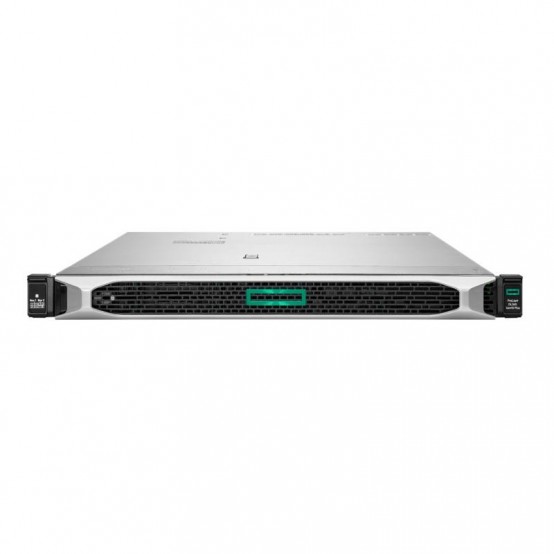

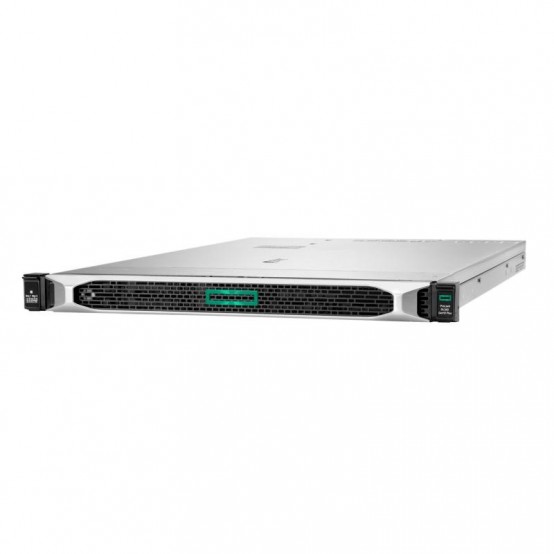

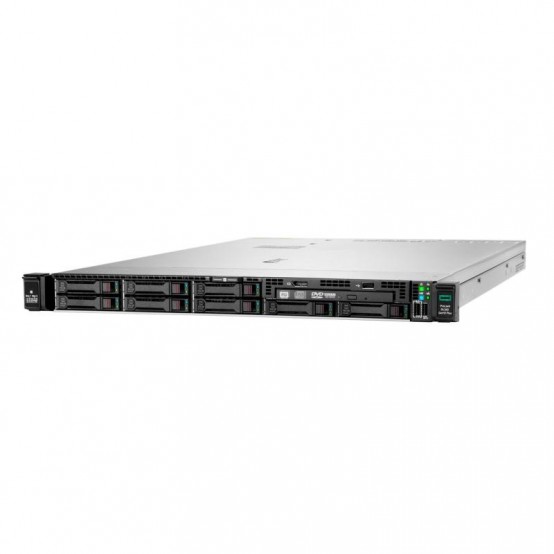

Calculator brand HP ProLiant DL360 Gen10 Rack Server P55240-B21

Lifecycle

• Obsolete Date 30-06-2025

Specifications

• Product dimensions (imperial) SFF: 1.69 x 17.11 x 30.30 in LFF: 1.69 x 17.11 x 31.50 in
• Weight SFF: 28.74 lb to 35.86 lb LFF: 30.36 lb to 37.00 lb
• Product dimensions (metric) SFF: 4.29 x 43.46 x 76.96 cm LFF: 4.29 x 43.46 x 80.01 cm
• Processor speed 2.80 GHz
• Processor number 1 processor included
• Security UEFI Secure Boot and Secure Start support Intel® Software Guard Extensions (SGX) support Immutable Silicon Root of Trust Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits
• Form factor 1U Rack
• Processor cache 12 MB L3
• Processor core available 8 core
• Memory type HPE DDR4 Smart Memory
• Storage controller HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller
• Network controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
• Infrastructure management Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, and HPE OneView Advanced
• Expansion slots 2 PCIe Gen4: 1 x16 FH, 1 x16 LP
• Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support
• Weight SFF: 13.04 kg to 16.27 kg LFF: 13.77 kg to 16.78 kg
• Accelerators Optional
• Processor name Intel® Xeon® Silver 4309Y (8 core, 2.80 GHz, 12 MB L3, 105W)
• Included memory 32 GB (1x32 GB, 3200 MT/s)
• Included drives None ship standard, 8 SFF supported
• System fan features 7x High Performance fans
• Optical drive type Not included (Optical Drive options available)
• Power supply type 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• NVDIMM type Optional: Intel® Optane™ Persistent Memory for HPE
• NVDIMM capacity Optional: 128 to 512 GB

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized. Powered by 3rd Generation Intel® Xeon® Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

What s new

• Choice of storage backplanes and cages, offering diverse bay counts, protocols, and bandwidth that enable customers to design their server storage for their precise needs.
• Enhanced storage capabilities with Tri-mode controllers supporting NVMe/SAS/SATA drives, allowing customers to select the ideal media type and mix for their exact application.
• Slot-less HW RAID protected M.2 boot solution, providing peace-of-mind O/S deployment while saving invaluable slots and storage bays.
• 64 PCIe Gen4 lanes, resulting in more devices, improved bandwidth and augmented balanced I/O capabilities.
• Supports 3rd Generation Intel® Xeon® Scalable Processors for enhanced compute performance.
• Support for industry-standard OCP 3.0 Network Adapters, enhancing customer choice.

Features

HPE ProLiant servers provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to adjust to better serve changing business needs.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerate infrastructure updates and provide for on-premises pay-per-use consumption with HPE GreenLake.

The HPE ProLiant DL360 Gen10 Plus server is powered by 3rd Generation Intel® Xeon® processors and built with foundational intelligence to transform IT with insights that enhance workload performance, placement, and efficiency, delivering better outcomes faster.

Automation and software-defined control reduces time spent on provisioning and maintenance, and reduces deployment times.

The HPE ProLiant DL360 Gen10 Plus server is supported by HPE GreenLake to simplify IT. With 24x7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out(iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

The HPE ProLiant DL360 Gen10 Plus server simplifies and automates management tasks, establishing a solid foundation for a standards-based, hybrid cloud platform enabled by automation.

When it’s time to retire or repurpose an HPE ProLiant server, one button secure erase speeds and simplifies the complete removal of passwords, configuration settings, and data, preventing inadvertent access to previously secured information.

HPE ProLiant servers provide rapid detection of a security-compromised server, even to the point of not allowing it to boot, identify and contain malicious code, and protect healthy servers.

HPE ProLiant servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

HPE ProLiant security begins with the corruption-free manufacture of the server and auditing the integrity of every component – hardware and firmware – to provide verification that the server begins its lifecycle uncompromised through the supply chain.

The HPE ProLiant DL360 Gen10 Plus server provides an enhanced holistic, 360-degree view to security that begins in the manufacturing supply chain and concludes with a safeguarded, end-of-life decommissioning.

Rapidly deploy a broad portfolio of cloud services such as, containers, compute, virtual machines (VMs), accelerated storage, data protection, and more. Workload-optimized, preconfigured solutions can be quickly on-boarded, accelerating your agility

Media

HPE ProLiant servers deliver the intelligent compute foundation for the hybrid cloud delivering unmatched workload optimization, 360-degree security, and intelligent automation, all available with an as-a-Service experience.

Supply chain security is an immense and dynamic threat that’s top of mind for enterprise customers. Learn about enabling HPE Server Configuration Lock, an innovative security solution that protects the server configuration against tampering, and the ability to detect and address possible security vulnerabilities.
