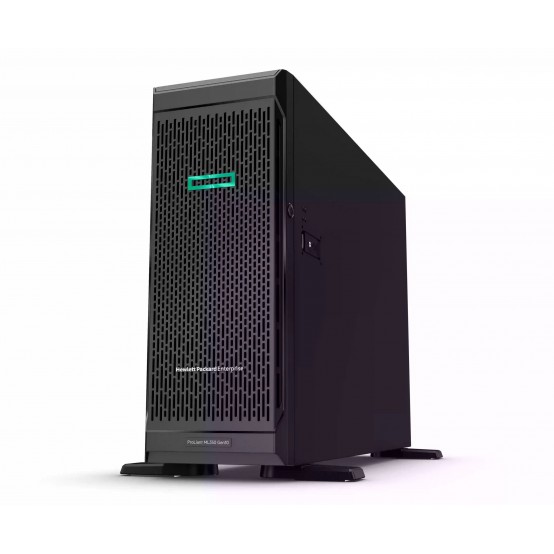

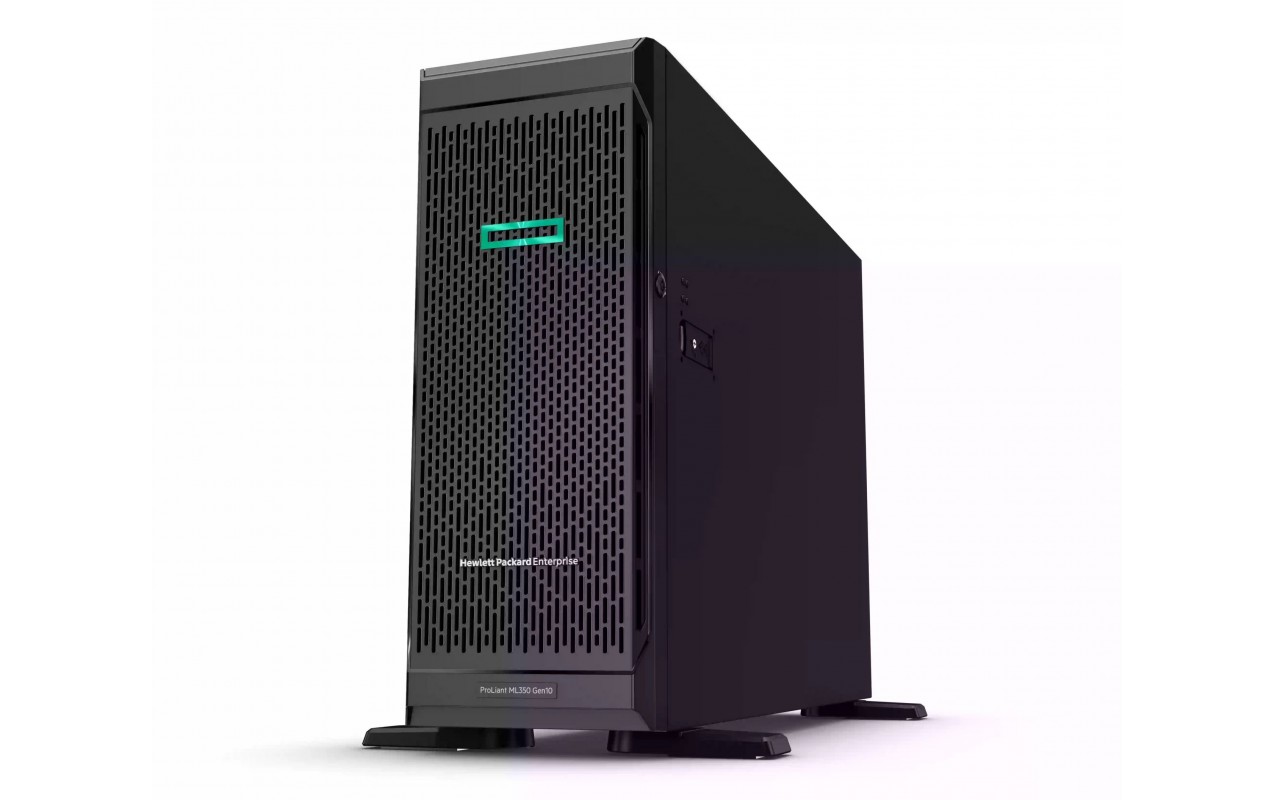

Calculator brand HP ProLiant ML350 Gen10 Tower Server P22094-421

Lifecycle

• Obsolete Date 31-01-2024
• End of support date 31-01-2029

Specifications

• Processor Name Intel® Xeon® Scalable 4208 (8 core, 2.1 GHz, 11.00 MB, 85W)
• Processor number 1 processor
• Weight 46.30 lb
• System fan features 6 Standard Fans
• Form factor 4U Tower
• Processor core available 8 core
• Processor speed 2.1 GHz
• Power supply type 1 HPE 800W Flex Slot power supply
• Storage controller 1 HPE Smart Array P408i-a SR Gen10 Controller
• Included hard drives None ship standard, 8 SFF drives supported
• Optical drive type Optional
• Weight 21 kg
• Security UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation (iLO 5 certification in progress) Common Criteria certification (iLO 5 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates – components digitally signed and verified Secure Recovery – recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 1.2 option TPM (Trusted Platform Module) 2.0 option Front bezel key-lock feature – standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard
• Product Dimensions (imperial) 18.2 x 25.51 x 6.85 in
• Product Dimensions (metric) 46.25 x 64.8 x 17.4 cm
• Processor cache 11 MB L3
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, and OneView Advanced (optional)
• Network controller HPE Ethernet 1Gb 4-port 369i Adapter
• Expansion slots 8-slots (x16, x8, x16, x8, x16, x8, x16, x8) as standard in 2P model. For detail reference QuickSpecs.
• Memory, standard 16 GB (1x 16 GB) RDIMM
• Memory type HPE DDR4 SmartMemory
• Warranty 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support

Quickspecs

• QuickSpecs (PDF)
• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs

Overview

Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. ProLiant ML350 Gen10 leverages the Intel® Xeon® Scalable processors with up to 71% [1] performance gain and 27% increase in cores [2], along with the 2933 MT/s [3] or 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% [4] faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and options. Supported by the HPE Pointnext industry-leading service organization, the HPE ProLiant ML350 Gen10 server helps you transform to a digital business with more agility and all within your limited IT budget.

What s new

• Supports the additional 2nd generation Intel® Xeon Scalable Processor offerings delivering exceptional customer value with increased performance and industry leading frequency.
• Supports mixed LFF and SFF drive cages within the same server for tiered storage, offering the flexibility to mix drive types for cost and capacity size considerations.
• Available regionally, SMB offers that are aggressively priced.

Features

HPE ProLiant ML350 Gen10 server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.

Up to 24 DIMM slots to support the 2933 MT/s or 2600 MT/s HPE DDR4 SmartMemory [3], reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.

It supports a wide range of solutions from Azure to Docker along with the traditional operating systems.

Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

The HPE ProLiant ML350 Gen10 server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.

Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

With the new addition of NVIDIA Tesla T4 and NVIDIA Quadro RTX8000/6000/4000 GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.

HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.

Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.

iLO 5 security features include Server Configuration Lock to ensure secure transit; iLO Security Dashboard helps detect and address possible security vulnerabilities in server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.

HPE Integrated Lights Out 5 (iLO 5) enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.

Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE, 25GbE or 100GbE adapters and Infiniband cards provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.

Large expansion capacity with eight PCIe slots, six USB ports, 5U rack conversion, and power supply options.

ProLiant ML350 Gen10 delivers expandability and flexibility with mixed LFF and SFF drive cages within the same server. Supporting 8 to 24 SFF or 16 SFF when mixed with 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive protecting your IT investment in hybrid environment.

GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.

Media

Build a simple, secure, and affordable SMB solution on HPE ProLiant Gen10 servers

This video highlights the key hardware features and benefits of the HPE ProLiant ML350 Gen10 Server.

HPE Small Business Solutions for High Availability Storage gives you software-defined storage to free of the cost and complexity of traditional storage.

Le soluzioni HPE Small Office Deployment forniscono una pacchetto di soluzioni a prezzi accessibili per l''IT delle piccole imprese. Basato sui server HPE ProLiant DL20 e ML30 Gen10, sui punti di accesso wireless e switch Aruba OfficeConnect.

El software de rápida instalación HPE viene en una simple USB que brinda la capacidad de configurar servidores HPE ProLiant. Simple y rápido, reduce los errores y fomenta las mejores prácticas de manera consistente.

This short animated video provides a quick tear-down of the server.
