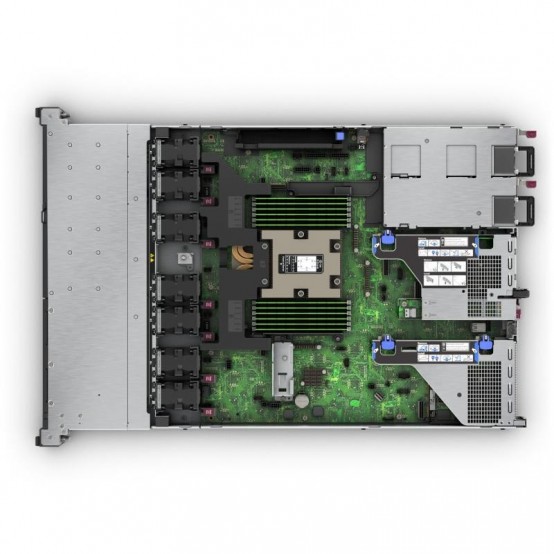

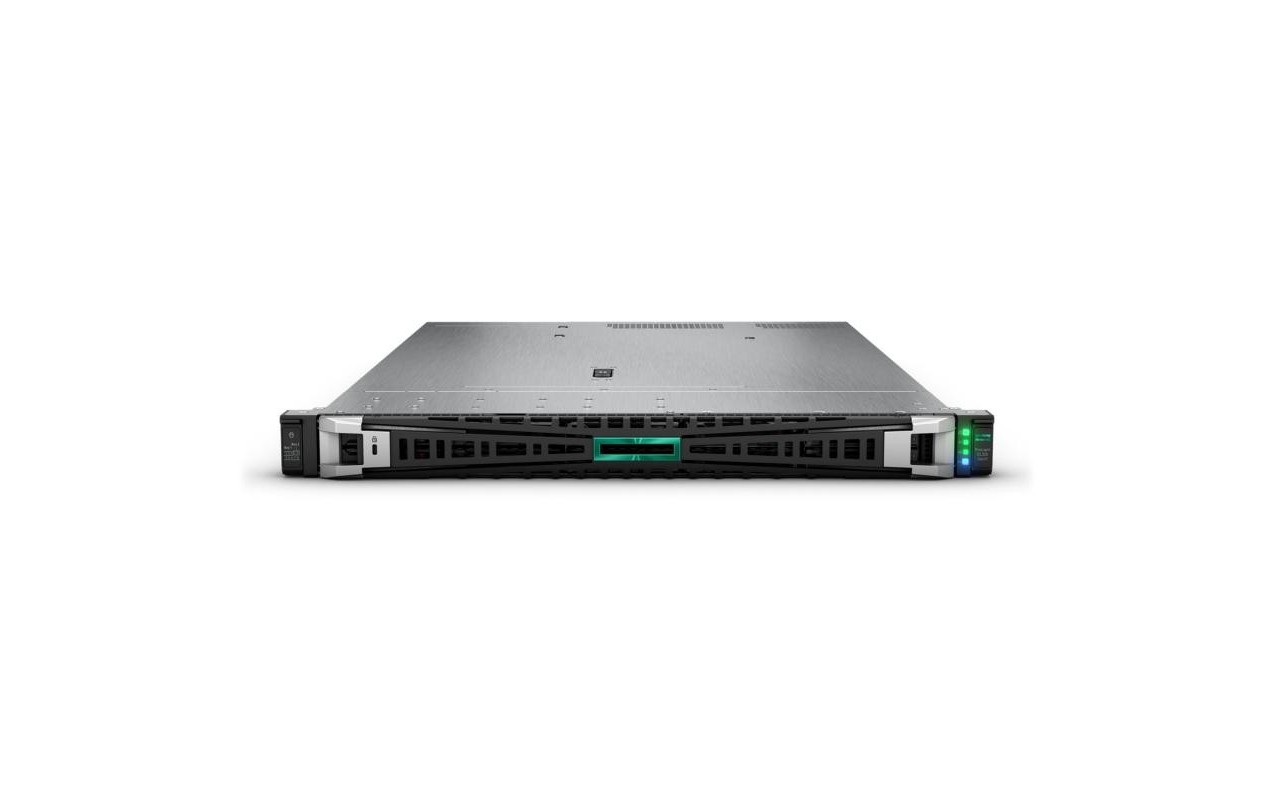

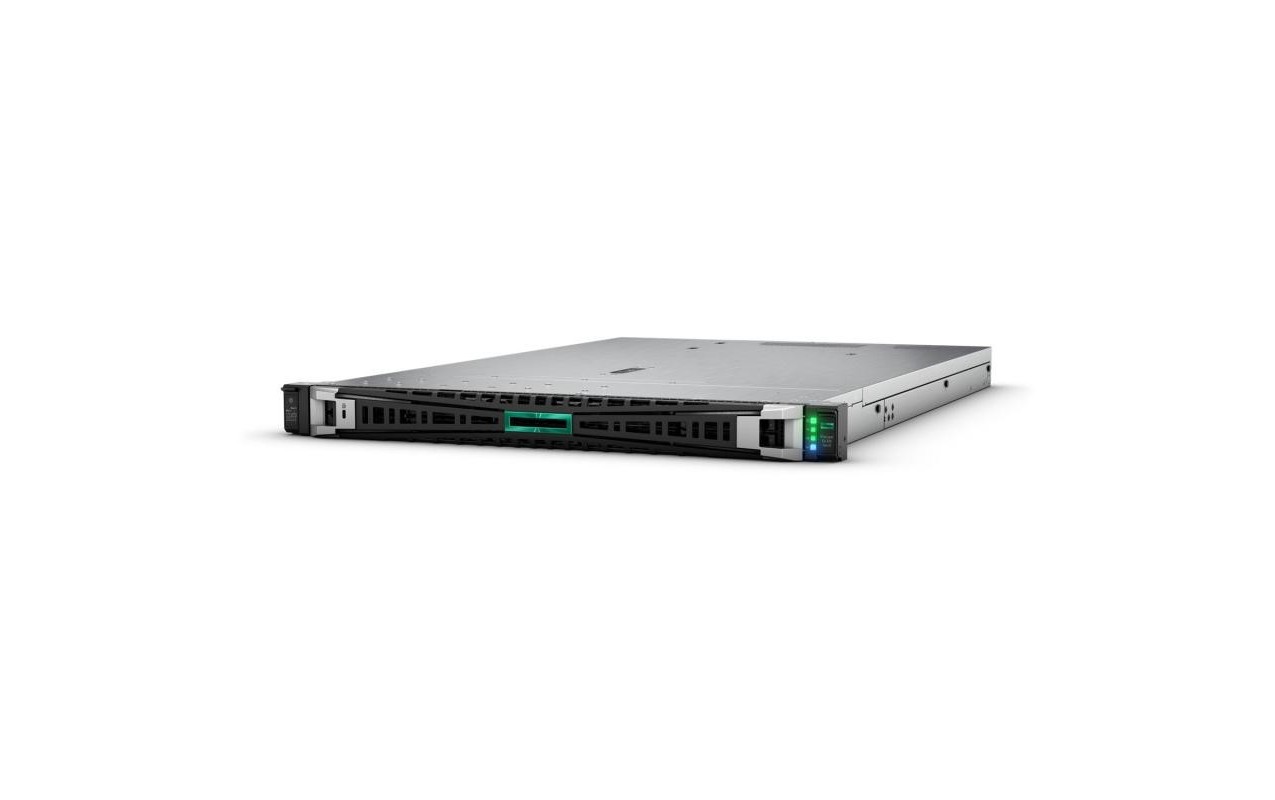

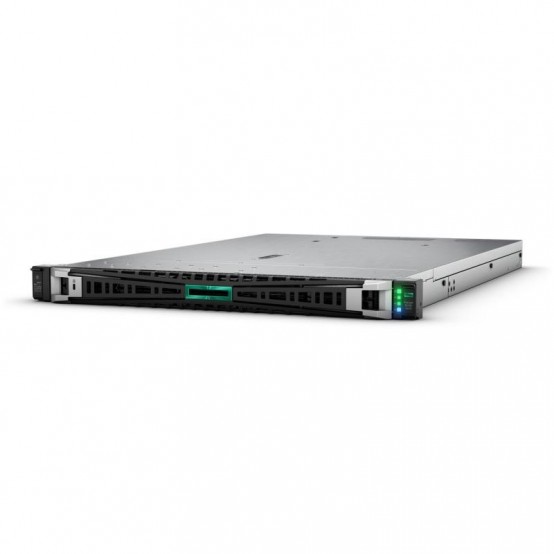

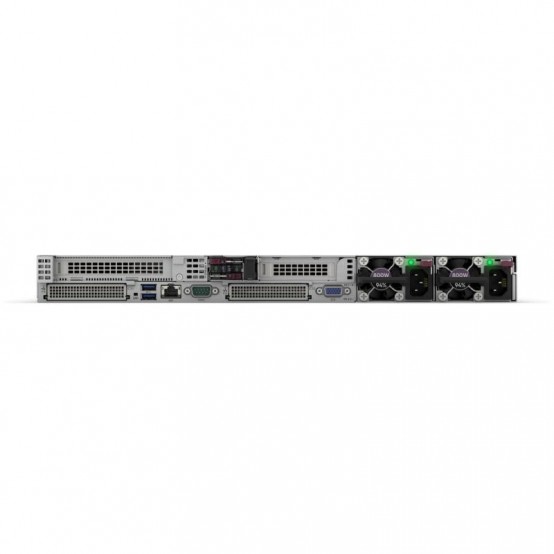

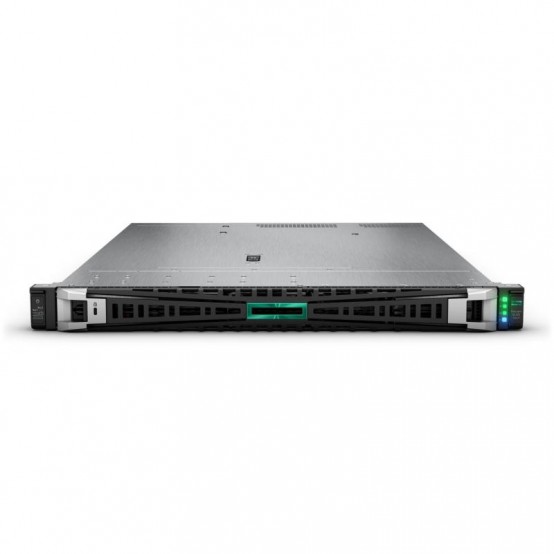

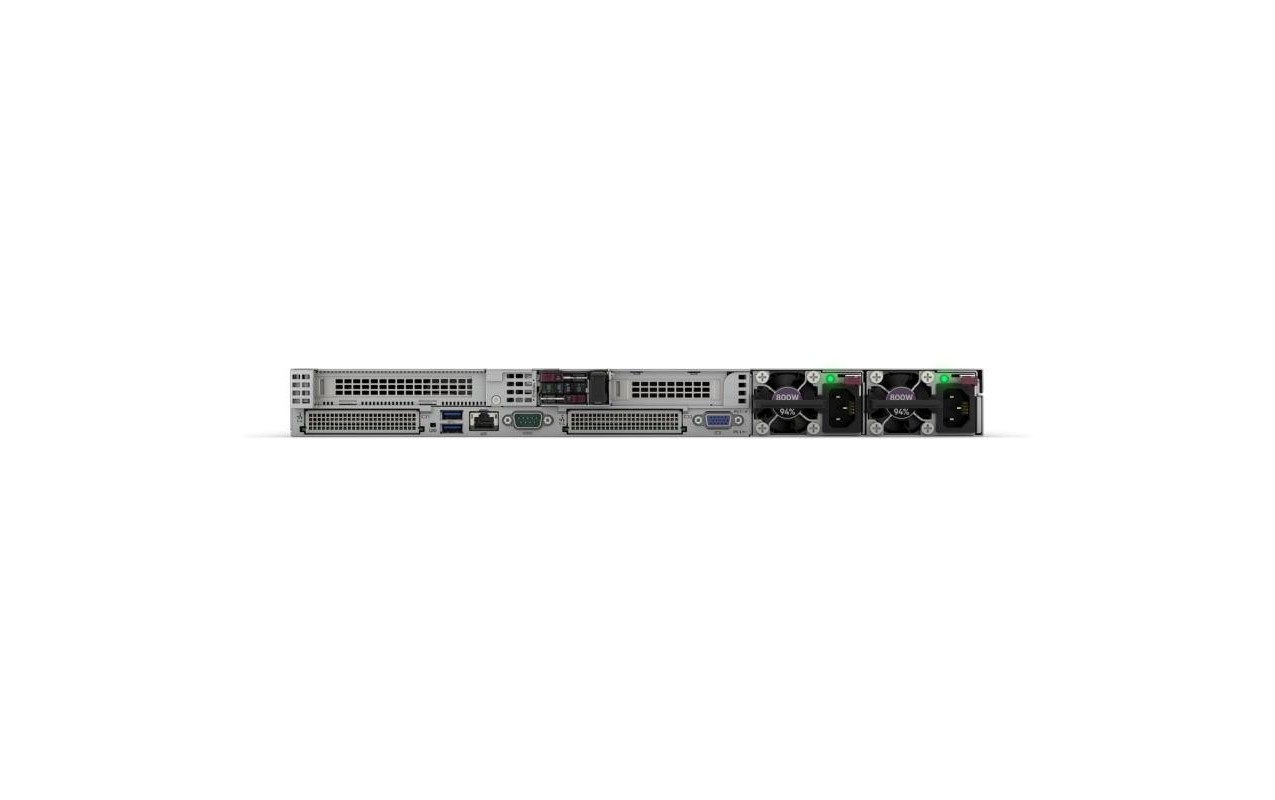

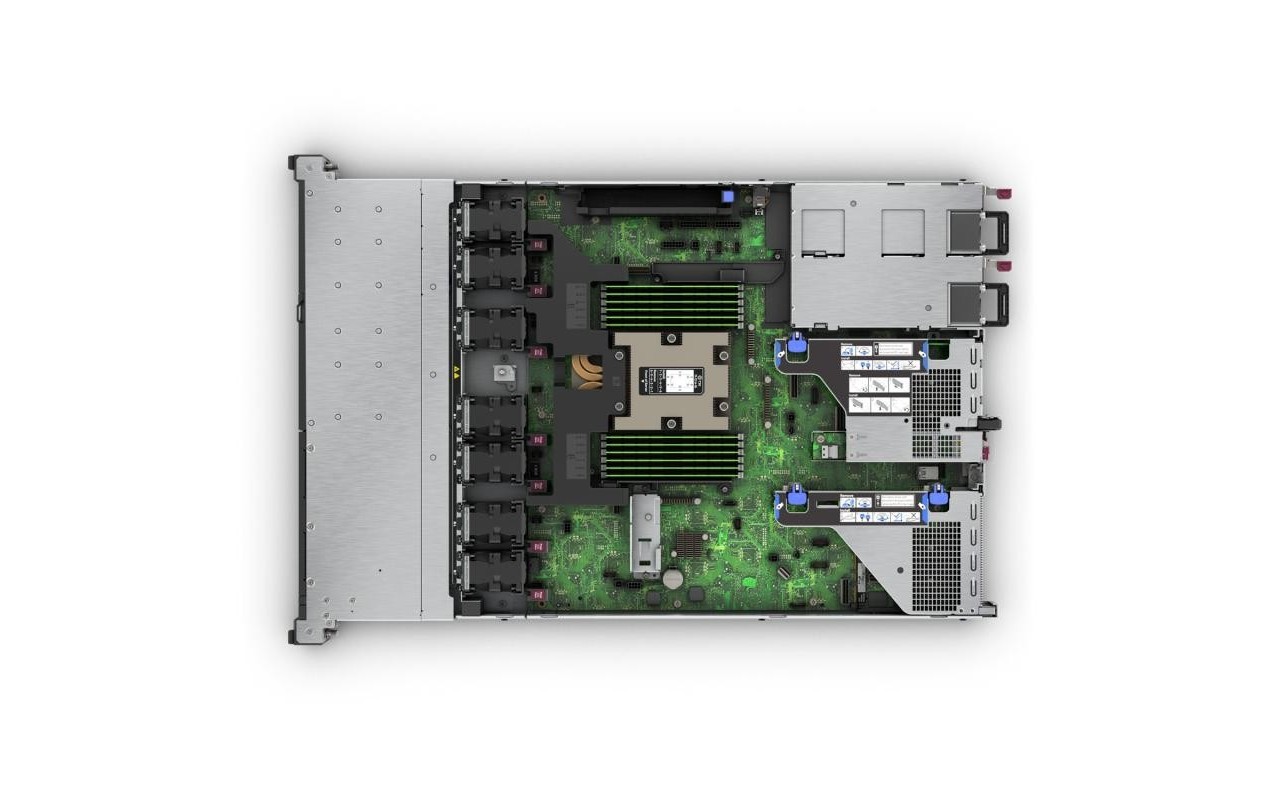

Calculator brand HP ProLiant DL325 Gen11 Rack Server P77239-425

Lifecycle

• Obsolete Date 31-10-2026

Specifications

• Security For full security features refer to the QuickSpecs
• System fan features 7x Standard Fans
• Optical drive type Optional, None ship standard
• Processor name AMD EPYC™ 9224 (24 core, 2.50 GHz, 64 MB L3, 200W)
• Included memory 64 GB (2x32 GB, 4800 MT/s)
• Included drives 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• Processor cache 64 MB L3
• Processor core available 24 core
• Processor number 1 processor included
• Network controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
• Form factor 1U Rack
• Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit: https://www.hpe.com/support.
• Power supply type 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (require licenses), and HPE Compute Ops Management Refer to the iLO 6 User Guide
• Memory type HPE DDR5 Smart Memory
• Expansion slots 4 maximum, for detailed descriptions refer to the QuickSpecs
• Storage controller HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• Processor speed 2.50 GHz

Quickspecs

• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs (HTML)

Overview

Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads? The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to two GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

What s new

• Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1150 MB of L3 cache, and 12 DIMMs for DDR5 memory up to 6400 MT/s.
• 12 DIMM channels per processor for up to 3 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
• Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5, two OCP 3.0 slots, and EDSFF E3.S 1T drives.
• Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
• Supports hot-pluggable, high-availability RAID M.2 boot options.
• Supports closed-loop liquid cooling heat sink for high wattage processors.

Features

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, and providing a fast path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

HPE ProLiant DL325 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using GreenLake Flex Solutions as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

The HPE ProLiant DL325 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC™ system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained, and healthy servers are protected.

Increase memory bandwidth and performance, and lower power requirements with 12 DIMM channels per processor for up to 3 TB total DDR5 memory.

Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

Harness major computer performance. The HPE ProLiant DL325 Gen11 server is powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores, 400W, and 1150 MB of L3 cache.

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots, improve I/O throughput and reduce latency.

Media

Chris Bradley, Director of HPE Compute Advocacy & Technical Enablement, explains how to choose the right HPE ProLiant Gen11 servers with AMD EPYC™ processors server for your business.

With a broad range of core counts from 8 to 192 cores per processor. 384 threads, and frequencies up to 5 GHz, the new AMD EPYC™ 9005 Series Processors extend performance and efficiency leadership with HPE ProLiant Gen11 and HPE Cray Gen11 servers.

HPE ProLiant DL325 Gen11 powered by 4th and 5th Generation AMD EPYC™ Processors, ranging from 8 to 160 cores per CPU.

Introducing the new AMD EPYC™ 9004 Series Processors with up to 128 cores and the new AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ technology for HPE ProLiant servers and HPE Cray systems.

Compatible products

• HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
• HPE 1800W-2200W FS Ti Ht Plg PS Kit
• HPE 3.2TB NVME MU SFF BC U.3 PM1735A SSD
• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• HPE 1.92T NVMERI SFF BC U.3ST V2 MV SSD
• HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD
• HPE MR416I-P GEN11 SPDM STORAGE CNTLR
• HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit
• HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD
• HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
• HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter
• HPE 7.68TB SATA RI SFF BC MV SSD
• HPE Bezel Lock Kit
• HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit
• AMD EPYC 9224 CPU for HPE
• HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• HPE 7.68T NVMERI SFF BC U.3ST V2 MV SSD
• HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord
• HPE DL3XX GEN11 1U BEZEL KIT
• BCM 57414 10/25GbE 2p SFP28 Adptr
• HPE DL3XX Gen11 Easy Install Rail 2 Kit
• HP OV 3yr 24x7 Supp Flex E-LTU
• HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter
• HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• HPE 3 Year Tech Care Basic DL325/DL345 Gen11 Smart Choice Service
• HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE
• HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
• HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• HPE 600GB SAS 10K SFF BC MV HDD
• AMD EPYC 9015 CPU FOR HPE
• HPE 1.92TB NVMe RI SFF BC U.3 CM7 SSD
• HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features
• HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD
• HPE 1.8TB SAS 10K SFF BC 512E MV HDD
• Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE
• HPE 20TB SATA 7.2K LFF LP ISE MV HDD
• HPE Proliant DL/ML Startup Service
• HPE Proliant DL/ML Install Service
• HPE 9.5mm SATA DVD-RW Optical Drive
• HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
• HPE ProLiant DL3XX Gen11 1U Standard Fan Kit
• HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
• HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD
• MLX MCX631102 10/25GBE 2P SFP28 ADPTR
• HPE ProLiant DL300 Gen10 Plus 1U Cable Management Arm for Rail Kit
• HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
• HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD
• HPE 32GB 2RX8 PC5-6400B-R SMART KIT
• AMD EPYC 9124 CPU FOR HPE
• HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
• HPE SN1610E 32GB 2P FC HBA
• HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit
• HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller
• HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit
• HPE Mobile USB DVD-RW Optical Drive
• HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD
• HPE 5 Year Tech Care Essential DL325/DL345 Gen11 Smart Choice Service
• HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features
• HPE 5 Year Tech Care Basic DL325/DL345 Gen11 Smart Choice Service
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
• HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
• BCM 57412 10GBE 2P SFP+ OCP3 ADPTR
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
• AMD EPYC 9115 2.6GHz 16-core 125W Processor for HPE
• HPE OV for DL 3y 24x7 Bdl Track 1Svr Lic
• HPE 240GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 3.84TB SAS RI SFF BC VS MV SSD
• HPE 3 Year Tech Care Essential DL325/DL345 Gen11 Smart Choice Service
• HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
• HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD
• HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features
• HPE MR216i-o Gen11 SPDM Storage Cntlr
• HPE ProLiant DL3X5 Gen11 1U CPU Standard Heat Sink Kit
• HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD
• Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
• HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD
• HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
• HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
• HPE 9.5mm SATA DVD-ROM Jb Gen9 Kit
