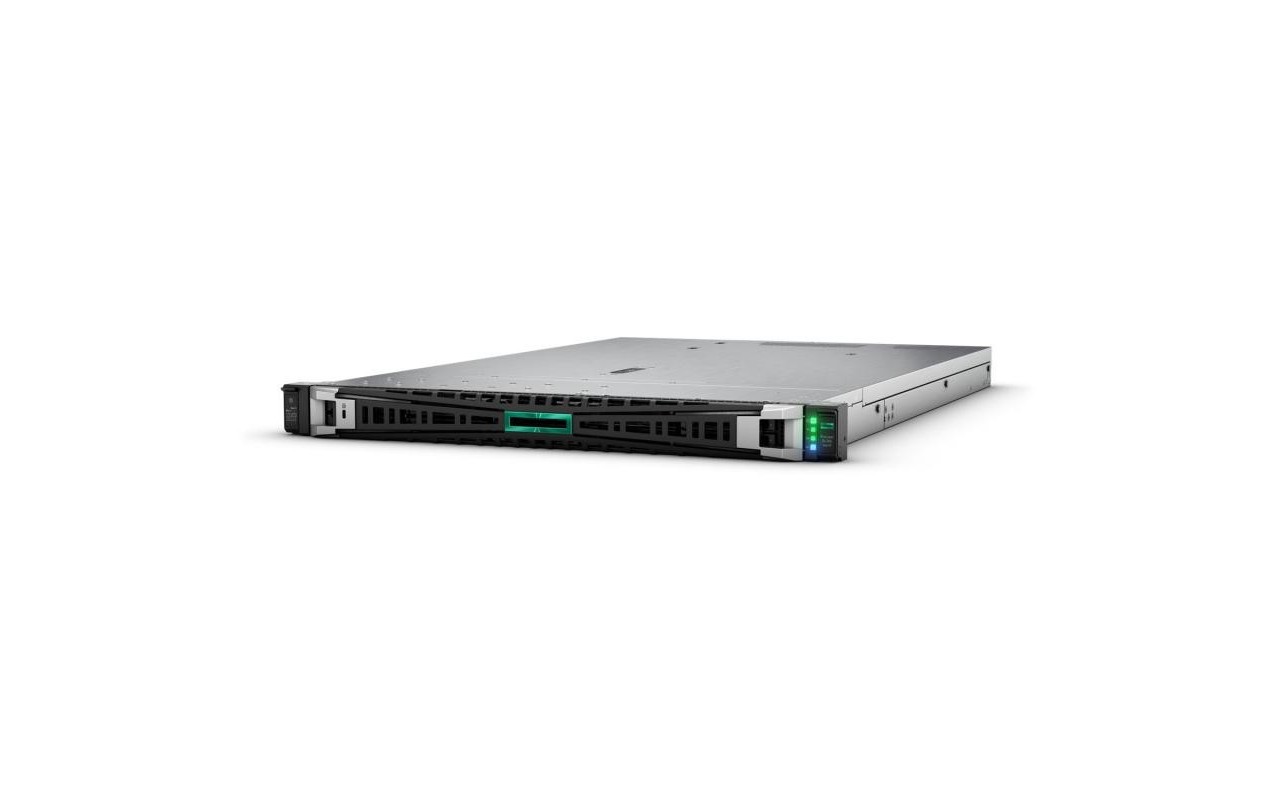

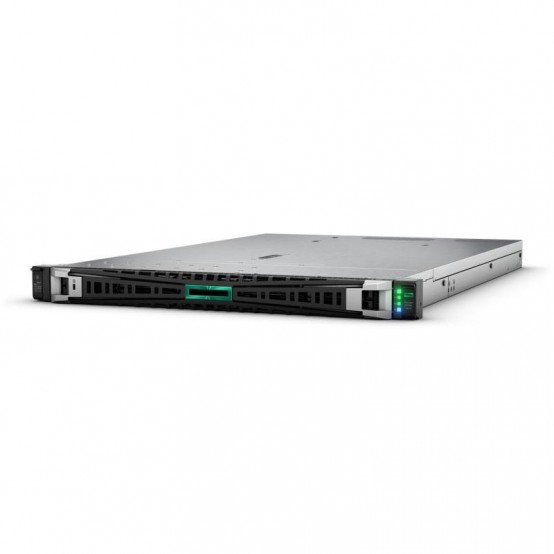

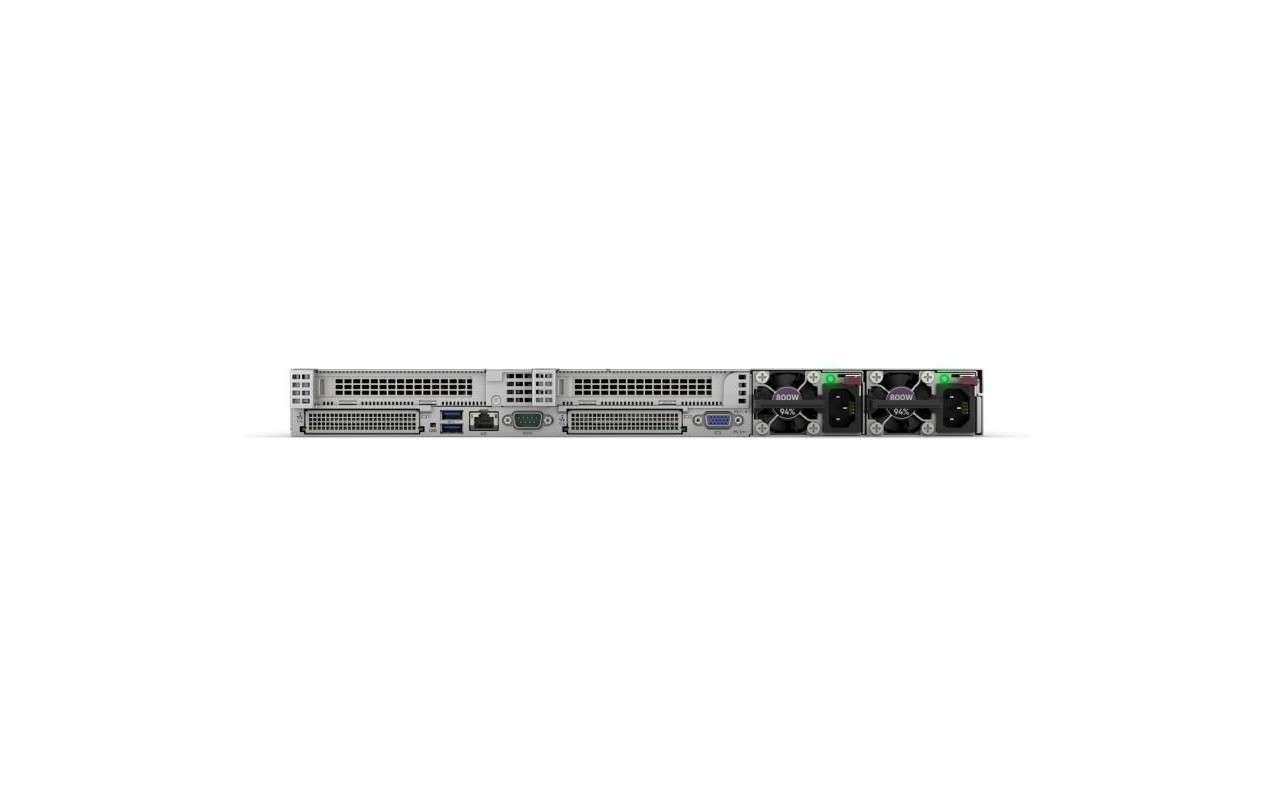

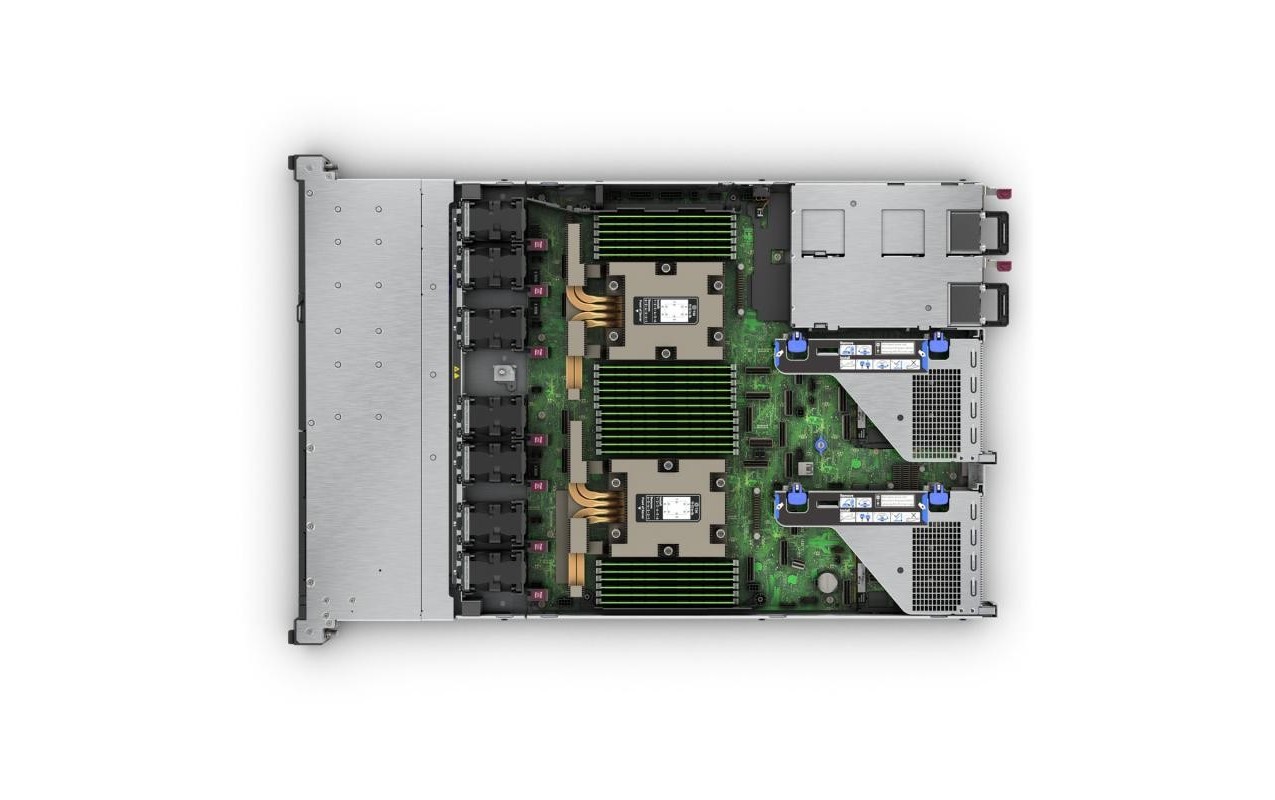

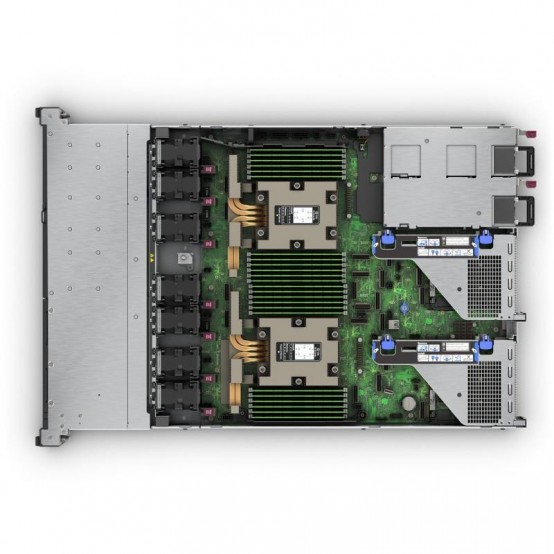

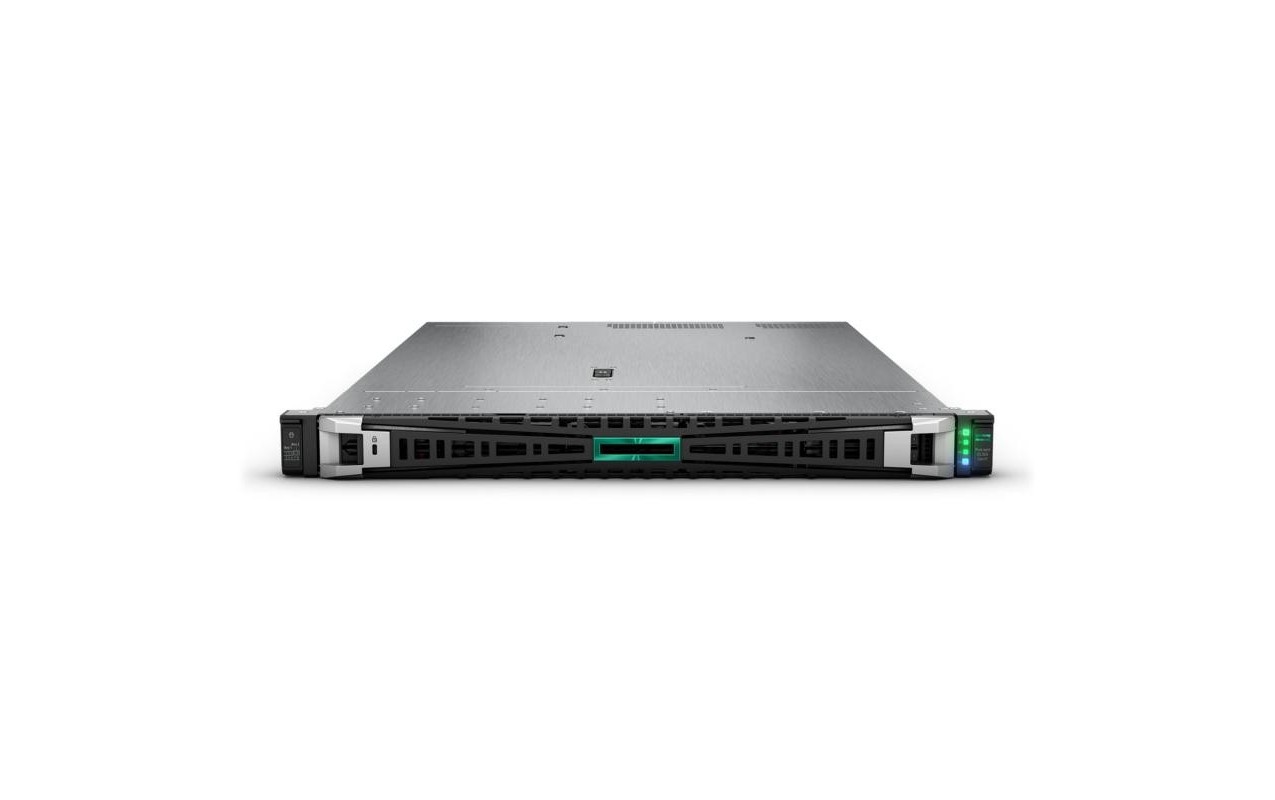

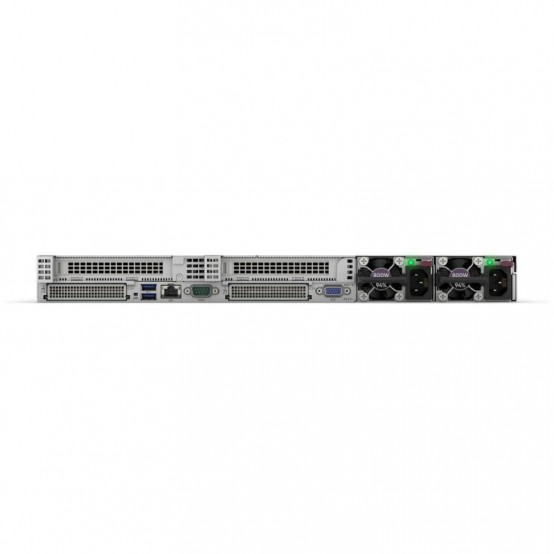

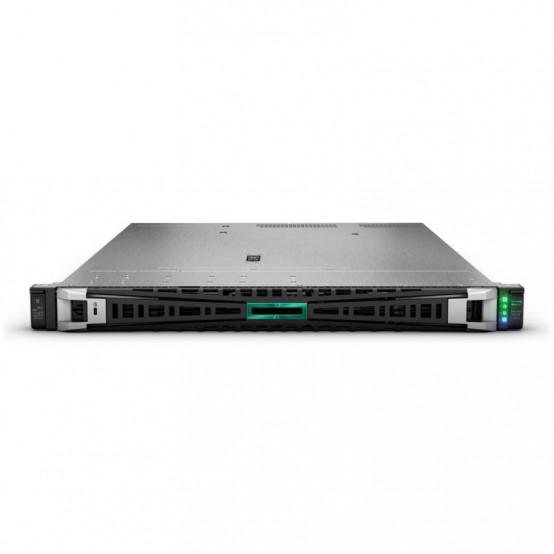

Calculator brand HP ProLiant DL365 Gen11 Rack Server P59707-421

Lifecycle

• Obsolete Date 31-01-2026

Specifications

• Optical drive type None ship as standard
• System fan features 5 Standard Fans
• Processor name AMD EPYC™ 9124 (16 core, 3.0 GHz, 64 MB L3, 200W)
• Included drives None ship standard, 8 SFF supported
• Memory type HPE DDR5 Smart Memory
• Weight 64.7 lb
• Product dimensions (metric) 91.6 x 60 x 24.2 cm
• Product dimensions (imperial) 36.06 x 23.62 x 9.53 in
• Weight 29.3 kg
• Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit: https://www.hpe.com/support.
• Power supply type 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (require license), and HPE Compute Ops Management
• Network controller Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
• Storage controller HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
• Included memory 32 GB RDIMM
• Form factor 1U Rack
• Expansion slots 2 OCP 3.0, 1 PCIe Gen5 x16, for detailed descriptions refer to the QuickSpecs
• Processor cache 64 MB L3
• Processor core available 16 core
• Processor number 1 processor included
• Processor speed 3.0 GHz

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

Are you looking for a scalable, compute-dense solution for high-performance workloads? The HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability.  Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, Enterprise and Datacenter Standard Form Factor (EDSFF) and GPU support, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.

What s new

• Powered by 4th and 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB of L3 cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
• 12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
• Supports Direct Liquid Cooling (DLC) for enhanced power usage effectiveness and reduce cooling costs.
• Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 2 OCP slots.
• Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
• EDSFF drive support for higher density and performance options.

Features

Provide real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Supports up to 2 GPUs for increased performance.

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing a fast path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

The HPE ProLiant DL365 Gen11 server is tied into the silicon root of trust and the AMD Secure Processor, a dedicated security processor embedded in the AMD EPYC system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. This helps ensure malicious code is contained and healthy servers are protected.

HPE ProLiant DL365 Gen11 servers are engineered for your hybrid world. The HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment and instant scalability for seamless, simplified support and lifecycle management, reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using HPE GreenLake as your compute and storage demands grow.

Harness major computer performance. The HPE ProLiant DL365 Gen11 server is powered by the 5th Generation AMD EPYC™ Processors with next-generation 5nm technology that supports up to 160 cores, 400W, and 512 MB of L3 cache.

Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots, improve I/O throughput and reduce latency.

12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

Media

Introducing the new AMD EPYC™ 9004 Series Processors with up to 128 cores and the new AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ technology for HPE ProLiant servers and HPE Cray systems.

Chris Bradley, Director of HPE Compute Advocacy & Technical Enablement, explains how to choose the right HPE ProLiant Gen11 servers with AMD EPYC™ processors server for your business.

HPE ProLiant DL365 Gen11 powered by 4th and 5th Generation AMD EPYC™ Processors, ranging from 8 to 160 cores per CPU.

With a broad range of core counts from 8 to 192 cores per processor. 384 threads, and frequencies up to 5 GHz, the new AMD EPYC™ 9005 Series Processors extend performance and efficiency leadership with HPE ProLiant Gen11 and HPE Cray Gen11 servers.
