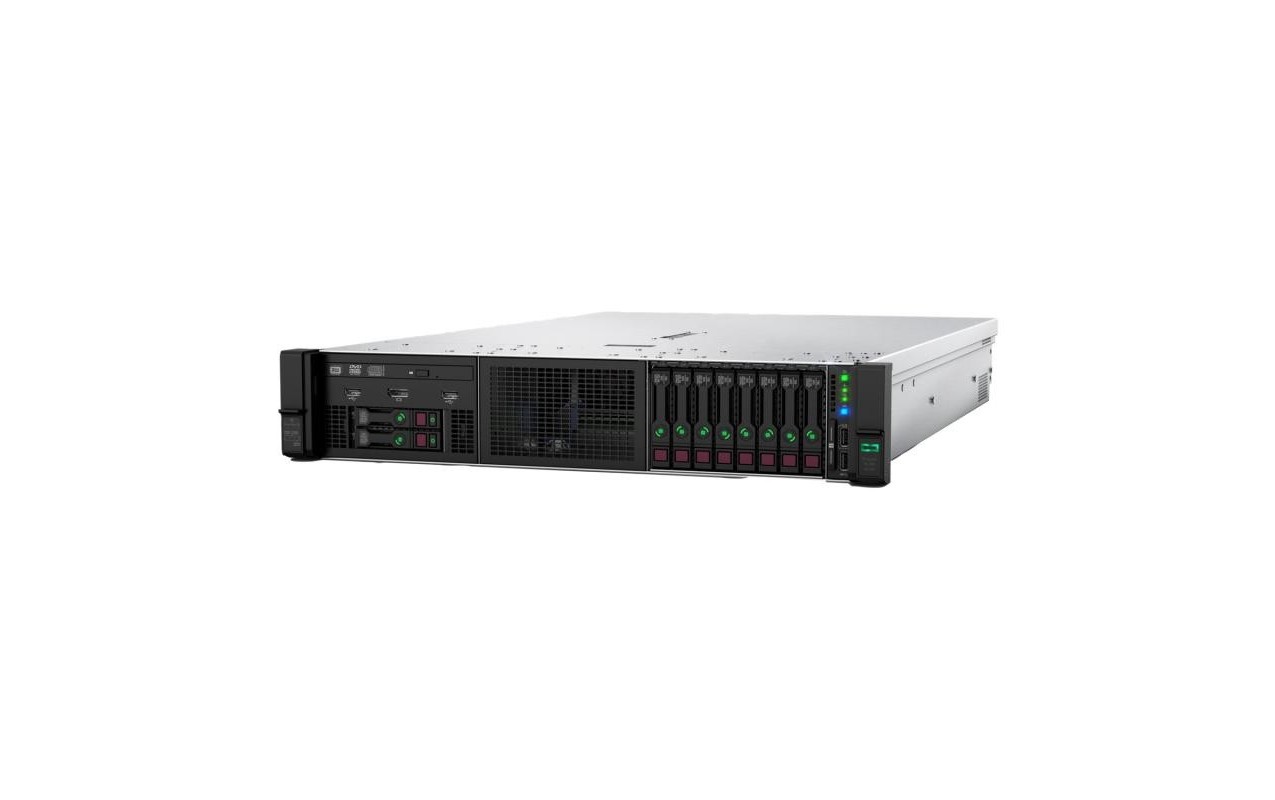

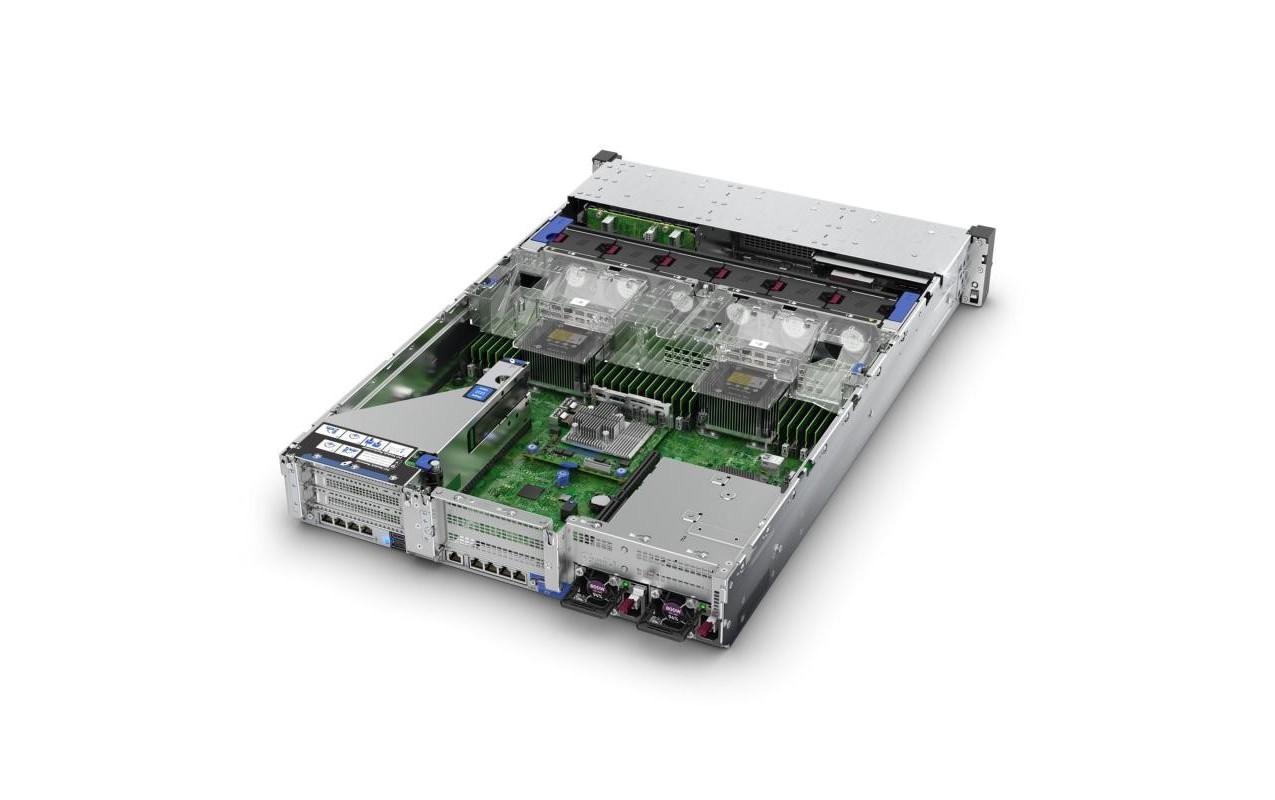

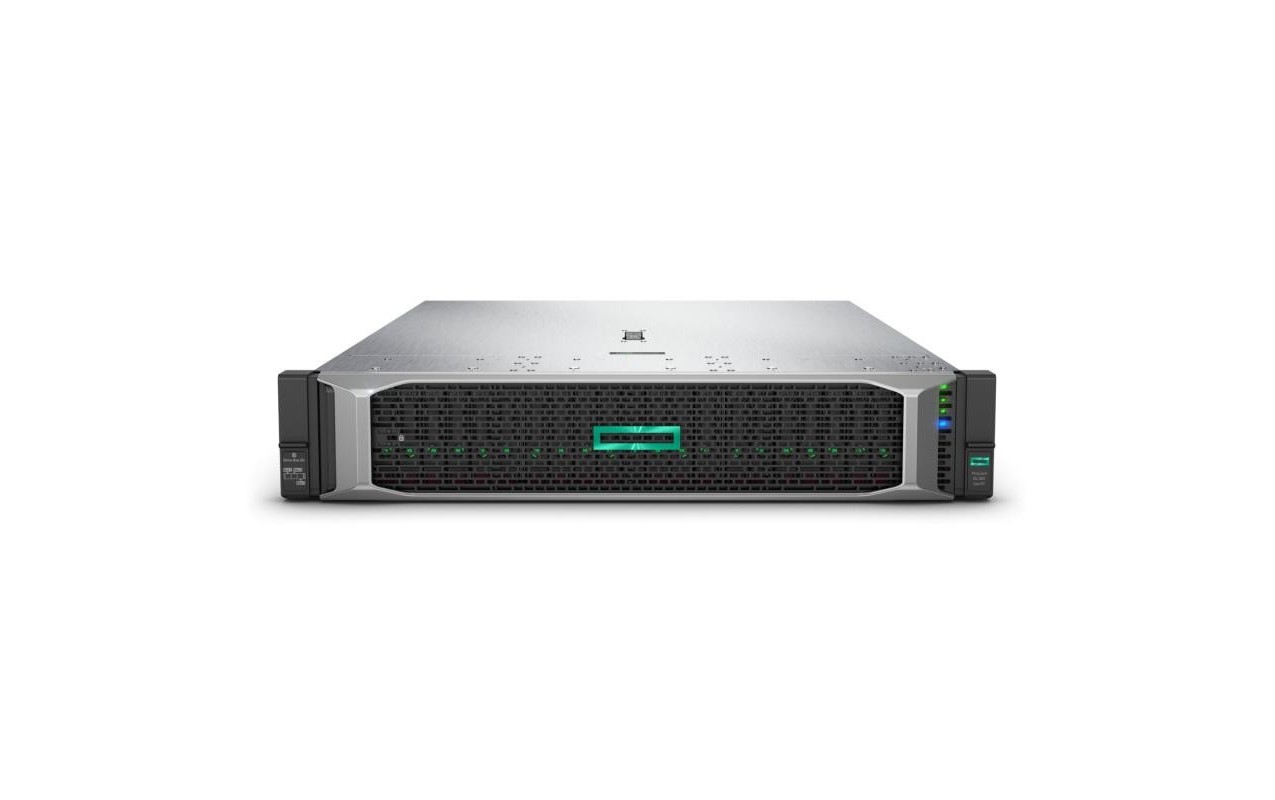

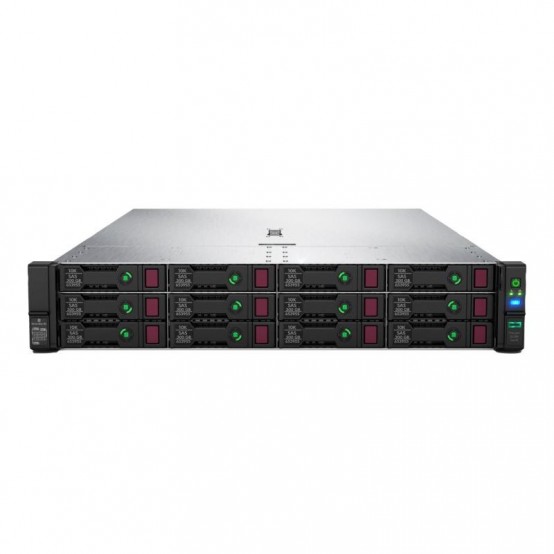

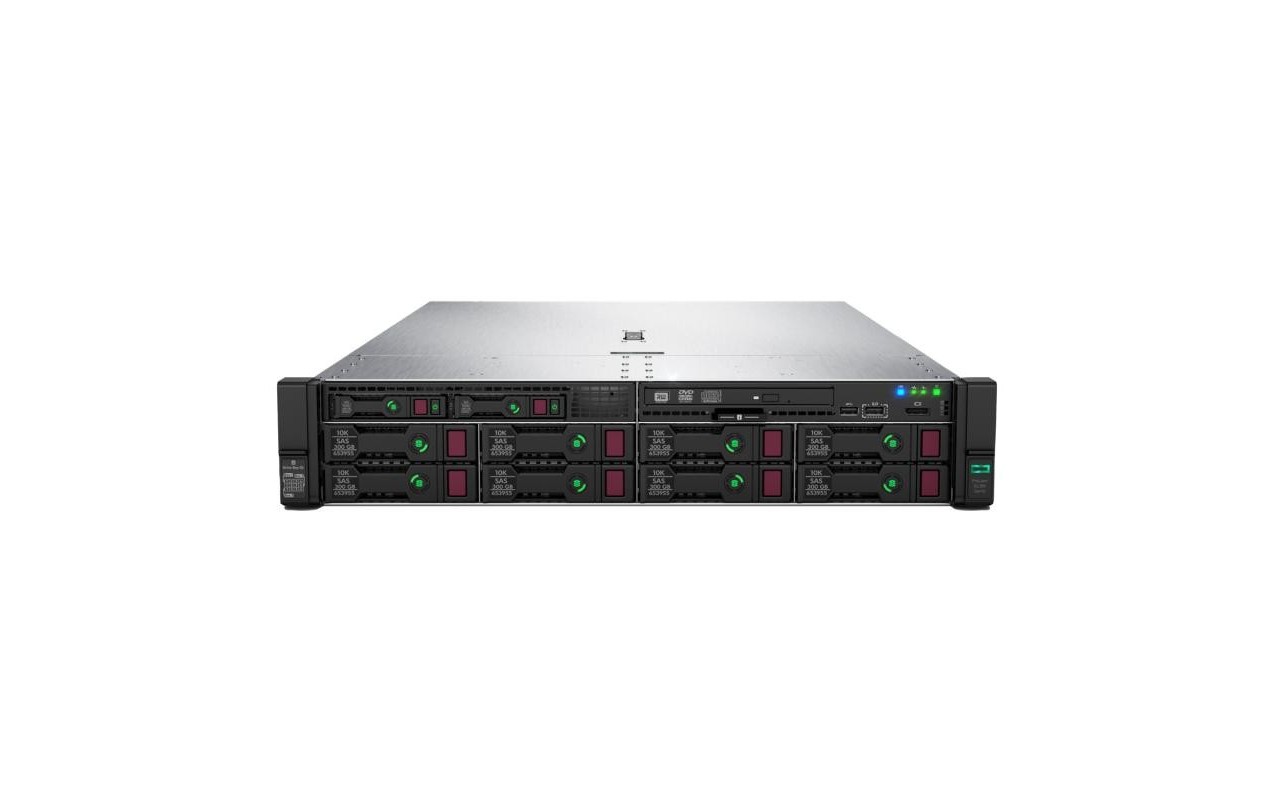

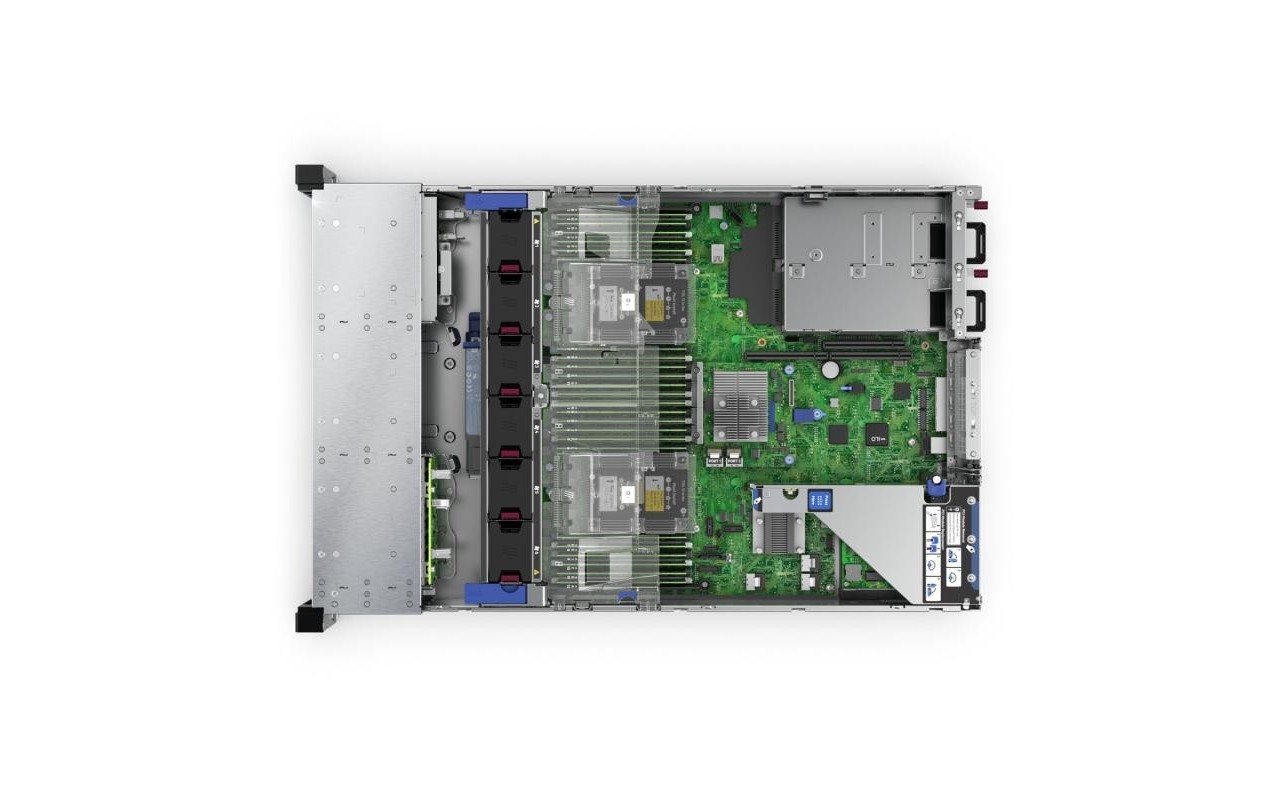

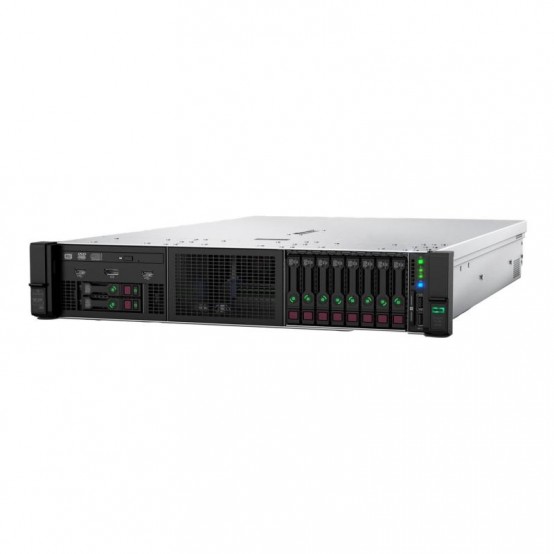

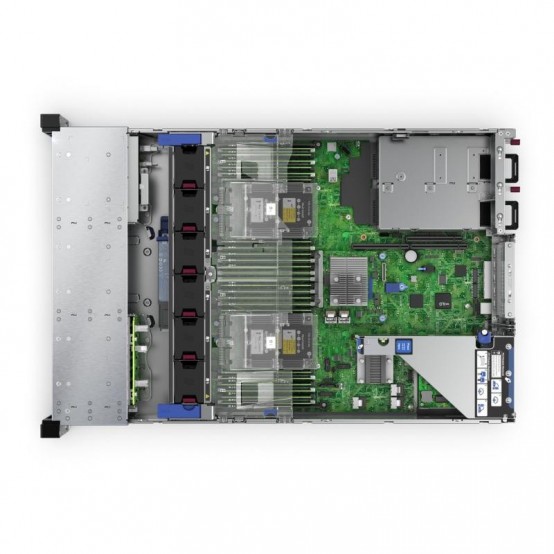

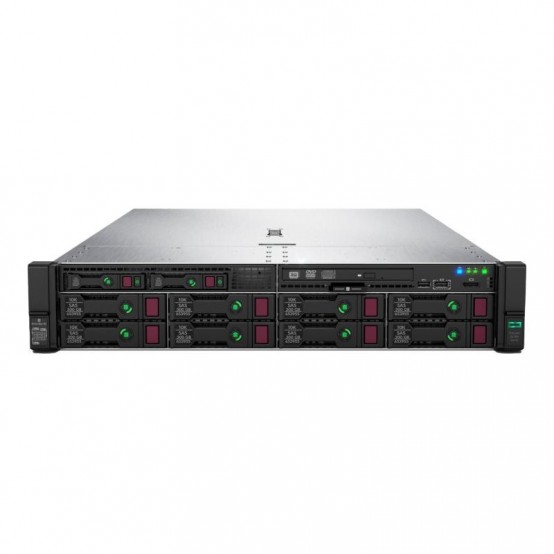

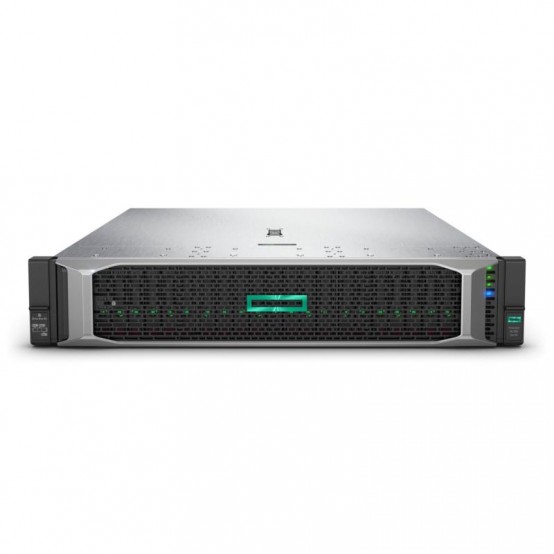

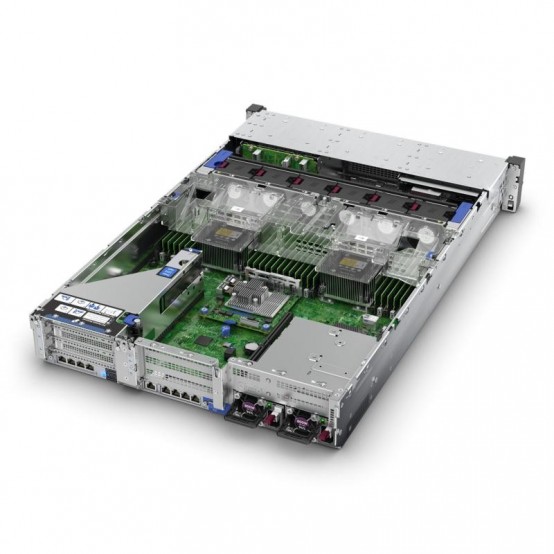

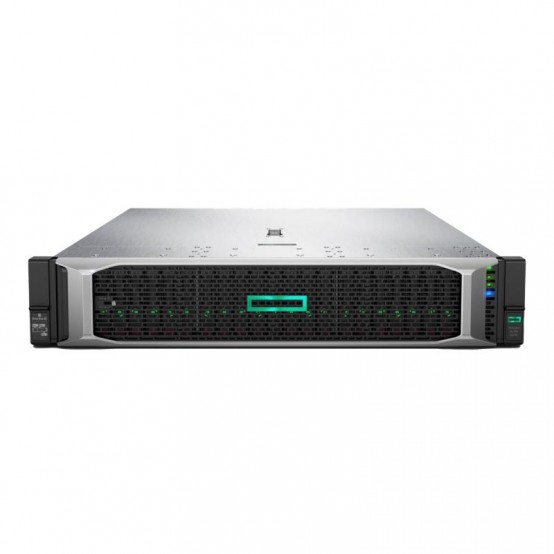

Calculator brand HP ProLiant DL380 Gen10 Rack Server P56966-421

Lifecycle

• Obsolete Date 31-07-2025

Specifications

• Network controller HPE Ethernet 10Gb 2-port 535FLR-T Adapter
• NVDIMM capacity Up to 1 TB per processor
• NVDIMM rank Not applicable
• NVDIMM type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)
• Product dimensions (metric) 44.55 x 73.03 x 8.74 cm
• Product dimensions (imperial) 17.54 x 28.75 x 3.44 in
• Processor speed 3.00 GHz
• Memory type HPE DDR4 Smart Memory
• Memory, standard 32 GB (1x 32GB) RDIMM
• Expansion slots 3 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Weight 32.6 lb
• Storage controller HPE MR416i-p Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller
• Weight 14.76 kg
• Form factor 2U Rack
• Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support.
• System fan features 4 single-rotor, standard fans included
• Optical drive type Optional
• Power supply type 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
• Included drives None ship standard, 8 SFF supported
• Included memory 32 GB RDIMM
• Processor name Intel® Xeon® Gold 6248R (24 core, 3.00 GHz, 35.75 MB L3, 205W)
• Processor cache 35.75 MB L3
• Processor core available 24 core
• Processor number 1 processor included

Quickspecs

• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs
• QuickSpecs (HTML)

Overview

Where is your server bottlenecked...storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel® Xeon® Processor Scalable Family with up to a 60% performance gain [1] and 27% increase in cores [2], plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel® Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.

What s new

• Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
• Supporting additional second generation Intel® Xeon® Scalable processor family offerings.
• Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
• Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
• Intel® Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [3]
• iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.

Features

HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.

In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.

Supporting a wide range of operating environments from Azure to Docker to ClearOS in addition to traditional operating systems.

Adapting and growing to changing business needs, Networking Choice (NC) server models provide flexibility in the primary networking choice while Embedded LOM server models offer an embedded 4x1GbE by default; both provide network options (1GbE to 100GbE) via HPE FlexibleLOM or PCIe standup adapters.

Industry Leading Services and Ease of Deployment

The HPE ProLiant DL380 Gen10 server comes with a complete set of HPE Technology Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

HPE Services simplifies all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an optimal solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

A suite of embedded and downloadable tools is available for server lifecycle management including Unified Extensible Firmware Interface (UEFI), Intelligent Provisioning; HPE iLO 5 to monitor and manage; Smart Update Manager (SUM), and Service Pack for ProLiant (SPP).

Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Defend Applications and Data Before Your Server is Built with HPE Trusted Supply Chain

A new first line of defense against cyber-attackers with select servers built to the world’s toughest security standards in secured facilities, bringing together security, processes and people to deliver protection for your most sensitive applications and data even before your server is built.

Built in secure HPE facilities to the most stringent Country of Origin USA and conformance requirements, HPE Trusted Supply Chain servers are inspected to be free from malicious microcode and counterfeit parts, safeguarding it against cyber-exploits throughout its life cycle.

With hardened security built in, HPE Trusted Supply Chain hardens the protections designed into select HPE products with unrivaled supply chain visibility and standards compliance providing a 360-degree view and mitigation plan for current and emerging cyber-threats.

Allied to ensure authenticity, HPE Trusted Supply Chain doubles down on your protection with vetted HPE employees assigned to the product build to manage the product manufacturing process that adheres to the strictest sourcing, inspection and traceability standards.

Learn more about HPE Trusted Supply Chain

World-Class Performance featuring Enhanced Compute Density

The ProLiant DL380 now features significantly enhanced GPU density, expanding support from five to seven Full-Height, Half-Length, Single-Width Accelerators/GPUs; or up to six in a balanced configuration with additional PCIe expansion via the tertiary riser.

Leveraging HPE's most popular 2U rackmount server, fitting standard depth racks, customers can benefit from one of the densest Accelerator/GPU platforms with an extensive set of Accelerator options, enabling diverse cloud workload performance and optimization of AI and deep learning experiences.

Supported on the ProLiant DL380, the NVIDIA T4 GPU is ideal for Deep learning, Inferencing, Machine Learning, HPC, Rendering, VDI, Virtual Workstations and combinations thereof for mixed workloads - maximizing utilization of data center resources and lowering TCO.

Flexible Design Making Your Investment Expand As Your Business Needs Grow

The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.

Media

【第1回】HPE ProLiant DL380 Gen10 サーバーユーザーガイドを解説します ～外部コンポーネント編～

HPE ProLiant DL380 Gen10 サーバーユーザーガイドの内容に沿って、実機を触りながら解説します。

Presentazione del prodotto HPE ProLiant DL380

Questo video illustra le principali caratteristiche hardware e i vantaggi offerti dal server HPE ProLiant DL380 Gen10.

Présentation du produit HPE ProLiant DL380

Cette vidéo présente les principales caractéristiques matérielles et les avantages du serveur HPE ProLiant DL380 Gen10.

HPE ProLiant DL380 제품 살펴보기

이 비디오는 HPE ProLiant DL380 Gen10 서버의 주요 하드웨어 기능과 이점에 대해 집중 조명합니다.

Сервер HPE ProLiant DL385 Gen10 — обзор продукта

В данном видео представлены ключевые характеристики и преимущества сервера HPE ProLiant DL380 Gen10.

HPE ProLiant DL380 Produkttour

In diesem Video werden die wichtigsten Hardwarefunktionen und Vorteile des HPE ProLiant DL380 Gen10 Servers vorgestellt.

Panorama do produto HPE ProLiant DL380

Este vídeo destaca os principais recursos e benefícios de hardware do servidor HPE ProLiant DL380 Gen10.

Presentación del producto HPE ProLiant DL380

Este vídeo destaca las características y ventajas clave de hardware del servidor HPE ProLiant DL380 Gen10.

HPE ProLiant DL380 Gen10 Server - Hardware Tour

HPE ProLiant DL380 Gen10 Server - Hardware Tour.
