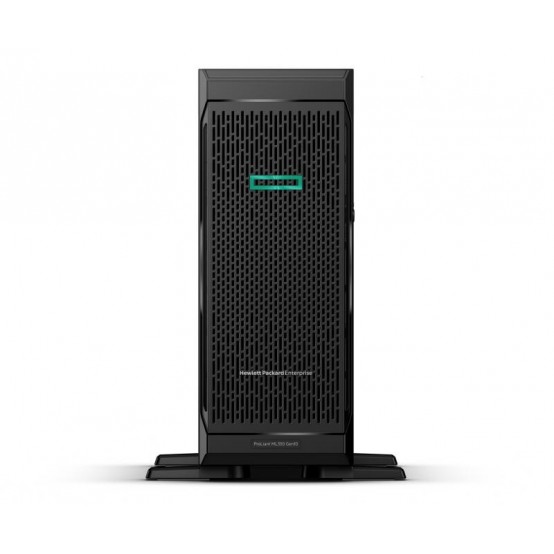

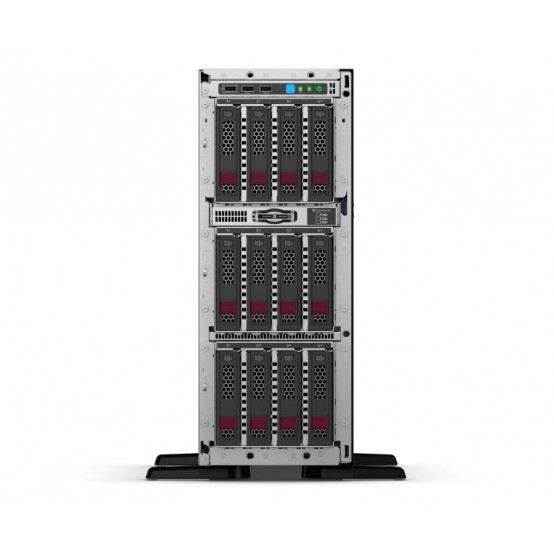

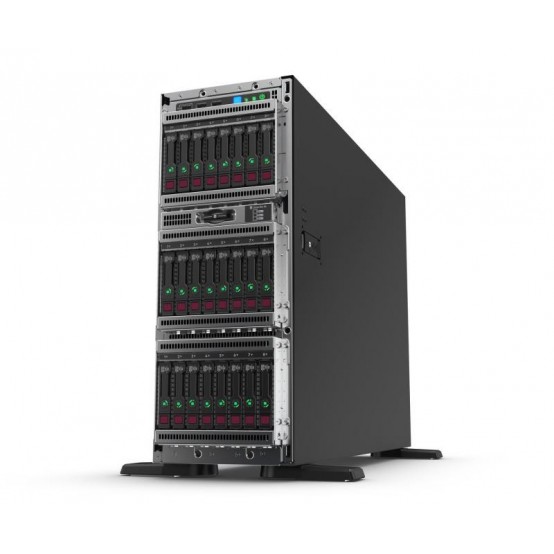

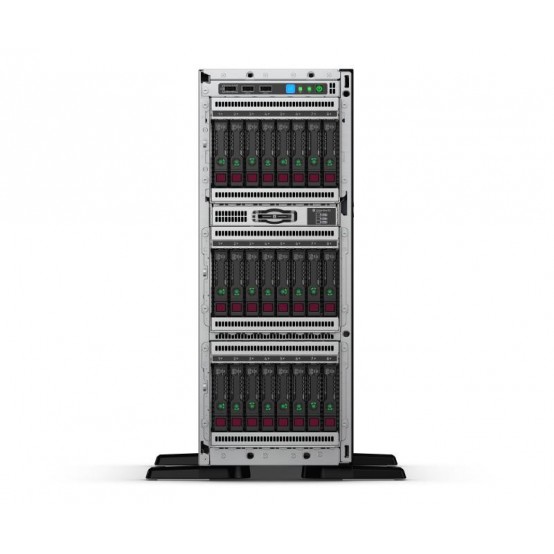

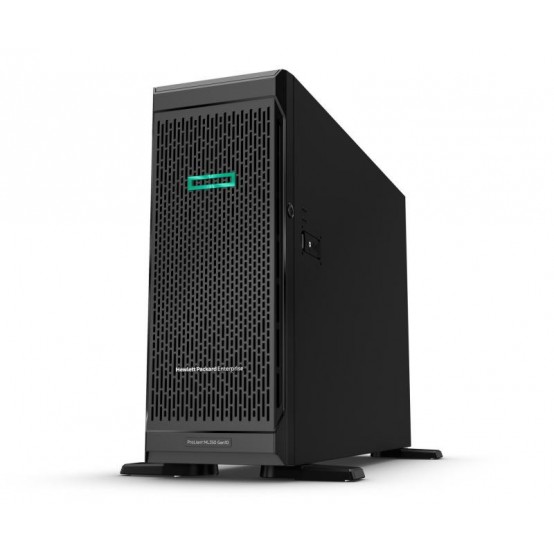

Calculator HP ProLiant ML350 Gen10 P11052-421
Solicita publicarea acestui produs in SICAP
Lifecycle
- Obsolete Date 31-01-2021
- End of support date 31-01-2026
Specifications
- System fan features 6 Standard Fans
- Form factor 4U tower with rack conversion capability
- Expansion slots 4-slots (x16, x8, x16, x8) as standard For detail reference QuickSpecs.
- Memory, standard 32 GB (1x 32 GB) RDIMM
- Memory type HPE DDR4 SmartMemory
- Included hard drives None ship standard, 8 SFF drives supported
- Storage controller 1 HPE Smart Array P408i-a SR Gen10 Controller
- Warranty 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
- Power supply type 1 HPE 800W Flex Slot power supply
- Processor Name Intel® Xeon® Scalable 4214 (12 core, 2.2 GHz, 16.50 MB, 85W)
- Processor number 1 processor
- Weight 46.30 lb
- Optical drive type Optional
- Processor speed 2.2 GHz
- Weight 21 kg
- Security UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation (iLO 5 certification in progress) Common Criteria certification (iLO 5 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates – components digitally signed and verified Secure Recovery – recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 1.2 option TPM (Trusted Platform Module) 2.0 option Front bezel key-lock feature – standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard
- Product dimensions (H x W x D) 18.2 x 25.51 x 6.85 in
- Minimum dimensions ( H x W x D) 46.25 x 64.8 x 17.4 cm
- Processor cache 16.50 MB L3
- Processor core available 12 core
- Network controller HPE Ethernet 1Gb 4-port 369i Adapter
- Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, and OneView Advanced (optional)
Quickspecs
Overview
Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. ProLiant ML350 Gen10 leverages the Intel® Xeon® Scalable processors with up to 71% [1] performance gain and 27% increase in cores [2], along with the 2933 MT/s [3] or 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% [4] faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization, HPE ProLiant ML350 Gen10 server helps you transform to a digital business with more agility and all within your limited IT budget.
What s new
- Supports mixed LFF and SFF drive cages within the same server for tiered storage, offering the flexibility to mix drive types for cost and capacity size considerations.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
- High performance graphic processing unit (GPU) and high-speed GPU bridge support for graphic-intensive applications such as Virtual Desktop Infrastructure (VDI) and machine learning.
- Supports Intel’s 2nd generation Xeon Scalable processor with 16% increase in performance [5] and HPE DDR4 SmartMemory 2933 MT/s, providing a boost in processing performance and memory speed.
- Supports the new NVIDIA Quadro P2200 and P1000 GPU cards.
Features
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
The HPE ProLiant ML350 Gen10 server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.
Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Industry Leading Services and Ease of DeploymentAdditional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.
With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
iLO 5 security features include Server Configuration Lock to ensure secure transit; iLO Security Dashboard helps detect and address possible security vulnerabilities in server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.
HPE Integrated Lights Out 5 (iLO 5) enables the world’s most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
Security InnovationsEmbedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters and Infiniband cards provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Large expansion capacity with eight PCIe slots, six USB ports, 5U rack conversion, and power supply options.
ProLiant ML350 Gen10 delivers expandability and flexibility with mixed LFF and SFF drive cages within the same server. Supporting 8 to 24 SFF or 16 SFF when mixed with 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive protecting your IT investment in hybrid environment.
Expand When Your Business Needs GrowGPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.
With the new addition of NVIDIA GV100 and NVLINK BRIDGE, NVIDIA Tesla 4 and NVIDIA RTX GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.
Perform with Unmatched VersatilityHPE ProLiant ML350 Gen10 server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.
Up to 24 DIMM slots to support the 2933 MT/s or 2600 MT/s HPE DDR4 SmartMemory [3], reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.
Media
HPE ProLiant ML350 Gen10 Server Rack Conversion VignetteThis vignette illustrates the ease of converting from a tower to a rack.
HPE ProLiant ML350 Gen10 Server Exploded View AnimationThis short animated video provides a quick tear-down of the server.
HPE ProLiant ML350 Gen10 Server Storage Configurations VignetteThis vignette exemplifies the versatility of ML350 storage capabilities
HPE ProLiant ML350 Gen10 Server Hardware TourThis video highlights the key hardware features and benefits of the HPE ProLiant ML350 Gen10 Server.
Soluzioni HPE Small Office DeploymentLe soluzioni HPE Small Office Deployment forniscono una pacchetto di soluzioni a prezzi accessibili per l''IT delle piccole imprese. Basato sui server HPE ProLiant DL20 e ML30 Gen10, sui punti di accesso wireless e switch Aruba OfficeConnect.
Software de Rápida Instalacion - Hewlett Packard EnterpriseEl software de rápida instalación HPE viene en una simple USB que brinda la capacidad de configurar servidores HPE ProLiant. Simple y rápido, reduce los errores y fomenta las mejores prácticas de manera consistente.
Master the ProLiant Gen10 Server PitchBuild a simple, secure, and affordable SMB solution on HPE ProLiant Gen10 servers
Compatible products
- HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features
- HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features
- ACCESORII SERVER HP ETHERNET 1GB 2P 332T ADPTR 615732-B21
- HPE Ethernet 1Gb 4-port 331T Adapter
- HPE Ethernet 1Gb 2-port 361T Adapter
- HPE Ethernet 10Gb 2-port 530SFP+ Adapter
- HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD
- HPE Ethernet 10Gb 2-port 530T Adapter
- HPE SFF HDD BLANK KIT
- HPE 32GB microSD Flash Memory Card
- HPE Mobile USB DVD-RW Optical Drive
- HPE 8GB microSD Flash Memory Card
- HPE 9.5mm SATA DVD-ROM Optical Drive
- HPE 9.5mm SATA DVD-RW Optical Drive
- HPE Ethernet 10Gb 2-port 562SFP+ Adapter
- HPE 8GB microSD Flash USB Drive
- HPE 8GB Dual microSD Flash USB Drive
- HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
- HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD
- HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
- HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) RW 1yr Wty HDD
- HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller
- HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller
- HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller
- HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller
- HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
- HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller
- HPE Ethernet 1Gb 4-port 366T Adapter
- HPE Ethernet 10Gb 2-port 535T Adapter
- HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
- HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
- HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
- HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Smart Memory Kit
- HPE 128GB (1x128GB) Octal Rank x4 DDR4-2666 CAS-22-19-19 3DS Load Reduced Memory Kit
- HPE Ethernet 10/25Gb 2-port 631SFP28 Adapter
- HPE Ethernet 10Gb 2-port 562T Adapter
- HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter
- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
- HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller
- HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD
- HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
- HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
- HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD
- HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD
- HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit
- HPE 1TB SATA 6G Entry 7.2K LFF (3.5in) RW 1yr Wty HDD
- HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
- HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
- HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD
- HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD
- HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD
- HPE Trusted Platform Module 2.0 Gen10 Option
- HP 750W CS HE POWER SUPPLY REMAN KIT
- HPE 800W FS PLAT HT PLG LH PWR SPLY KIT
- HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit
- HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
- HPE ML350 Gen10 Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Silver 4112 (2.6GHz/4-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) Processor Kit
- HPE ML350 Gen10 5122 Xeon-G Kit
- HPE ML350 Gen10 6126 Xeon-G Kit
- HPE ML350 Gen10 Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) Processor Kit
- HPE ML350 Gen10 Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) Processor Kit
- HPE ML350 Gen10 6132 Xeon-G Kit
- HPE ML350 Gen10 6138 Xeon-G Kit
- HPE ML350 Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) Processor Kit
- HPE ML350 Gen10 6140M Xeon-G Kit
- HPE ML350 Gen10 Intel Xeon-Gold 6142 (2.6GHz/16-core/150W) Processor Kit
- HPE Ethernet 10/25Gb 2-port 621SFP28 Adapter
- HPE Ethernet 10Gb 2-port 521T Adapter
- HPE Smart Array P824i-p MR Gen10 (24 Internal Lanes/4GB Cache/CacheCade) 12G SAS PCIe Controller
- HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
- HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
- HPE 900GB SAS 15K SFF SC DS HDD
- HPE 900GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware HDD
- HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
- HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
- HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD
- HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD
- HPE 800GB SAS 12G WI SFF SC DS SSD
- HPE 3.2TB SAS 12G MU SFF SC DS SSD
- HPE Ethernet 100Gb 1-port 842QSFP28 Adapter
- HPE ML350 Gen10 4LFF Hot Plug Drive Backplane Cage Kit
- HPE ML350 Gen10 4LFF Non Hot Plug Drive Cage Kit
- HPE ML350 Gen10 8SFF Hot Plug Drive Backplane Cage Kit
- HPE ML350 Gen10 8SFF NVMe SSD Express Bay Enablement Kit with 2x4NVMe Risers and Support Cables
- HPE ML350 Gen10 RDX/LTO Media Drive Support Cable Kit with Fan Blank for Long LTO
- HPE ML350 Gen10 Flex Slot Redundant Power Supply Cage Kit with Power Distribution Board
- HPE ML350 Gen10 Redundant Fan Cage Kit with 4 Fan Modules
- HPE ML350 Gen10 AROC Mini-SAS Cable Kit for LFF Configuration
- HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for LFF Configuration
- HPE ML350 Gen10 Smart Array/HBA Mini-SAS Cable Kit for SFF Configuration
- HPE ML350 Gen10 12Gb SAS Expander Card Kit with Cables
- HPE ML350 Gen10 Slimline ODD Bay and Support Cable Kit
- HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm
- HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD
- HPE 480GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD
- HPE 960GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD
- HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD
- HPE 960GB SATA 6G Re
Specificatii
ID dataSPOT |
141656 |
---|---|
Cod |
P11052-421 |
Model |
ProLiant ML350 Gen10 |
Producator |
HP |
Garantie comerciala |
3 ani |
LAN |
10 / 100 / 1000 Mbps |
---|
Tip grafica |
Integrata |
---|---|
Procesor grafic |
Intel HD |
Capacitate Memorie |
32 GB |
---|---|
Configuratie memorii |
1 x 32 GB |
Tip Memorie |
DDR4 |
Frecventa Memorie |
2933 MHz |
Producator procesor |
Intel |
---|---|
Serie procesor |
Xeon |
Model procesor |
4214 |
Frecventa |
2200 - 3200 MHz |
Cache |
16.5 MB |
Numar nuclee |
12 (dodeca-core) |
Dimensiuni (W x D x H) |
648 x 462.5 x 174 mm |
---|---|
Greutate |
21 kg |
Culoare |
Negru |
Sursa |
800 W |
---|
- Producator procesor
- Intel
- Serie procesor
- Xeon
- Model procesor
- 4214
- Frecventa
- 2200 - 3200 MHz
- Cache
- 16.5 MB
- Numar nuclee
- 12 (dodeca-core)
- Capacitate Memorie
- 32 GB
- Configuratie memorii
- 1 x 32 GB
- Tip Memorie
- DDR4
- Frecventa Memorie
- 2933 MHz
- Tip grafica
- Integrata
- Procesor grafic
- Intel HD
- LAN
- 10 / 100 / 1000 Mbps
- Sursa
- 800 W
- Dimensiuni (W x D x H)
- 648 x 462.5 x 174 mm
- Greutate
- 21 kg
- Culoare
- Negru
- ID dataSPOT
- 141656
- Cod
- P11052-421
- Model
- ProLiant ML350 Gen10
- Producator
- HP
- Garantie comerciala
- 3 ani
Specificatii
ID dataSPOT |
141656 |
---|---|
Cod |
P11052-421 |
Model |
ProLiant ML350 Gen10 |
Producator |
HP |
Garantie comerciala |
3 ani |
LAN |
10 / 100 / 1000 Mbps |
---|
Tip grafica |
Integrata |
---|---|
Procesor grafic |
Intel HD |
Capacitate Memorie |
32 GB |
---|---|
Configuratie memorii |
1 x 32 GB |
Tip Memorie |
DDR4 |
Frecventa Memorie |
2933 MHz |
Producator procesor |
Intel |
---|---|
Serie procesor |
Xeon |
Model procesor |
4214 |
Frecventa |
2200 - 3200 MHz |
Cache |
16.5 MB |
Numar nuclee |
12 (dodeca-core) |
Dimensiuni (W x D x H) |
648 x 462.5 x 174 mm |
---|---|
Greutate |
21 kg |
Culoare |
Negru |
Sursa |
800 W |
---|
