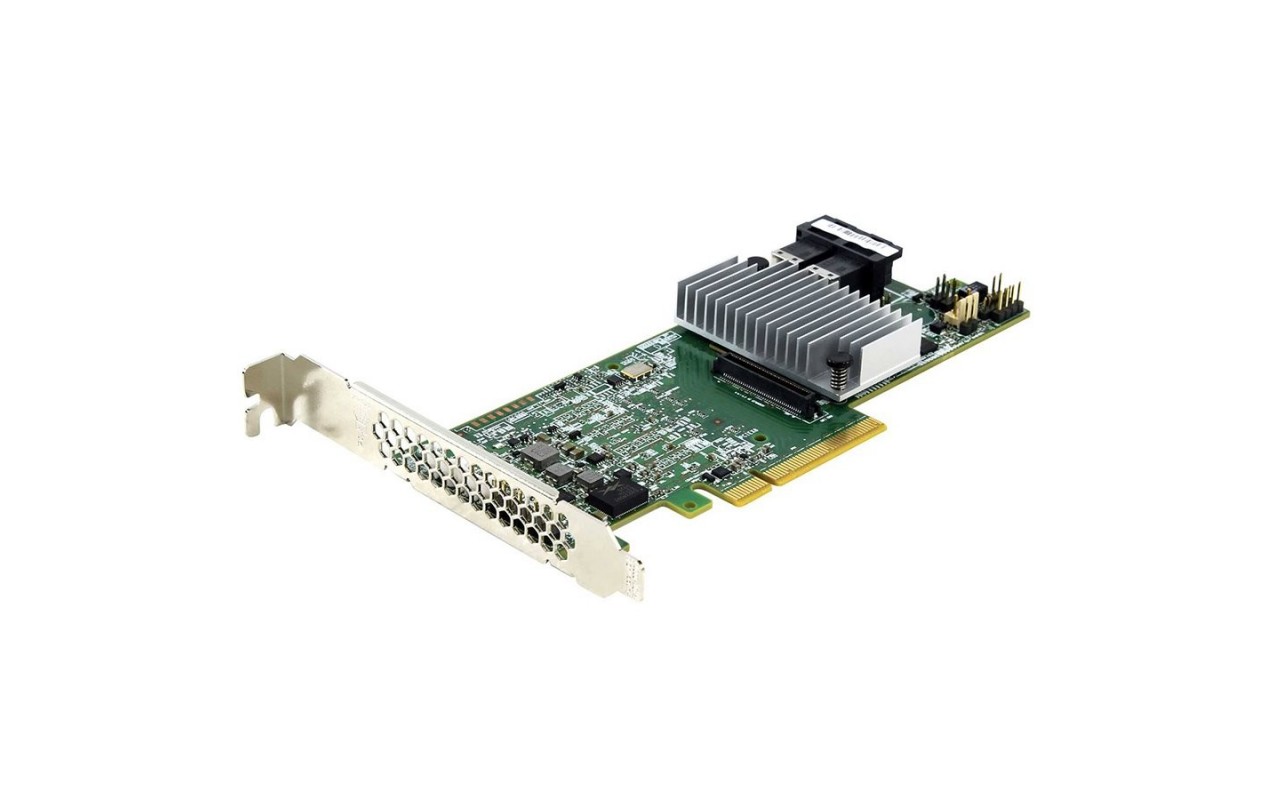

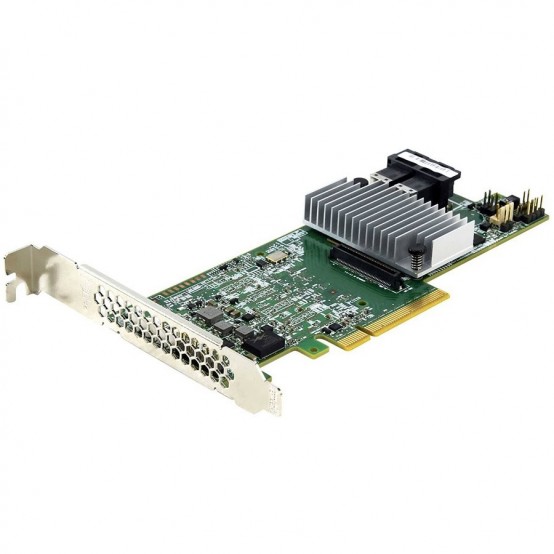

Adaptor Broadcom 05-25420-08

The explosive growth of data in cloud and enterprise datacenters is driving the need for a higher performance storage interface to speed the ability of critical applications to access data. LSI first-to-market 12Gb/s SAS solutions are designed to deliver the performance and data protection capabilities required for the most demanding next-generation server and storage platforms.


• High performance with 12Gb/s data transfer rates
• Eight internal 12Gb/s SATA+SAS ports
• Two miniSAS SFF8643 internal connectors (horizontal mount)
• LSISA3108: 1.2GHz PowerPC® 476 dual core 12Gb/s ROC
• PCI Express 3.0 host interface
• 1GB DDRIII cache memory
• RAID levels 0,1,5,6,10,50 and 60
• Support for CacheVault® flash cache protection
• 12Gb/s solutions accelerate performance for next-generation datacenters, web and cloud
• Delivers enterprise-class data protection and security
• Preserves investment in 6Gb/s and 3Gb/s drives
• Support for LSI Advanced Software options
• Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices
