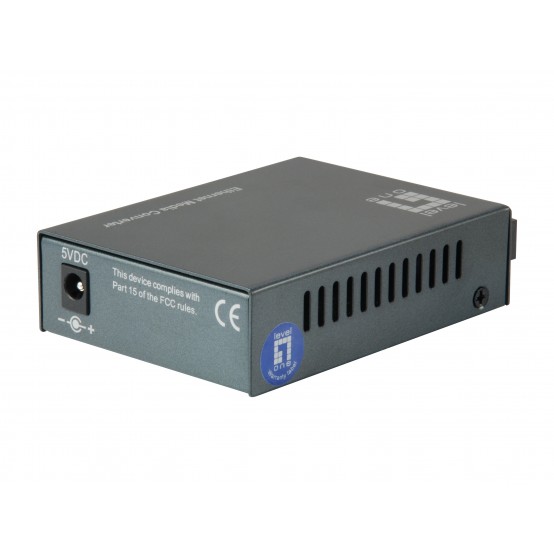

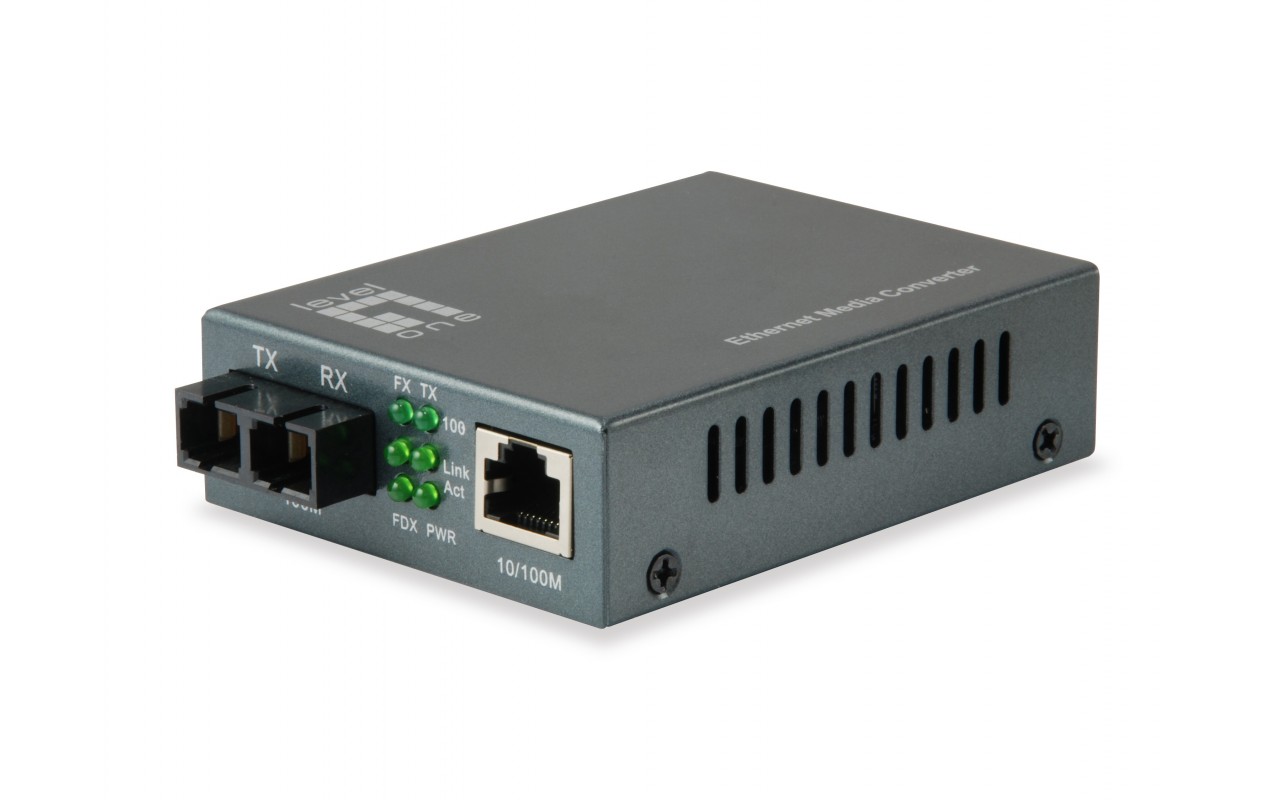

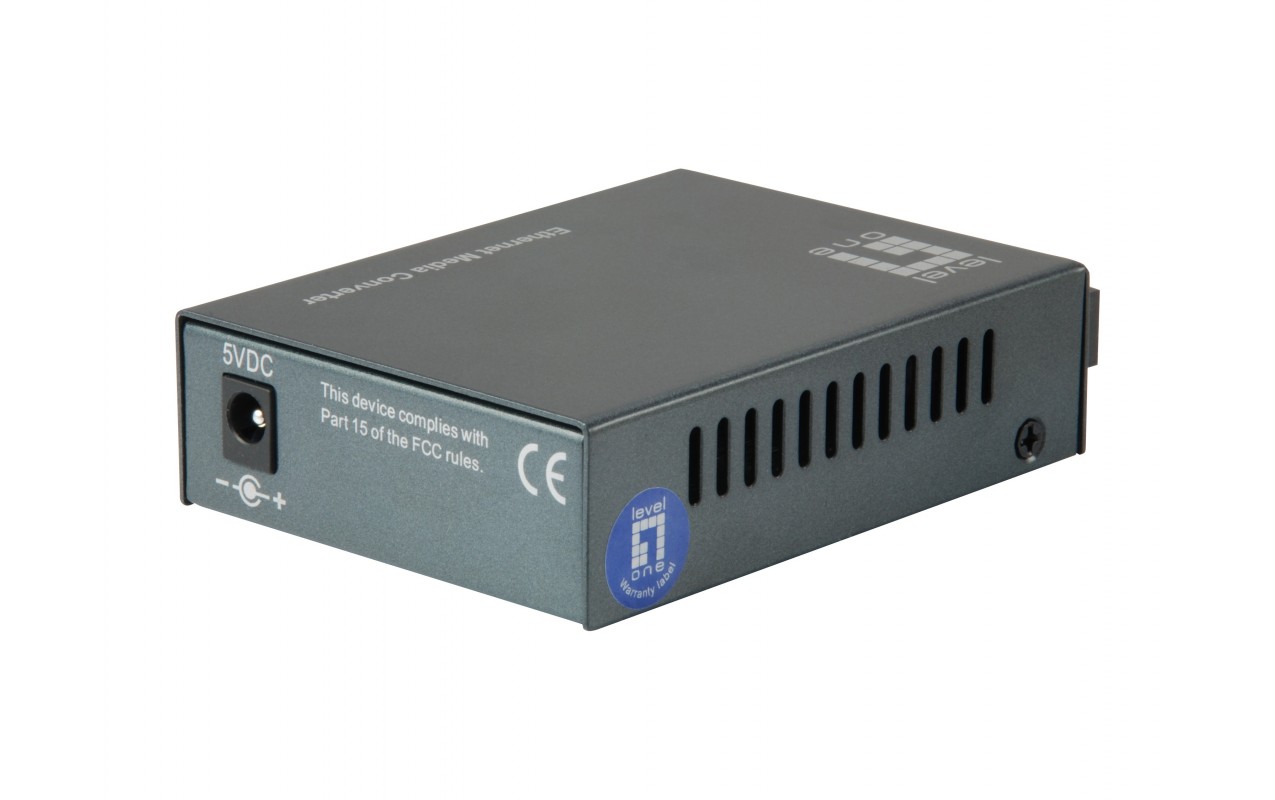

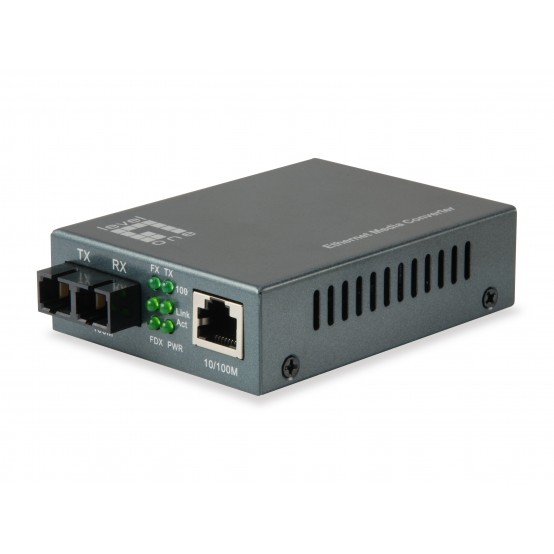

Adaptor LevelOne FVT-1101
The FVT-1101 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fiber-optic cabling, this can extend a network range up to 2km.
The converter can be used as a standalone device or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
- Supports the transmission of extra-long packets up to 1.6KB
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Multi-mode fiber with SC connector for transmission of up to 2km
- Supports low-time lag transmission
LevelOne RJ45 to SC Fast Ethernet Media Converter, Multi-Mode Fiber, 1310nm, 2km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A
Specificatii
| ID dataSPOT |
214081 |
|---|---|
| Cod |
FVT-1101 |
| Producator |
LevelOne |
| Garantie comerciala |
3 ani |
- ID dataSPOT
- 214081
- Cod
- FVT-1101
- Producator
- LevelOne
- Garantie comerciala
- 3 ani
Specificatii
| ID dataSPOT |
214081 |
|---|---|
| Cod |
FVT-1101 |
| Producator |
LevelOne |
| Garantie comerciala |
3 ani |
