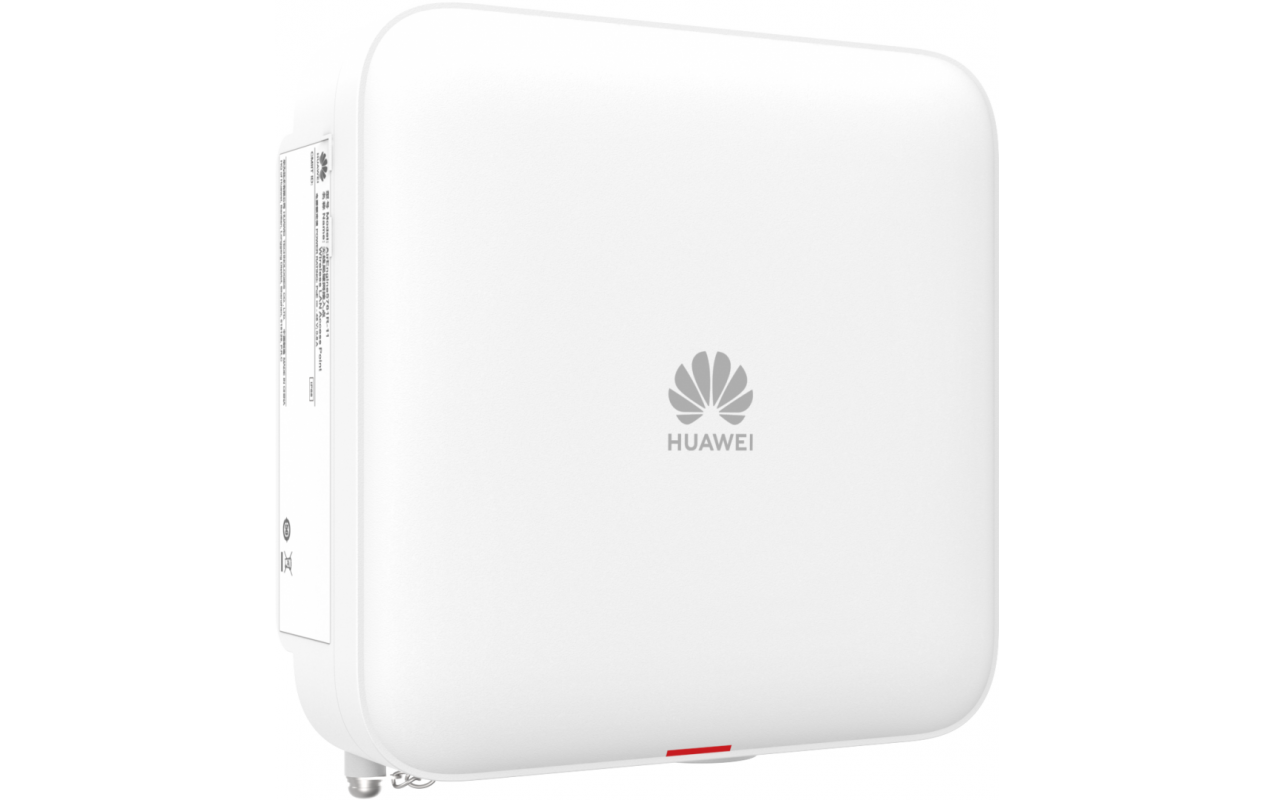

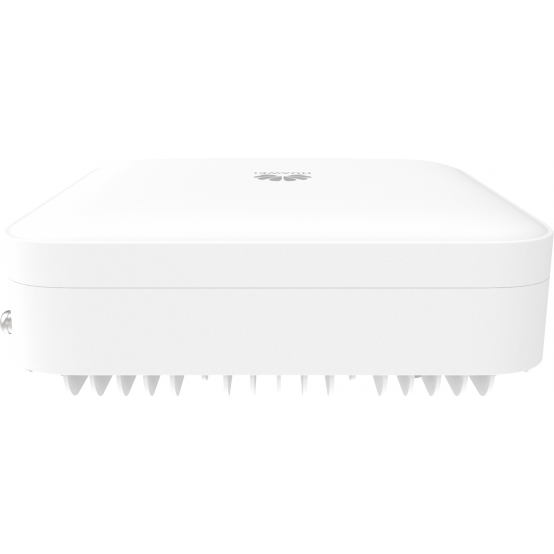

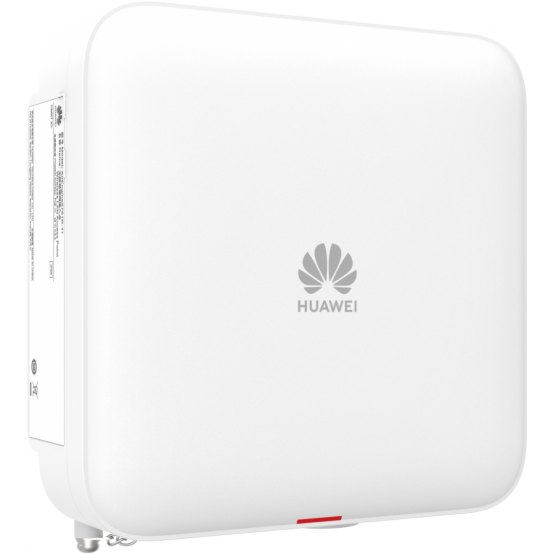

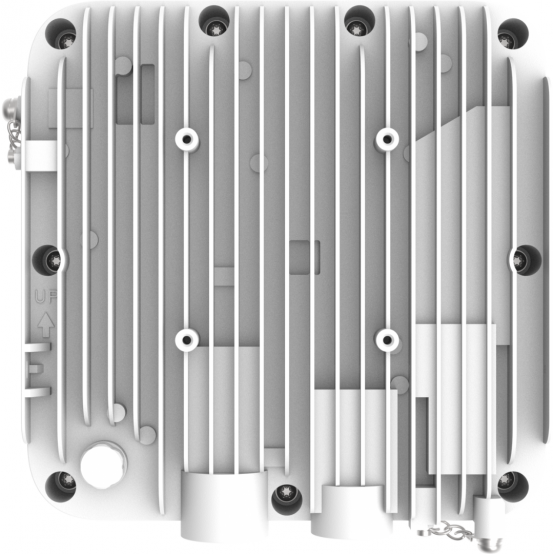

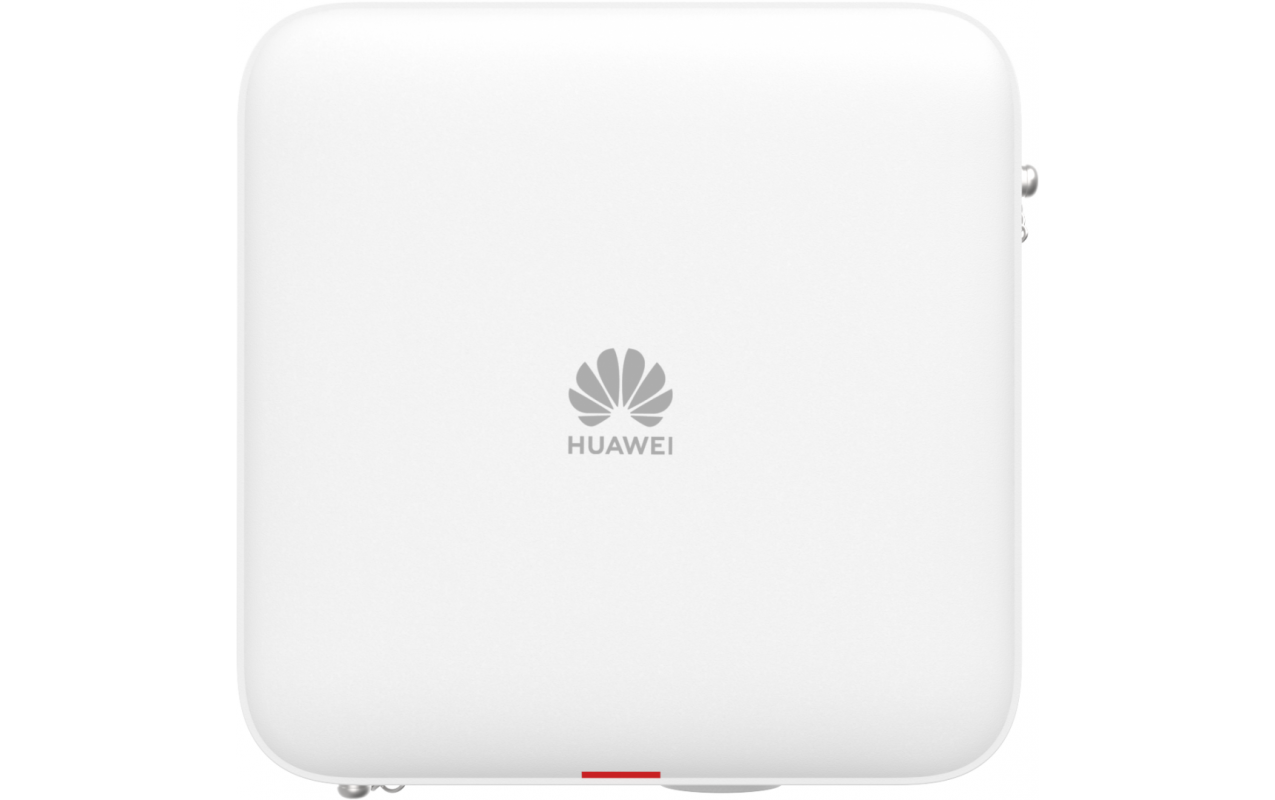

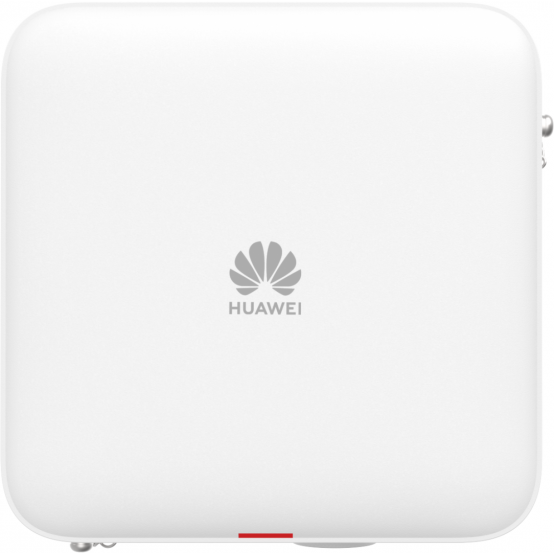

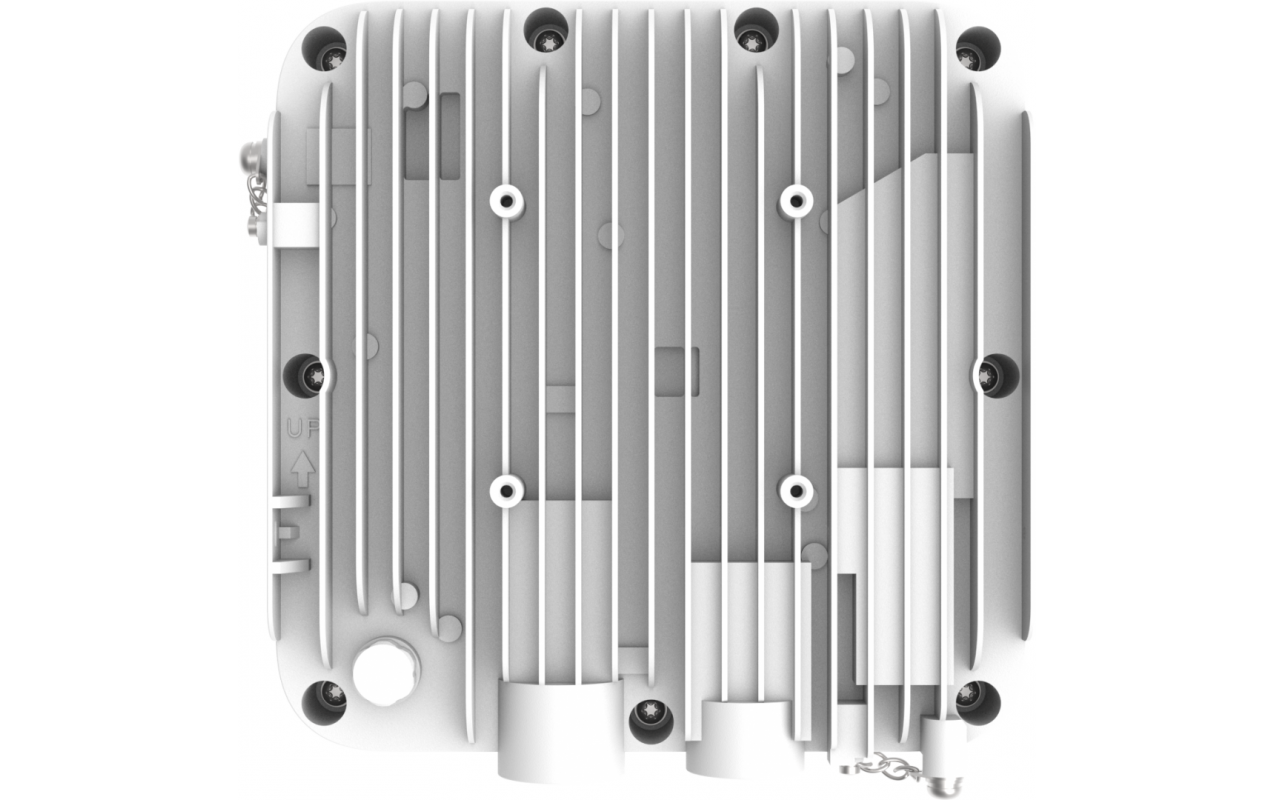

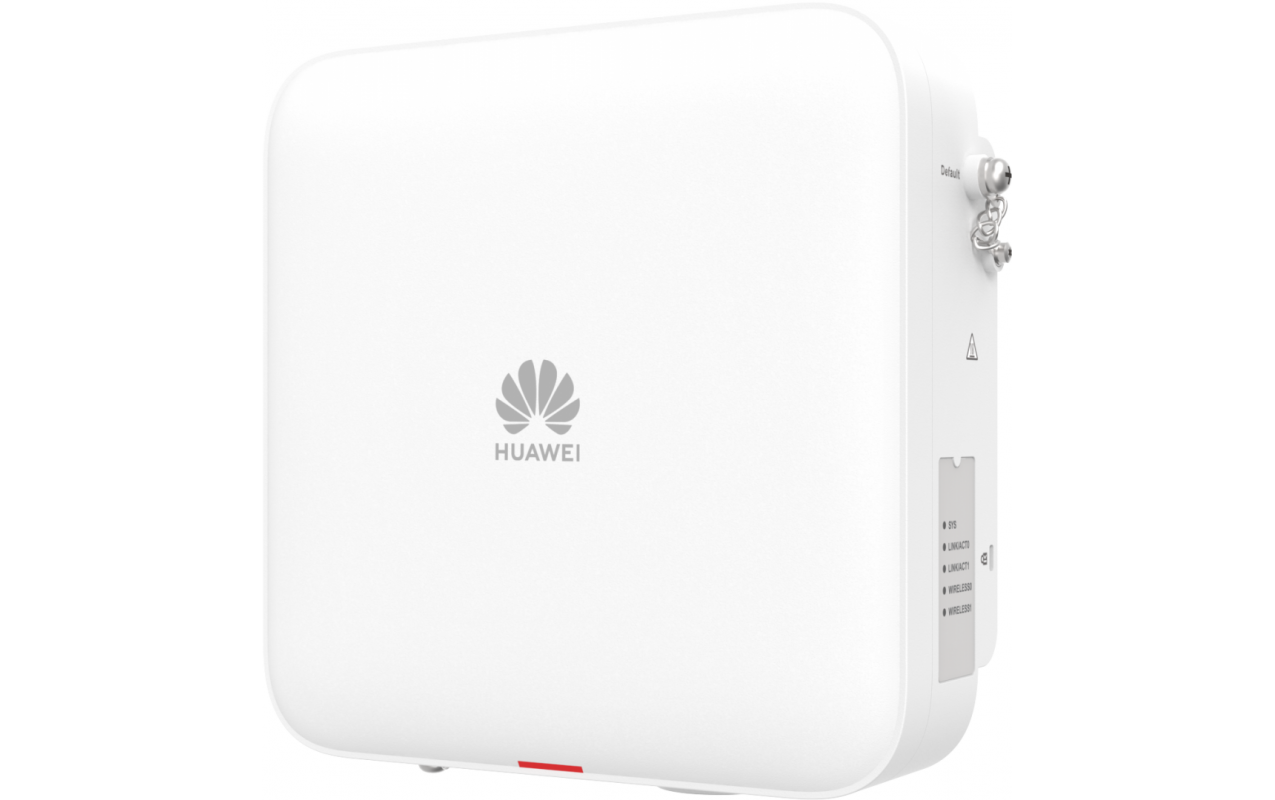

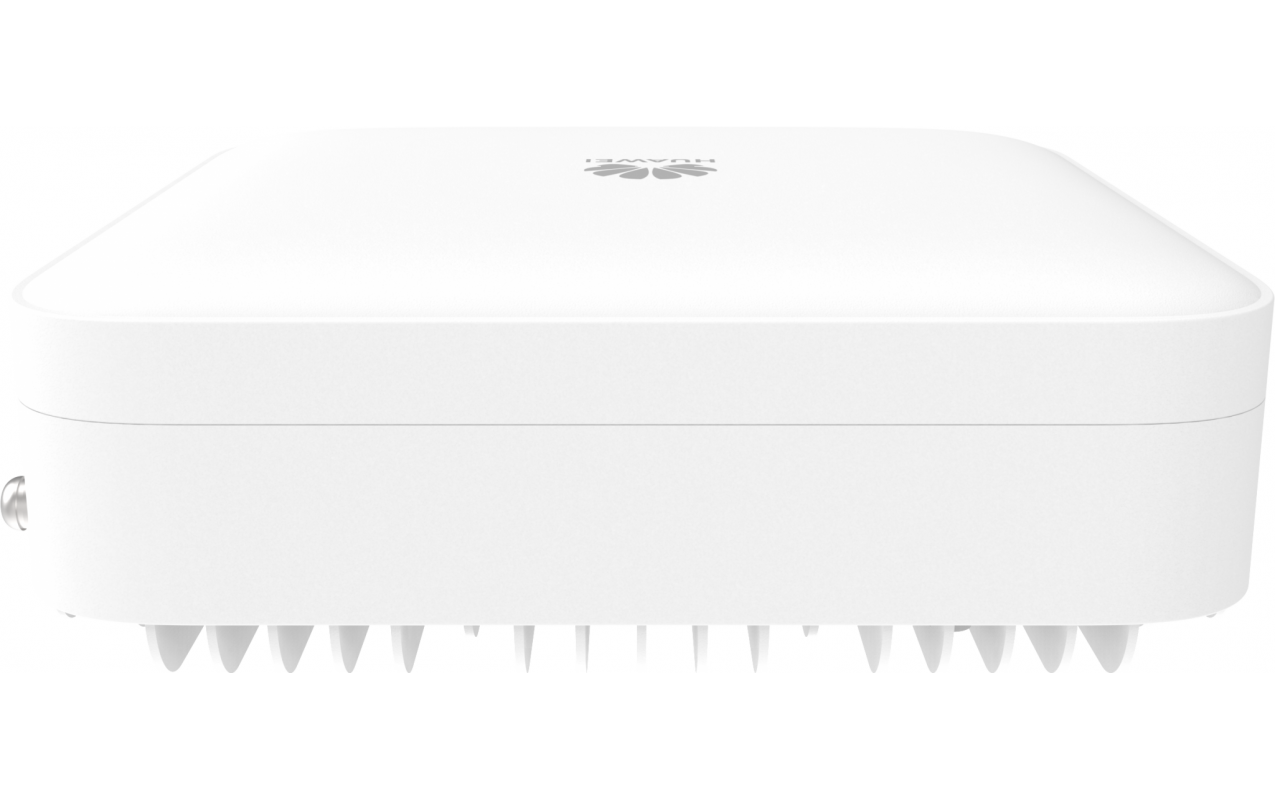

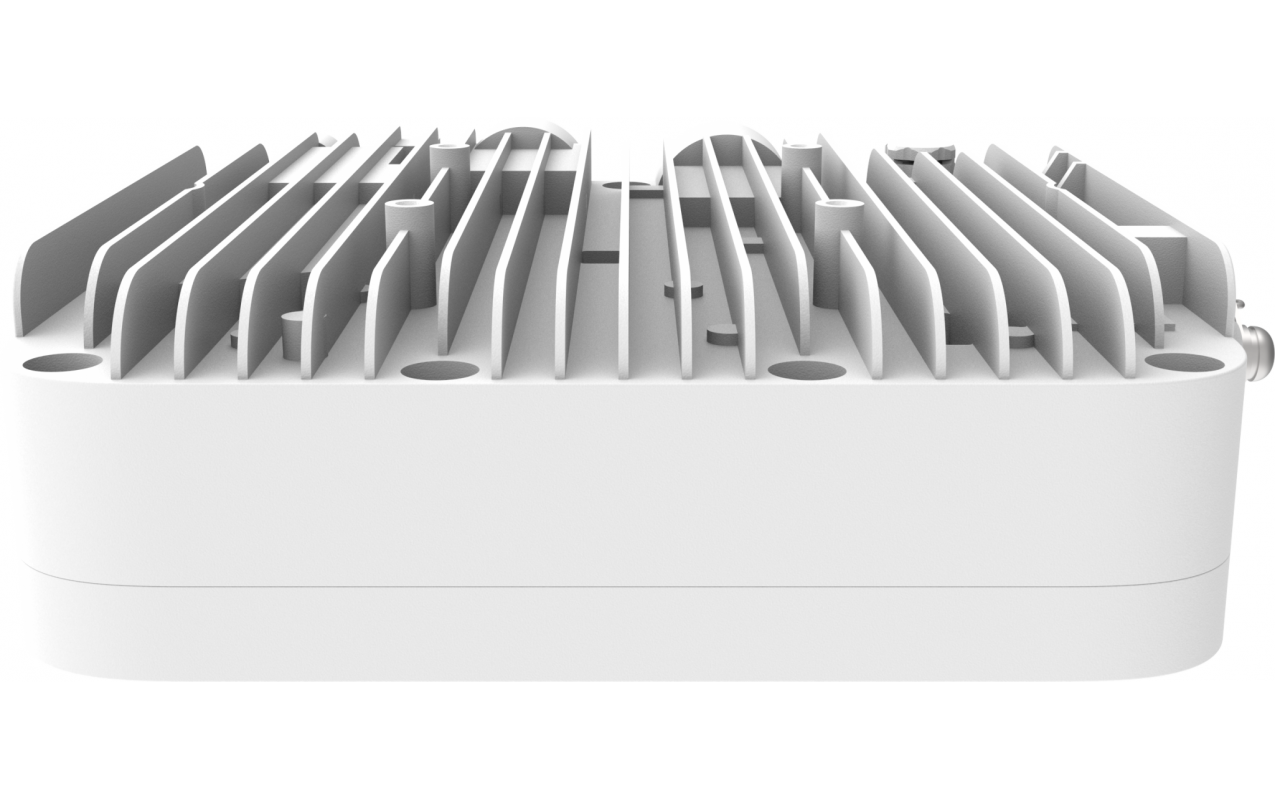

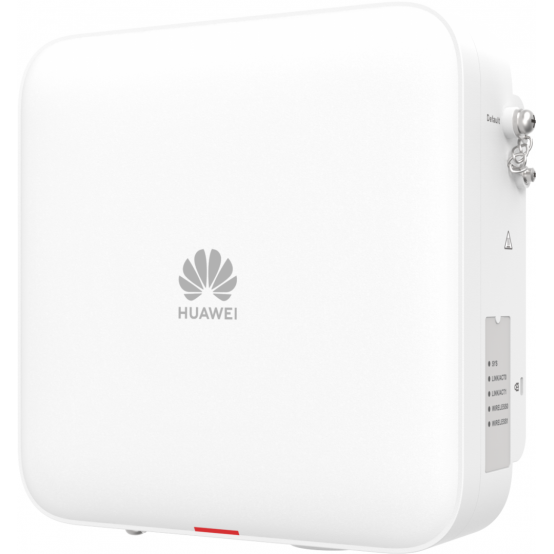

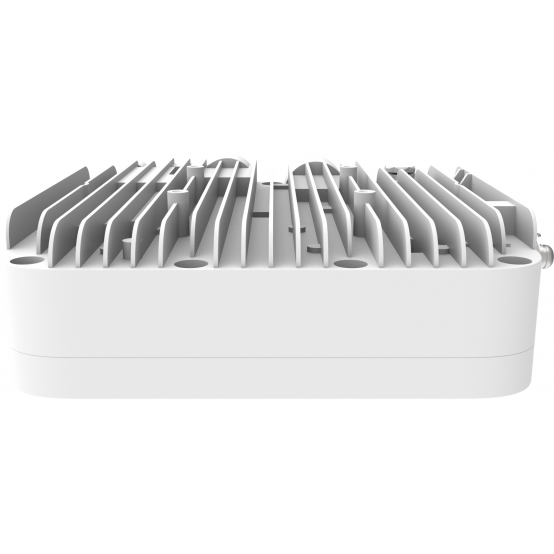

Access point Huawei AirEngine 5761R-11 HU02354DKSAS
659.00 lei
cu TVA
Orderable quantity above the default stock is: 50
Solicita publicarea acestui produs in SICAP
Access point Huawei AirEngine 5761R-11 HU02354DKSAS
659.00 leiDescriere
| Technical Specifications | |
| Installation Type | Wall,Pole |
| Height [mm] | 69 mm |
| Depth [mm] | 200 mm |
| Wide [mm] | 200 mm |
| Weight with packaging [kg(lb)] | 3.73 kg (8.22 lb) |
| Weight without packaging [kg(lb)] | 1.91 kg (4.21 lb) |
| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| GE optical port (SFP) | |
| Maximum power consumption [W] | 17.7 W |
| Maximum heat dissipation [BTU/hour] | 60.4 |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3at/af |
| 802.3af power supply description | Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz). |

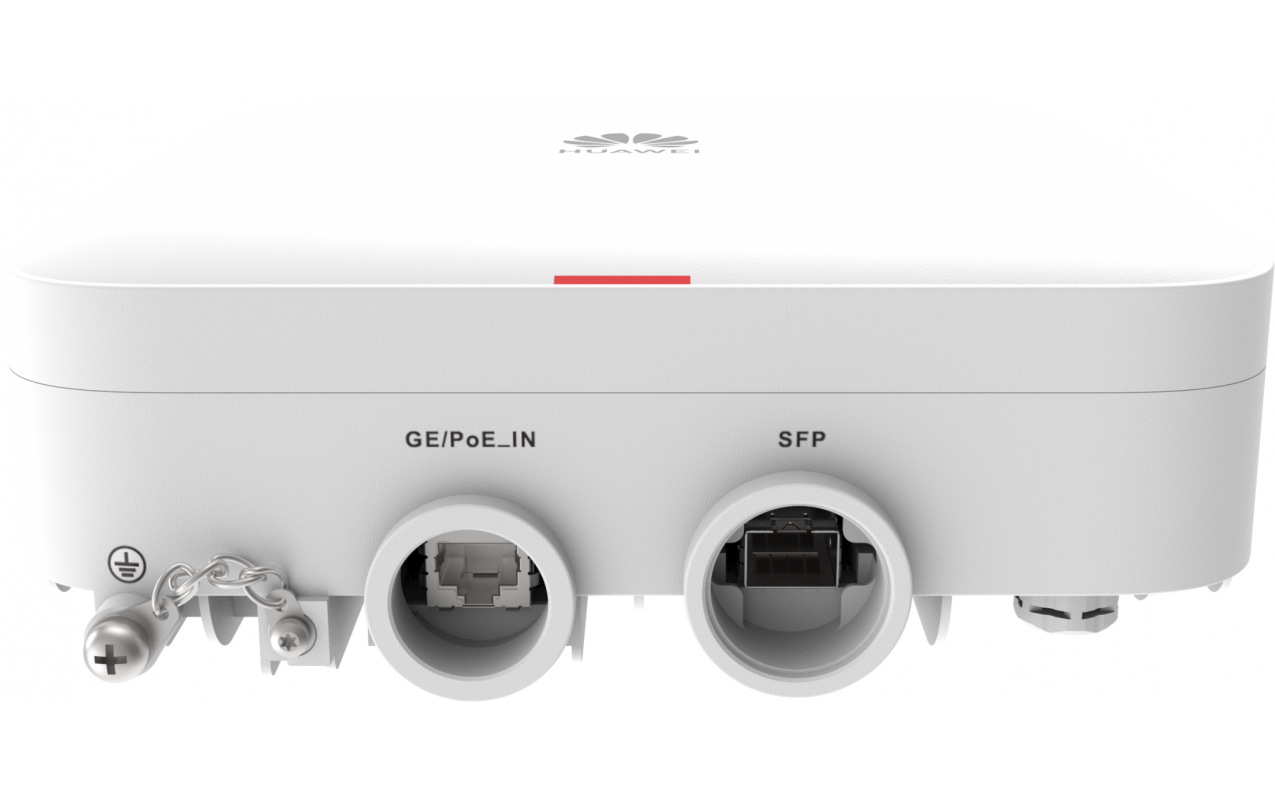

| Wired network port: The SFP optical port and GE/PoE_IN work as combo ports, and only one of them is working at a time. If both of them are enabled, the optical port takes effect preferentially. | |
| 802.3at power supply description | No function is restricted. |
| 802.3bt power supply description | No function is restricted. |
| Maximum transmit power [dBm] | 2.4G: 28 dBm (Max) |
| 5G: 27 dBm (Max) | |
| Note: This is the total MIMO radio power, which is the same as: | |
| 2.4G: 25 dBm/chain (Max) | |
| 5G: 24 dBm/chain (Max) | |
| BLE: < 10 dBm | |
| Beamwidth of the built-in directional antenna [degrees] | 2.4 GHz: |
| - Horizontal plane: 65° | |
| - Vertical plane: 40° | |
| 5 GHz: | |
| - Horizontal plane: 65° | |
| - Vertical plane: 20° | |
| Antenna gain [dBi] | 2.4G: 10 dBi 5G: 11dBi BLE: 5 dBi |
| Radio interface | Built-in directional antenna |
| Wi-Fi standard | 2.4G: 802.11b/g/n/ax |
| 5G: 802.11a/n/ac/ac Wave 2/ax | |
| MIMO spatial streams | 2.4G: 2x2 |
| 5G: 2x2 | |
| Operating frequency band | 2.4GHz,5GHz |
| Radio number | 2 |
| CPU | 4-core, 1.8 GHz |
| Memory | DDR4: 1 GB |
| Storage | NAND Flash 512 MB |
| Storage temperature [°C(°F)] | –40°C to +85°C (–40°F to +185°F) |
| Long-term operating temperature [°C(°F)] | –40°C to +65°C (–40°F to +149°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.) |
| Long-term operating relative humidity [RH] | 0% RH to 100% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| MTBF [year] | 91.9 |
| MTTR [hour] | 0.5 |
| Console port | BLE console |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Service port surge protection [kV] | 6 kA in common mode |
| Antenna port surge protection [kA] | N/A |
| Ground | Ground |
| BLE | BLE5.0 |
| 3G/LTE filte (ACC) | Supported |
WIRELESS ACCESS POINT HUAWEI AIRENGINE 5761R-11, 2P GB, SFP, 802.11ax, 2 +2 DUAL BANDS, DIRECTIONAL ANTENA, MANAGED, WIFI6 - include si PROTECTIE LA DESCARCARE ELECTRICA HUAWEI POWER LIGHTNING ARRESTER 20KA 1.8KV 220V; MODULATOR DE SEMNAL SIGNAL ARRESTER HUAWEI 6KA 100V 100W 1000MB/s RJ45; 2 buc BANDA ADEZIVA IMPERMEABILA 50MM 1.65MM 1.0M NEAGRA
Specificatii
| ID dataSPOT |
207785 |
|---|---|
| Cod |
HU02354DKSAS |
| Model |
AirEngine 5761R-11 |
| Producator |
Huawei |
| Garantie comerciala |
12 luni |
Specificatii
- ID dataSPOT
- 207785
- Cod
- HU02354DKSAS
- Model
- AirEngine 5761R-11
- Producator
- Huawei
- Garantie comerciala
- 12 luni
Specificatii
| ID dataSPOT |
207785 |
|---|---|
| Cod |
HU02354DKSAS |
| Model |
AirEngine 5761R-11 |
| Producator |
Huawei |
| Garantie comerciala |
12 luni |
